Платформа авиационной работы FTR 40 м тележка с телескопическим рычагом для продажи шасси


Поделиться:


Цена:122 300,00 $ - 122 900,00 $*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-20-2025 145537.52 $* 152814.67 $*
Aug-20-2025 144314.2 $* 151530.59 $*
Jul-20-2025 121077.84 $* 127131.38 $*
Jun-20-2025 141868.0 $* 148961.99 $*
May-20-2025 123523.46 $* 129699.35 $*
Apr-20-2025 139422.3 $* 146393.75 $*
Mar-20-2025 138199.88 $* 145109.14 $*
Feb-20-2025 136976.67 $* 143825.42 $*
Jan-20-2025 135753.40 $* 142541.22 $*

Характеристики



Product Description

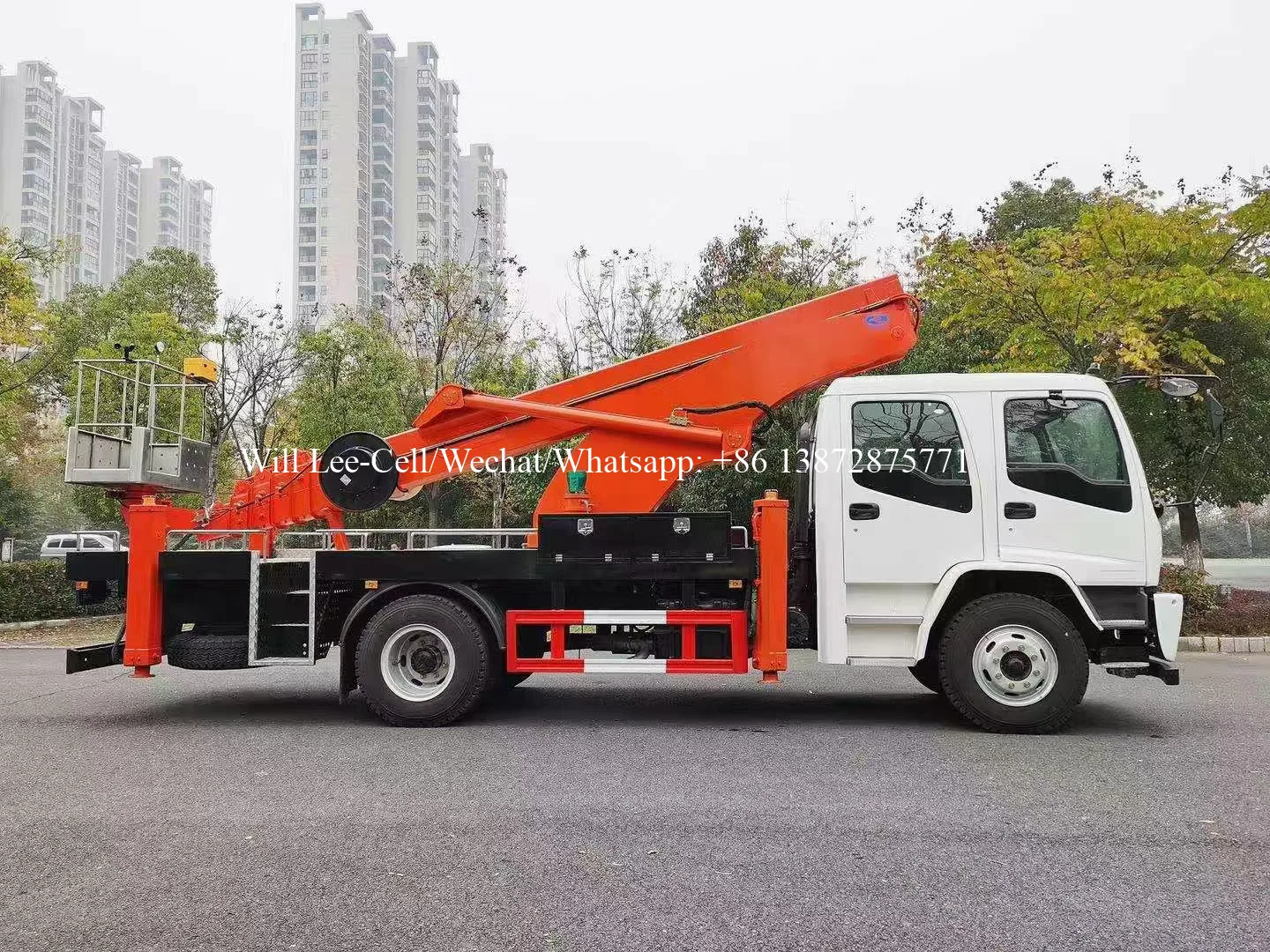

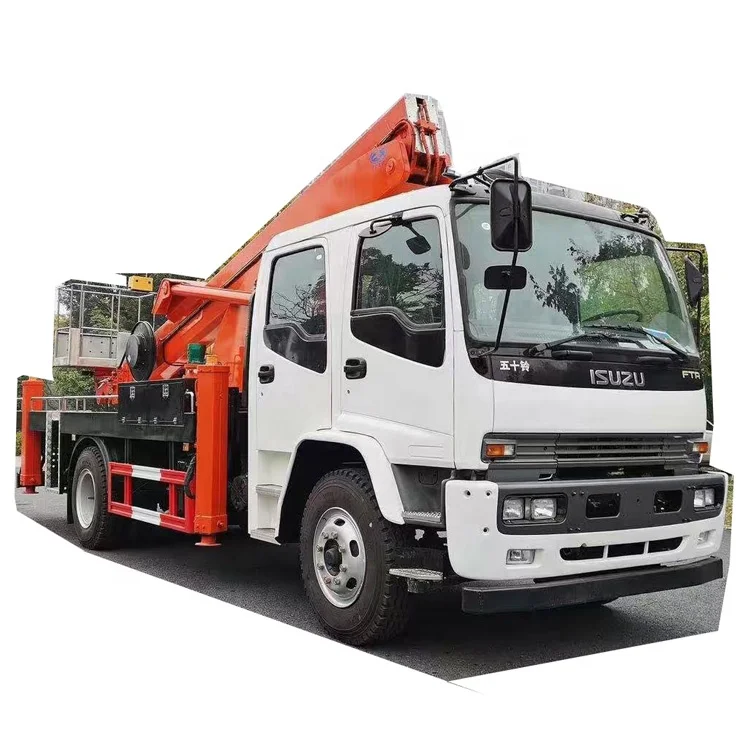

40M ISUZU FTR Bucket Truck Aerial Working Platform Truck
Welcome to buy the ISUZU 700P 32m high-altitude working vehicle bucket truck produced by our company. Its main features and advantages:
1. Operating system: the operation mode is the combination of manual and electric; the turntable and basket are operated by electric double-position; the basket is equipped with engine starting and stopping (safe and convenient to operate and save fuel).
The throttle cable of the engine is operated manually and the supporting leg is operated manually. Each supporting leg can be adjusted independently and the upper and lower vehicle are interlocked. The operation is safe and reliable.

2.40M 6-section telescopic boom, imported high-strength steel / 3 mm, 6-section boom, hexagon, boom rolling Angle, 0 ° to 80 °(relative to the horizontal), adopting the advanced turbine worm type retarding mechanism,(with self-lubricating and self-locking function) late maintenance can also be easily by adjusting the bolt location easily reach effect; The rotary mechanism adopts adjustable type, which is convenient for adjustment.

3. Supporting legs: front and rear x-type four hydraulic supporting legs, imported high-strength steel/3mm, supporting leg span longitudinal (mm) : 6500, transverse (mm) : 5950/6150, flexible operation, and can adapt to a variety of working conditions; All four legs are equipped with two-way hydraulic locks, and the rear legs are equipped with two yellow strobe lights.

4,Superstructure: high quality carbon steel and profile, 3 mm non-slip pattern steel plate, toolbox 1760*620*280; Mold pressing door,stainless steel door lock, Φ 20 stainless steel pipe fence, side protection is made of high quality carbon steel after cold bending profile; High strength, hand wash tank.

5. Hanging basket: the rated load of the hanging basket is ≤400Kg, the size of the hanging basket is 1050x720x1050, the external tie rod is mechanically adjusted and the safety belt is one pair.

6. Hydraulic system: hydraulic tank 100L; With liquid level gauge, with pressure gauge; 16MPa, gear pump quantitative pump, flow rate 50ml/r, 13 cylinders; With two-way balance valve or hydraulic lock for locking, to ensure safety .

7. Paint; Well-known brand paint

8. Logo: customized,clear, eye-catching and fadeless





Specification


item
value
Vehicle Name
ISUZU FTR 40M bucket truck aerial platform Vehicle
Chassis brand
ISUZU
GVW
19000KG
Curb weight
12870kg
Cab seat
2+3 person
Air Conditoner
Yes
Fuel type
Diesel
Engine Model
6HK1
Engine brand
ISUZU
Power
300HP
Emission Standard
Euro 3,Euro 5,Euro 6
Drive Type
4*2
Transmission
9 forward gear,1 reverse gear, Manual
Wheelbase(mm)
4500
Tyre Specification
11.00-20
Tyre No.(pcs)
6+1
Max Speed(km/h)
105
Paint
as your required
ABS
Yes
Upper parameter
Boom structure
6 section telescopic boom, internal oil cylinder drive
Material
3mm, imported high strength steel
Boom section
Hexagon
Rolling angle
0°-80°(Relative horizontal)
Max working height
40m
Max working radius at maximum working height
3m
Maximum working radius
20m
Working height at maximum working radius
20m
Rotation
Left/Right, 180° rotation
Basket
Rated load weight
≤400Kg
Dimension
L*W*H(mm):1860x720x1050,Unfold 3210X1150X1050
Leveling
Static, hydraulic and automatic leveling
Safety belt
one
Leveling device
Oil cylinder automatic leveling
Operation System
Ground leg
Manual, adjusted separately
Operation mode
Manual and electric,elector-hydraulic proportional speed control
Boom action
Electric control on the ground and in the basket, with controller and display, remote control for basket
Engine start/stop control
On the ground and in the basket
Engine accelerator
Manual cable or electronic throttle
