Product Description
HZ-2011

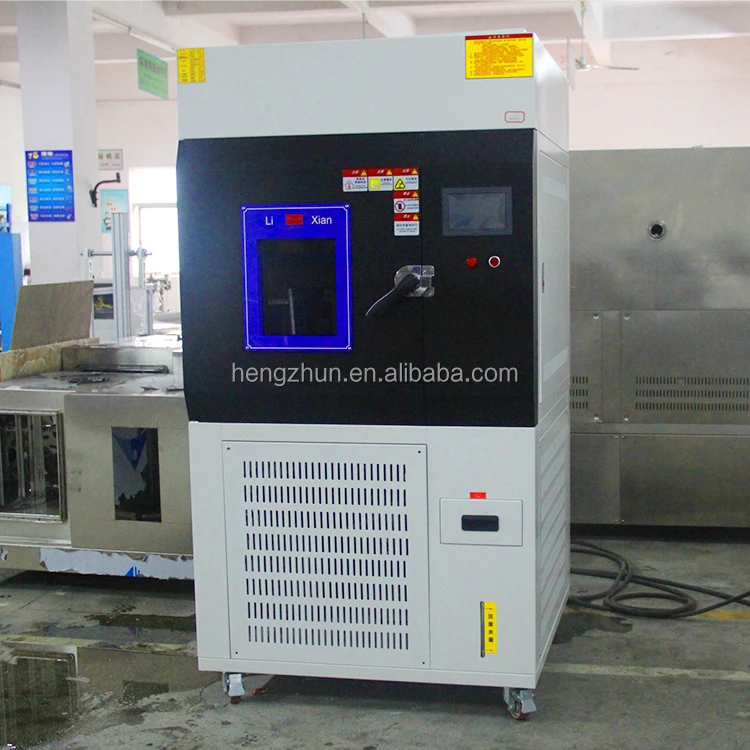

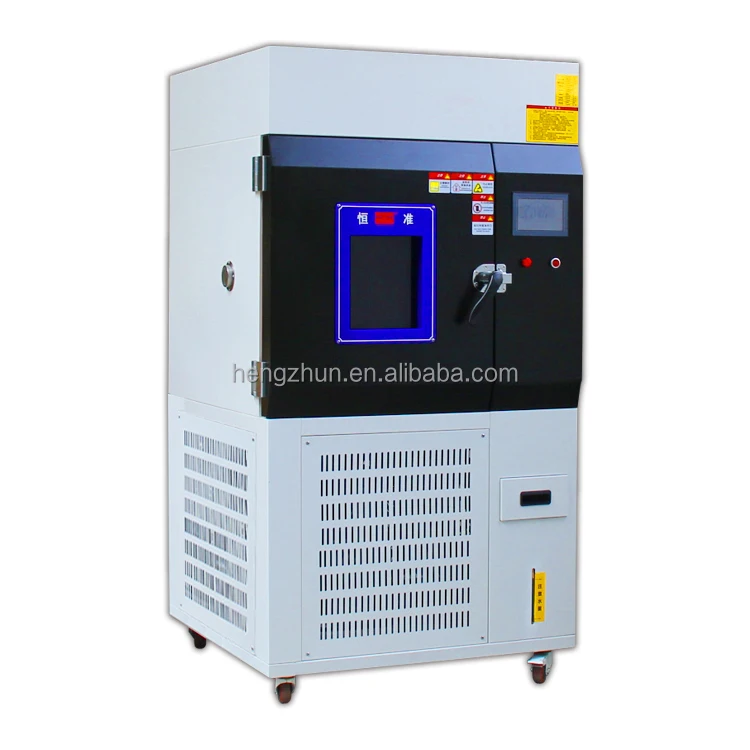

Xenon lamp aging testing machine is a comprehensive climate testing machine, in addition to climatic aging test, the light fastness of materials can be carried out to test, polymer materials exposed at simulated sunlight. It simulates the light,temperature, rainfall, condensing, humidity to test the materials; it can be used for choosing new materials, improving existing materials, or assessment of change in material composition;It is divided into air-cooled 2.5kw and water-cooled 6.5kw with
water-cooled machine.
water-cooled machine.
Product Use and Some Industry Testing Standards
Lixian Brand Xenon lamp aging test chamber is dedicated to the analysis and testing of rubber, plastic, paint, paint and other chemical materials, the main services: performance testing, aging testing, composition analysis, formula research and development.This section is mainly to list some of the test standards for the test of various industries reference.
Unversal Standard
IEC 68-2-9, Basic Environmental Testing Procedures
Unversal Standard
IEC 68-2-9, Basic Environmental Testing Procedures
ISO 4892-1, Plastics-Methods of exposure to laboratory light sources
ASTM G151,General Guidelines for Exposure of Nonmetallic Materials
ASTM G155, Xenon-Arc Test Apparatus for Exposure of Nonmetallic Materials
ASTM G155, Xenon-Arc Test Apparatus for Exposure of Nonmetallic Materials
GB/T 16422.1
Automobile Parts
SAE J2412, Accelerated Exposure of Automotive Interior Trim Components Using a Controlled Irradiance Xenon-Arc Apparatus SAE J2527, Accelerated Exposure of Automotive Exterior Materials Using a Controlled Irradiance Xenon-Arc Apparatus QB/T 2727, ASTM D7356, Standard Test Method for Accelerated Acid Etch Weathering of Automotive Clearcoats
Fabric
AATCC TM 16, Colorfastness to Light AATCC TM 169,Weather Resistance of Textiles: Xenon Lamp Exposure GB/T-8430, IS: 2454, Indian Standard- Method for Determination of Colour Fastness Artificial Light(Xenon Lamp) • GB/T 8427，GB/T 8431，GB/T 8432，GB/T 16991，FZ/T 75002，GB/T-8430, Textiles - Tests for colorfastness - Colorfastness to artificial weathering: Xenon arc fading lamp test ISO 105 B02, Textiles-Tests for colour fastness-Part B02: Colour fastness to artificial light: Xenon arc fading lamp test
Paiting
ISO 11341, Paints and varnishes - Artificial weathering and exposure to artificial radiatio ASTM D3451, Testing Coating Powders and Powder Coatings ASTM D3794, Testing Coil Coatings ASTM D6577, Standard Guide for Testing Industrial Protective Coating ASTM D6695, Xenon-Arc Exposures of Paints and Related Coatings GB 1865, JIS K 5600-7-7, Testing Methods for Paints - Part 7: Long-Period Performance of Film
Printing ink/Artist materials/Paper
ISO 11798, Information and documentation – Permanence of writing, printing & copying on paper ISO 12040, Graphic Technology - Prints and printing inks ASTM D6901, Standard Specification for Artists’ Colored Pencils ASTM F2366, Lightfastness of Ink Jet Prints Exposed to Window Filtered Daylight ASTM D4303 , Lightfastness of Artists’ Pigments ASTM D5010, Testing Printing Inks & Related Materials ASTM D3424, Lightfastness of Printed Matter
Electronic Products
GB/T 2423.24，
ASTM G151, General Guidelines for Exposure of Nonmetallic Materials（Reference）
ASTM G155, Xenon-Arc Test Apparatus for Exposure of Nonmetallic Materials （Reference）
Rubber and Plastic
ISO 3865, Rubber, Vulcanized or Thermoplastic – Methods of test for staining on contact with organic materials ISO 4665, Rubber,Vulcanized or Thermoplastic – Resistance to weathering ISO 4892-2, Plastics-Methods of exposure to laboratory light sources-Part 2: Xenon-arc sources ASTM D2565 , Xenon-Arc – Plastics for Outdoor Applications JIS K 7350-2, Plastics-Methods of exposure to laboratory light sources-Part 2: Xenon-arc sources DIN EN 513, Unplasticized polyvinylchloride (PVC-U) profiles for fabrication of
windows & doors GB/T 12831
windows & doors GB/T 12831
Specification
Model Number | HZ-2011 |
Warranty | 1 Year |
Customized support | OEM, ODM |
Place of Origin | China |
Brand Name | lixian |
Sensor | Platinum resistance; Pt100Ω/mv |
Power | Electronic |
Certificatiom | CE |
Humidity range | 65%~98% RH |
Power | 380v 3 phase |
Temperature range | RT+10~80 celsius |
Xenon lamp climatic chamber | vertical |
Testing room D*W*H | 500*600*500mm |
Spray time | 1~9999min, abjustable |
Testing room size | 500*600*500mm |
Spectral wavelength | 290nm~800nm(550w/m2) |
Light source | Full spectrum xenon lamp (air-cooled) |
Product Sales Point
Unique structure equipment, national patent certificate
Lixian Brand Xenon lamp aging test chamber, adopts planetary design, the lamp tube is perpendicular to the horizontal plane, located in the center of the test chamber, the style frame rotates around the lamp tube during the test, just like the regular operation of the solar system. The test area will be increased by at least 30%, and the test uniformity will be increased by at least 50%，more conducive to scientific repeatability of test data.
Imported xenon lamp , reliable quality
Lixian Brand Xenon lamp aging test chamber, adopts planetary design, the lamp tube is perpendicular to the horizontal plane, located in the center of the test chamber, the style frame rotates around the lamp tube during the test, just like the regular operation of the solar system. The test area will be increased by at least 30%, and the test uniformity will be increased by at least 50%，more conducive to scientific repeatability of test data.
Original imported compressor.
Lixian Brand Xenon lamp aging test chamber, using the original imported French "Tecumseh"
or German "bizier" compressor, the enclosed compressor runs stably and has a long service life.
Environmental refrigerant no pollution
Lixian Brand Xenon lamp aging test chamber
imported from USA, R404A or R23,
no pollution,
more environmental protection
Xenon lamp source wavelength is optional
Xenon lamp aging test box can support multi-channel band selection
0.3~0.57W/m2（at 340nm） 0.66~1.22W/m2（at 420nm） 35~70W/m2（at 300~400nm） 300~800W/m29(at 200~800nm） 500~1200W/m2（at 290~800nm）
Multiple protection mechanism
Lixian Brand Xenon lamp aging test chamber, with multiple protection mechanism, refrigeration system, temperature control system, pressure system, electric control system, a variety of safety guarantees, to ensure that customers use rest assured, use peace of mind.
With USB communication port
Controller Operate Manual
MAIN MENU Screen
MAIN MENU screen is organized into six sections. This MAIN MENU screen is the central gate way screen to move into lower parameter section.
Press the (MAIN) button to move to this MAIN MENU screen.
Description
GRAPH VIEW： Section for display recoding data graph and its setting for SD card operation.
OPER SCREEN ：Operation status section to start, display and set main operation parameters.
FUNCTION＆FIX Function :section to set parameters for additional operation function and mode
PROGRAM SET Program setting :section organized into 6 groups PESERVE SET Time: section to set current time and scheduled operation.
DISPLAY SET Display: section to set screen and sound concerned parameters.

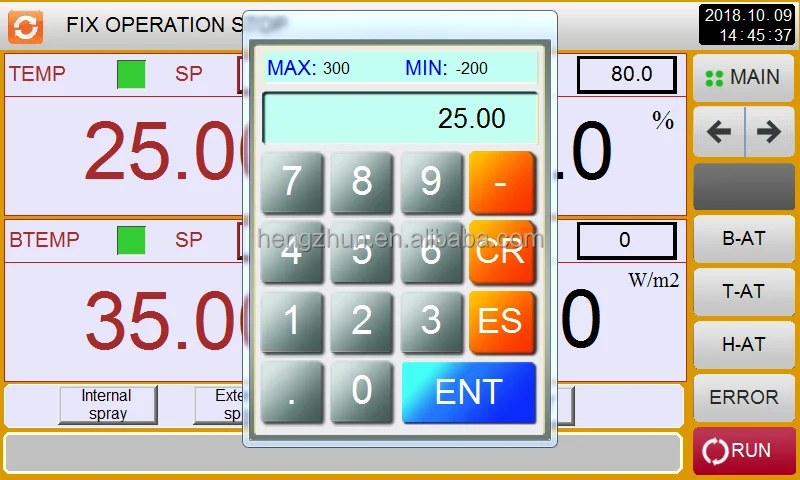

FIX Operation
①Displays current operation status (FIX operation RUN).
②Displays and Setting button for target Set Point of temperature.
③Displays Present Value of temperature.
④Display and set the blackboard temperature set point button.
⑤The current control type display, green as controlled object, grey is not becontrol object.
⑥The real time fault information display.
⑦The representation of the current intensity of illumination.
⑧It represents the current light intensity setting value.
⑨STOP button to stop FIX RUN operation. ☞ (RUN) button is displayed, when FIX STOP state.
⑩ ⑪The fault query menu button.
⑫Button to carry out Auto-Tuning process for humidity by target Set Point at.
⑬Button to carry out Auto-Tuning process for temperature by target Set Point at.
Command value, setting value, control output value display screen operation state.
① Displays DO signal status. Active RED Lamp indicates activating signal and relay ON state.
② Displays the current operating pattern / segment number.
③ Displays pattern repeat status.
④ Displays segment repeat status.
[Segment Repeat status : 000/000] The front number indicates total number for repeat process and the back number indicates completed repeat process number.
⑤ Displays the running process time / total process time.
⑥ Displays total process time.
⑦ Said lamp 1, 2, 3 switch.
[Pattern Repeat status : 000/000] The front number indicates total number for repeat process and the back number indicates completed repeat process number.
Product Details

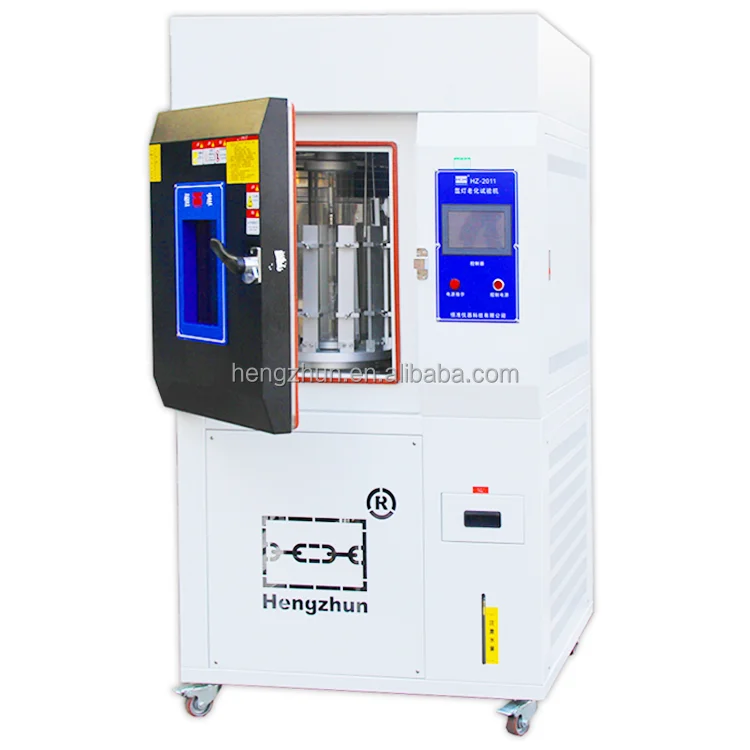

Description of equipment appearance
1.3 Layers of vacuum glass window
2.Painting or stainless steel chamber optional
3.WE!NVIEW touch screen controller from Taiwan
4.Power On-Off
5.Power indicator
6.Water filling nozzle
7.Water tank
8.France “Tecumseh”compressor
Structural Durabilities
The chamber and sample shelf are made of excellent 304 stainless steel, corrosion resistant, easy to clean and long service life，It is equipped with 50mm diameter lead hole, which can be connected by power or communication signal
Patent Design

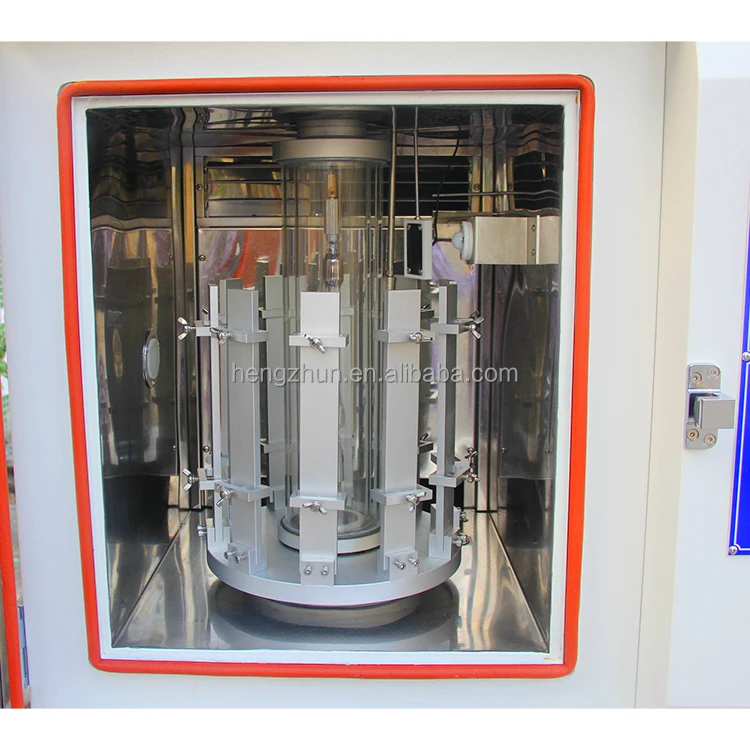

The equipment adopts the patented lighting structure, with high purity borosilicate quartz glass filter, the test area is more extensive, the test uniformity is more accurate.
Equilibrium Temperature
With overtemperature and overvoltage protection device, audio prompt function, automatically cut off the power to stop the operation of the equipment when the alarm is sent, to ensure safety
Powerful 4 systems to ensure the stable operation of your equipment
1.Compressor Cooling System
2.Water Tank Cycle System
3.Wire，Humidity Control System
4.Wind Cooling System
