Ножницы для резки тяжелых металлов ножницы

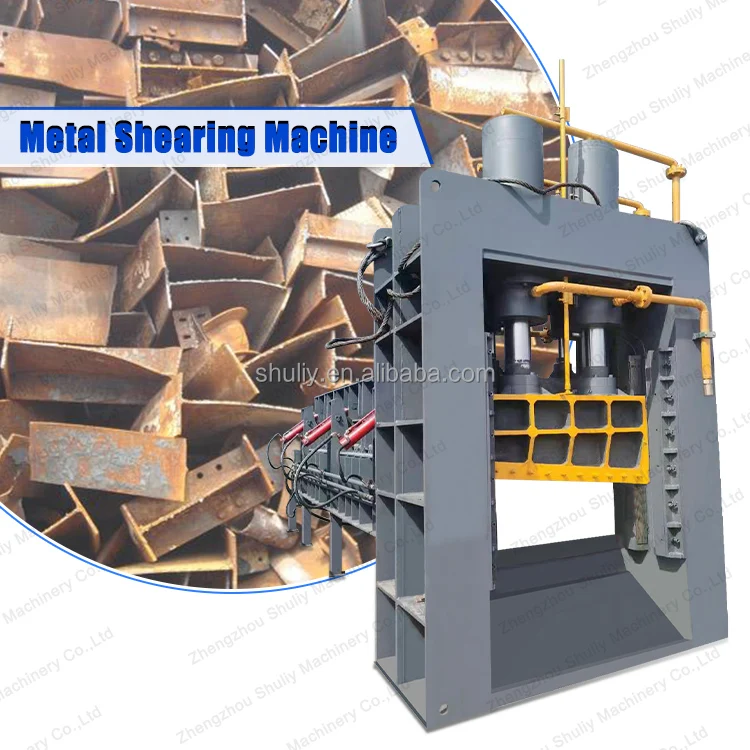

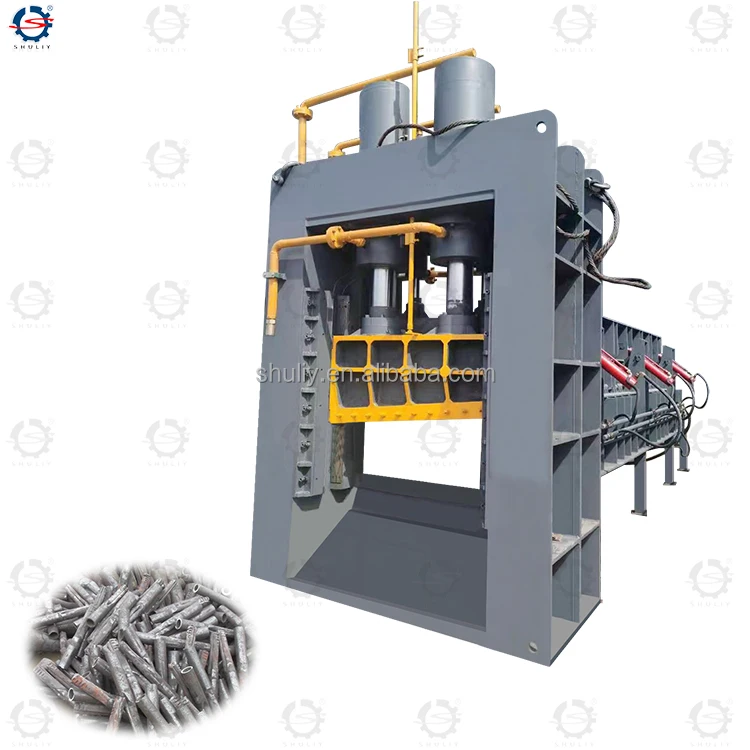

Heavy Metal Scrap Gantry Shear is a kind of applicable to heavy scrap steel shear processing equipment, used for thin steel, steel bar, steel plate, nickel plate, steel, round steel, steel pipe, copper scrap, scrap steel, scrap metal, light metal structure, stainless steel, metal press block, auto body, aluminum alloy, copper, iron, steel all kinds of scrap metal, such as cold cut, processed into qualified charge.

Work principle

Through the automatic feeding box, material grab to the feeding box, the waste by the conveyor belt automatically sent to the edge, through the speed regulating motor can adjust the feeding speed. Side extrusion cylinders are installed on both sides of the tank.If large waste, such as scrapped cars, can not be cut through the cutting edge of the gantry shear, it can be reduced by squeezing the side of the cylinder, and then sent to the cutting edge by the conveyor.

 Machine parameters:

Machine Features:

1. The gantry shearing machine adopts hydraulic transmission, compared with the mechanical transmission shearing machine, it has the advantages of small size, light weight, small inertia, low noise, smooth movement, easy to use, flexible, large cutting surface, convenient adjustment of the scissors mouth, etc., and is easy to achieve overload protection.
2. Gantry shear machine has manual, automatic, remote control function, the use of control is convenient, simple, scissors mouth in any position in the process of starting shear and stop, and can be cut according to the size of the material, arbitrary control of the size of the shear mouth, in order to achieve economic work efficiency.
3. The design of the gantry shears is fast. Under the condition of not increasing the power of the motor and the displacement of the oil pump, the speed is kept fast under the condition of (about 400-1600 tons) shearing. Restore the original shear force, thus improving the working efficiency nearly twice.
4. Gantry shears with a quick device. Under the condition of not increasing the power of the motor and the displacement of oil pump, a fast circuit is designed, which makes the shear speed increase from 8 times per minute to 12 times per minute (referring to The Times when the scissors open), and the working efficiency is nearly doubled.

Zhengzhou Shuliy Machinery Co., Ltd was found in 2000. Our company specializes mainly produce Recycling and environmentally friendly processing machines, cardboard shredder machine, egg tray making machine, woodworking machines, aerators, toothpicks making machines, feed processing machinery, charcoal processing machinery and so on. We not only provide customers with cost-effective products but also provide first-class service support and solutions. Shuliy has passed SGS, ISO, TUV, CE, BV and other certifications. Our products have been exported to countries and regions such as Arabia, India, Russia, Central Asia, Africa and Mongolia. Perfect after-sales service system allows you to worry-free.
