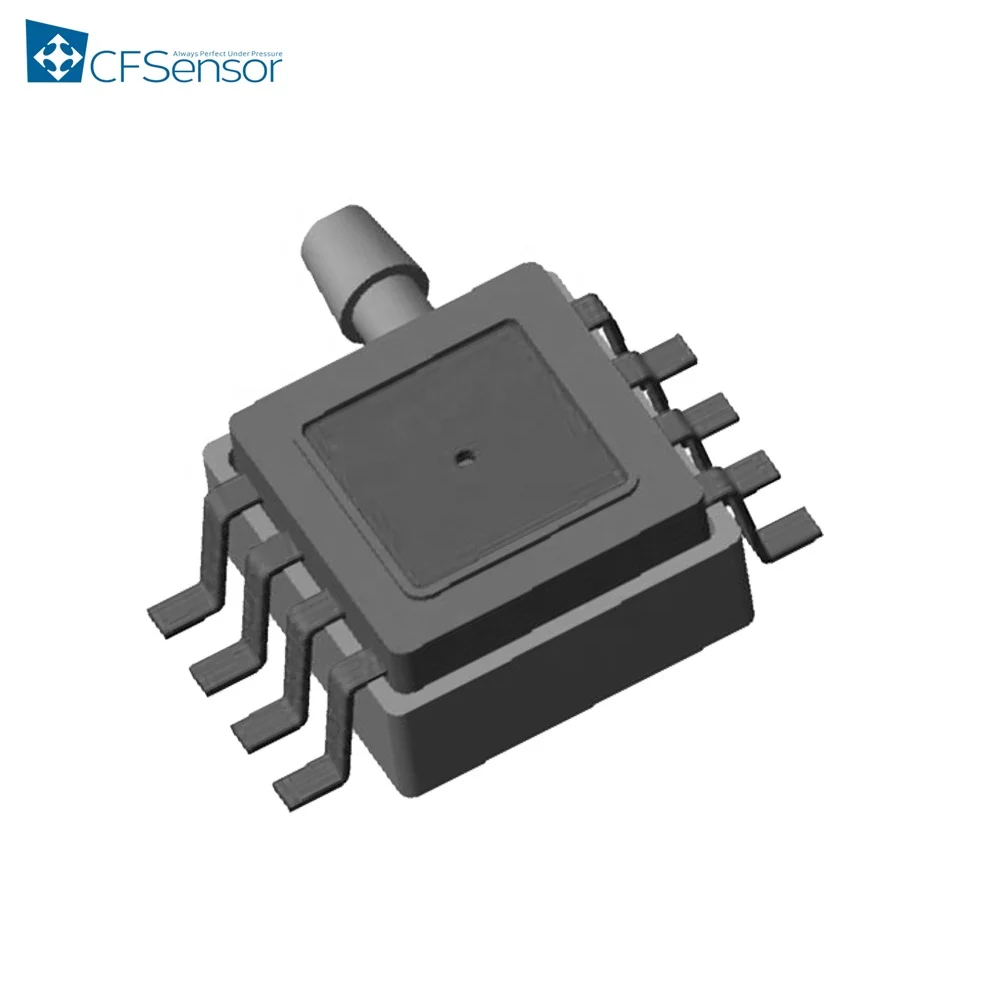

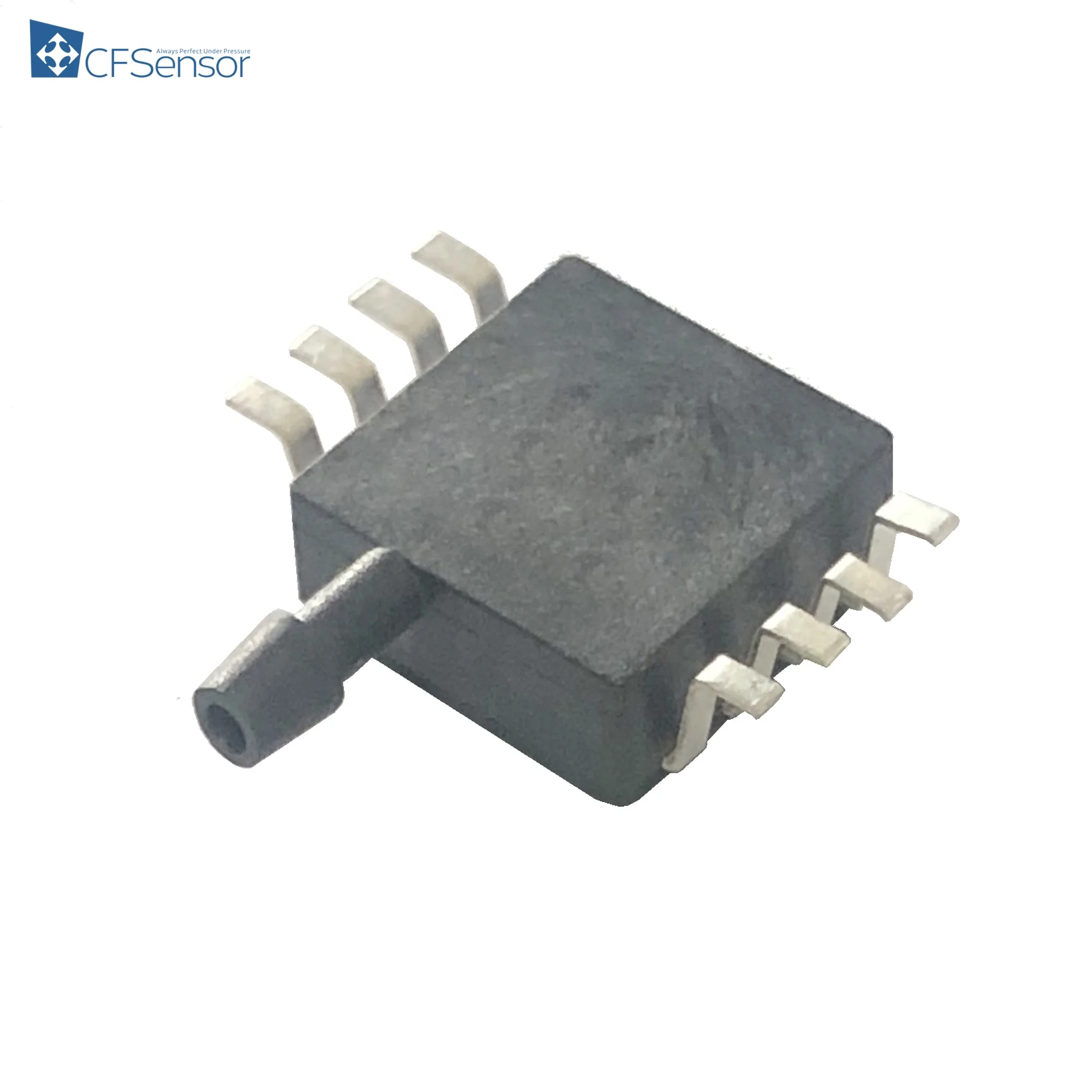

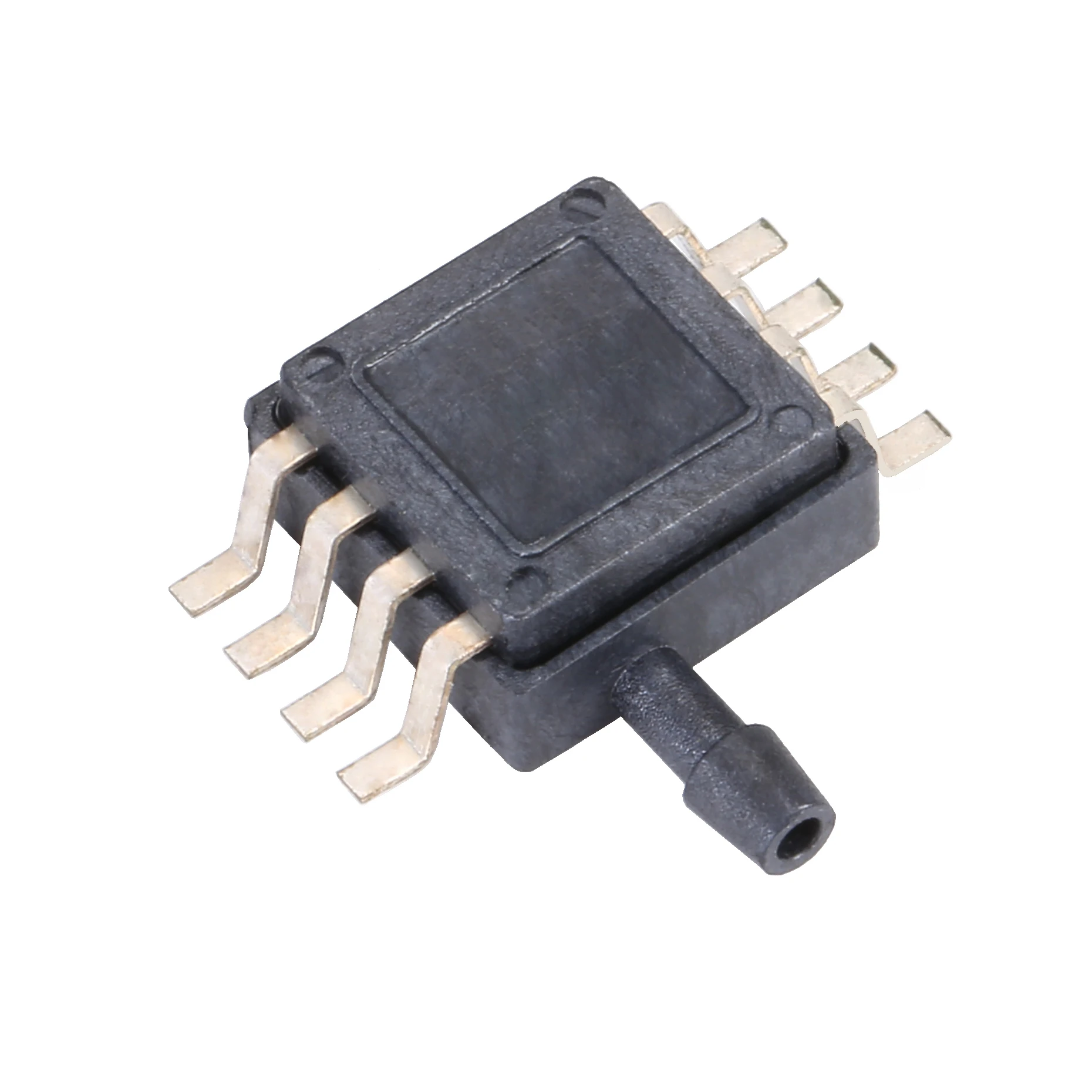

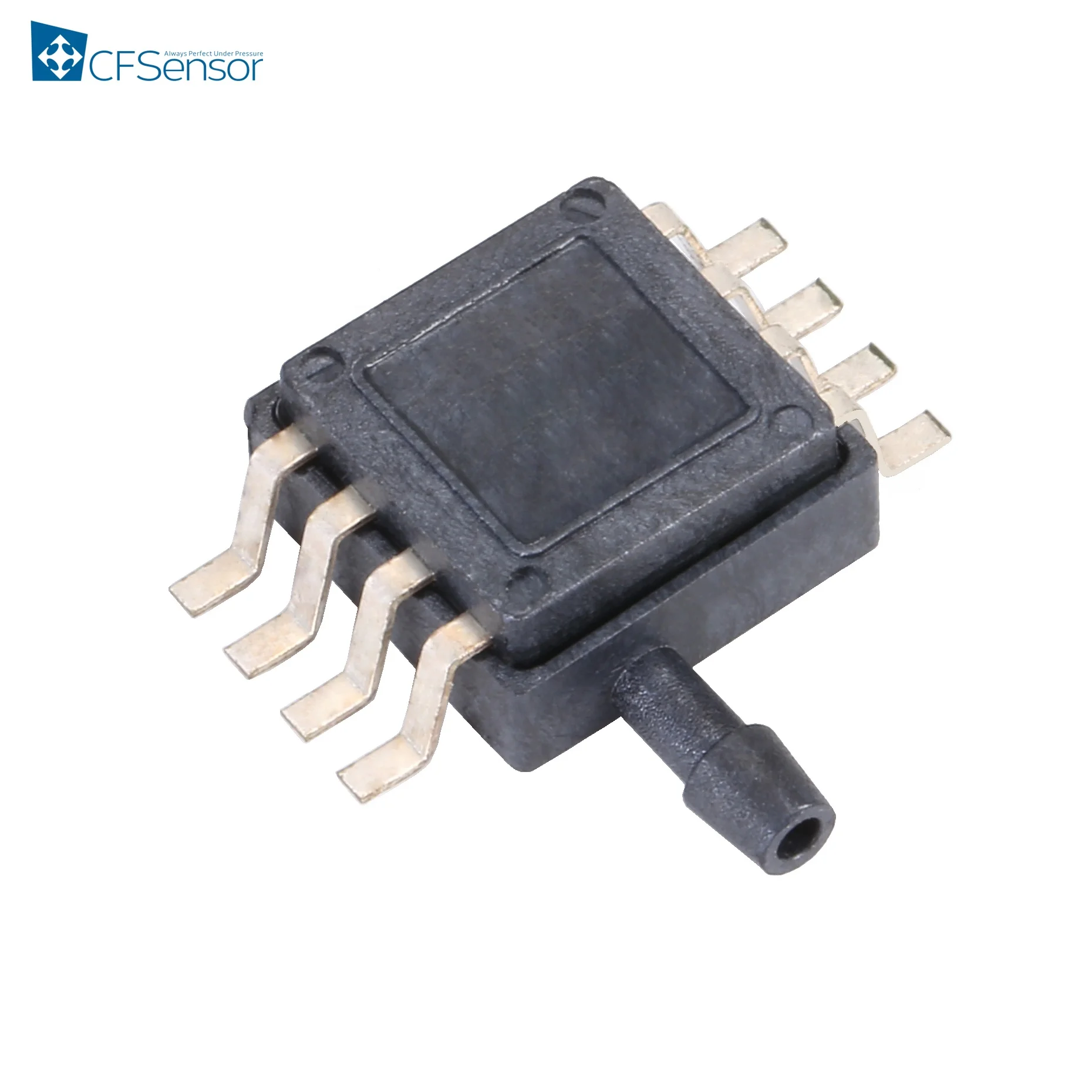

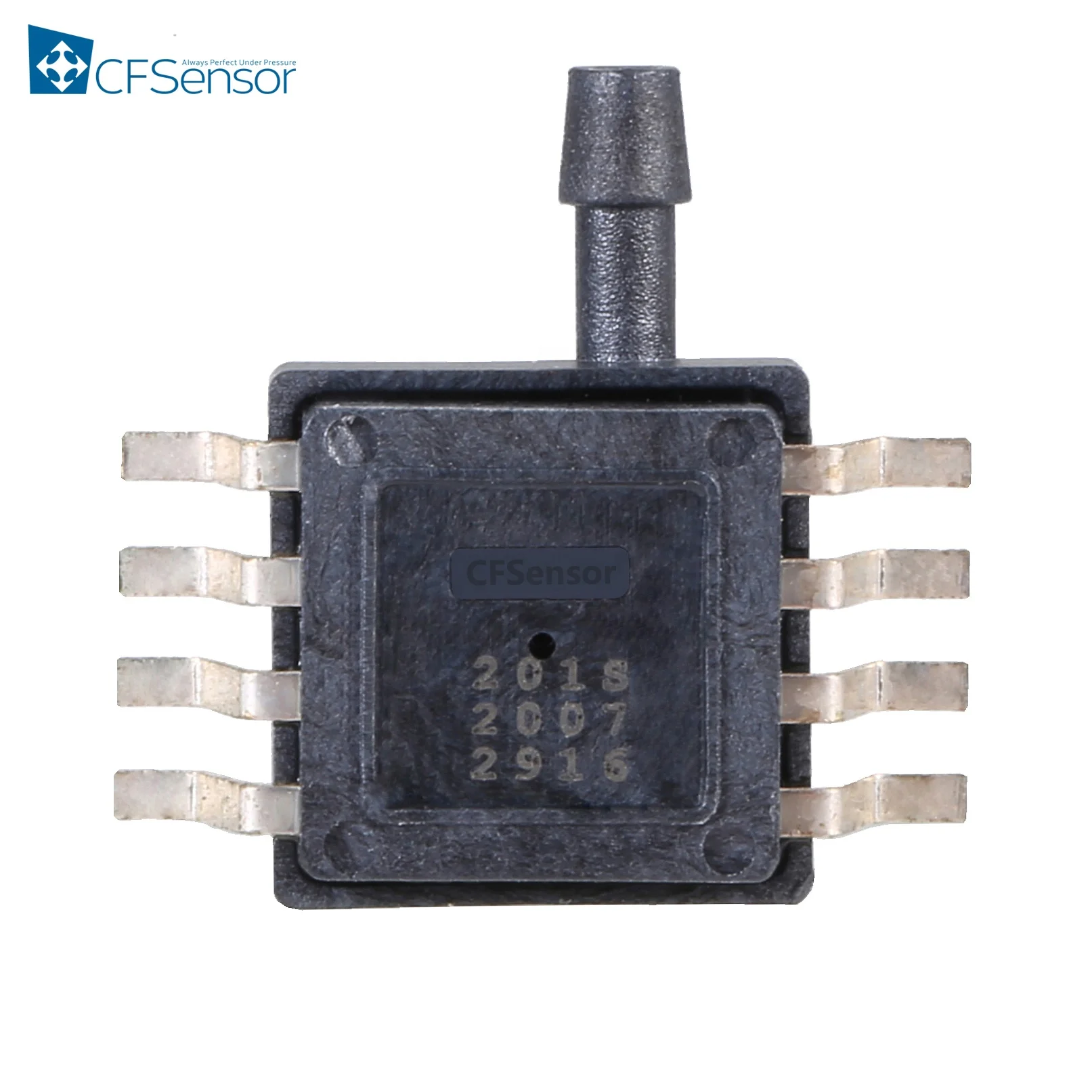

Датчик давления воздуха XGZP6887D для
- Категория: Test Instruments >>>
- Поставщик: WuHu,CFSensor,Co.,Ltd
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.79 $* | 0.49 $* |
| Aug-16-2025 | 0.5 $* | 0.85 $* |
| Jul-16-2025 | 0.24 $* | 0.12 $* |
| Jun-16-2025 | 0.68 $* | 0.75 $* |
| May-16-2025 | 0.81 $* | 0.66 $* |
| Apr-16-2025 | 0.9 $* | 0.43 $* |
| Mar-16-2025 | 0.9 $* | 0.64 $* |
| Feb-16-2025 | 0.52 $* | 0.6 $* |
| Jan-16-2025 | 0.46 $* | 0.6 $* |
Характеристики
Product Description
Feature
- Ranges: -100kPa~0kPa…1kPa~200
Optional 5V or 3.3V power supply
- Gage, Vacuum Type
- For Non-corrosive gas or air
- Amplified, Calibrated analog output (i2c is available)
- Temp. Compensated:0℃~+60℃(32℉~+140℉)
- Low Cost for high volume application
Application
For Medical and healthy equipment field, such as Blood pressure test and monitor, Patient Monitoring, Infusion and Syringe Pumps, Anesthesia Machines, Respirators and Ventilators, NPWT, DVT, COPD Treatment, catheter, Kidney dialysis, Cupping& Cosmetology, Massage device etc.
For Home appliance field, such as Refrigerator, Printer, Humidifier, Washer/Dryer, Coffee Machine, Cleaner, Robotic, Emergency Lamp,Sport Equipment etc.
For Other fields, such as air pump, emergency lamp, dust collector, HVAC and pneumatic device,automotive application etc.
Pressure Range (100kPa=0.1MPa=1bar≈14.5PSI≈750mmHg)
Pressure Range(kPa) | Model |
0 ~ 1 | XGZP6887D010HPG |
0 ~ 2.5 | XGZP6887D025HPG |
0 ~ 5 | XGZP6887D005KPG |
0 ~ 10 | XGZP6887D010KPG |
0 ~ 20 | XGZP6887D020KPG |
0 ~ 40 | XGZP6887D040KPG |
0 ~ 100 | XGZP6887D100KPG |
0 ~ 200 | XGZP6887D200KPG |
-100 ~ 0 | XGZP6887D100KPGN |
-30 ~ 0 | XGZP6887D030KPGN |
-20 ~ 0 | XGZP6887D020KPGN |
-1 ~ 1 | XGZP6887D001KPGPN |
-5 ~ 5 | XGZP6887D005KPGPN |
-40 ~ 40 | XGZP6887D040KPGPN |
-100 ~ 100 | XGZP6887D100KPGPN |
-100 ~ 200 | XGZP6887D200KPGPN |
Available for more custom pressure range such like -2.5~2.5kPa, 0~60kPa etc,. Please contact factory for tailor-made parameter | |
Dimension & Recommended Footprint (Unit:mm)
Electric Connection
1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 |
NC | GND | SCL | SDA | NC | VDD | NC | NC |
NOTE:
1,N/C Pins must be left floating
2,Soldering of lead Pins:250’C for 5 sec max.
3,Please add 0.1uf capacitor between VDD and GND
Order Guide
Notes
1. Implement ESD protection during soldering and assembly.
2. Overload voltage(6.5Vdc) or current(5mA) may burn the ASIC.
3. The medium must be compatible with the pressurized parts.
4. Please contact us for special request on parameter and application.
Warranty
CFSensor warrants its products against defects in material and workmanship for 12 months from the date of shipment. Products not subjected to misuse will be repaired or reploced. CFSensor reserves the right to make changes without further notice to any products herein. CFSensor makes no warranty, representation or guarantee regarding the suitability of its products for any particular application. CFSensor does not assume any liability arising out of the application or use of any product or circuit and specifically disclaims, and all liability, without limitation consequential or incidental damages. The foregoing warranties are exclusive and in lieu of all other warranties, whether written, oral, implied or statutory. No implied statutory warranty or merchant ability or fitness for particular purpose shall apply.
