Модифицируемые ws2811/ucs1903 35 мм 9 светодиодов/пиксельные светодиодные развлекательные огни DC12/24
- Категория: LED Point Lights >>>
- Поставщик: Shenzhen,Kaixinliang,Technical,Co.,Limited
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.66 $* | 0.97 $* |
| Aug-15-2025 | 0.33 $* | 0.34 $* |
| Jul-15-2025 | 0.1 $* | 0.62 $* |
| Jun-15-2025 | 0.45 $* | 0.71 $* |
| May-15-2025 | 0.82 $* | 0.84 $* |
| Apr-15-2025 | 0.48 $* | 0.19 $* |
| Mar-15-2025 | 0.96 $* | 0.97 $* |
| Feb-15-2025 | 0.47 $* | 0.31 $* |
| Jan-15-2025 | 0.67 $* | 0.22 $* |
Характеристики
Product Description
DC12/24V addressable ws2811/ucs1903 35mm 9leds/pixel led amusement lights
1. Individually control: 1PCS LED pixle & 1IC UCS1903
2. Color and effect: addressable lights you can set to any color, or animate, like running water,chasing
and scanning etc. depending on the different installation methods may compose different dynamic
effect of different color's character and design
3. Combination: Plastic shell(thermostability, cold-resistant, resistant to UV) and PCB board, connector cables...
4. Waterproof: Yes IP66, with silicon glue injection waterproof protection.
5. Installation: Easy to install, you'd better drill the hole about 19 - 40mm.
6. With features of high brightness, low power dissipation, long lifespan, low Voltage, low decline, colorful.
7. Power supply: You must use a 12V DC power supply to power this pixel, do not use higher than 13V
or you can destroy the entire pixel.
8. Connetors: 3PIN JST female and male connectors, also can be waterproof connectors, DAT, DC12V+, GND-,
each led pixel is seperate, you can connect them one by one via male and female connectors easliy.
9. Factory sales directly, good quality and price, offer 2 years warranty and quikly after-sale service.
2. Color and effect: addressable lights you can set to any color, or animate, like running water,chasing
and scanning etc. depending on the different installation methods may compose different dynamic
effect of different color's character and design
3. Combination: Plastic shell(thermostability, cold-resistant, resistant to UV) and PCB board, connector cables...
4. Waterproof: Yes IP66, with silicon glue injection waterproof protection.
5. Installation: Easy to install, you'd better drill the hole about 19 - 40mm.
6. With features of high brightness, low power dissipation, long lifespan, low Voltage, low decline, colorful.
7. Power supply: You must use a 12V DC power supply to power this pixel, do not use higher than 13V
or you can destroy the entire pixel.
8. Connetors: 3PIN JST female and male connectors, also can be waterproof connectors, DAT, DC12V+, GND-,
each led pixel is seperate, you can connect them one by one via male and female connectors easliy.
9. Factory sales directly, good quality and price, offer 2 years warranty and quikly after-sale service.
Product Name | 35mm led pixels | ||||
LED Chip | Epistar SMD 5050 RGB LED chip | ||||
IC Chip | UCS1903 | ||||
Input Voltage | DC12V/24V | ||||
Watts | 2.16W/PCS | ||||
Cover Color | Transparent cover | ||||
Connectors | 3PIN JST, also can be waterproof connectors | ||||
Drill hole diameter: | 38mm | ||||
LED Qty | 9LEDs/pcs | ||||
Cable Length | 10cm usually, also can be customized | ||||
Certification | CE, RoHS | ||||
Connection
new high brigtness dc12v 9leds/pcs amusement led pixels light 45mm
DMX control: LED Pixels+LED pwer supply+DMX Controller+DMX decoder
LED controller: T- series SD card controller, RF remote controller, DMX controller, Arduino...(offline control/ PC online control)
LED power suppply: Meanwell power supply, T- series, A- series power supply...
(waterproof / non-waterproof)

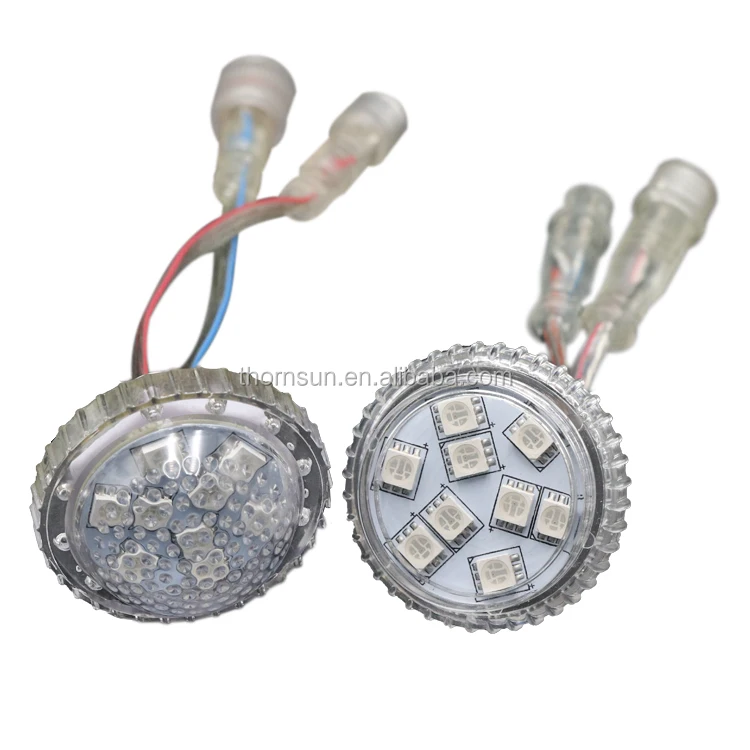

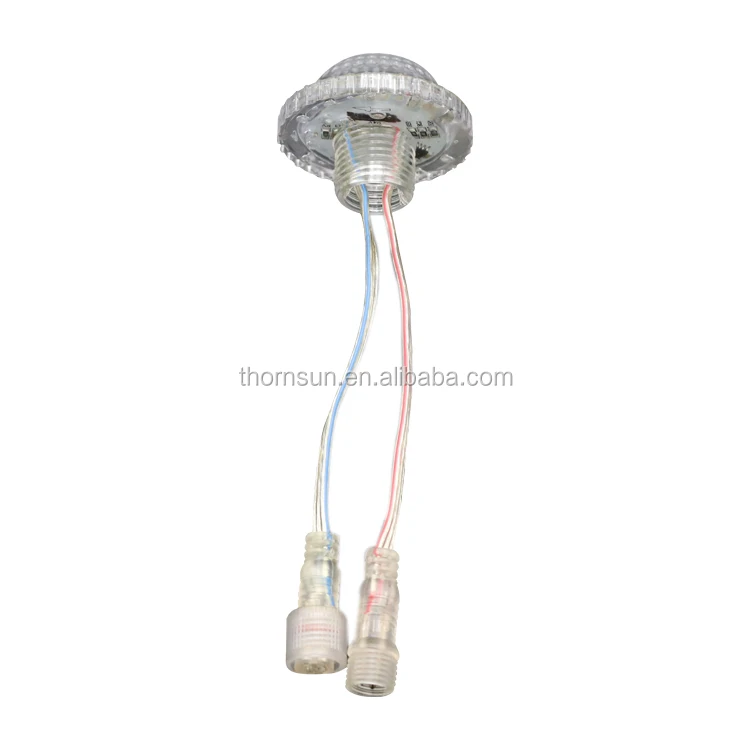

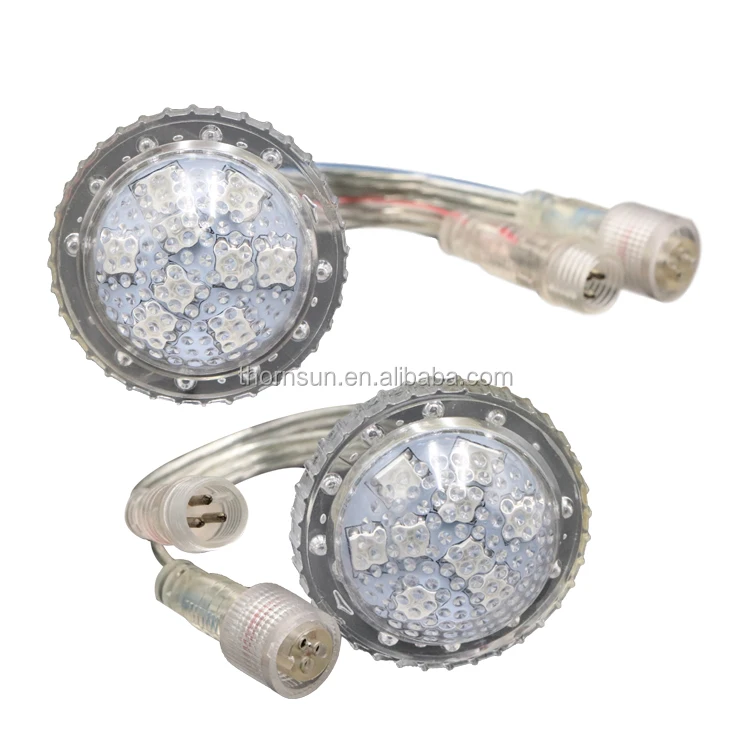

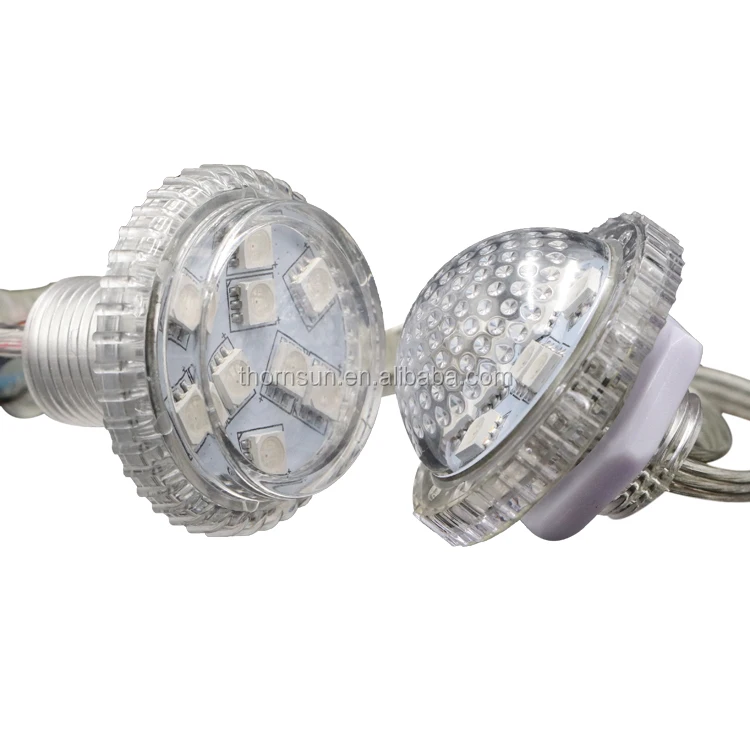

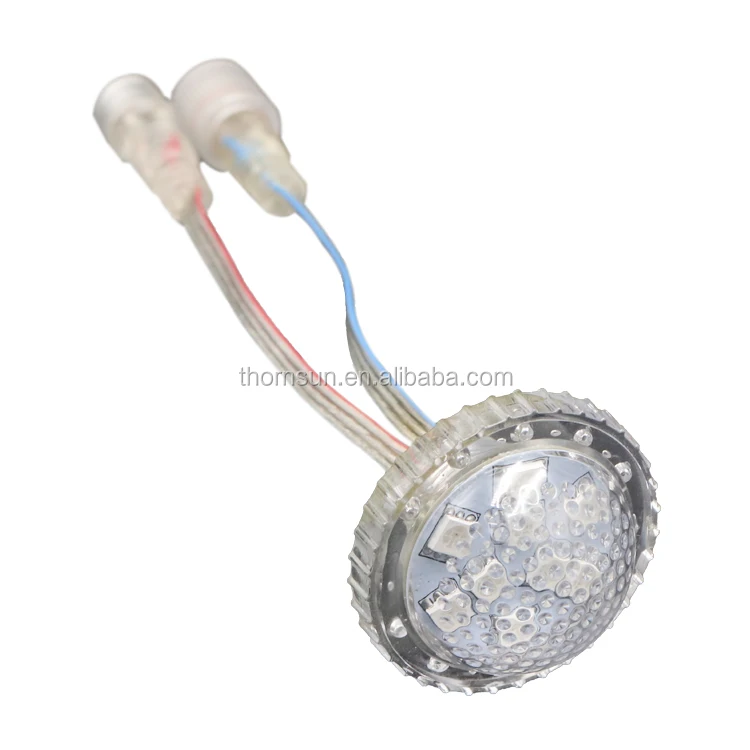

Detailed Images
new high brigtness dc12v 9leds/pcs amusement led pixels light 45mm
38mm led pixels, with 9LEDs/pcs--Transparent Cover, 3PIN JST connectors
Related Products
We also have similar bigger size:
35mm 6LEDs/pcs, 26mm 3led/pcs
Application
Title goes here.
1. channel letter
2. Advertisements sign
3. KTV,Disco
4. LOGO, advertising billboard,exposed luminous characters,
5. LED display screen, painted screen
6. Stage, Disco
7. amusement project , Roller Coaster and Theme Park
8. amusement rgb pixel led point light lunapark ferry fairground ride
