Горячая Распродажа оборудование для литья ювелирных изделий мини автоматическая машина вакуумного Золото Платина Серебро вакуумное литье с

Описание и отзывы

Трекер стоимости

Характеристики

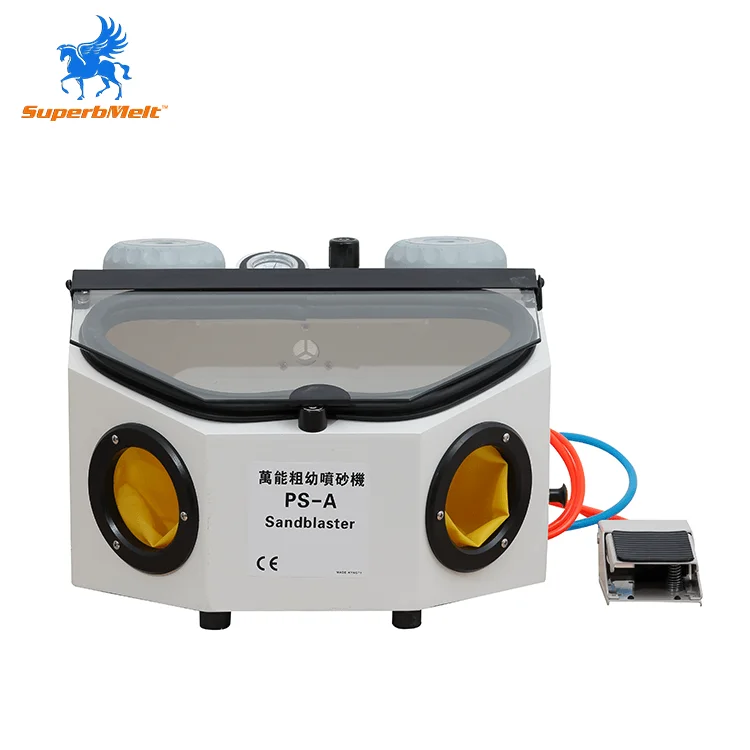

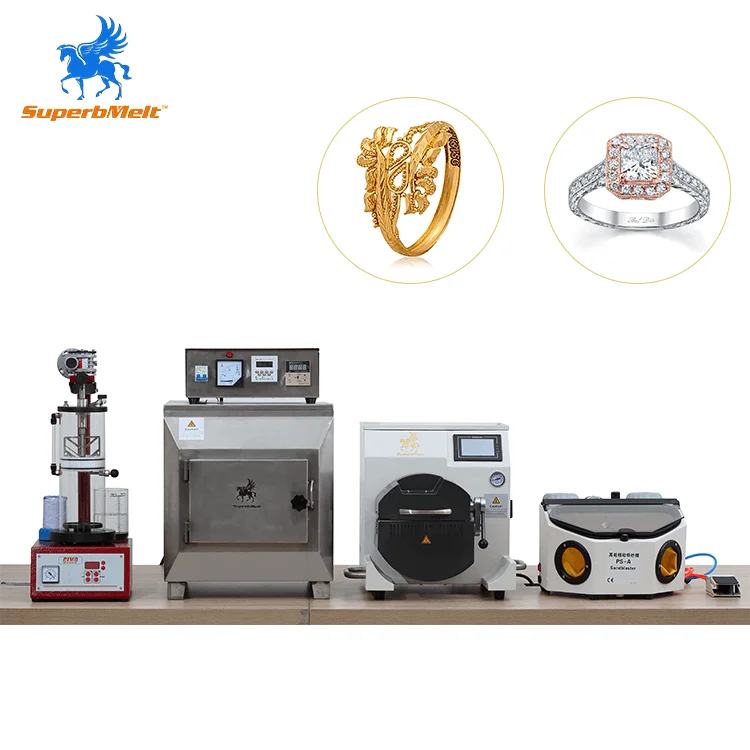

1. Wax beads  2. Wax injector  3. Jewelry Wax Mould   4. Mini Vacuum Investment Powder Mixer   5. Flask 6. Burnout Furnace   7. Metal     8. Mini Vacuum Casting Machine    9. Sandblaster    10. Finished Product

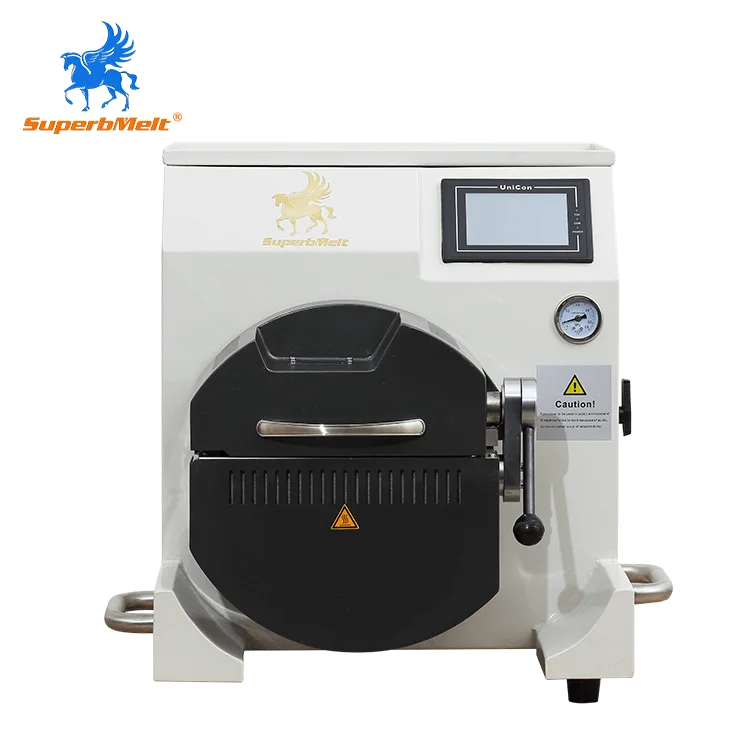

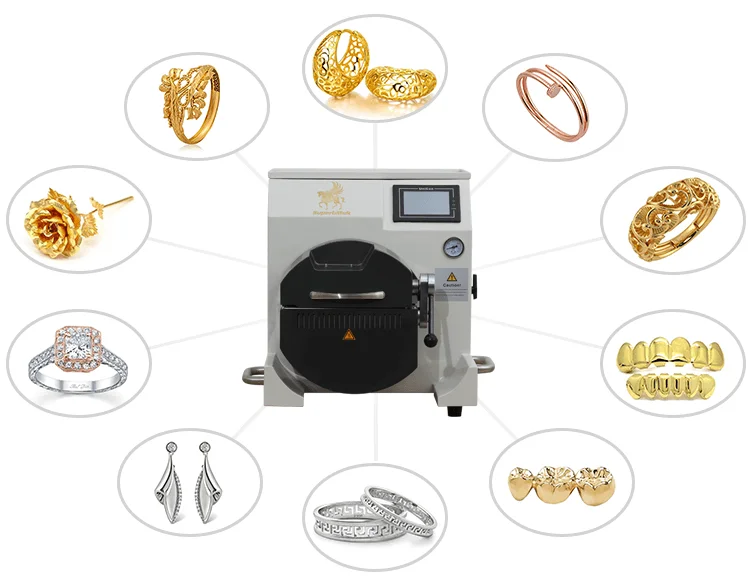

Jewelry vacuum casting machine is customized to melt and cast 1-150 g jewelry gold, platinum, silver and other precious metal.

SuperbMelt jewelry casting kits are designed of small quantities of jewelry casting, jewelry sample making, dental, and some precious metal DIY casting;











What are the advantages of our machines in comparison with traditional methods?



























Parameters for vacuum casting machine



Mini jewelry casting machine parameter



Model	SPB-MVC150
Power Requirement	220V
Power Consumption	4.5kw
Maximum Temperature	2600 ℃
Melting Method	Induction Heating
Capacity	150g Gold
Application	Gold, silver, platinum, palladium, steel, copper
Control System	PLC
Melting Time	5-6mins
Gas Pressure	Max. 3.5 MPa
Pressurized Atmosphere	Argon
Ultimate vacuum	-0.1 MPa
Type of Crucibles	Quartz crucible
Cooling System	Water cooling
vacuum pump	built-in
automatic vacuum function	Y
Flip function	Automatic flip and vacuum casting

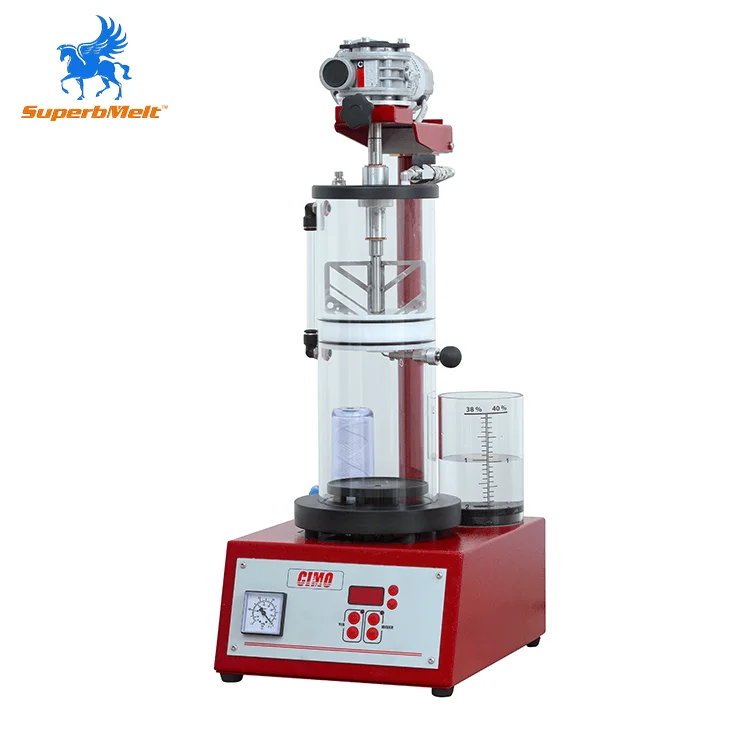

Mini vacuum investment powder mixer parameter



Model	SPB-MIPM1
Power source	220V
Power	350w
Dimension	540*510*390mm
Weight	18kg

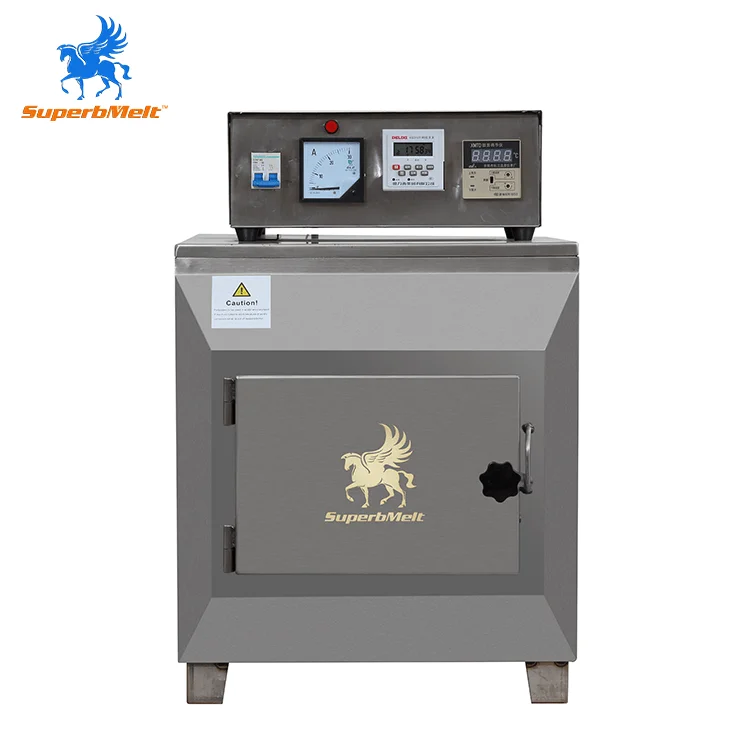

Mini wax burnout furnace parameter



Model	SPB-MWF1
Power source	220V
Power	5kw
Chamber size	300*200*120mm
Max Temperature	1200 ℃
Weight	60kg
