Характеристики

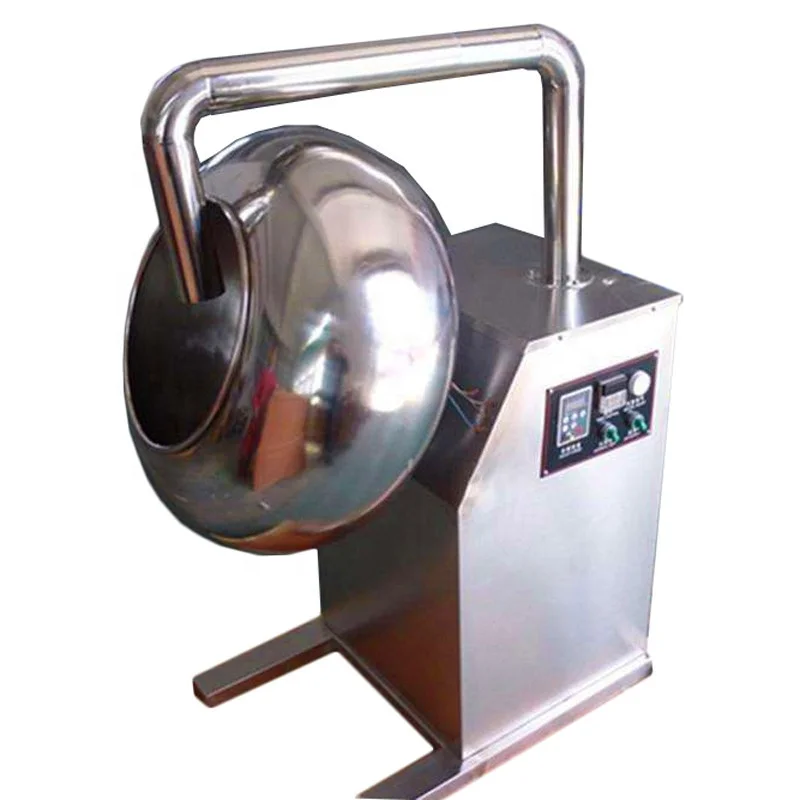

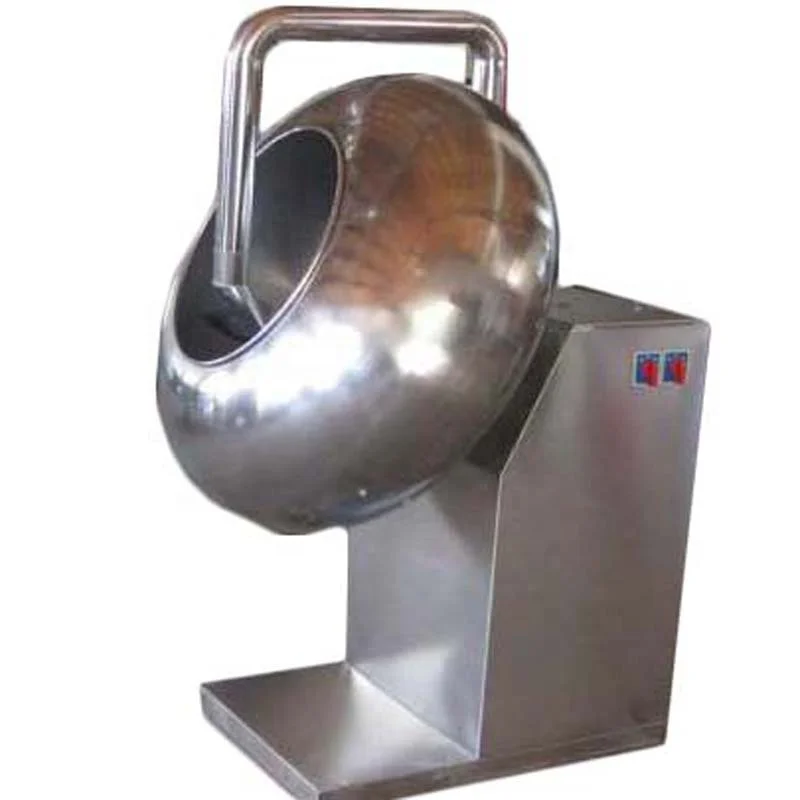

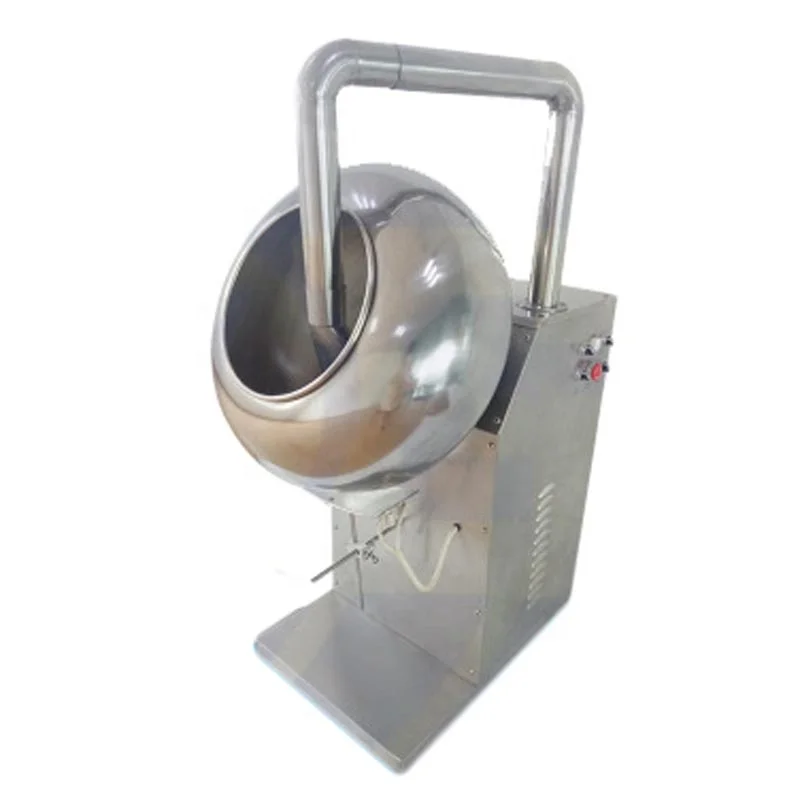

Product Overview
Main Structure and working principle:
This machine consist of main body, worm wheel box,,stainless steel coating pan,heating device,hot air&common blower,electrical controlling system.The transmission process that the motor drives the worm wheel and worm via triangle belt to make the coating pan rotate. Then the material revolves up and down in the coating pan, so that even mixing, pelletizing and polishing can be completed well.
Application:
Coating machine is mainly used for tablet/pill,chocolate,sugar,peanuts,almond,nuts,candy,beans,
seeds ect polishing, and also for spice flour powder spraying, shaping ball, mini-pill, pellet , mixing and polishing in the industry of food and chemicals etc.
FEATURES AT A GLANCE
(1).Made of stainless steel 304 materials,GMP standard.
(2).Multi functional uses,suitable for tablet/pill,chocolate,sugar,peanuts,
almond,nuts,candy beans,seeds ect
(3).The speed can be adjust according to different raw materials
(4).In the machine has air blower can blow hot air to dry the end products, so will not sticky with each other.
(5).It is available for coating sugar, chocolate, dragee, puree,starch paste ,syrup on the food appearance
(2).Multi functional uses,suitable for tablet/pill,chocolate,sugar,peanuts,
almond,nuts,candy beans,seeds ect
(3).The speed can be adjust according to different raw materials
(4).In the machine has air blower can blow hot air to dry the end products, so will not sticky with each other.
(5).It is available for coating sugar, chocolate, dragee, puree,starch paste ,syrup on the food appearance
Right elevation
Left elevation
Front elevation
PRODUCT SPECIFICATIONS
Model | MSB300 | MSB400 | MSB600 | MSB800 | MSB1000 | MSB1250 | MSB1500 |
Pan diameter (mm) | 300 | 400 | 600 | 600 | 600 | 600 | 1250 |
Speed (r/min) | 0-60 | 0-60 | 0-46 | 0-32 | 0-32 | 0-28 | 0-24 |
Main motor power (KW) | 0.12 | 0.12 | 0.75 | 1.1 | 1.5 | 2.2 | 5.5 |
Blower power(W) | 40 | 40 | 60 | 200 | 200 | 550 | 750 |
Heating wire power (KW) | 700 | 700 | 1000 | 3000 | 3000 | 4000 | 6000 |
Capacity (kg/batch) | 3-5 | 5-7 | 10-25 | 30-50 | 50-70 | 80-150 | 150-300 |
Dimension(mm) | 550*400*850 | 550*400*850 | 700*600*1100 | 900*800*1400 | 900*1000*1500 | 1200*1250*1600 | 1700*1500*1950 |
Weight(kg) | 30 | 30 | 85 | 205 | 220 | 300 | 350 |

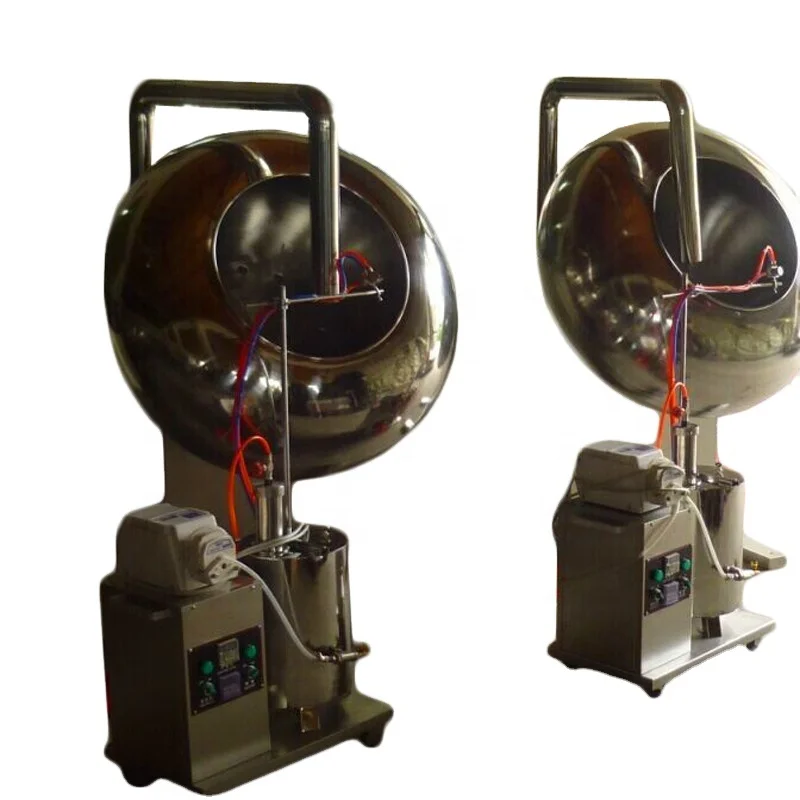

Sprayer System Pictures
