Поставщик кабельных лотков из проволочной сетки нержавеющей стали
- Категория: Cable Trays >>>
- Поставщик: Zhenjiang,Besca,Electric,Manufacturing,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-20-2025 | 6.43 $* | 6.44 $* |
| Jul-20-2025 | 5.36 $* | 5.89 $* |
| Jun-20-2025 | 6.96 $* | 6.32 $* |
| May-20-2025 | 6.44 $* | 6.73 $* |
| Apr-20-2025 | 5.65 $* | 5.48 $* |
| Mar-20-2025 | 6.44 $* | 6.8 $* |
| Feb-20-2025 | 6.95 $* | 6.93 $* |
| Jan-20-2025 | 6.54 $* | 6.36 $* |
Характеристики
Certifications
All of the steel cable ladder have passed UL,CUL,IEC,CE,SGS,NEMA etc,.certification. so our cable ladder tray can fit in American/European/South African/Asian/Australia standard.very high quality with better price.
For more details of the certification file, you can contact us at sales10@chinabesca.com.
For more details of the certification file, you can contact us at sales10@chinabesca.com.
Founded in 1996, Besca has obtained certifications including UL, cUL, CE, IEC 61537-2006 and NEMA VE 1-2009.
Installation Instructions
BESCA Wire Mesh Cable Tray
Besca Wire Mesh Cable Tray systems are produced from ASTM A510 high strength steel wires. A fully automated welding process
produces continuous wire mesh, which is formed into our Wire Mesh Cable Tray system.
produces continuous wire mesh, which is formed into our Wire Mesh Cable Tray system.
1. Wire meshcable tray straight(BM*) | 2. Connector assembly(WB4CA) | 3. Faster connector(WB-TCL) | 4. Straight bracket(BM*-SB) | 5. L Bracket(BM-LB) |
6. U Bracket(BM-UB) | 7. Splice bar(short)(BM-SBS) | 8. Splice bar(long)(BM-SBL) | 9. Splice plate(short)(BM-SPS) | 10. Splice plate(long)(BM-SPL) |
11. Tee splice bar(BM-TSB) | 12. Hold dowm plate(BM-HDP) | 13. Wall bracket(BM-WB) | 14. Overhead hanger clip(BM-OHL) | 15. Radius shield(BM*-RS) |
16. Drop-out(BM-DO) | 17. Barriers(BM*-B) | 18. Under floor stand(BM-UFS) | 19. Grounding clamp(BM-GC) | 20. Conduit connector(BM-CC) |
21. Blind end(BM*-BE) | 22. Pan(BM-P) | 23. Wall termination kit(BM-WTK) | 24. Angular bolt cutter(BM-ABC) | 25. Fastlock(BM-FL) |
Products Description
Ordering code | W(mm) | H(mm) | L(mm) |
BM 1&4 | 50-600 | 35 | 3000 |
BM 2&5 | 50-600 | 50 | 3000 |
BM 3&6 | 50-600 | 100 | 3000 |
Material & Finish
Zinc Plated – for indoor use to BS EN 12329
Other Material & Finish available:
Hot Dip Galvanized / HDG – for outdoor use to BS EN ISO 1461
Stainless Steel SS304 / SS316
Mill / Mild /Plain Steel to ISO 4995

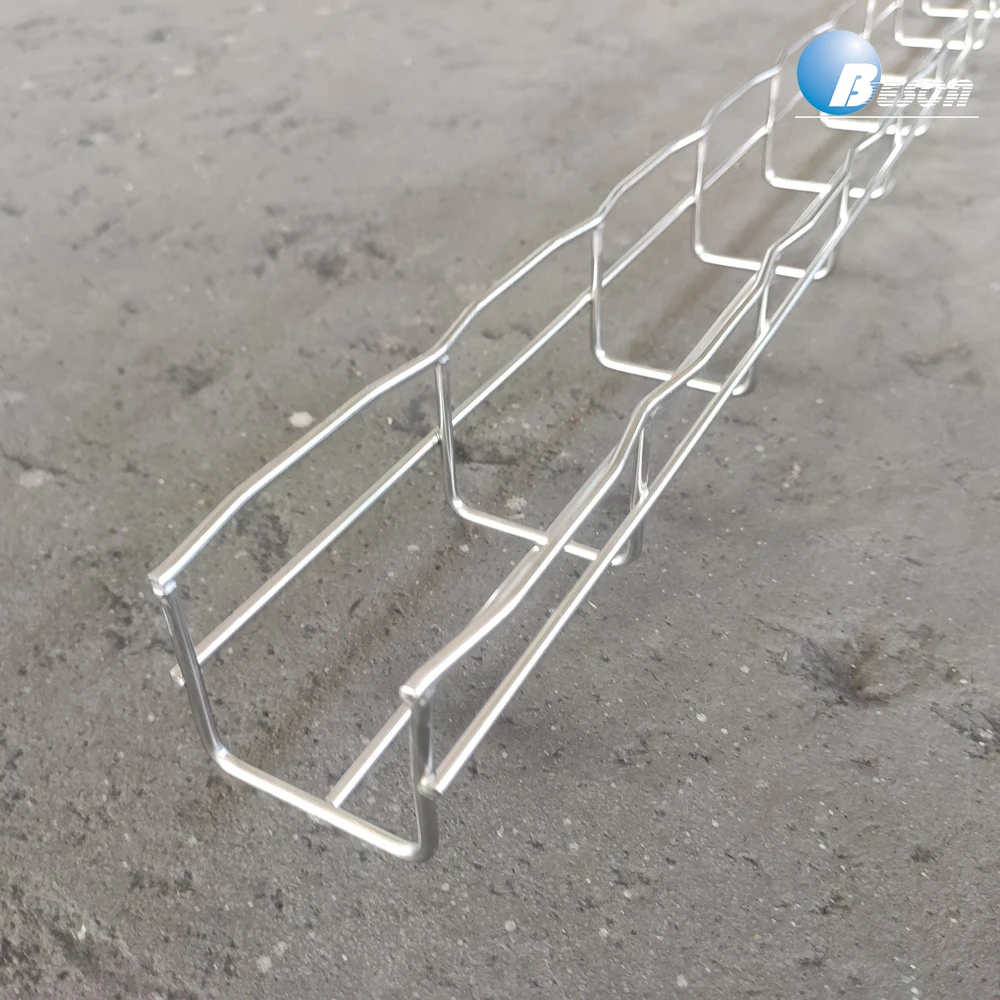

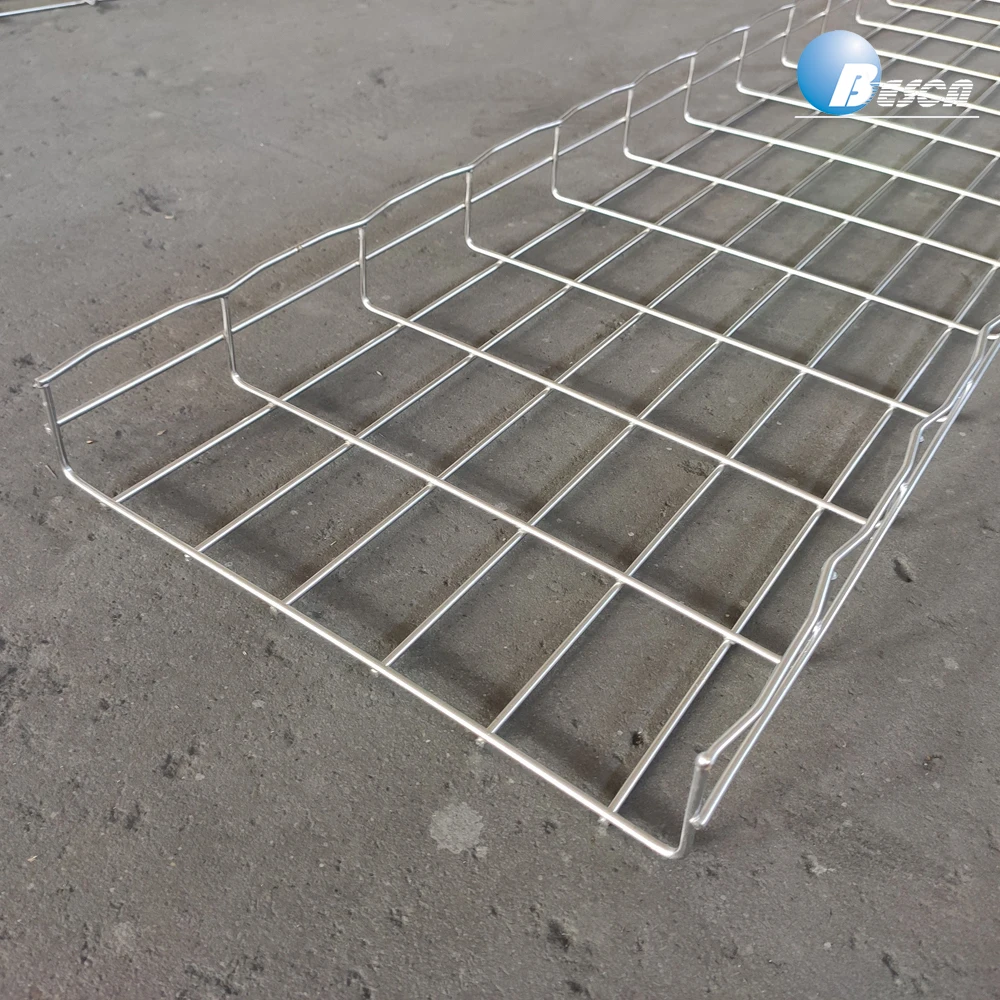

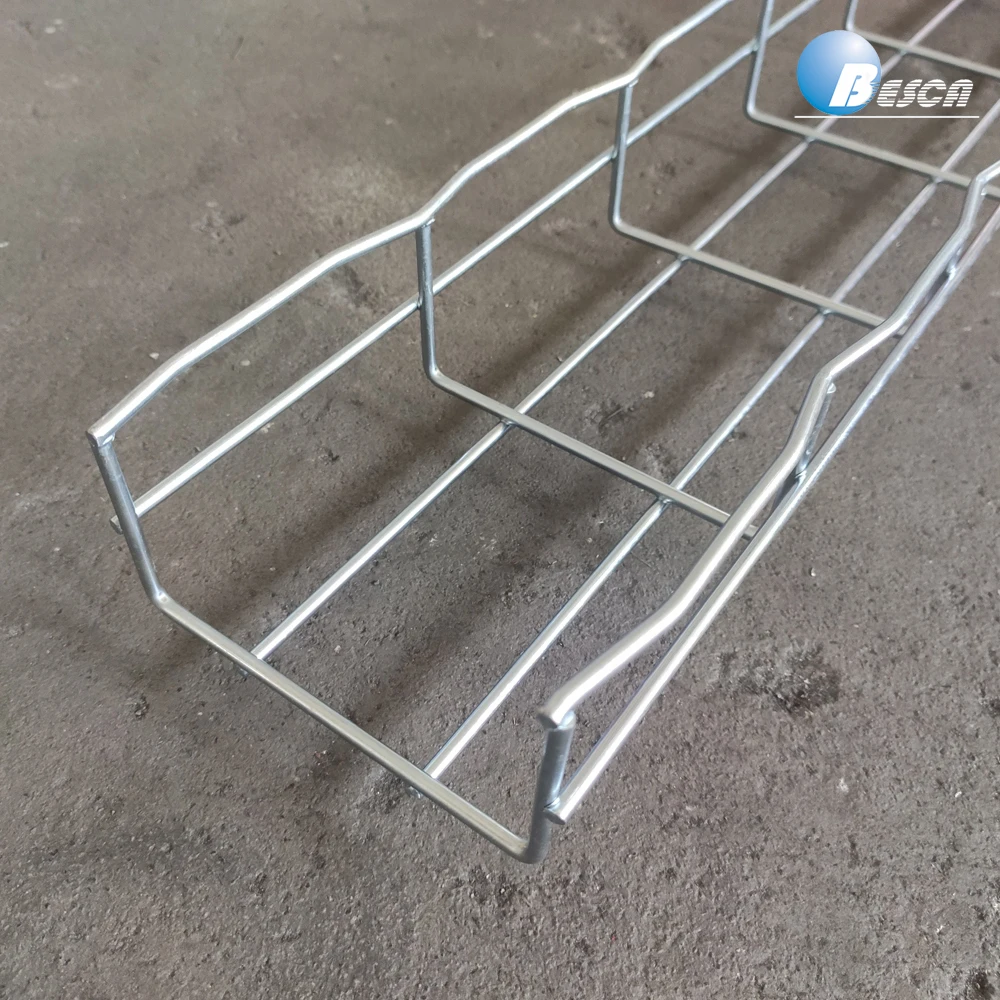

Details Images
Besca Wire Mesh Cable Tray provides premium performance in commercial and light industrial applications. Strong, versatile, and easy to install,Besca Wire Mesh Cable Trayis complimented with all the accessories you need.
With no need for separate bends, risers, tees and crosses,Besca Wire Mesh Cable Traylengths can be fabricated to suit the application on site.
Tested to NEMA Standard VE1-2002.
Besca Wire Mesh Cable Trayis available in stainless steel against firm orders only. – Minimum production may quantities apply.
Recommend Products
Perforated Cable Tray
W: 50-600mm
H: 15, 50, 75, 100mm
L:3000mm
Cable Ladder
W: 100-900mm
H: 50, 100, 150mm
L:3000mm
Wire Mesh Cable Tray
W: 50-600mm
H: 35, 50, 100mm
L:3000mm
FRP Cable Ladder
W: 200-800mm
H: 100, 150mm
L:3000mm
Cable Trunking
W: 50-150mm
H: 50, 75, 100, 150mm
L:3000mm
Strut Channel
W: 41mm
H: 21, 41, 62, 72, 82mm
L:3000mm

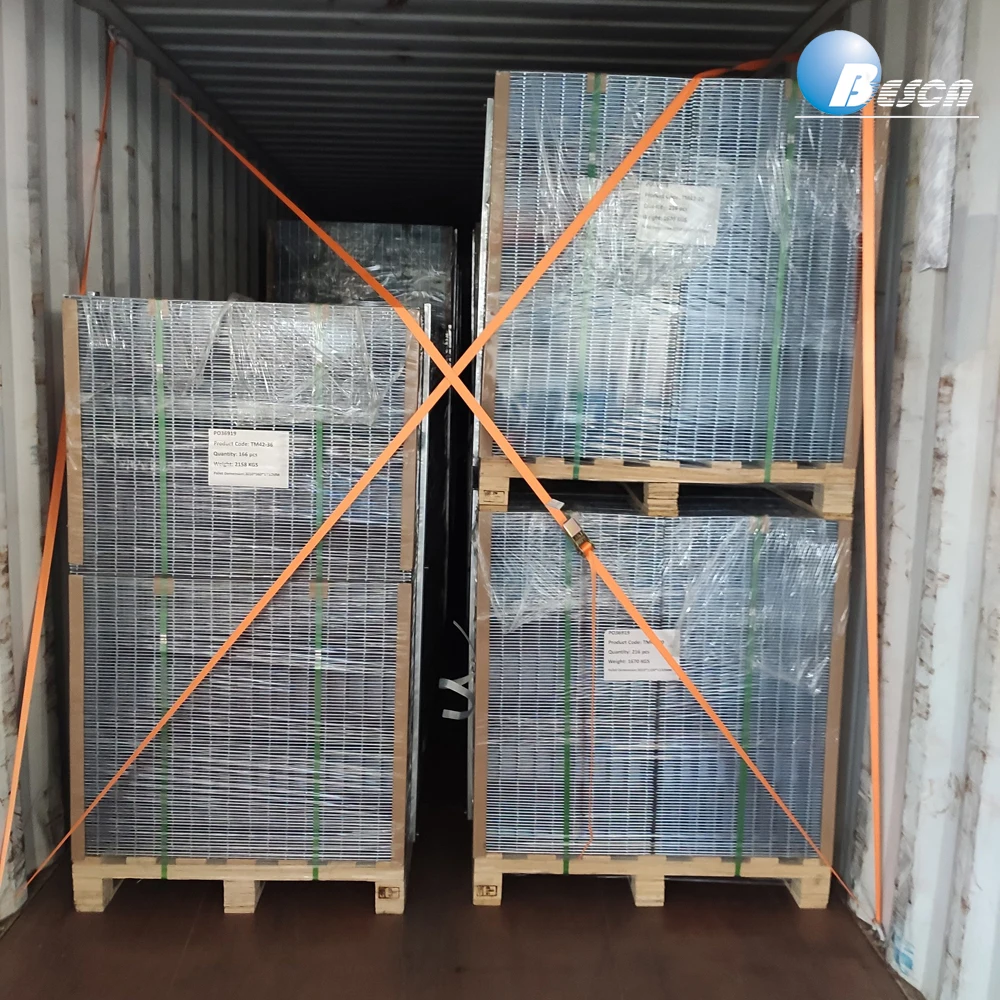

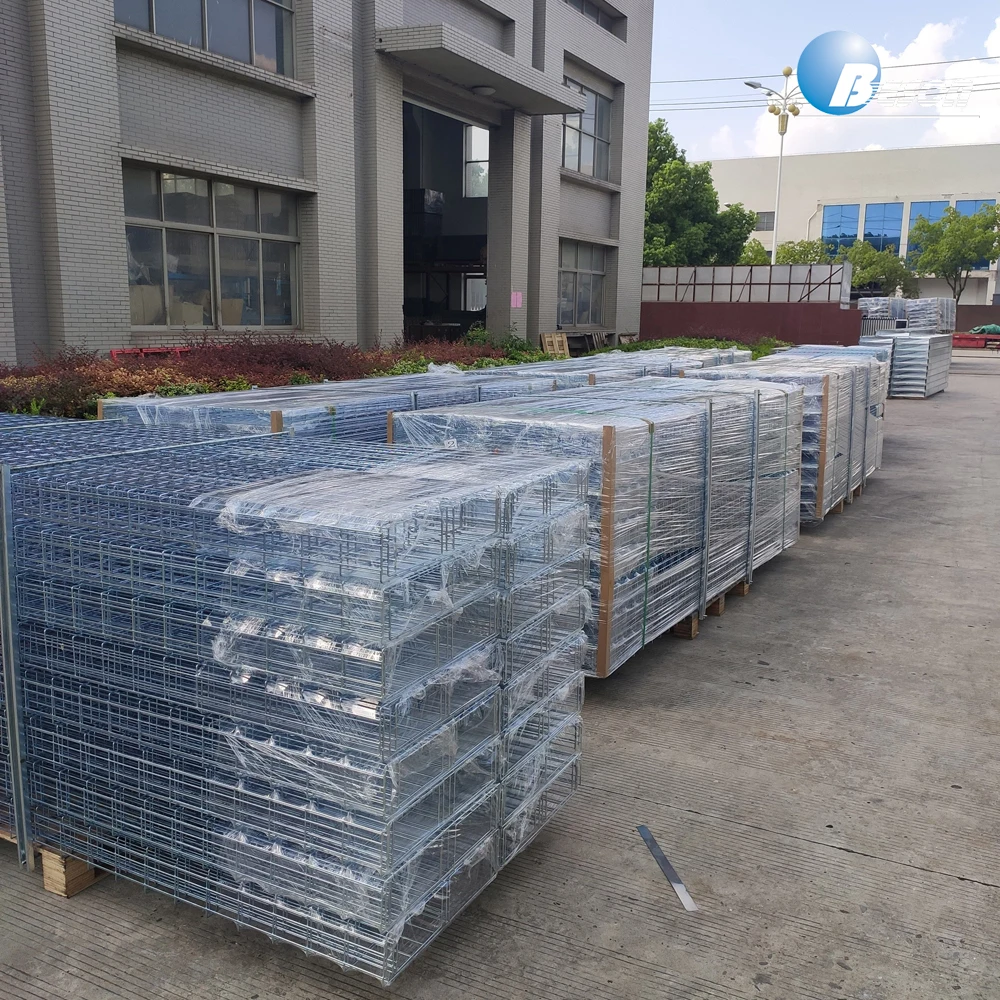

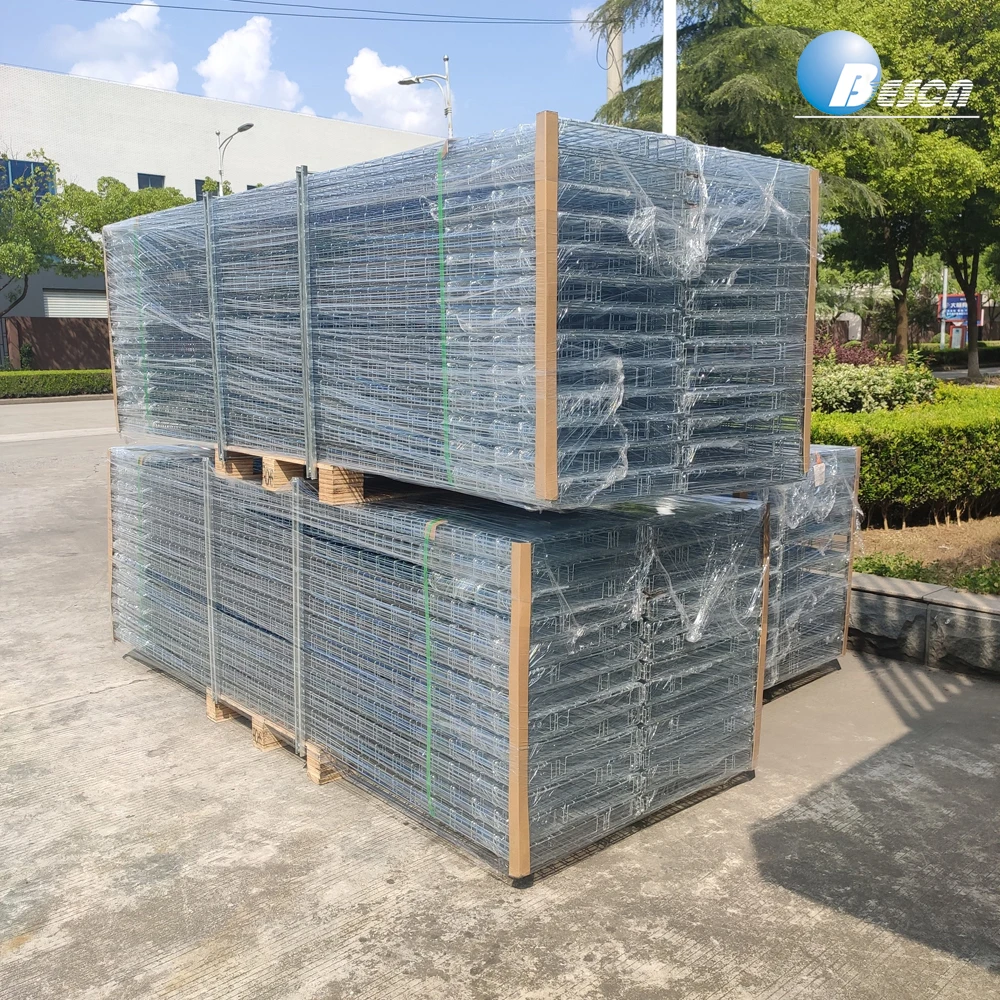

Packing & Delivery
Packing Detail:
1. Bulk, 2. Wooden Pallet, 3. Wooden Box, 4. OEM
Shipping Detail:
15 to 20 days for a 20' container
1. Bulk, 2. Wooden Pallet, 3. Wooden Box, 4. OEM
Shipping Detail:
15 to 20 days for a 20' container
Company & Factory
BESCA Factory
BESCA is one of the leading companies having our own manufacturing unit based on a sprawling area of 8000 square feet and having an installed capacity of 25000 units enabling us to undertake our production processes smoothly and efficiently. The manufacturing unit is equipped with all the requisite machines and tools that help in speedy fabrication of our range of electronic equipment. Our range of machines is mentioned below:
Drilling Machines
Grinding Machines
Cutting Machines
Welding Machines
Our manufacturing unit is well equipped with an in house design unit well supported by a CAD/CAM facility ensuring in customizing our range as per the latest design and specifications of our clients. Further, we regularly update our range of machines so as to keep ourselves abreast of the current changes and trends in the industry.
FAQ
1: Are you trading company or manufacturer ?
S: We are factory.
2: How long is your delivery time?
S: Generally it is 5-10 days if the goods are in stock. or it is 7-25 days if the goods are not in stock, it is according to
quantity.
3: Do you provide samples ? is it free or extra ?
S: Yes, we could offer the sample for free charge but do not pay the cost of freight.
4: What is your terms of payment ?
S: Payment≤1000USD, 100% in advance. Payment≥1000USD, 40% T/T in advance ,balance before shippment.
If you still have any question, pls feel free to contact me as below:
S: We are factory.
2: How long is your delivery time?
S: Generally it is 5-10 days if the goods are in stock. or it is 7-25 days if the goods are not in stock, it is according to
quantity.
3: Do you provide samples ? is it free or extra ?
S: Yes, we could offer the sample for free charge but do not pay the cost of freight.
4: What is your terms of payment ?
S: Payment≤1000USD, 100% in advance. Payment≥1000USD, 40% T/T in advance ,balance before shippment.
If you still have any question, pls feel free to contact me as below:
