Стальной Оцинкованный кабельный лоток перфорированный тип
- Категория: Wiring Accessories >>>
- Поставщик: Zhenjiang,Besca,Electric,Manufacturing,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-16-2025 | 9.98 $* | 9.79 $* |
| Jul-16-2025 | 7.71 $* | 7.59 $* |
| Jun-16-2025 | 9.47 $* | 9.42 $* |
| May-16-2025 | 9.64 $* | 9.34 $* |
| Apr-16-2025 | 7.10 $* | 7.38 $* |
| Mar-16-2025 | 9.37 $* | 9.34 $* |
| Feb-16-2025 | 8.80 $* | 8.74 $* |
| Jan-16-2025 | 8.40 $* | 8.41 $* |
Характеристики
Certifications
All of the steel cable ladder have passed UL,CUL,IEC,CE,SGS,NEMA etc,.certification. so our cable ladder tray can fit in American/European/South African/Asian/Australia standard.very high quality with better price.
For more details of the certification file, you can contact us at sales10@chinabesca.com.
For more details of the certification file, you can contact us at sales10@chinabesca.com.
Founded in 1996, Besca has obtained certifications including UL, cUL, CE, IEC 61537-2006 and NEMA VE 1-2009.
Installation Instructions
BESCA Perforated Cable Tray
BESCA offer a wide range of perforated cable trays which are fabricated using quality raw material such as pre-galvalvanized(GI).
These perforated cable trays are offered in different types, generally fabricated in mild steel.
These perforated cable trays are offered in different types, generally fabricated in mild steel.
1. Perfarated cable tray straight(BC*) | 2. Elbow 45°(BC*-E1) | 3. Elbow 60°(BC*-E2) | 4. Elbow 90°(BC*-E3) | 5. Tee(BC*-T) |
6. Cross(BC*-C) | 7. Inside riser(BC*-IR) | 8. Outside riser(BC*-OR) | 9. Reducer(BC*-MR) | 10. Right hand reducer(BC*-RR) |
11. Left hand reducer(BC*-LR) | 12. Divider(BC*-D) | 13. Blind End(BC*-BE) | 14. Straight coupler(BC*-SC) | 15. Horizontal adjust coupler(BC*-HAC) |
16. Vertical adjust coupler(BC*-VAC) | 17. Adjust Riser(BC*-AR) | 18. Bolt&nut(BN) | 19. Under floor stand(UFS) | 20. Cover Clamp(BC-CLP) |
21. Straight Bracket(SB) | 22. Wall bracket(WB) | 23. Strenghen bracket(STB) | 24. Strenghening bracket(STB) | 25. Angle bar bracket(ABB) |
26. Treaded rod(TR) | 27. Ceiling Bracket(CB) |
Products Description
Ordering code | W(mm) | H(mm) | L(mm) |
BC1 | 50-600 | 15 | 3000 |
BC2 | 50-600 | 50 | 3000 |
BC5 | 50-600 | 75 | 3000 |
BC6 | 50-600 | 100 | 3000 |
Material & Finish
Stainless Steel SS304 / SS316
Other Material & Finish available:
Pre-Galvanized / PG / GI – for indoor use to AS1397
Hot Dip Galvanized / HDG – for outdoor use to BS EN ISO 1461
Powder Coated – for indoor use to JG/T3045
Aluminum to AS/NZS1866
Fiberglass Reinforced Plastics / FRP /GRP
Fire Rated to AS3013:2005
Electrolytic Polishing – for Stainless Steel use
Mill / Mild /Plain Steel to ISO 4995
Details Images

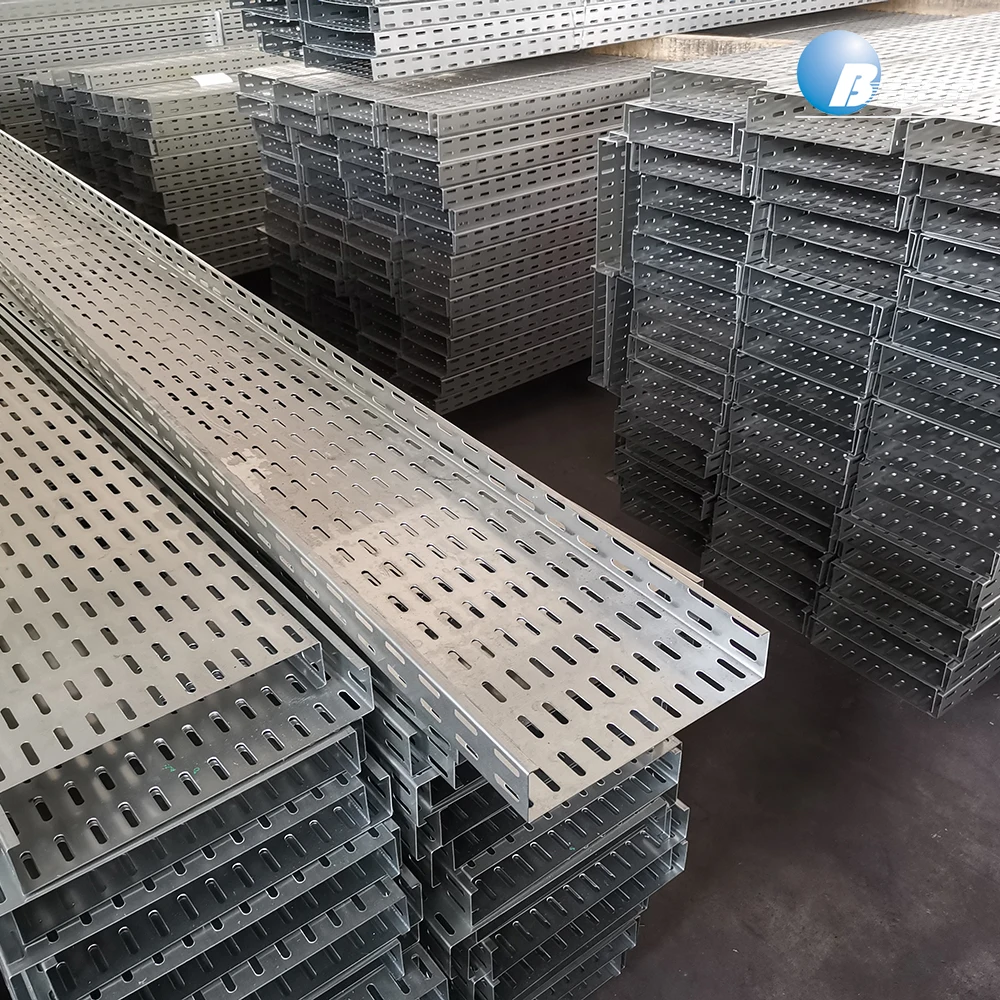

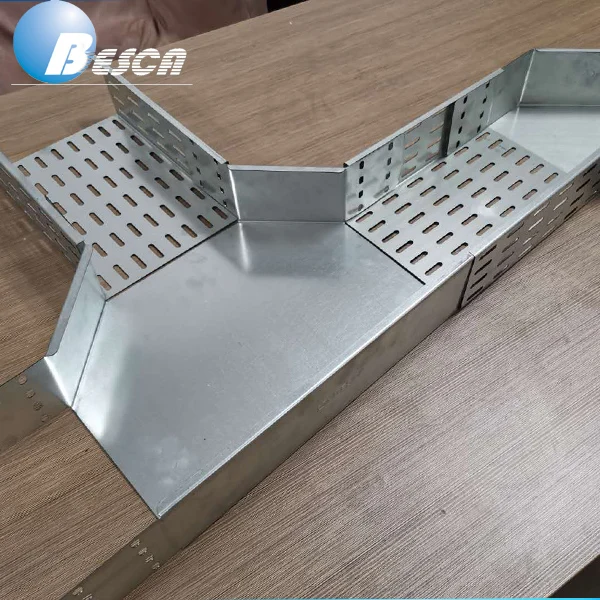

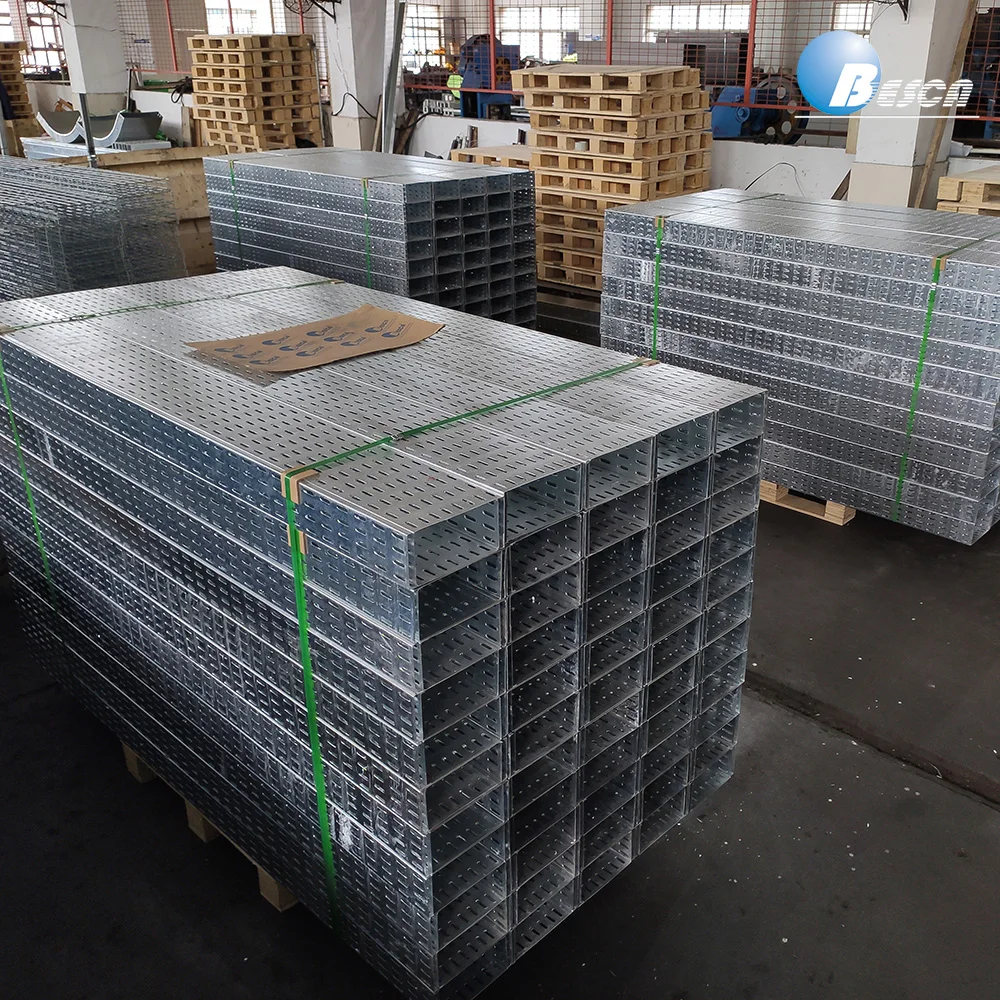

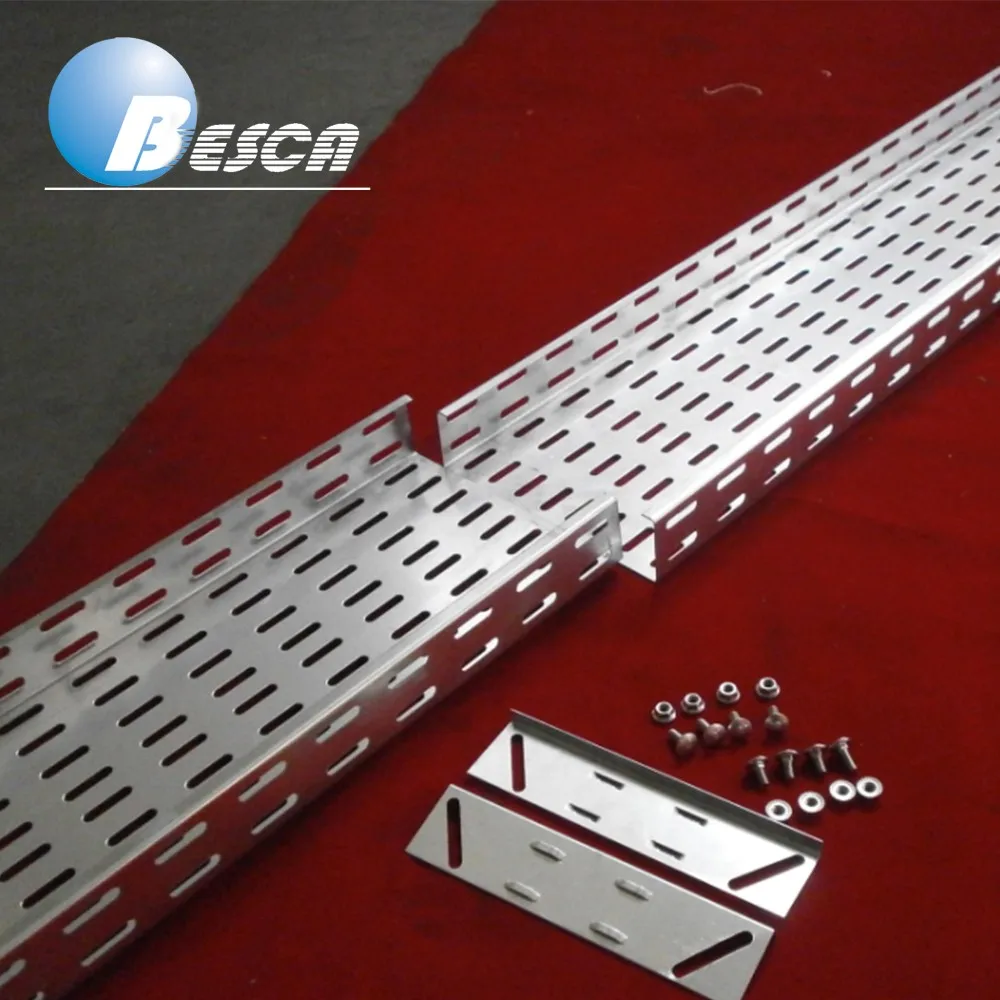

Besca perforated cable tray made from durable pre galvanized sheet steel as standard, straight lengths can also be made to order
in hot dip galvanised and stainless steel for special applications.
in hot dip galvanised and stainless steel for special applications.
Recommend Products
Perforated Cable Tray
W: 50-600mm
H: 15, 50, 75, 100mm
L:3000mm
Cable Ladder
W: 100-900mm
H: 50, 100, 150mm
L:3000mm
Wire Mesh Cable Tray
W: 50-600mm
H: 35, 50, 100mm
L:3000mm
FRP Cable Ladder
W: 200-800mm
H: 100, 150mm
L:3000mm
Cable Trunking
W: 50-150mm
H: 50, 75, 100, 150mm
L:3000mm
Strut Channel
W: 41mm
H: 21, 41, 62, 72, 82mm
L:3000mm
Packing & Delivery
Packing Detail:
1. Bulk, 2. Wooden Pallet, 3. Wooden Box, 4. OEM
Shipping Detail:
15 to 20 days for a 20' container
1. Bulk, 2. Wooden Pallet, 3. Wooden Box, 4. OEM
Shipping Detail:
15 to 20 days for a 20' container
Company & Factory

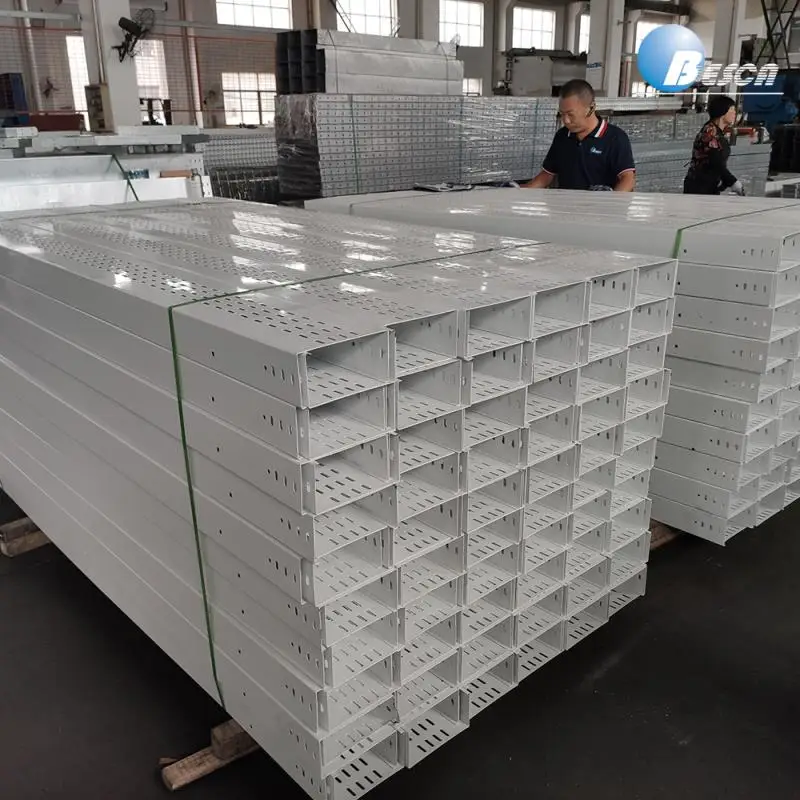

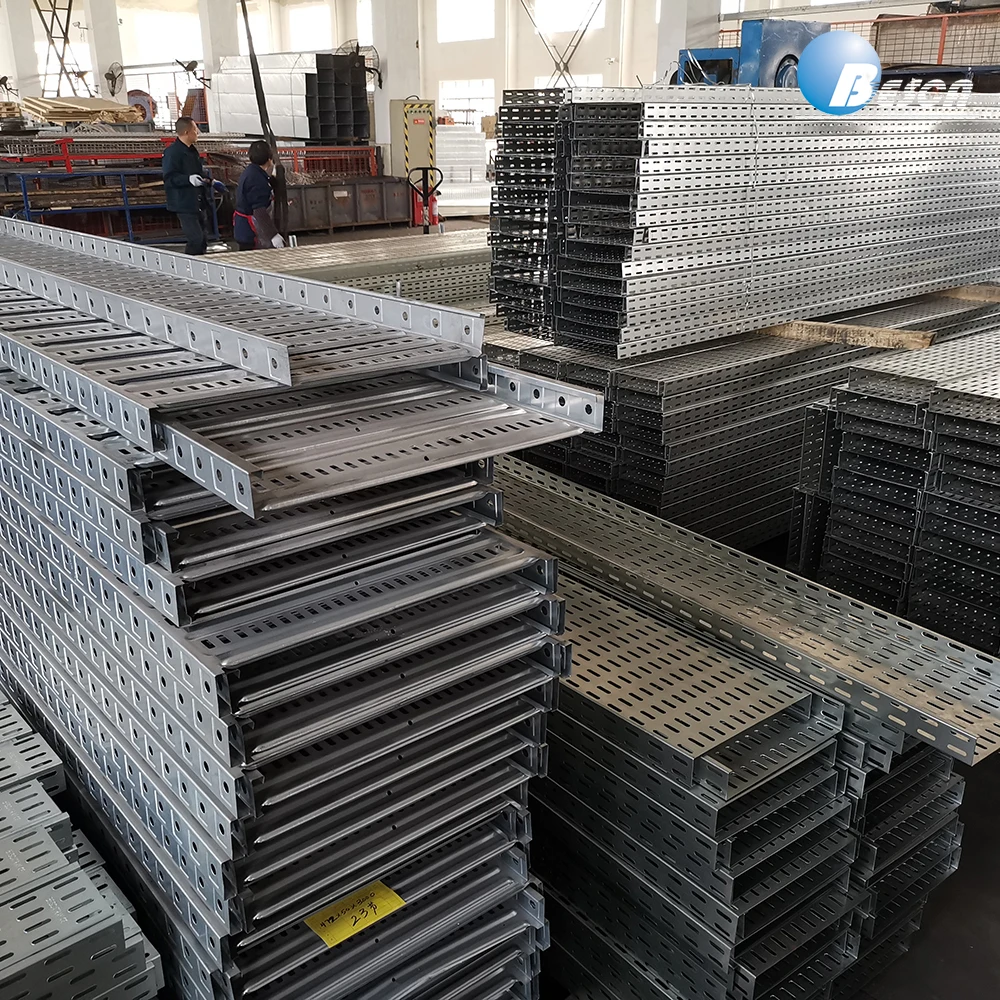

BESCA Factory
BESCA is one of the leading companies having our own manufacturing unit based on a sprawling area of 8000 square feet and having an installed capacity of 25000 units enabling us to undertake our production processes smoothly and efficiently. The manufacturing unit is equipped with all the requisite machines and tools that help in speedy fabrication of our range of electronic equipment. Our range of machines is mentioned below:
Drilling Machines
Grinding Machines
Cutting Machines
Welding Machines
Our manufacturing unit is well equipped with an in house design unit well supported by a CAD/CAM facility ensuring in customizing our range as per the latest design and specifications of our clients. Further, we regularly update our range of machines so as to keep ourselves abreast of the current changes and trends in the industry.
FAQ
1: Are you trading company or manufacturer ?
S: We are factory.
2: How long is your delivery time?
S: Generally it is 5-10 days if the goods are in stock. or it is 7-25 days if the goods are not in stock, it is according to
quantity.
3: Do you provide samples ? is it free or extra ?
S: Yes, we could offer the sample for free charge but do not pay the cost of freight.
4: What is your terms of payment ?
S: Payment≤1000USD, 100% in advance. Payment≥1000USD, 40% T/T in advance ,balance before shippment.
If you still have any question, pls feel free to contact me as below:
S: We are factory.
2: How long is your delivery time?
S: Generally it is 5-10 days if the goods are in stock. or it is 7-25 days if the goods are not in stock, it is according to
quantity.
3: Do you provide samples ? is it free or extra ?
S: Yes, we could offer the sample for free charge but do not pay the cost of freight.
4: What is your terms of payment ?
S: Payment≤1000USD, 100% in advance. Payment≥1000USD, 40% T/T in advance ,balance before shippment.
If you still have any question, pls feel free to contact me as below:
