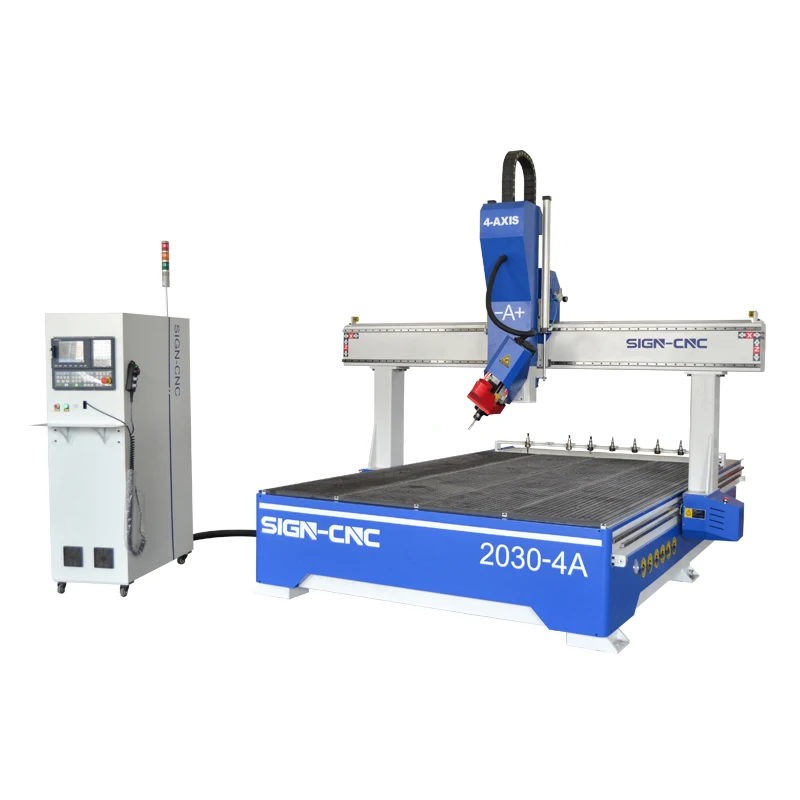

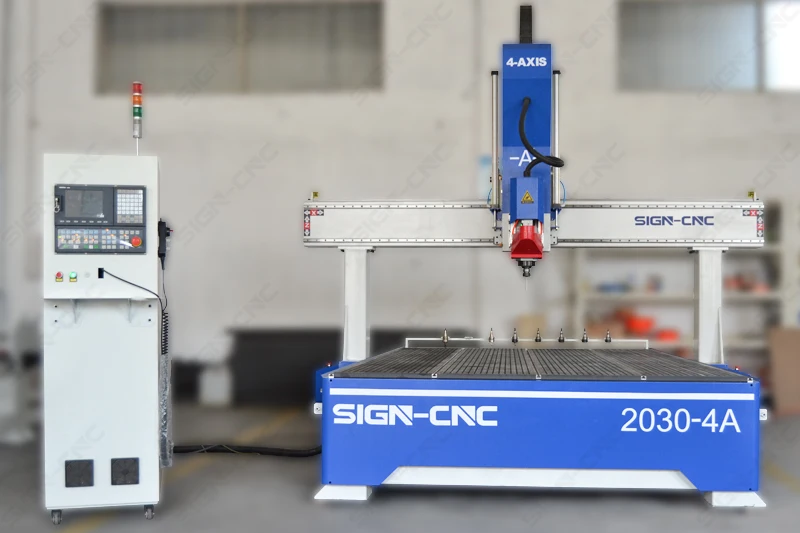

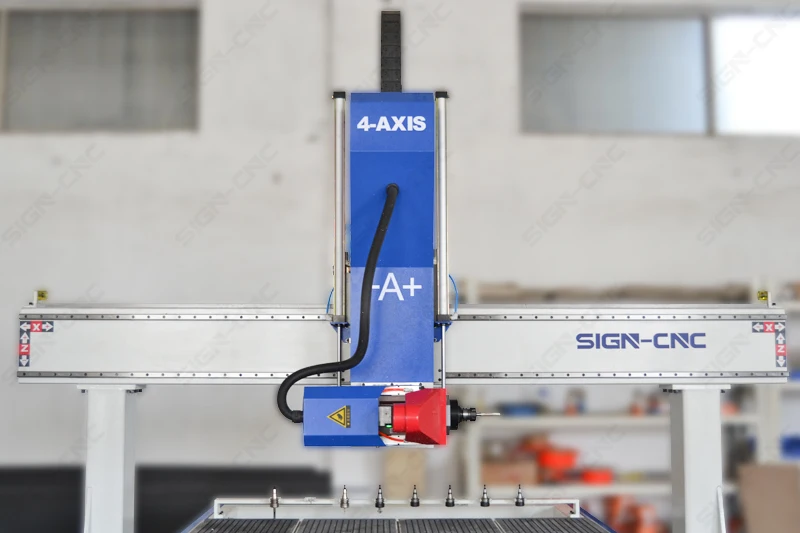

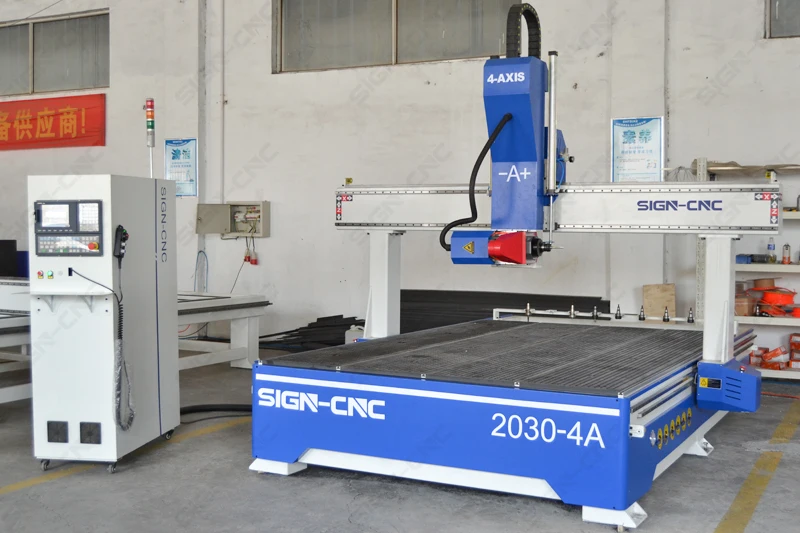

4 оси фрезерный станок для дерева с ЧПУ УВД/деревообрабатывающего оборудования/thk линейный УВД 1530


Поделиться:


Цена:1 486 542,00 ₽*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-19-2025 1768985.44 $* 1857434.10 $*
Aug-19-2025 1754120.52 $* 1841826.33 $*
Jul-19-2025 1471677.4 $* 1545261.3 $*
Jun-19-2025 1724389.53 $* 1810608.90 $*
May-19-2025 1501407.67 $* 1576477.17 $*
Apr-19-2025 1694658.53 $* 1779391.26 $*
Mar-19-2025 1679792.91 $* 1763782.49 $*
Feb-19-2025 1664927.48 $* 1748173.7 $*
Jan-19-2025 1650062.47 $* 1732565.67 $*

Характеристики

Model
SIGN-A8-2030
X, Y Working size
2000*3000mm
Z feed Height
600mm
Table Surface
Vacuum working table with 7.5kw vacuum pump

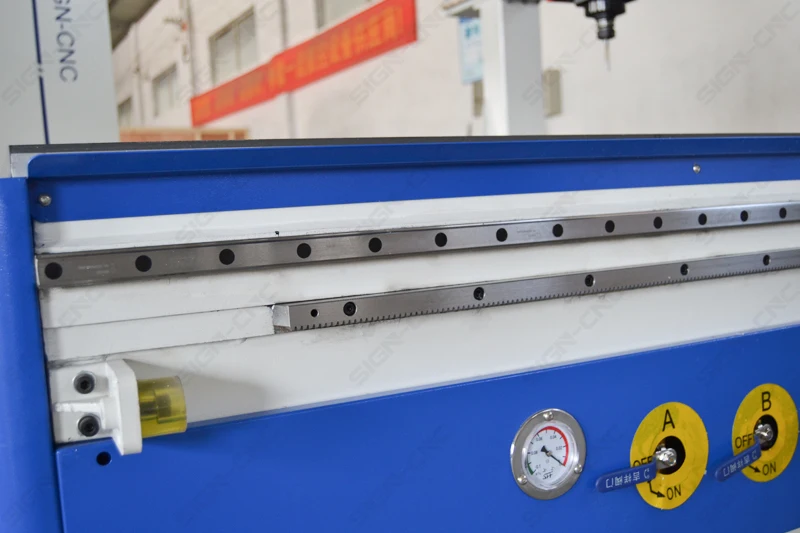

X, Y Structure
Taiwan 25# Square Guide Rail and Helical Rack
Z Structure
Taiwan # 25 Linear Square Guide Rail and Ball Screw
Spindle Power
9.0kw HQD spindle
Invert er
11KW Delta
Linear tools magazine
8 PCS
Max. Rapid Travel Rate
33000mm/min
Max. Working Speed
25000mm/min
Tool sensor
With
Dust collector
3kw
Spindle Speed
0-24000RPM
Drive Motors
Delta 750W servo motor and driver
Working Voltage:
AC 380V 50Hz/60Hz
Command Language
G code

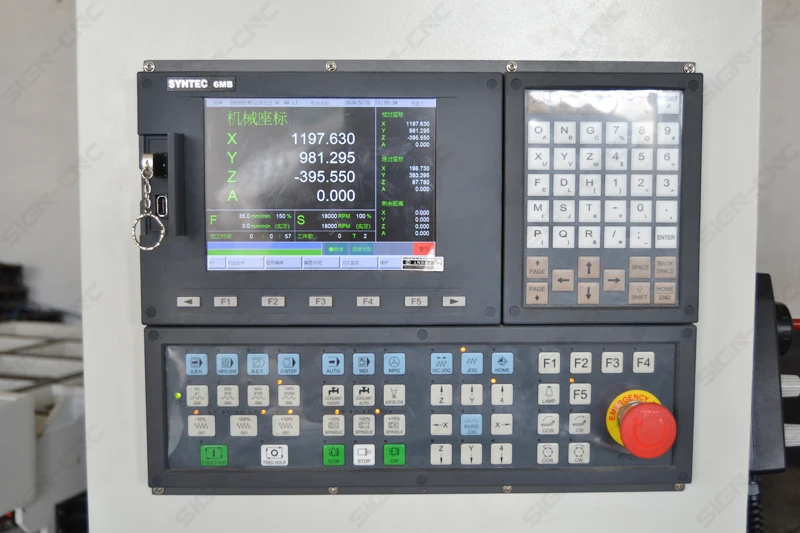

Control System
SYNTEC
X,Y,Z re positioning Accuracy
±0.01mm
X,Y Resolution
<0.01mm
Software
ARTCAM
Running Temperature
0 degree - 45 degree
Relative Humidity
30% - 75%
Click here to get more information
Details Images
Samples
Click to get recommendations
Packing & Delivery
1. Inside package: All machine parts will be packed perfectly. whole machine packed with waterproofing membrane.

2. Outside package: Fumigation-free plywood box.
On the case of top and bottom, we install steel tube to support it. It is strong to avoid damage during the long transportation.
Delivery Details : 15-20 working days after deposit.

Customer Feedback
Certifications
Company Profile
Jinan Sign CNC Equipment Co., Ltd., located in the beautiful city of Jinan, is a high-tech enterprise, engaged in the research and development, production, sales of motion control system, mechanical and electrical integration products. Our products include advertising CNC router, woodworking CNC router, stone CNC router, embossment CNC router, CNC Laser engraving machine, CNC Laser cutting bed, CNC laser marking machine, CNC plasma cutting machine, cutting plotter and mould machine. We have been experienced in exporting CNC machine for over 5 years. We are familiar with the different requirements from all kinds of lines. Meanwhile, we insist on the principle of "the best products, the most reasonable price, the maximum benefits for customers". We have prestigious fame in the industry business field.
FAQ
Q1: How can I choose suitable machine for my work?
Just tell us what kind product you need to make. Such as materials, or product.Then suitable model will be recommended.

Q2: Warranty?
We provide two years warranty for whole machine, one year for spindle. If machine parts were broken due to quality problem during warranty, we send you new parts freely.

Q3: If the machine has problem in my place, how could I do?
Send us videos, we send you solution accordingly.
