Оптовая цена сплит фаза 24В 48В 5000 Вт Встроенный mppt инвертор
- Категория: Inverters & Converters >>>
- Поставщик: Guangzhou,Demuda,Optoelectronics,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.42 $* | 0.29 $* |
| Aug-19-2025 | 0.75 $* | 0.44 $* |
| Jul-19-2025 | 0.26 $* | 0.86 $* |
| Jun-19-2025 | 0.79 $* | 0.88 $* |
| May-19-2025 | 0.58 $* | 0.29 $* |
| Apr-19-2025 | 0.51 $* | 0.8 $* |
| Mar-19-2025 | 0.34 $* | 0.97 $* |
| Feb-19-2025 | 0.71 $* | 0.16 $* |
| Jan-19-2025 | 0.26 $* | 0.9 $* |
Характеристики
Wholesale price split phase 24v 48v 5000w built in mppt inverter hybrid
Feature:
1.Pure sine ware output;
2.Optional MPPT/PWM solar charge controller 60A ;
3.MPPT Efficiency max 98% ;
4.DC Start & Automatic Self-Diagnostic Function.
Advantages
High Efficiency Design & ”Power Saving Mode” to Conserve Energy
Auto restart when Ac in recovering
Smart battery charger design for optimized battery performance
Selectable charging current based on applications
AC input/DC input/Solar input optional priority
Auto Restart Voltage
Product detail
| Model | 1KVA | 2KVA | 3KVA | 4KVA | 5KVA |
| Capacity(VA) | 1000VA | 1500VA | 2000VA | 3000VA | 5000VA |
| Input Voltage(DC) | 12/24V | 12/24/48V | 24/48V | 24/48V | 24/48V |
| Nominal Voltage | 220VAC/110VAC | ||||
| Voltage Range | 154–265VAC (AC Model);185–264VAC±3V(UPS Model) | ||||
| Frequency | 50–60HZ Auto sensing | ||||
| Power Factor | 0.8 | ||||
| Rated Power | 800W | 1200W | 1600W | 2400W | 4000W |
| Voltage | 220VAC | ||||
| Frequency | 50/60HZ | ||||
| Waveform | Pure Sine Wave | ||||
| Transfer Time (AC to DC) | <8ms | ||||
| Transfer Time (DC to AC) | <8ms | ||||
| Output Voltage Regulation | ±10% | ||||
| Bypass Mode | Yes | ||||
| Saver Mode | Yes | ||||
| Efficiency | >98% | ||||
| Input Protection | Circuit Breaker | ||||
| Output Protection | Circuit Breaker | ||||
| Battery Type | AGM-Deep Cycle ,Gel/Up to 500Ah | ||||
| Charging Current | 20/10A | 30/15/7A | 30/15A | 40/20A | 48/24A |
| Low Level disconnect (Selectable) | 10V or 10.5V | 20V or 21V | |||
| PWM(Optional) controller Voltage | 15VDC−30VDC | 30VDC−60VDC | |||
| MPPT(Optional) controller Voltage | 15VDC–150VDC | 30VDC–150VDC | |||
| Maximum PV array power | 400W | 800W | 1600W | ||
| Maximum PV array open circuit voltage | PWM:30VDC, MPPT:150VDC | PWM:60VDC, MPPT:150VDC | |||
| Maximum solar charge current | 60A | ||||
| Protections | Over load, over temp, over charging, battery low, battery reverse connect, high AC voltage etc. | ||||

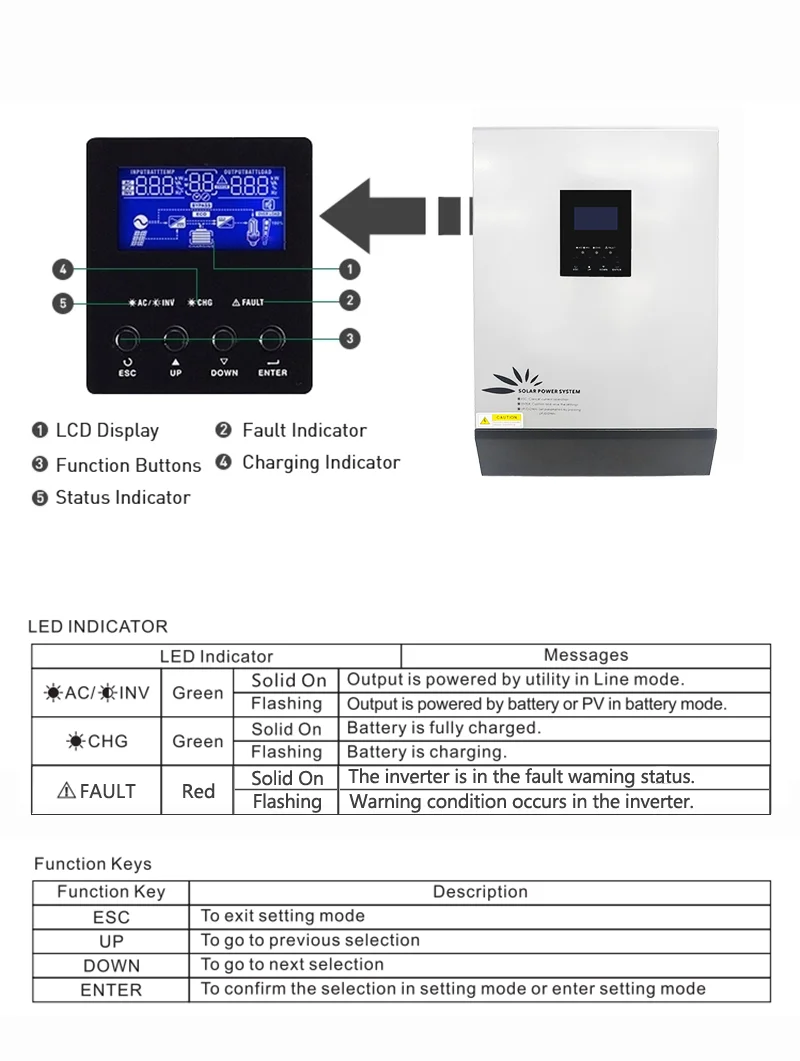

| LCD indicator status | AC input voltage, AC input frequency, PV voltage, PV current , Output Voltage, Output Frequency, Battery voltage, Load current etc. | ||||
| LED indicator status | AC Line In:Green/Inverter:Green/Charging :Yellow/Alarm :Red | ||||
| LOW battery alarm | Audible alarm-5 seconds beeping | ||||
| Overload alarm | Audible alarm- continuous beeping | ||||
| Fault | Audible alarm- continuous beeping | ||||
| Temperature | 0-40℃ | ||||
| Humidity | −10℃~90℃ Non condensing | ||||
| Accoustic Noise(db) | >55dB | ||||
| Packing Size L*W*H(mm) | 565*383*188 | ||||
| Packing Weight (kg) | 13 | 14.5 | 16 | 16.64 | 21.43 |
Catalog
For more products
MAIN PRODECTS:
| Solar controller(PWM/MPPT) | Battery charger | Battery |
| Portable solar power system | Solar street light | Inverter |
Packaging & Shipping
Packing:
Kraft box packaging, Chinese and English manual, screwdriver, transparent bag,PE bags, OPP bags, Foam Cotton,Custom bags+carton case+carton box or as your requirement.
Main port:
Guangzhou/Shenzhen/Hongkong or as require.
Express Company:
DHL, TNT, UPS, FEDEX, etc.
Company Information
Founded in 2003, we are a professional factory of high-tech enterprise specializing in research and development,production,sales and oem of solar photovoltaic power supply and wind-solar complementary power upply products.
With professional R&D and design,software engineering experts,Testing Engineer team,and experienced manufacturing team,we can provide targeted products and solutions according to market and customer needs.
We have a sound quality control system,strict standards in each link,to ensure that the performance and core technology of products are reliable,most products are certified by professional qualifications,reliable performance.We have passed CE,ROHS,FCC and other certifications ,and has become a popular brand of CCTV.
FAQ
1.Do you offer OEM/ODM service?
Yes, our factory and designer team have rich experience in offering OEM/ODM service.
2.Why we can choose you?
1)Reliable——we are the real company,we dedicate in win-win.
2)Professional——we offer the products exactly you want.
3)Factory---we have factory, so have reasonable price.
3. Can you accept sample order?
Yes,we can. Before large orders, we can provide samples for your testing.
4.What is your lead time?
1)Sample orders will be delivered from our factory within 3 working days.
2)General orders will be delivered from our factory within 15 working days.
3)Big orders will be delivered from our factory within 25 working days at most.
5. What is your payment terms?
We accept Alibaba Trade Assurance payment, T/T in advance.Then Western Union, PayPal or L/C.
6.Can you accept Trade Assurance Order?
Yes,we will be appreciated if you can place Trade Assurance order on our Alibaba
7.What is your shipment?
1)By EMS,DHL,FedEx,TNT,UPS or other express.
2)By our forwarding agent(by air or by sea).
3)By your own forwarding agent.
4)By domestic forwarding agents to any city in China.
Warranty
Established professional after-sales service team,24 hours online listen to your needs,for you to solve time product consulting and technical questions.
