The working principle of the mortar spraying machine is to use air compressor to drive the abrasive (or projectile) to the work piece surface, the surface of the work piece micro-cutting or impact to achieve the work piece rust, paint, Decorative treatment.Mortar spraying machine is mainly used for building internal and external wall surface goods mixed mortar, putty powder, refractory coating and pressure grouting.Highway, railway tunnel, urban subway, hydraulic power station underground caverns, such as grouting engineering, can be used in dam, slope, soft rock reinforcement soil grouting engineering, anchor grouting, unity grouting and backfill grouting and grouting tabernacle modernization construction equipment of the construction site.

New model electrical type 5m3/hour wall cement mortar spraying machine/380V wall puttyspraying machine  for sale

Introduction of Model 511/311 construction  electrical type cement mortar spraying machine 380v /220V wall spraying machine  for sale

Putty spraying machine is mainly used in the interior trim

stirring, pumping, spraying high quality putty powder.

If uses the gas of mixing spray gun, the machine can make the

100 mesh particle into atomization. It can spray 1500 square meters per day.

Applicable to housing protection, paint, and starch etc.      zmwm06

Features of  putty spraying machine

1. Adjust the size of the flow, tune out the best coating results.

2. In addition to the electrical control box can switch, but also equipped with remote control switch spraying.

3. Gun connection with the feeding tube can be rotated for easy operation.

4. High efficiency, good quality.

5. Easy structure, easy to handling on-site,and accessories is cheap ,easy to maintenance.

Main Parameter of Model 511/311 construction  electrical type cement mortar spraying machine 380v /220V wall spraying machine  for sale

Item No.	CC-311	CC-511	CG-711	CC-911
Power	4kw	7.5kw	7.5kw	7.5kw
Voltage	220v/380v	380v	380v	380v
Input pressure	3Mpa	4Mpa	6Mpa	6Mpa
pipe diammeter	25mm	32mm	32mm	32mm
Transmission of horizontal distance	20m	40m	60m	50m
Transmission height	10m	20m	30m	30m
Flow	3m3/h	5 m3/h	7 m3/h	9 m3/h
The largest particle	<4mm	<6mm	<6mm	<6mm
Weight	130kgs	330kgs	180kgs	320kgs

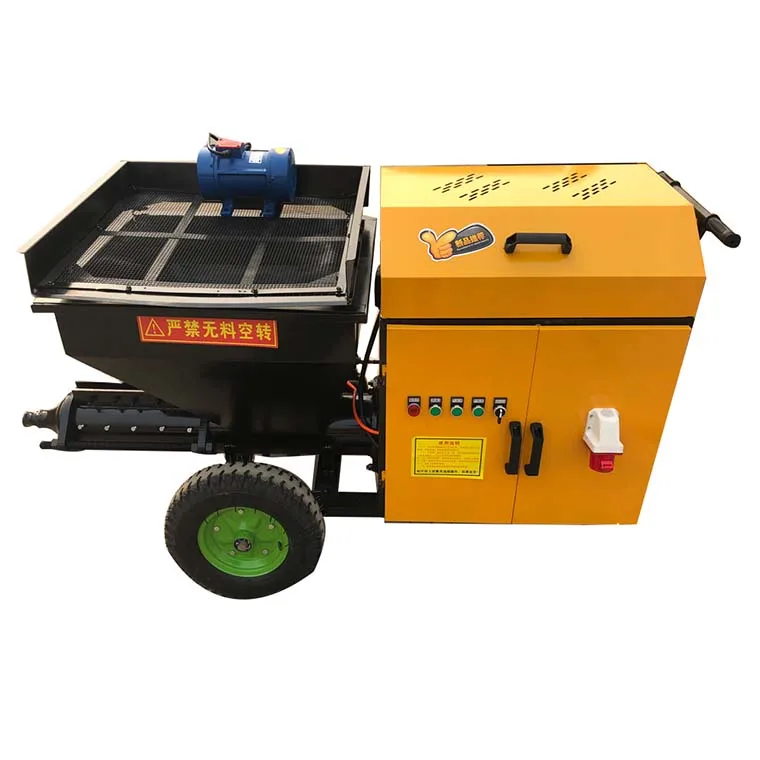

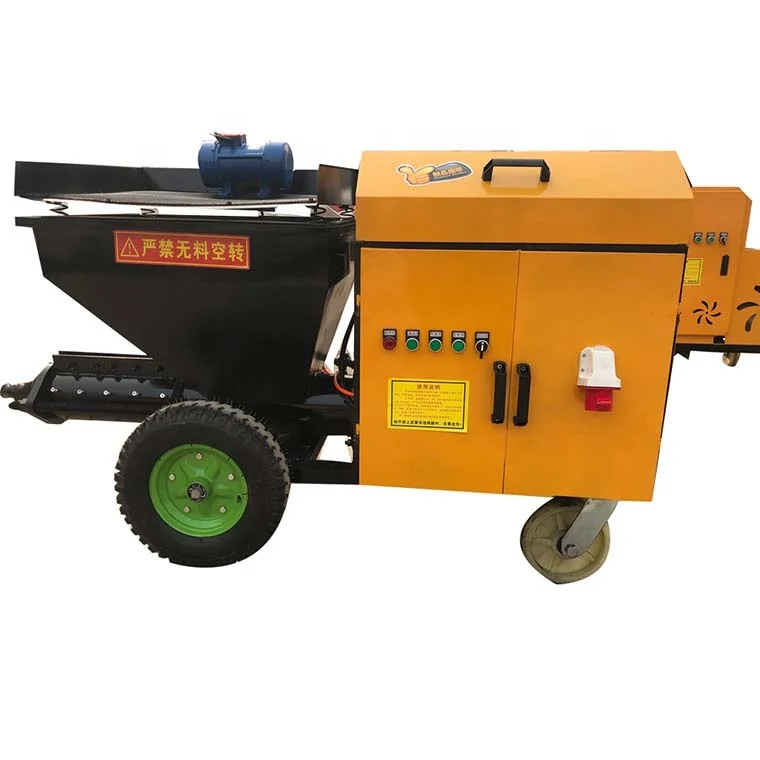

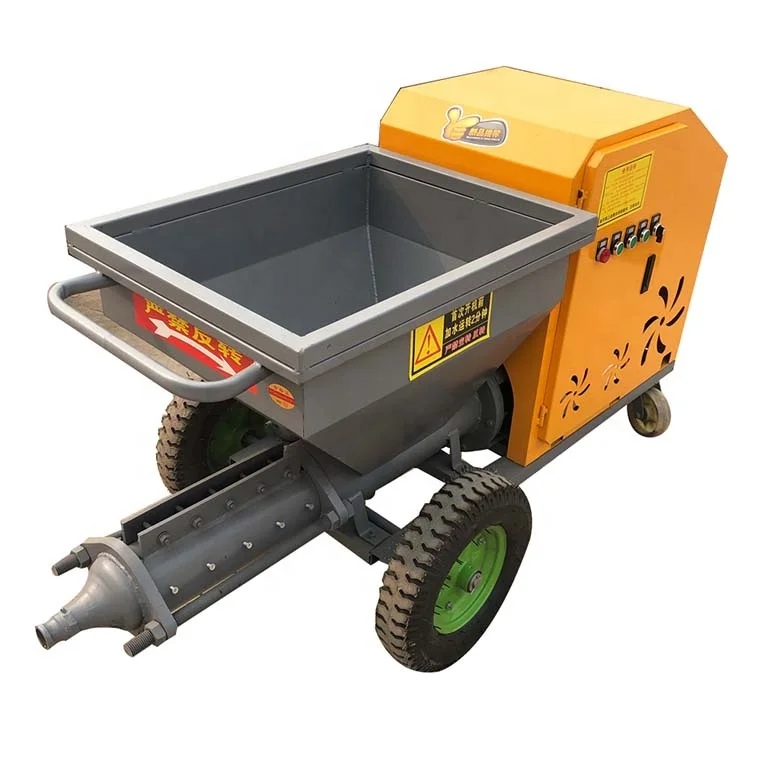

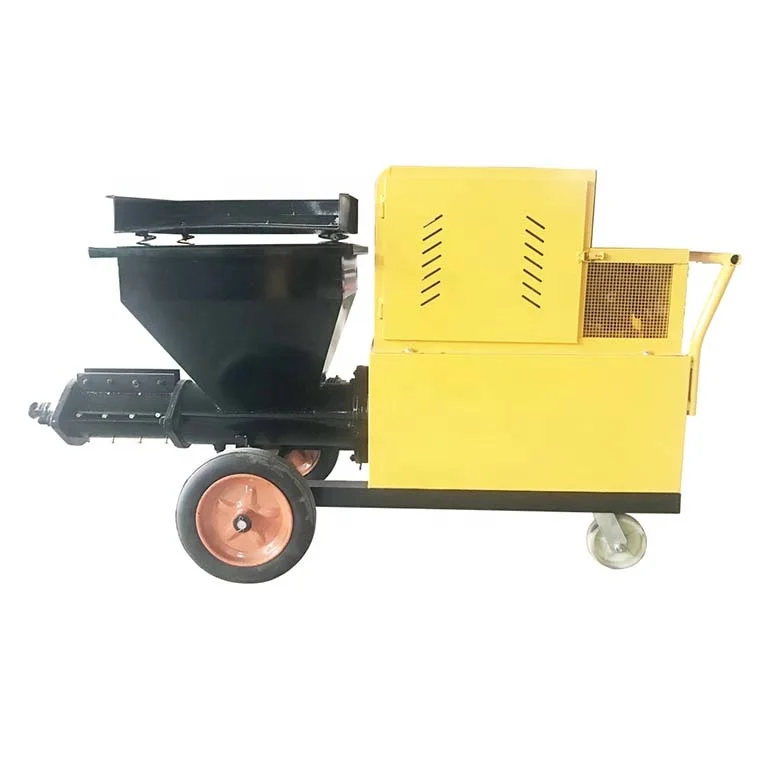

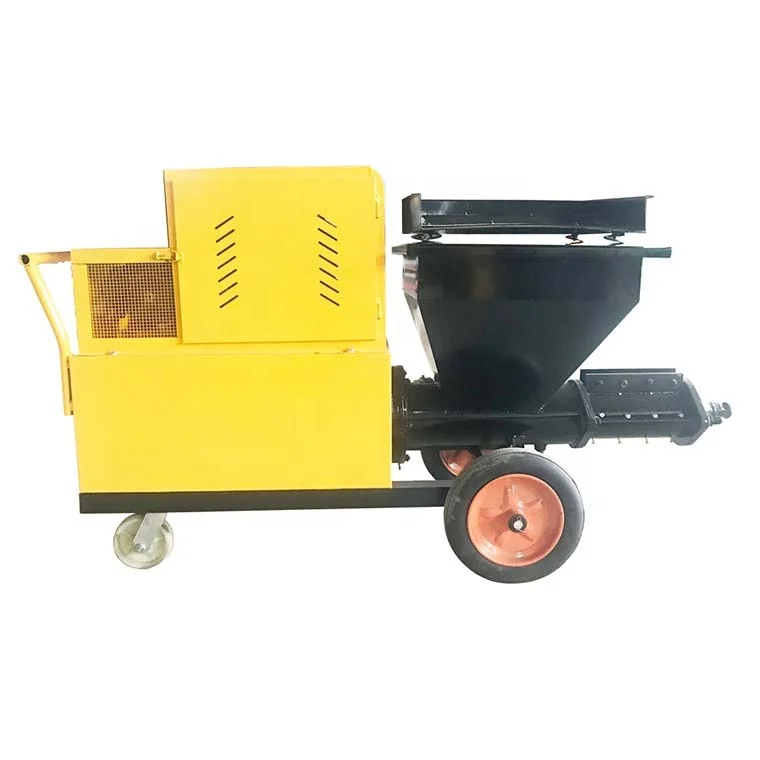

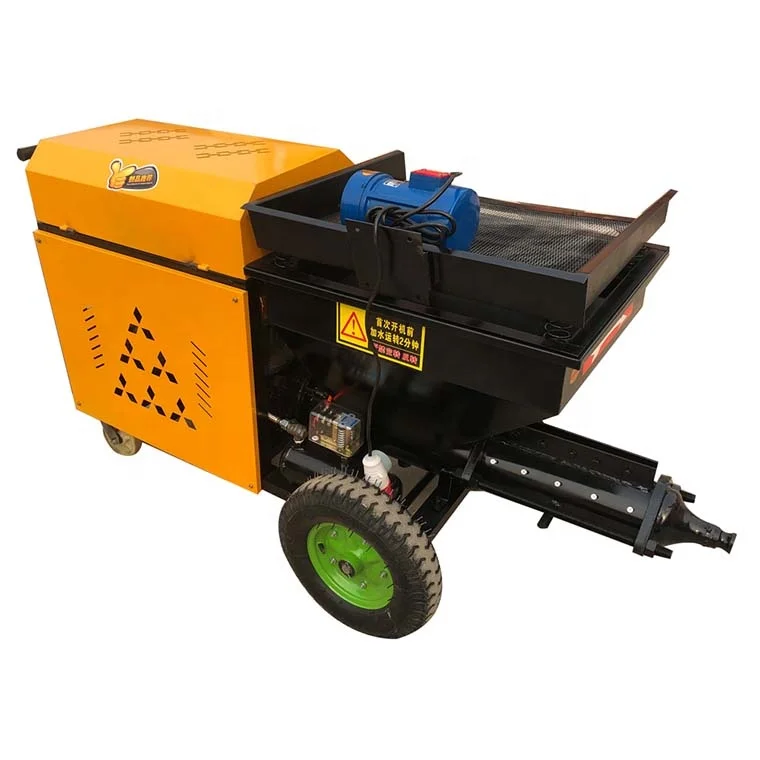

Photos of New model electrical type 5m3/hour wall cement mortar spraying machine/380V wall puttyspraying machine  for sale
