12v 3a wifi система контроля доступа специальный источник питания для мобильного

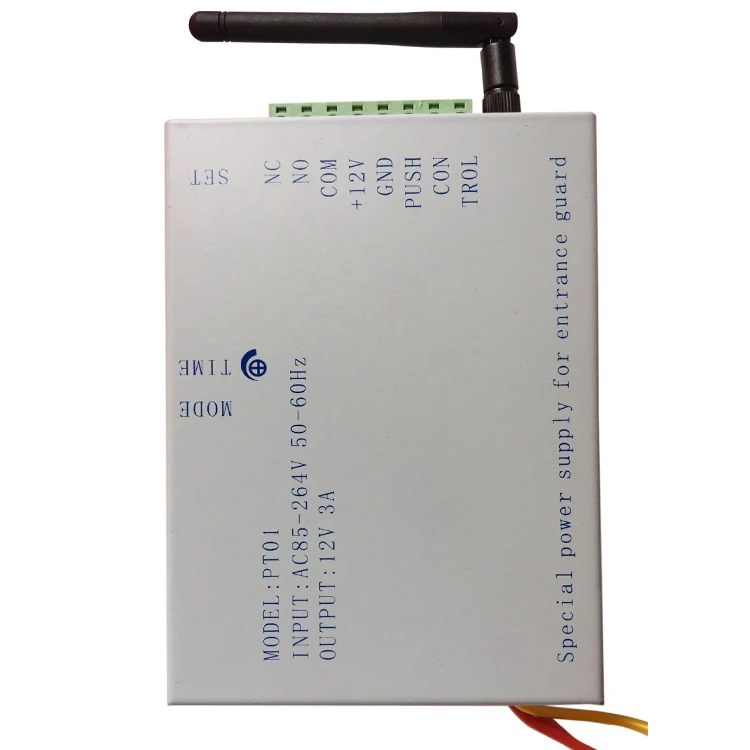

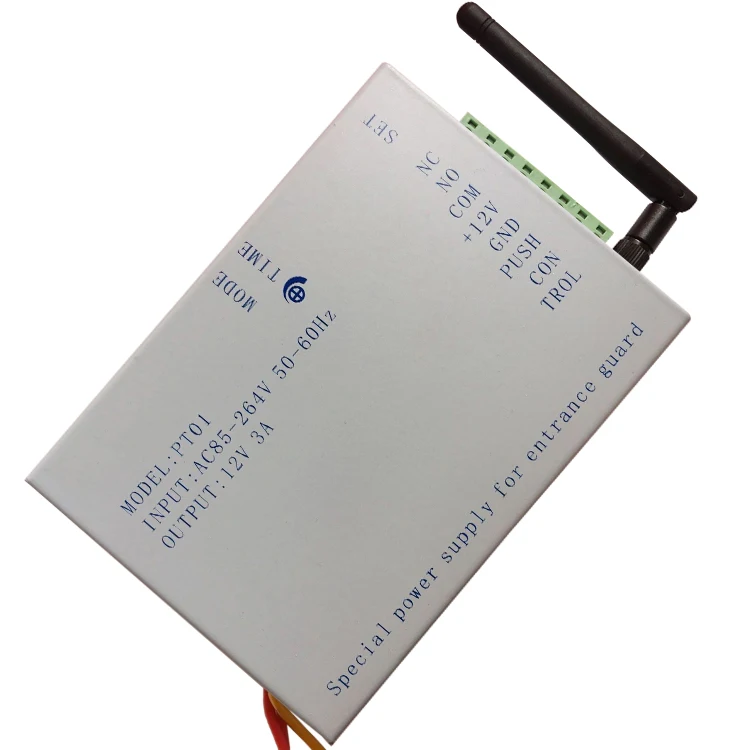

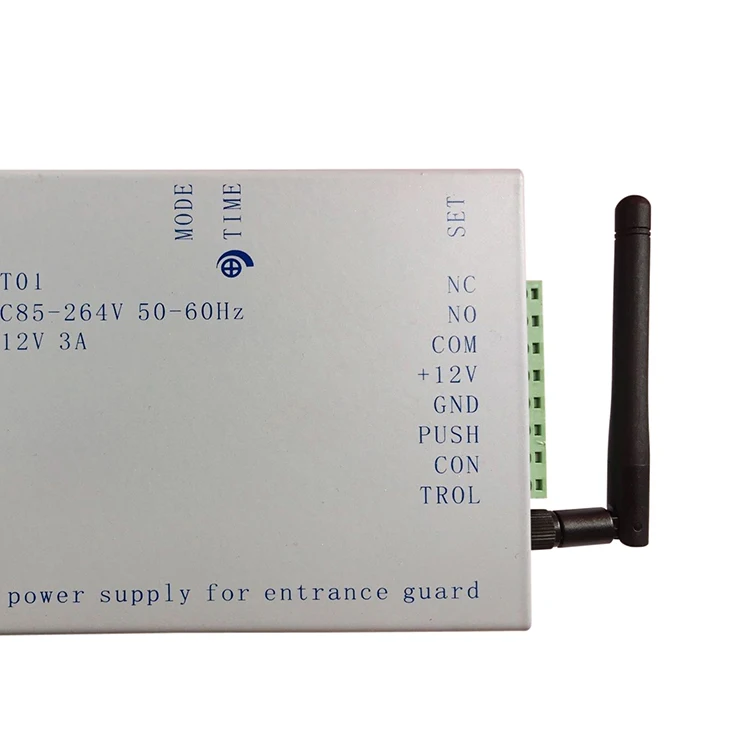

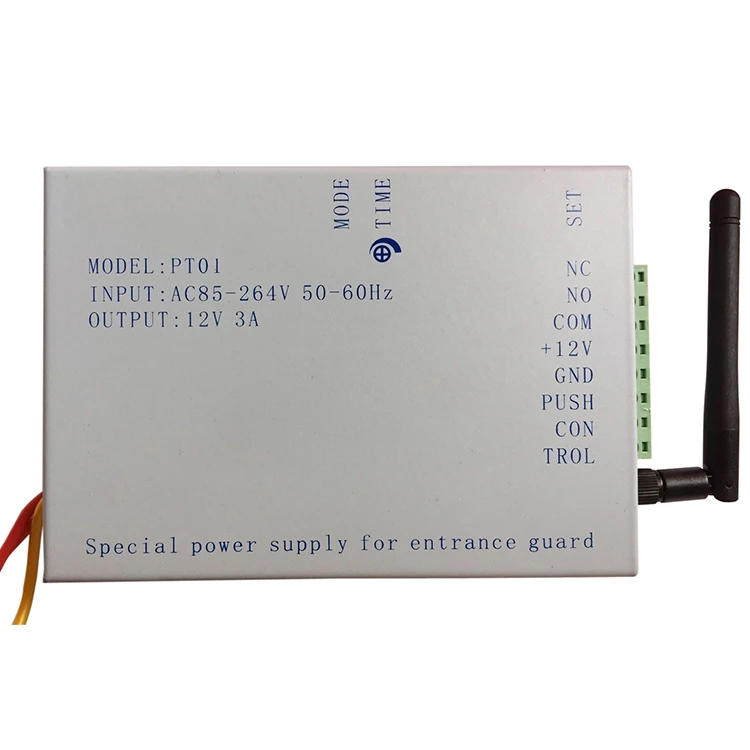

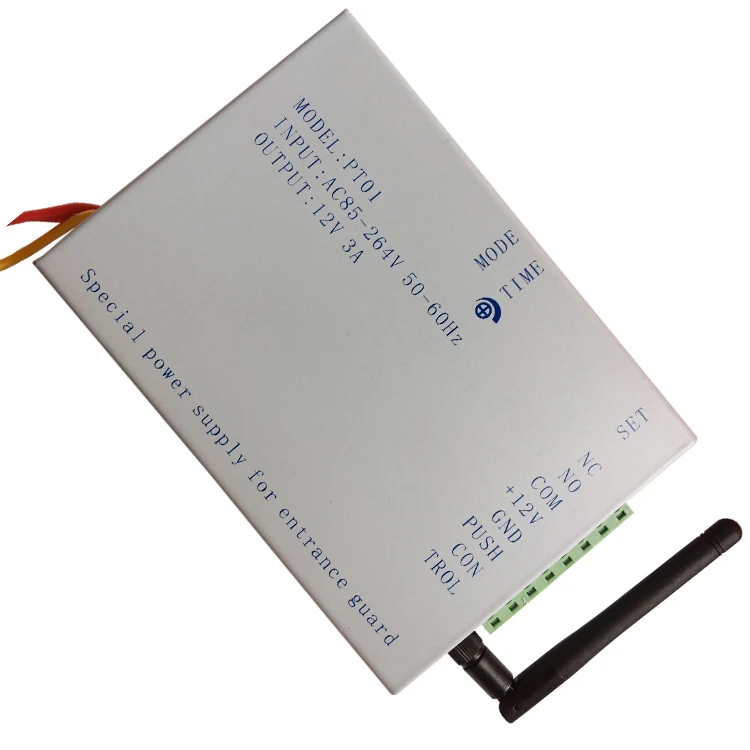

 PT01 Special Power Supply With WiFi For Access Control

This is a innovative special power supply for access control system.Using the PI company's power

control chip which is the most reliable and stable chip in the world. It has wide input voltage from

85~264V which support overheating,constant current and overvoltage protection. The MOS output

reduce the internal resistance and improve the work efficiency.+12V ouput with 500mA protection

function. Short circuit has no impact on the electric lock and the door won't be opened.

PT01 with WiFi function can realize remote control with your mobile phone.It can help your traditional access control system to be with WiFi and controlled by mobile phone.

Specification

Input voltage: AC85-264V

Output voltage:12V

Load current: ≤3A

+12V load current:≤500mA

Working temperature:-40~65℃

Working humidity:10%~90%

Communication: WiFi

Dimension:128*82*28mm

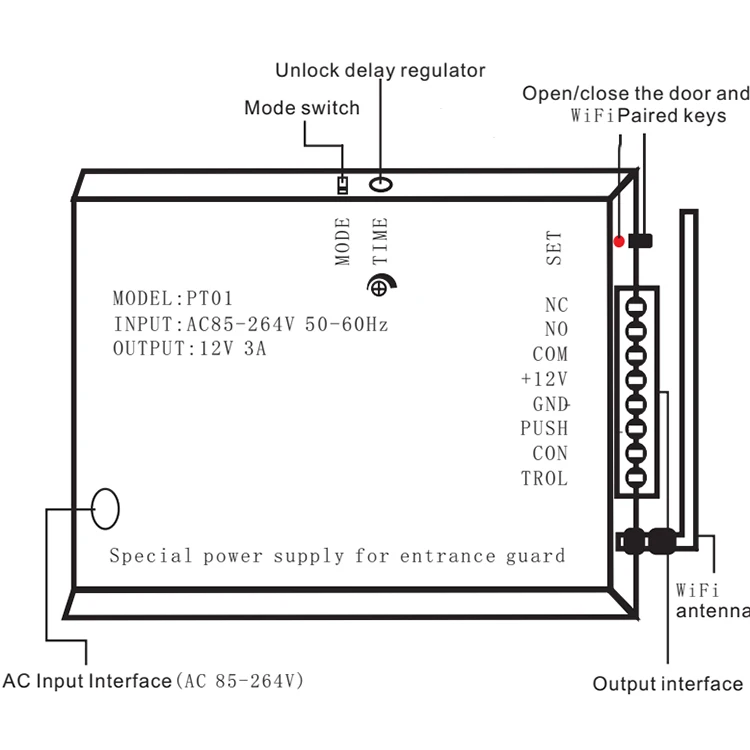

Wiring instruction

Q: 1. Can I have a sample order?
         A: Yes, we welcome sample order to test and check quality. Mixed samples are                   acceptable.

Q: 2. What is the lead time?
         A: Sample needs 1-3 days, mass production time needs 7-20 days for order less               than 5000 pcs. Time is negotiable.

Q: 3. Do you have any MOQ limit?
         A: No. 1pc is our MOQ.

Q: 4. How do you ship the goods and how long does it take arrive?
         A: Sample order, we usually suggest the shipping by DHL, UPS, FedEx or TNT. It               usually takes 3-5 days to arrive. To bulk order air or sea shipping is suggested.

Q: 5. What is the warranty for the products?
         A: Yes, we offer 3 year warranty for the products.

Q: 6. How is your after-selling service?
         A: We have after-sales technical team, provide 24 hours online technical support.

Q: 7. Do you supply OEM service?
     A: Yes, We support OEM like logo printing or box customization on quantity  of                   hundreds.
