Конвейерная лента для суши Faith Factory
US $170.00
Высококачественная ленточная конвейерная линия Chinse роликовый конвейер с приводом на 180 градусов
- Категория: Conveyors >>>
- Поставщик: Shenzhen,Shunqiang,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 0.42 $* | 0.22 $* |
| Aug-17-2025 | 0.22 $* | 0.17 $* |
| Jul-17-2025 | 0.76 $* | 0.44 $* |
| Jun-17-2025 | 0.82 $* | 0.60 $* |
| May-17-2025 | 0.91 $* | 0.13 $* |
| Apr-17-2025 | 0.98 $* | 0.22 $* |
| Mar-17-2025 | 0.81 $* | 0.70 $* |
| Feb-17-2025 | 0.85 $* | 0.63 $* |
| Jan-17-2025 | 0.46 $* | 0.93 $* |
Характеристики
Product Overview
180 degree turning conveyor
180 degree turning conveyor applies to the auxiliary equipment of food, medicine, electronics, home appliances, chemical industry and other assembly lines for conveying products ≥8*8mm. It can be designed into different angles and sizes according to the docking distance of the equipment to meet the actual requirements of turning on site.
FEATURES AT A GLANCE
The features of turning conveyor
1. Reducing labour costs: do not need a particular person to inspect and maintain the belt device, only need regular inspection. Moreover, the fault is easy to find and easy to eliminate.
2. Easy to use: debugging principle with the ordinary belt conveyor, any belt conveyor operators can be debugging
3. It is simple to maintain: only special-shaped drum is the wearing part, the rest are standard parts, users can maintain and repair it by themselves, do not need special personnel.
4. Easy to install: ground anchor, concrete foundation, point column can be achieved
5. Reducing the initial investment of equipment.
2. Easy to use: debugging principle with the ordinary belt conveyor, any belt conveyor operators can be debugging
3. It is simple to maintain: only special-shaped drum is the wearing part, the rest are standard parts, users can maintain and repair it by themselves, do not need special personnel.
4. Easy to install: ground anchor, concrete foundation, point column can be achieved
5. Reducing the initial investment of equipment.

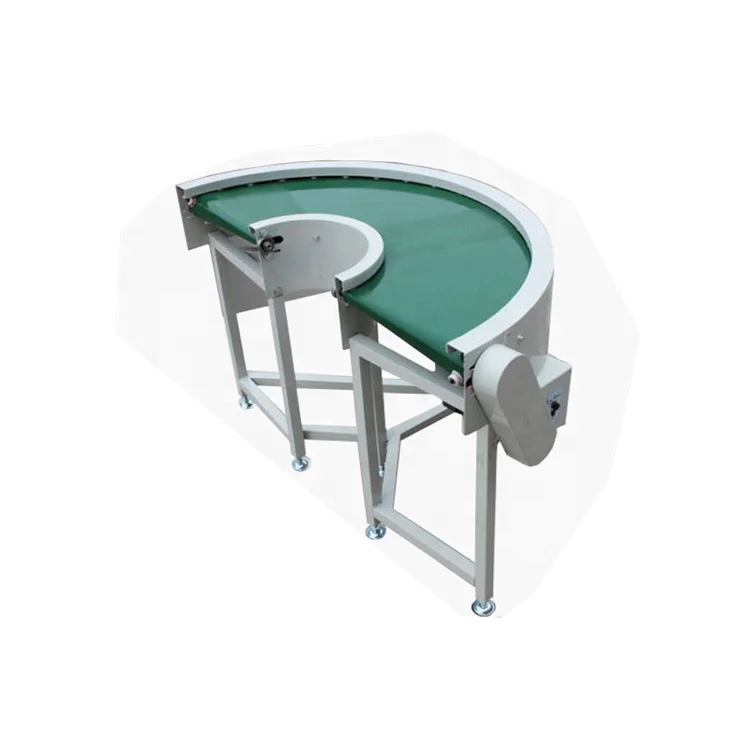

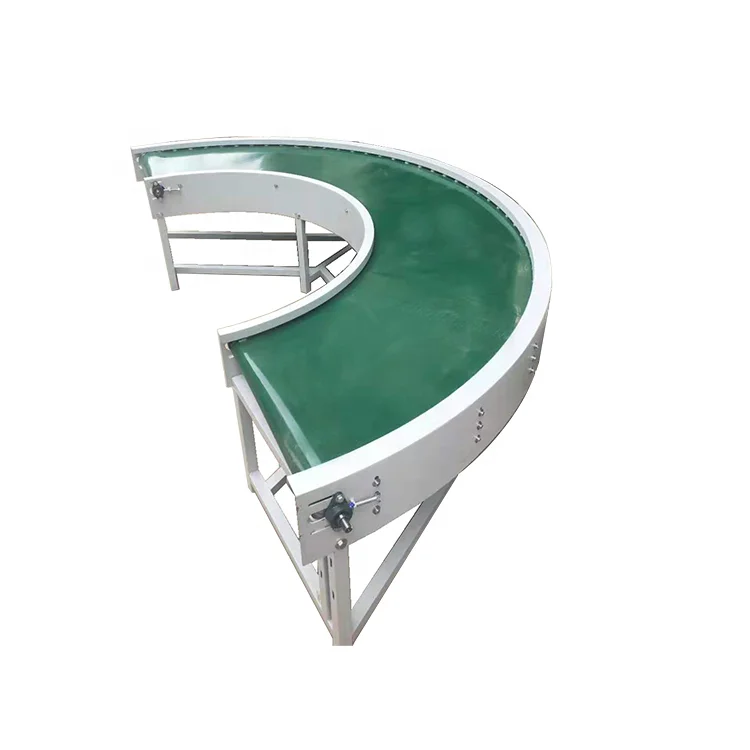

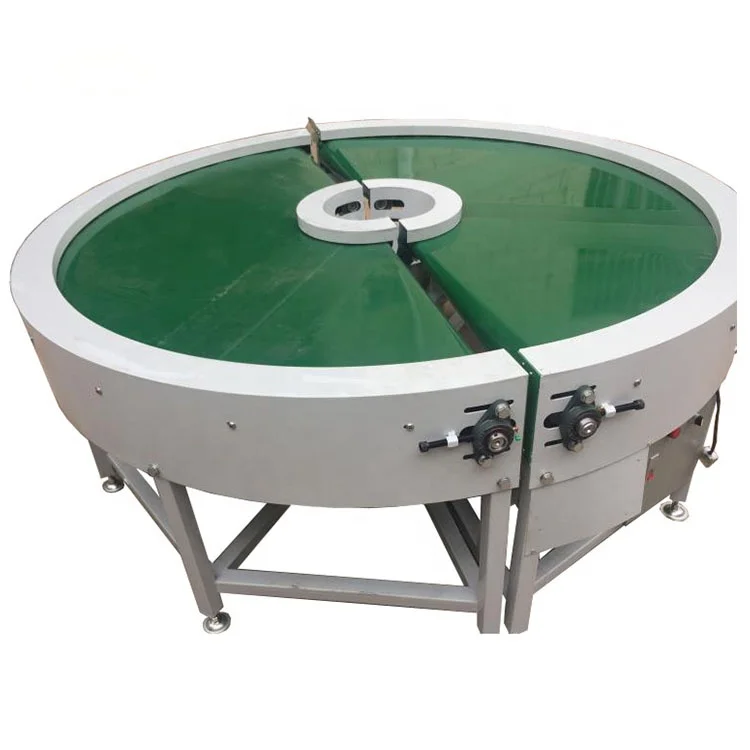

Products Display
Customer Photos

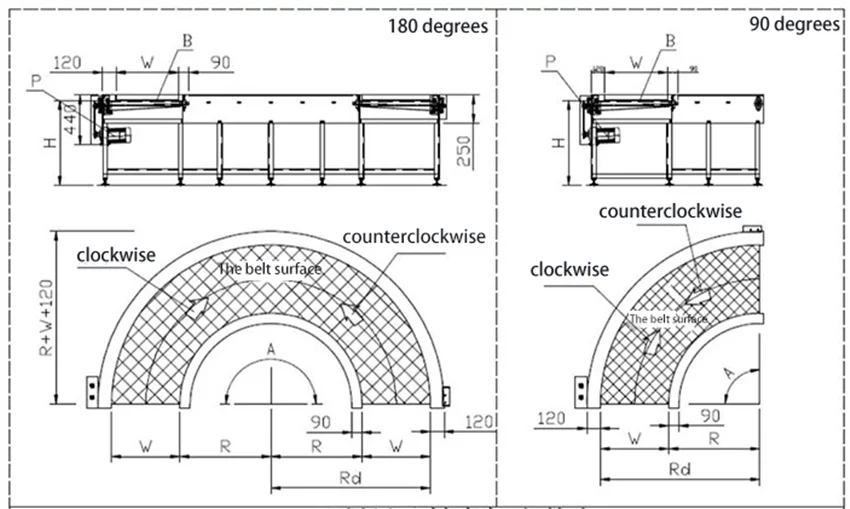

Product Paramenters
Name | 90 degree turning conveyor | 90 degree turning conveyor | 180 degree turning conveyor | 180 degree turning conveyor | 180 degree turning conveyor | |
Products Model | SQ-ZWJ100-1 | SQ-ZWJ100-1 | SQ-ZWJ100-2 | SQ-ZWJ100-2 | SQ-ZWJ100-2 | |
Run mode | Plane or Up and down | |||||
The belt width | W | 200-600 | 800-1200 | 1100-1200 | Non-standard custom | 500~1500 |
Large radius | Rd | 1100 | 1500 | 1700 | Non-standard custom | Max Rd6000 |
Small radius | R | 500-900 | 500-700 | 500-600 | Non-standard custom | Max R200 |
The motor power | P | 200-400W | 200-400W | 400-750W | Non-standard custom | 200W~2.2KW |
Speed M/min | v | 5 m/min [speed of center radius] | 5 m/min [speed of center radius] | 5 m/min [speed of center radius] | Non-standard custom | 0.5--60M/min |
Bearing kg/M | 3 kg/m | 3 kg/m | 3 kg/m | Non-standard custom | MAX100KG | |

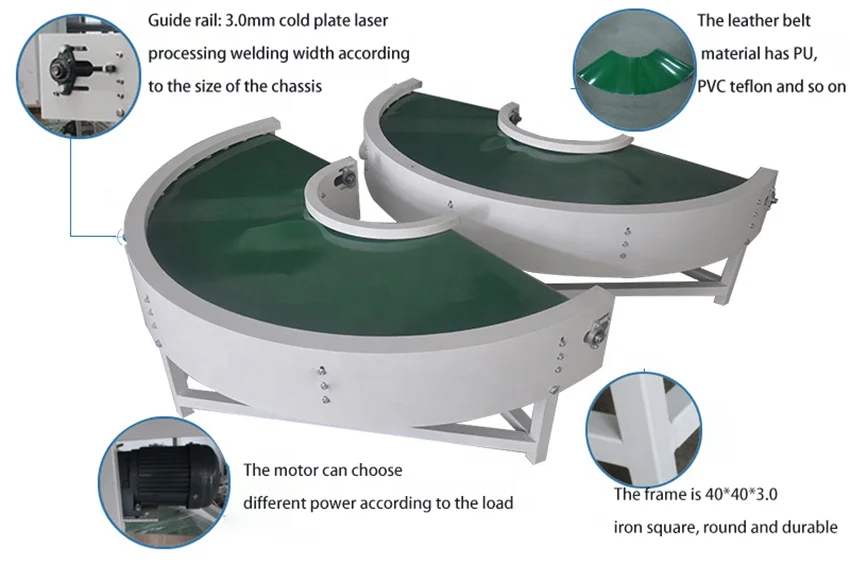

PRODUCT CONFIGURATION

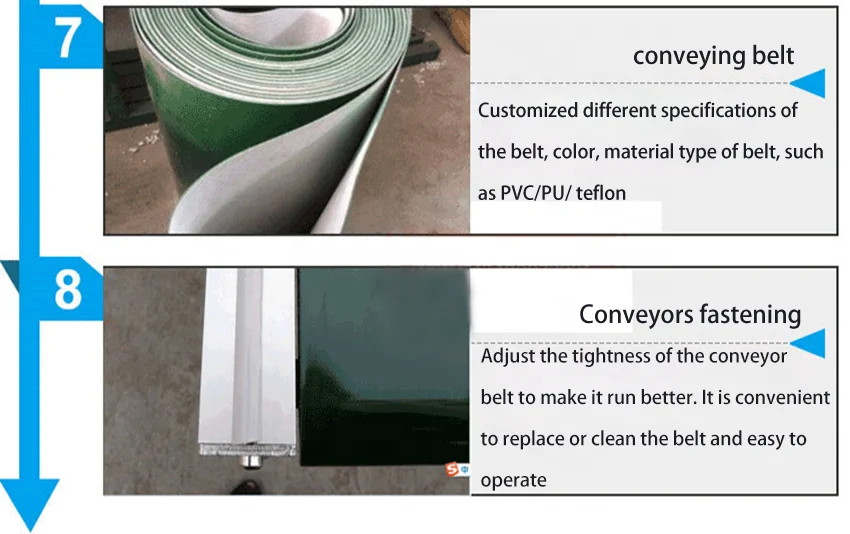

Driven Chain
Motor
PVC Belt
Company Profile
Factory Introduction
Shenzhen Shunqiang Technology Co., Ltd founded in 2009, is a collection R&D, sale and service as one of the non-standard automation equipment manufacturer. And we set up an overseas factory in Vietnam in 2019. Our main business has included belt conveyor line, roller conveyor line, times the speed chain conveyor line, chain plate conveyor line, hanging line, automation, integration, logistics line production line, and the application of mechanical products. With years of accumulated professional technology and application examples, our company's products have been involved in auto parts, new energy charging piles, industrial appliances, household appliances, electronic communications, plastic products, and other industrial fields.
FAQ
1. Q: Hi, are you a manufacturer?
A: Yes, we are. We are a Chinese assembly line manufacturer. Our factory is located in the south of China; No. 20, Xianzhuang Road, Shangcun Community, Gongming Street, Guangming New District, Shenzhen City China. And we also have an overseas facotry in Vietnam.
2. Q: What’s your primary business?
A: Our mainly business: belt conveyor line, roller conveyor line.
A: Yes, we are. We are a Chinese assembly line manufacturer. Our factory is located in the south of China; No. 20, Xianzhuang Road, Shangcun Community, Gongming Street, Guangming New District, Shenzhen City China. And we also have an overseas facotry in Vietnam.
2. Q: What’s your primary business?
A: Our mainly business: belt conveyor line, roller conveyor line.
