Реальный цвет большой обзор супер широкий диапазон тени 4/5-14 сварочный шлем с автоматическим затемнением A77D для TIG MIG/MAG MMA плазменной

Описание и отзывы

Трекер стоимости

Характеристики

Name:True Color Huge Viewing, Super Wide Shade Range 4/5-14 Auto Darkening Welding Helmet A77D, for TIG, MIG/MAG, MMA, Plasma



Description:

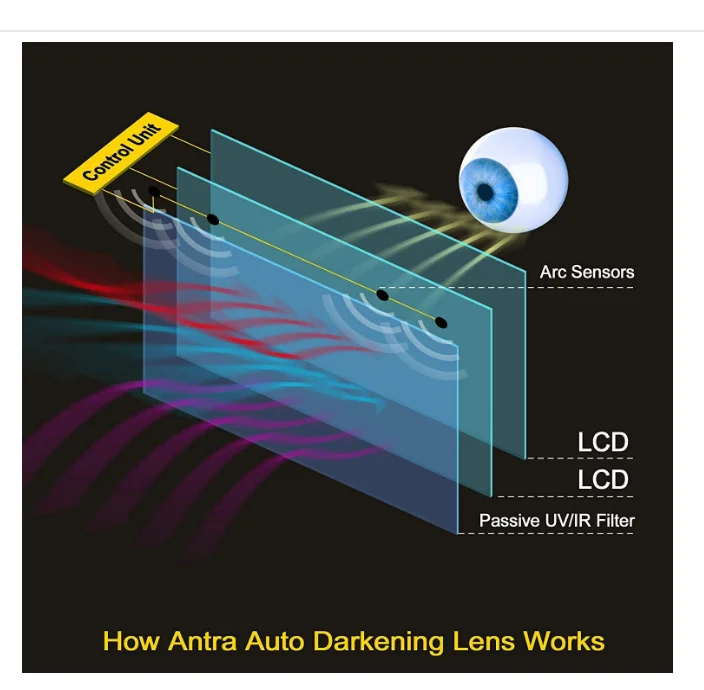

Powered by built-in solar cells and 1 replaceable CR2450 battery, this series welding helmet is equipped with 4 arc sensors that activate the auto-darkening filter to switch from light to dark automatically in a split second when an arc is struck. The auto-darkening filter greatly reduces the need to flip the welding helmet up and down between torch placements, which helps to boost productivity by reducing the stop-and-start time needed with passive lens welding helmets. Combining with our revolutionary new design with external controls and adjustments for dark state, sensitivity, and delay, these features greatly reduce the need for grinding and rework by increasing torch placement accuracy, thus saving time, effort and money.

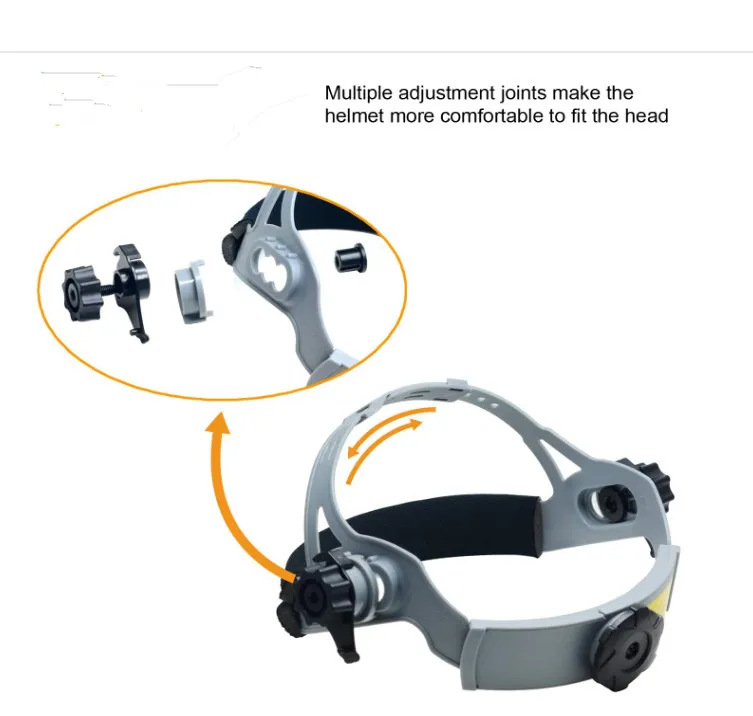

Ergonomically designed and made of lightweight composite materials, the  welding helmet features a custom fit made possible by a ratcheting headband and padded interior. Its filter has a whopping 3.94” x 3.86” viewing area, the largest in its class, giving you a full view of your welding area and beyond with unparalleled optical clarity and complete UV/IR protection.

The welding helmet also has a variable dark shade adjustable from #5 to #13 with a resting shade of #4, suitable for most Stick, MIG (Metal Inert Gas) and TIG (Tungsten Inert Gas) applications.



Detail Specifications:

Cartridge Size: 5 ¼ X 4 ½ inches

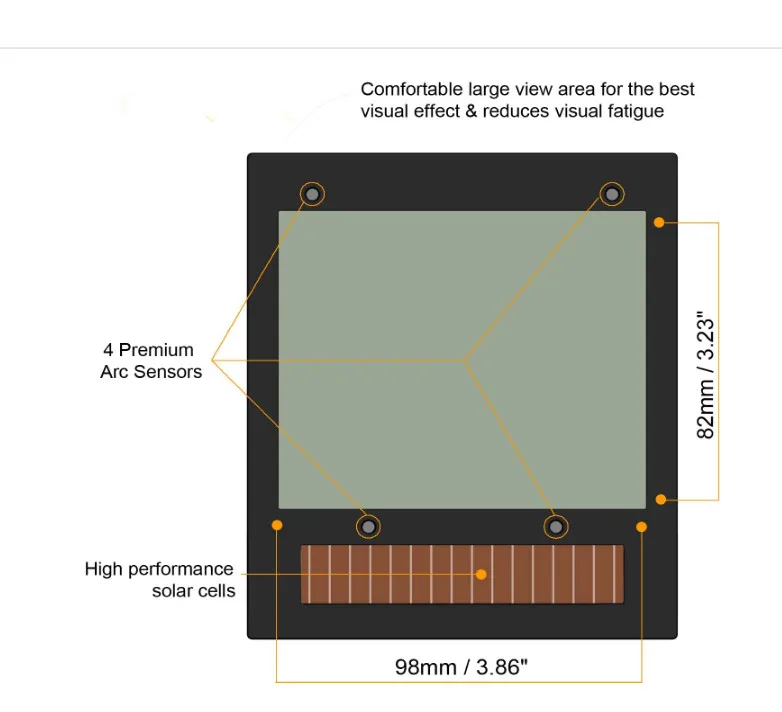

 Viewing Area: 3.94" X 3.86"
Number of Arc Sensors: 4
 Light Shade: DIN4
 Dark State: Variable, 5-9/9-13

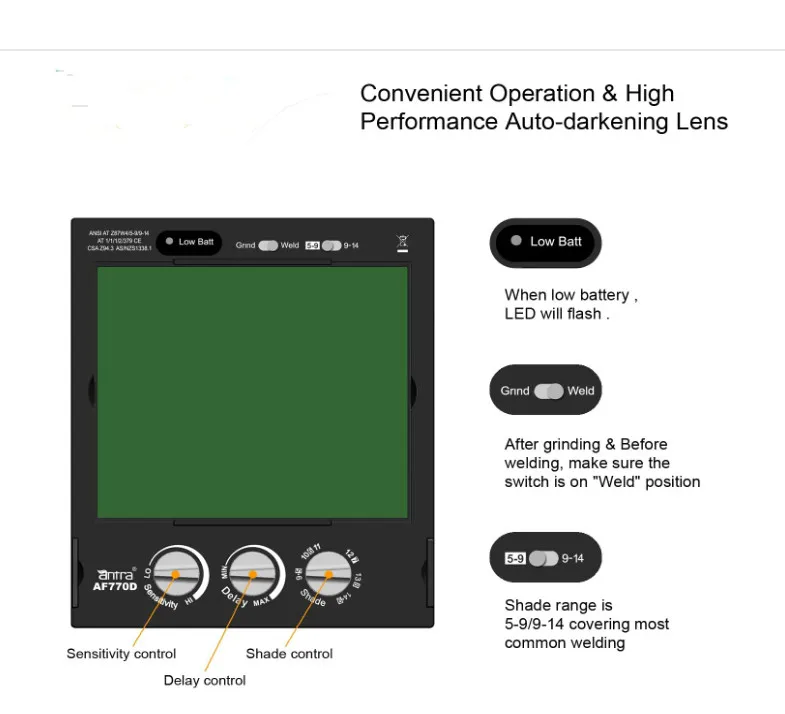

Shade Control: External
Sensitivity Control: low to high, continuous adjustment
UV/IR Protection: DIN 16
Power Supply: Solar cell and replaceable CR2450 battery
Switching Time: 1/30,000s, from Light to Dark
Dark to Light: 0.1 – 1.0 second, continuous adjustment
Tig Amp Rating: DC >5A, AC>5
Low voltage indicator: Yes
ADF self-check: Yes
Grinding Function: Yes
Package Weight: 450g/15.9oz
Package Size: 25*25*33cm/9.8*9.5*13.0in





Welding helmet detail information:

1,Automatic filter welding lens adopts advanced photoelectric technology, suitable for welding,

argon arc welding, gas shielded welding, plasma cutting machine and other welding modes

2,Convenient and convenient manual disassembly and installation protection film, the most humanized

design ideas, protection film disassembly and installation no longer need to use tools directly from

the front can be manually disassembly, convenient and fast

3,The edge adopts polishing and dust sealing technology, which makes it smooth and delicate



4,Intelligent welding and polishing double adjustment, mask side button design, not only comes with the

standard 9-13 welding gear adjustment, but also adds a new polishing adjustment, a multi-purpose,

economic and practical
