Шахта используется портативный 7 бар 0 МПа опционально электрические дизельные воздушные
- Категория: Industrial Compressors & Parts >>>
- Поставщик: The,Nile,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.63 $* | 0.92 $* |
| Aug-16-2025 | 0.43 $* | 0.97 $* |
| Jul-16-2025 | 0.92 $* | 0.22 $* |
| Jun-16-2025 | 0.66 $* | 0.19 $* |
| May-16-2025 | 0.32 $* | 0.30 $* |
| Apr-16-2025 | 0.80 $* | 0.6 $* |
| Mar-16-2025 | 0.79 $* | 0.89 $* |
| Feb-16-2025 | 0.55 $* | 0.58 $* |
| Jan-16-2025 | 0.99 $* | 0.44 $* |
Характеристики

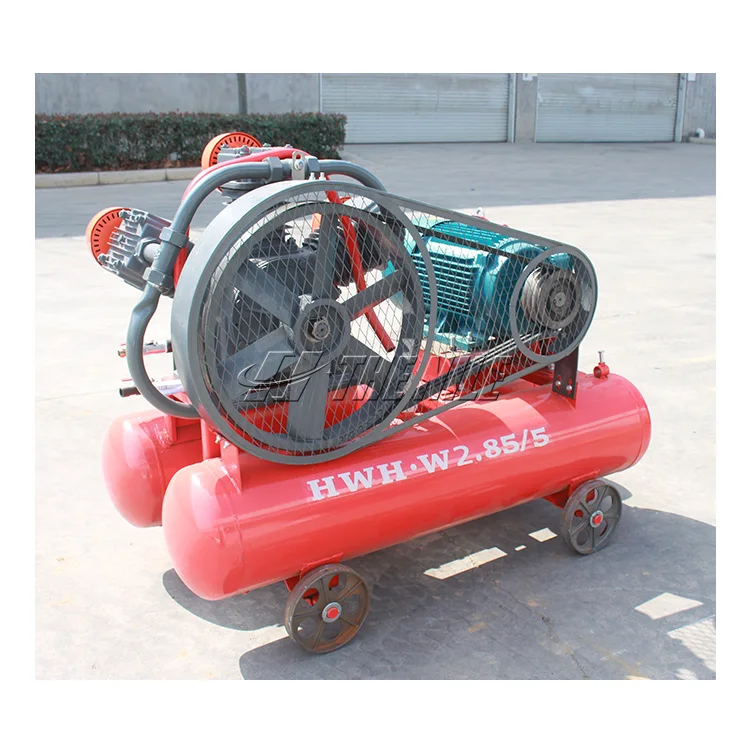

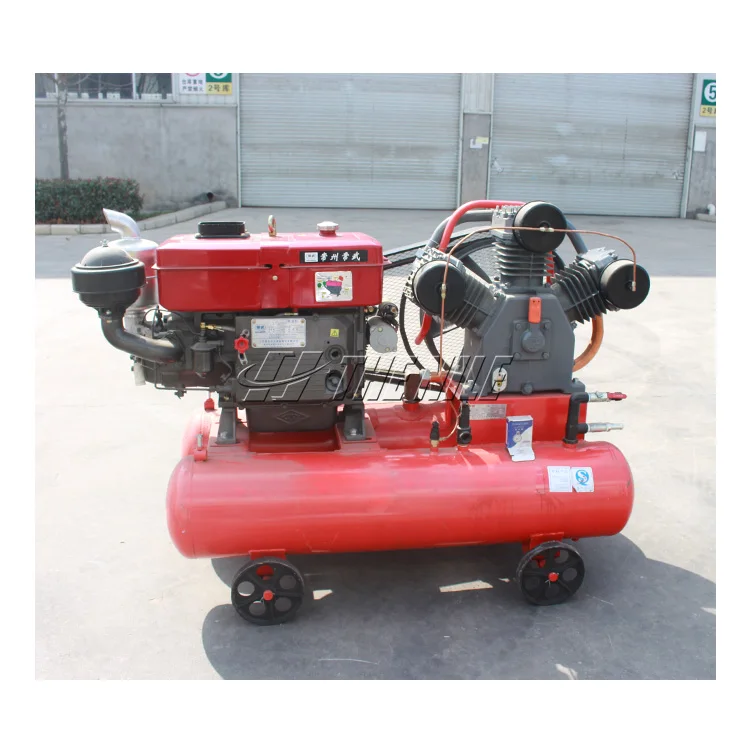

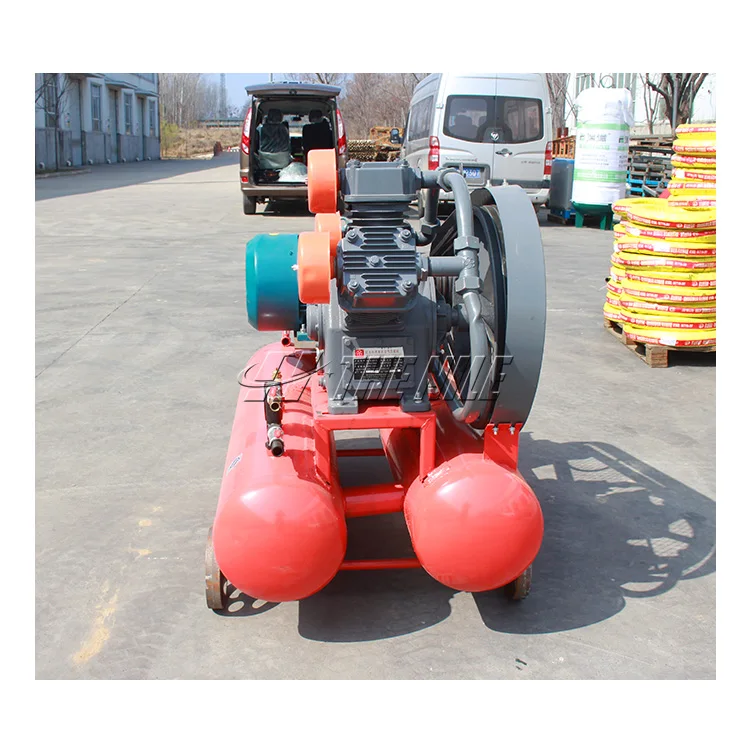

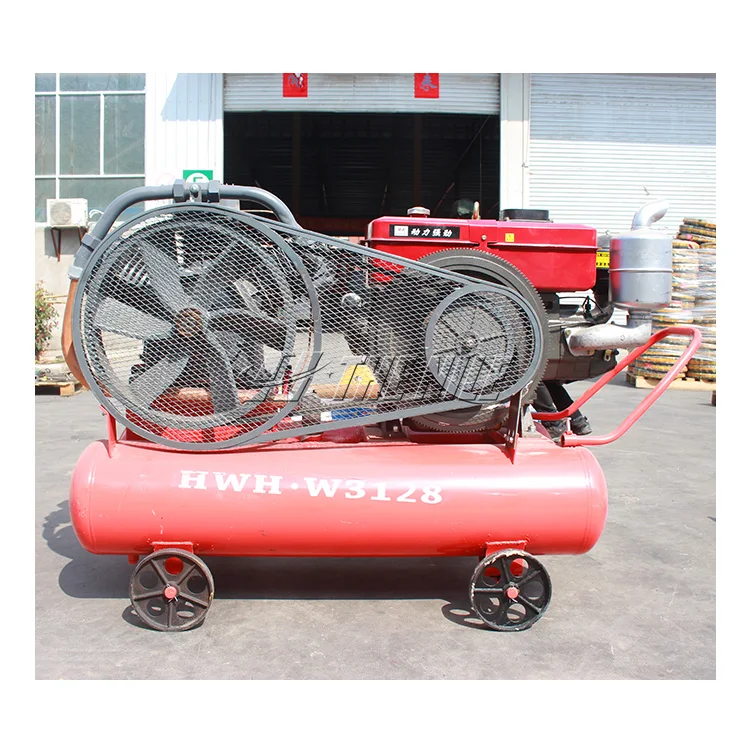

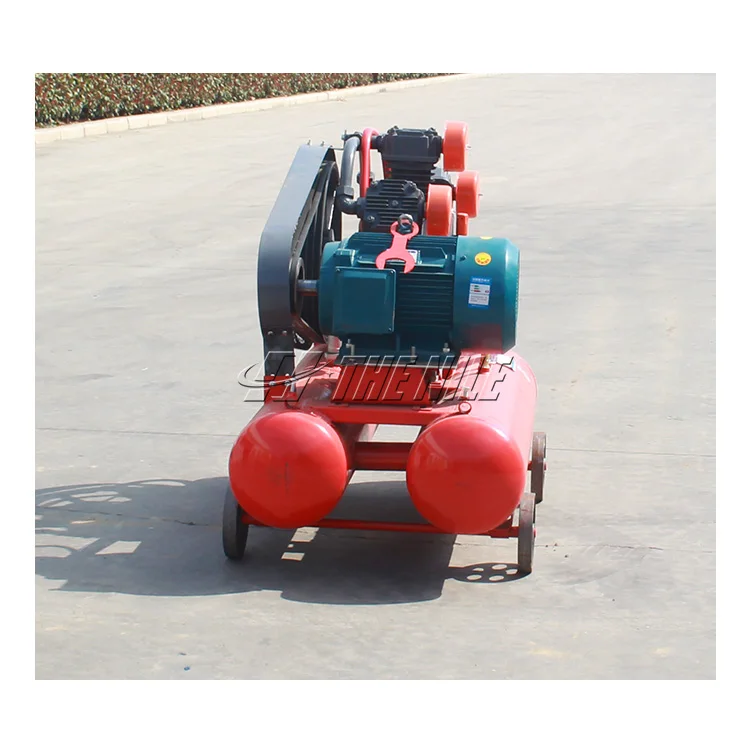

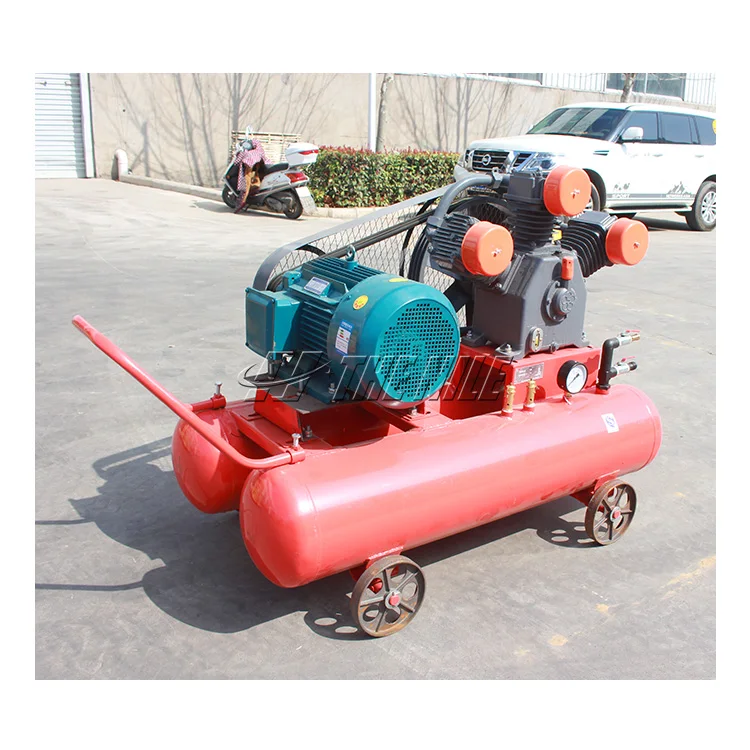

Products Description
Features of Air Compressor
1.Great Variety of Air Compressor.
Designed with Advanced Industrial Design, the 0.7Mpa reciprocating piston air compressor is integrated with the world latest technological achievements.
2.Technology-intensive,Good Performance.
*Optimized air valves can effectively reduce exhaust resistance and temperature, and increase gas displacement.
*Reasonably designed aluminum cylinder head and fins can realize rapid cooling,reduce energy consumption.
*Using Inlet unloading equipment and outlet unloading equipment are good for reducing energy consumption.
*Using hitting oil blade to generate oil mist to lubricate bearing and bearing bush.Working reliable.
3.Meet Customers' Requirements.
There are many different models air compressor from small displacement to big displacement to meet the air demand of
different pneumatic rock drill and other pneumatic machinery.
4.Customized: Electrical Motor and Diesel Engine Optional.
Technical Data
Model | W3128 | W3118 | W3108 |
Gas Displacement | 3.5 m3/min | 3.0 m3/min | 2.0 m3/min |
Discharge Pressure | 0.7 Mpa | 0.7 Mpa | 0.7 Mpa |
Speed of Crankshaft | 990 r/min | 1080 r/min | 1150 r/min |
Quantity of Cylinder | 3 | 3 | 3 |
Diameter of Cylinder | 128mm | 118mm | 108mm |
Piston Stroke | 110mm | 100mm | 80mm |
Tank Capacity | 230L | 200L | 130L |
Matched Power | S1125 Diesel Engine/ 18.5kw 2-pole Motor | S1115 Diesel Engine/ 15kw 2-pole Motor | S1105 Diesel Engine/ 11kw 2-pole Motor |
Pressure Control Mode | Shut Down Air Intake | Shut Down Air Intake | Auto Exhaustion |
Lubrication Type | Splash | Splash | Splash |
Cooling Type | Air Cooling | Air Cooling | Air Cooling |
Driving Method | Clutch, Triangle Belt | Clutch, Triangle Belt | Clutch, Triangle Belt |
Dimension | 1800*940*1290mm | 1750*940*1290mm | 1630*750*1150mm |
Weight | 450kg (Diesel Engine Type) 390kg (18.5kw Motor Type) | 435kg (Diesel Engine Type) 375kg (15kw Motor Type) | 320kg (Diesel Engine Type) 280kg (11kw Motor Type) |
Recommend Products
JAC Diesel Air Compressor
w5/w8 Diesel Air Compressor
5-24KW Single Cylinder Diesel Generator
20-1200KW Diesel Generator
Low Noise/ Silent Diesel Generator
Mobile Diesel Generator
Company Profile
The Nile Co.,Ltd.is committed to designing,producing grinding mills,crushers,conveyors,feeding machines,drying and calcinating as well as beneficiation equipment,fine sand recycling equipment etc,which are widely applied in electricity,metallurgy,mine and quarry, wharf,granary,chemical industry.Our products have been spread all over China,and also exported to European,American,Asian,African countries and enjoyed great popularity among our customers.
Our Advantages
Overseas Service
1.We have engineers in Kenya , Sudan ,Uganda , Professional installation and training skills .
2.We have factory and warehouse in Kenya and China , Fast pre-sale and after-sale service , Wear Parts in stocks , You can get it soon .
3.Our products have been spread all over China,and also exported to European,American,Asian,African countries . Our sales managers and engineers know the local condition very well , We will supply the most suitable solution for you .
Factory and Warehouse in Kenya
Welcome to visit our factory in China and Kenya .
FAQ
Q1: Are you factory or trade company?
A1: We are factory with CE. We have factory in China and Kenya .
Q2: Where your products have been exported before?
A2: Our products have been sold to South Asia, Africa, South America, middle East and so on.
Q3: How will you help the customer to install the equipment?
A1: We are factory with CE. We have factory in China and Kenya .
Q2: Where your products have been exported before?
A2: Our products have been sold to South Asia, Africa, South America, middle East and so on.
Q3: How will you help the customer to install the equipment?
#1 Our senior engineer will supply installation and training service on-line or on-site .
#2 We have engineer in Uganda ,Sudan ,Kenya ,China, We will supply 7*24 service .
Q4: How about the wear parts supply?
A4: We will supply the wear parts with factory price . You can buy them from our factory in China and Kenya .
Q5: What about after-sale service?
A5:12 months warranty for all kinds of products.
Q6: How to get the free solution and quotation ?
A6: Please send inquiry to us ,leave your whatsapp and email , our sales manager will contact you within 1 hours .
#2 We have engineer in Uganda ,Sudan ,Kenya ,China, We will supply 7*24 service .
Q4: How about the wear parts supply?
A4: We will supply the wear parts with factory price . You can buy them from our factory in China and Kenya .
Q5: What about after-sale service?
A5:12 months warranty for all kinds of products.
Q6: How to get the free solution and quotation ?
A6: Please send inquiry to us ,leave your whatsapp and email , our sales manager will contact you within 1 hours .
