 Introduction:

Currently, honey processing main used mechanical filters and low-temperature vacuum concentrated to remove impurities and excess water, Get a higher degree of vacuum systems and the reasonable structure of the low temperature evaporation device is the key to the processing technology of bee products. This equipment has fully realized honey enrichment process special requirements, and to meet the aspirations of bee products processing enterprises.

Technological process:

Technical parameters:

600 mm diameter

The height to 600 mm

The overall volume of 138 l

The effective volume of 100-100 l

A single heating tube (preheating tank and vacuum concentrator) power is 6 kw

Vacuum pump SK - 0.8 voltage 380 v power 2.2 KW

Vacuum is approximately equal to 0.09

: preheating tank motor slowdown micromotor voltage 220 v power 250 w ratio 1:25 60 r/min

Production capacity: class from 1.2 to 1.5 t

Concentrated temperature: 50 ℃ or less

Vacuum: 0.092 Mpa or less

The maximum total power/power: 14.5 Kw / 380 v

Structural drawing:

1. Thermometer   2. Pipe filter  3. Exhaust port   4. Thermometer  5. Viewing port

6. Vacuum gauge  7. Electric control box  8. Condenser pipe  9. Concentrate tank

10. Water outlet  11. Water outlet   12. Honey outlet  13. Vacuum pump

14. Heater  15. Water outlet  16. Pedestal  17. Heater  18. Preheating tank

19. Filter net  20. Motor

Features:
1.This set of Equipment are made of 304 stainless steel, easy to operate, reliable, efficient, vacuum suction honey.
2.They can achieve high vacuum and low concentration temperature is ideal for honey processing equipment.
3.Apparatus comprising: a preheating tank, filter, concentrate tank, a condenser, a vacuum pump.
4.The honey thickener machine can reach high vacuity and lower thickening temperature.
After concentrating the materials will not change color, not change flavor, the quality of materials after concentrating will be very good.
5.Good designed of the structure make the machine small, low noise, easy to operate.
6. Honey thickener vacuum concentrator to increase the concentration of honey.

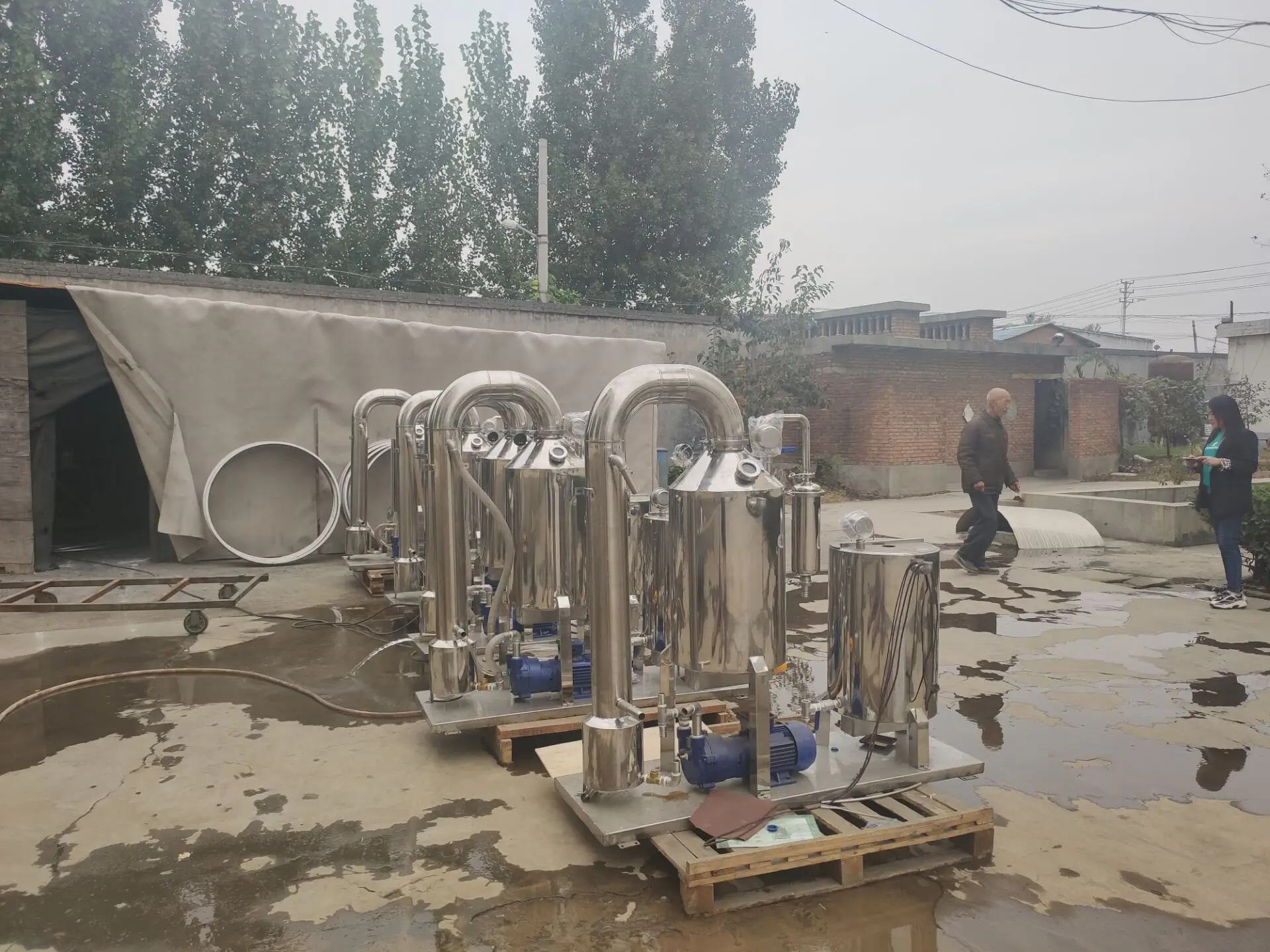

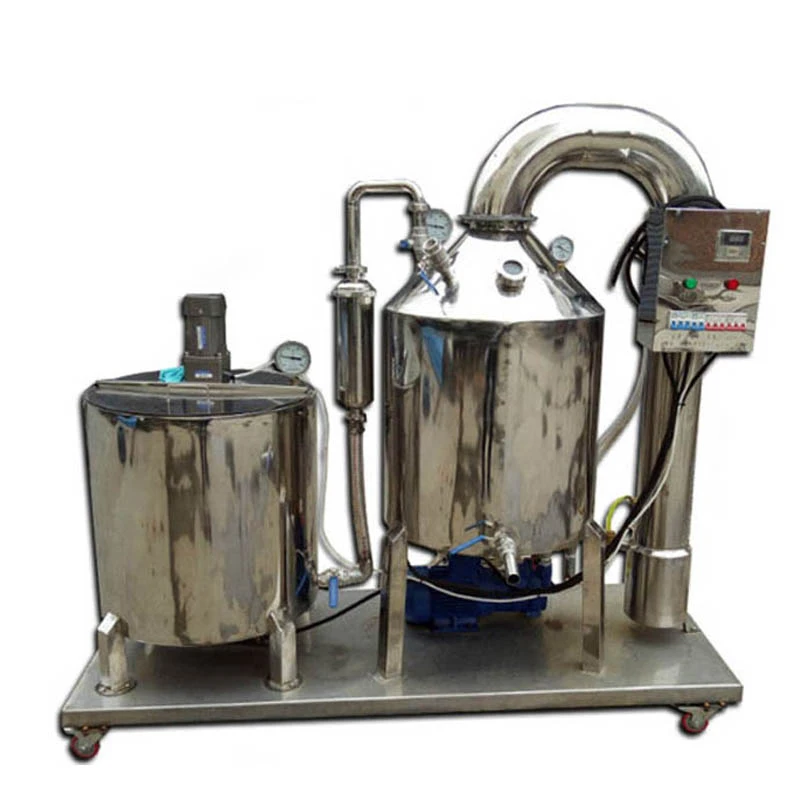

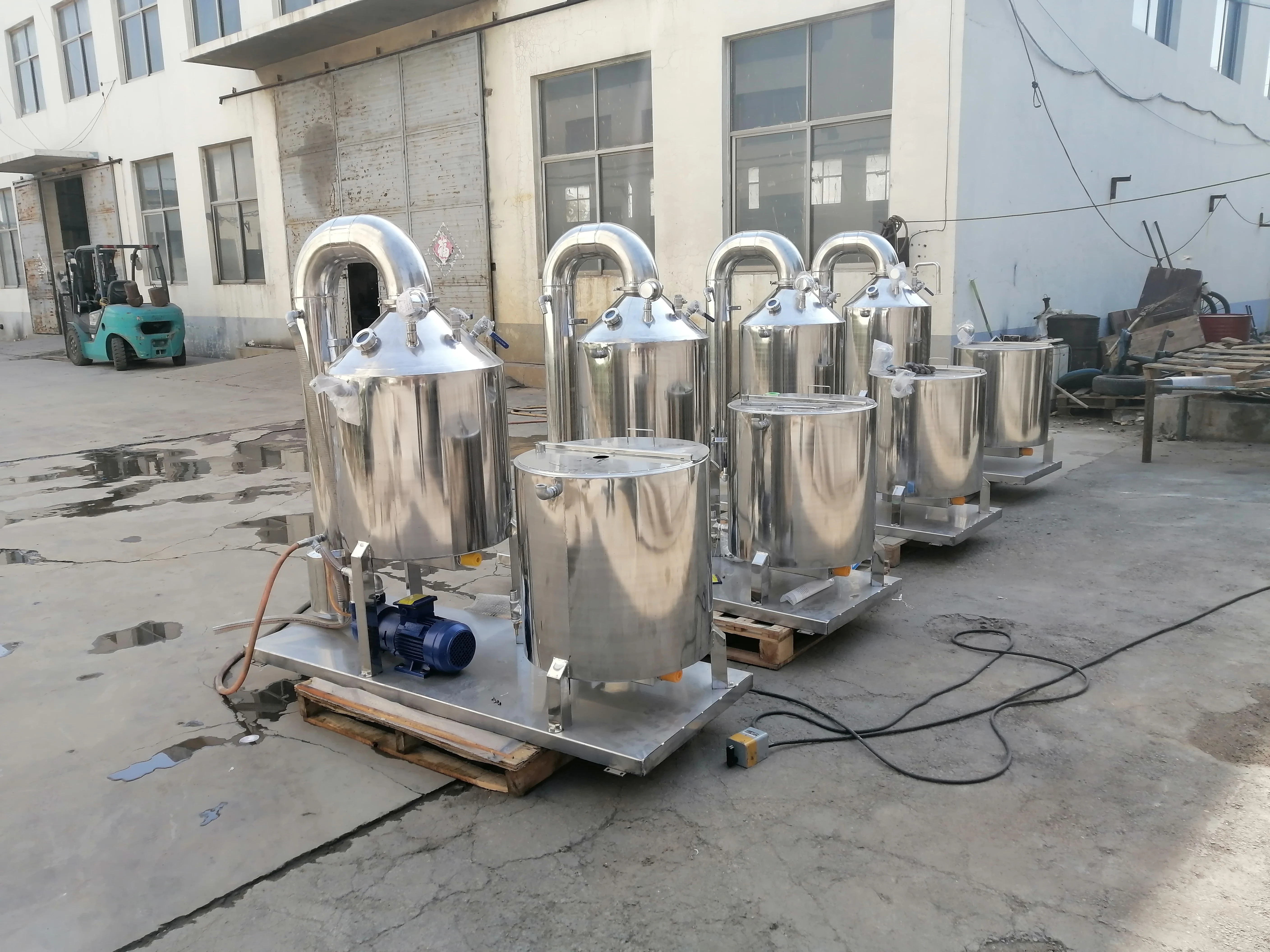

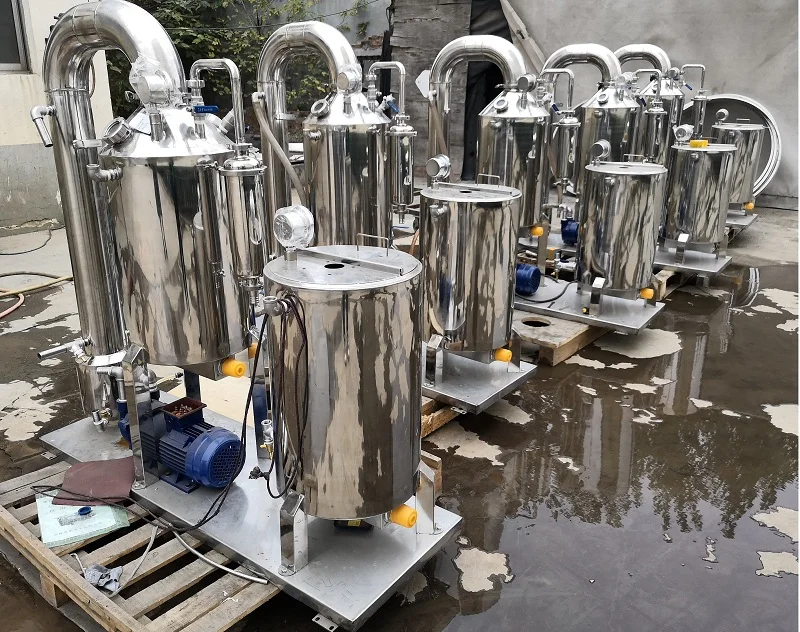

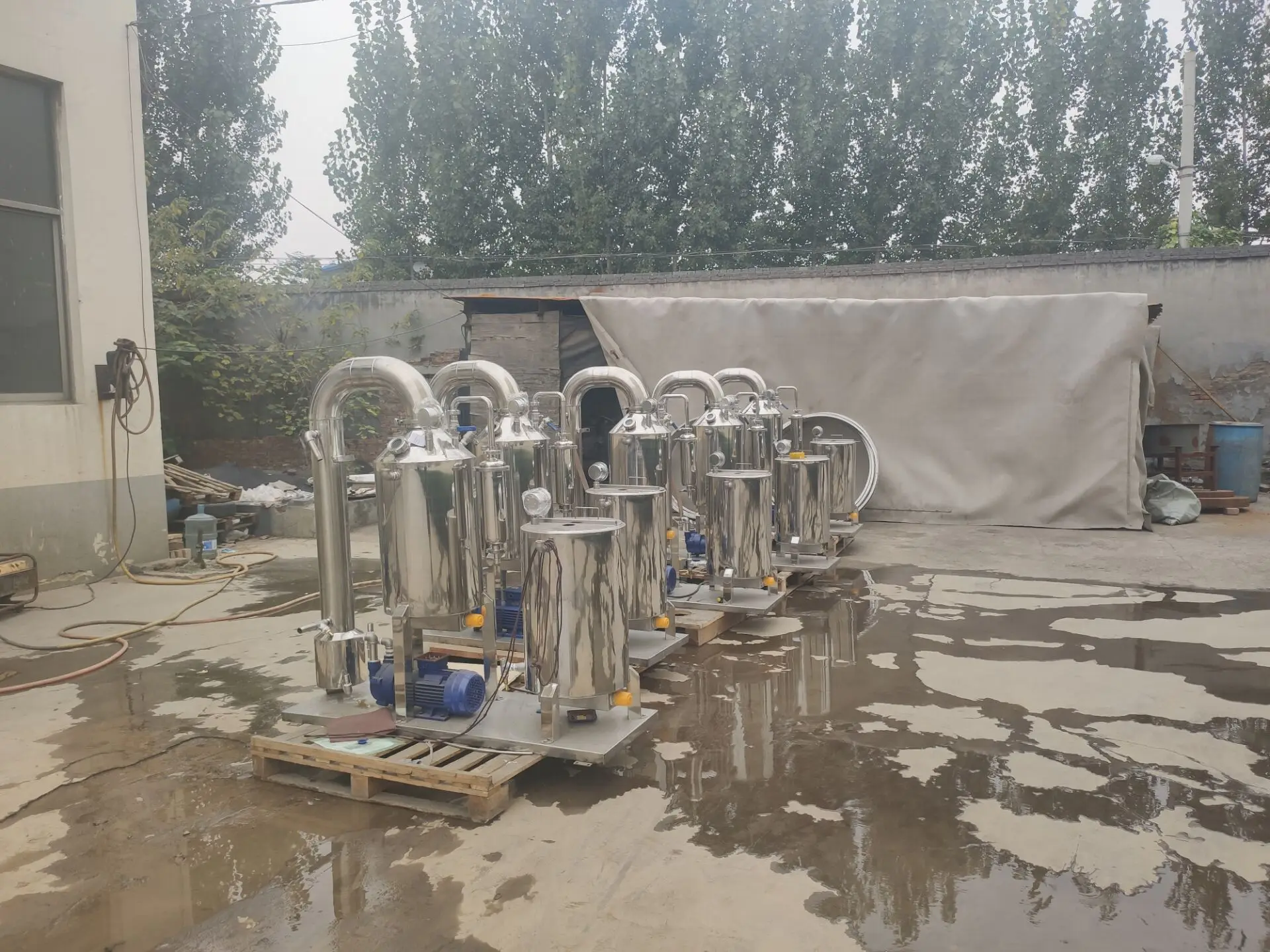

Product pictures:

1. Pre-sale service:

   a. In order to let each customer know better about the performance and requirements, we provide these services

   b. To send each potential customer the detailed production information and company profile

   c. According the user’s different needs, we work to recommend and guide for them

   d. To help them select the appropriate equipment

2. Service during sale:

   a. Do good communication with customers, so that each part can exchange the information.

   b. Deliver on time as per the contract clause.

3. After-sale service:

   a. To track the customer’s feedback after receiving the equipment

   b. Any product quality we receive, the technical personnel will guide to solve the problem

   c. All the products have three guarantees

   d. Provide technical exchanges

   e. Do well about the work of maintenance and service
