2 'Лучший Санитарный пневматический трехзажимный 2-ходовой диафрагменный клапан из нержавеющей
- Категория: Diaphragm Valves >>>
- Поставщик: Linch,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 64.91 $* | 67.89 $* |
| Aug-17-2025 | 64.67 $* | 67.15 $* |
| Jul-17-2025 | 53.5 $* | 56.34 $* |
| Jun-17-2025 | 63.28 $* | 66.9 $* |
| May-17-2025 | 55.10 $* | 58.13 $* |
| Apr-17-2025 | 62.94 $* | 65.7 $* |
| Mar-17-2025 | 61.71 $* | 64.97 $* |
| Feb-17-2025 | 60.18 $* | 63.99 $* |
| Jan-17-2025 | 60.32 $* | 63.7 $* |
Характеристики
2'' Best Sanitary Stainless Steel Pneumatic Tri-Clamp 2 Way Type Diaphragm Valve
* Driven by strong and long lifetime stainless steel pneumatic actuator
* Operation mode can be spring return or double acting in NO or NC
* Optional actuator control units availabe: electronic positioner, limit switch, solenoid valve
* Pneumatic driving mode to ensure efficient operation and more accurate flow control
* Diaphragm structure protects valve from corrosion by separating medium and valve chamber
* Connection ends can be tri clamp or butt weld
Advantages:
* Adoption of highly hygienic stainless steel and sealing material
* Strong self cleaning ability
* Dead leg and retention free
* Daily maintenance and repair friendly
* 0.2 - 0.5μm accurate surface process
* Suitable for high temperature sterilization
Specifications
Operation Mode: | Pneumatic (common or with intelligent automation control unit） |
Structure: | Straight, Thorough flow way |
Size: | DN20-DN100 |
Body Material: | Casted stainless steel 316L |
Diaphragm Material: | EPDM or EPDM+PTFE |
Connection: | Welding, Clamp |
Working Pressure: | 4 ~ 10 bar according to size and diaphragm material |
Air Supply Pressure: | 5 ~ 8 bar |
Surface Treatment: | Ra=0.4 ~ 0.6μm |

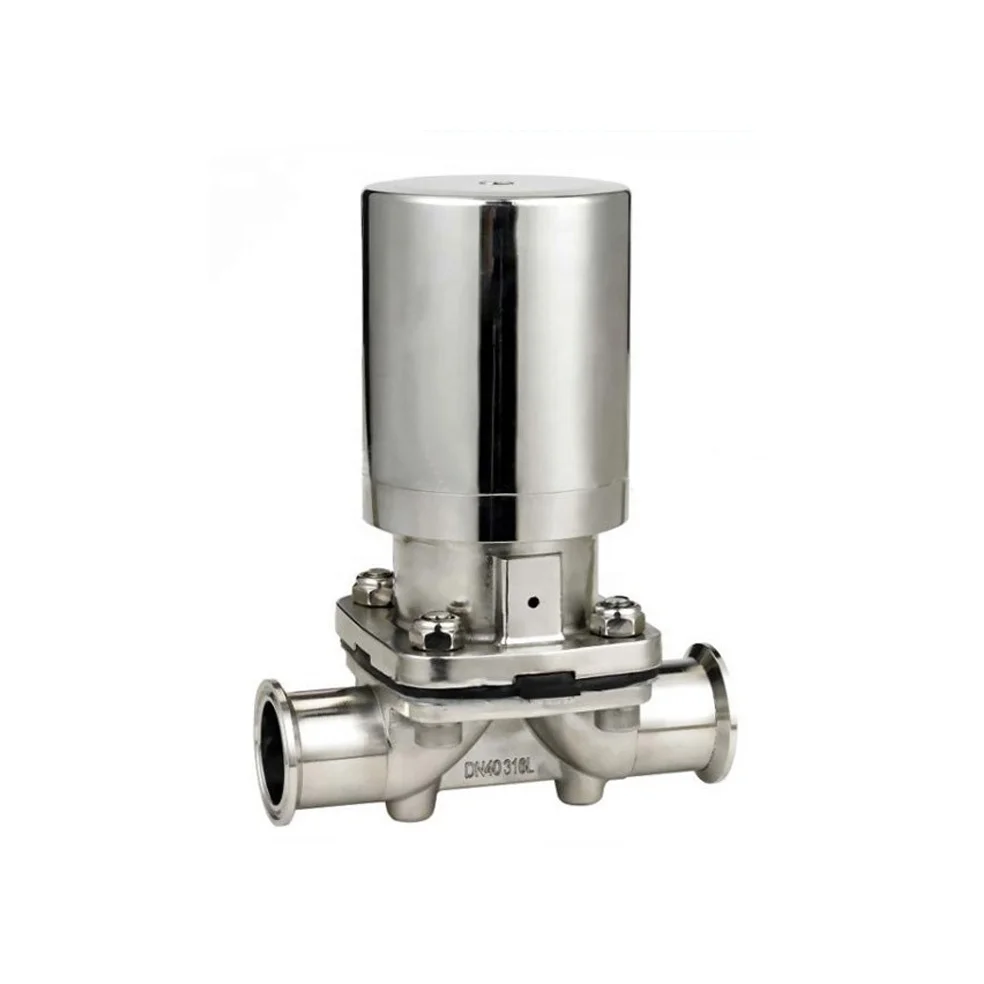

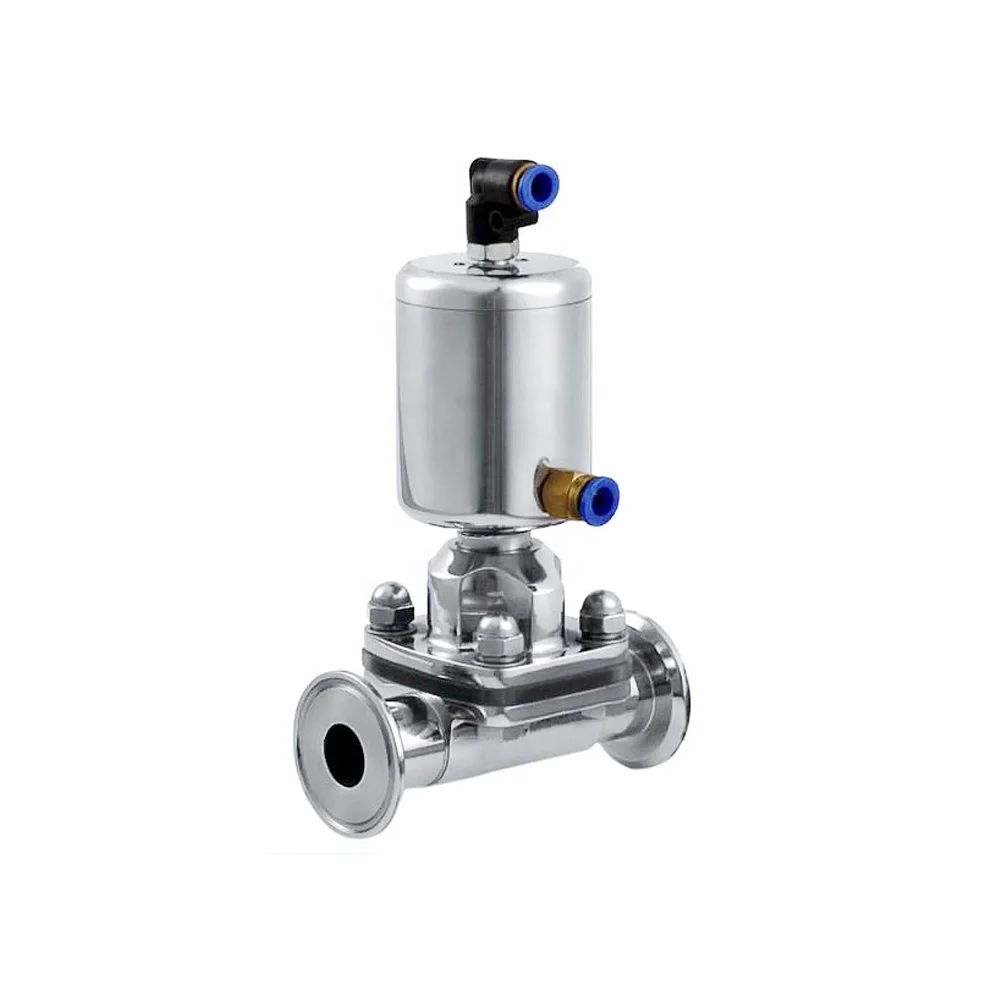

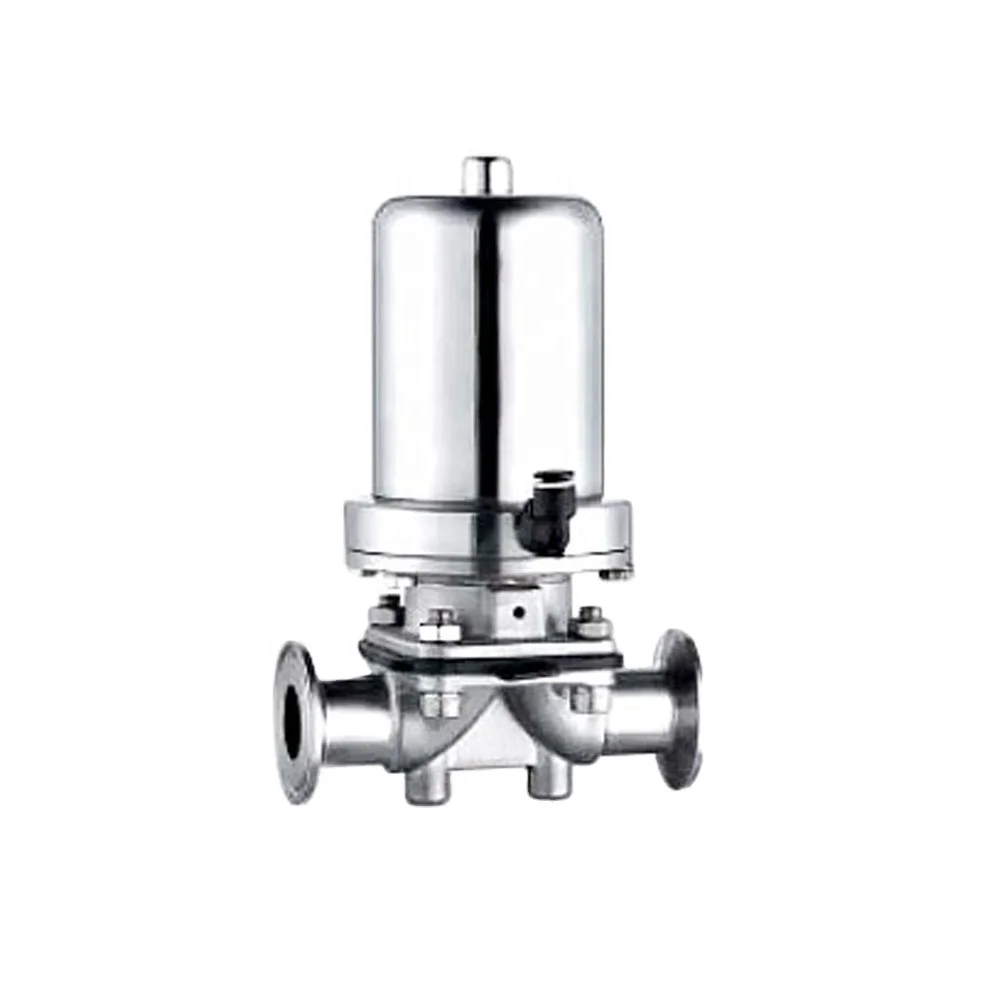

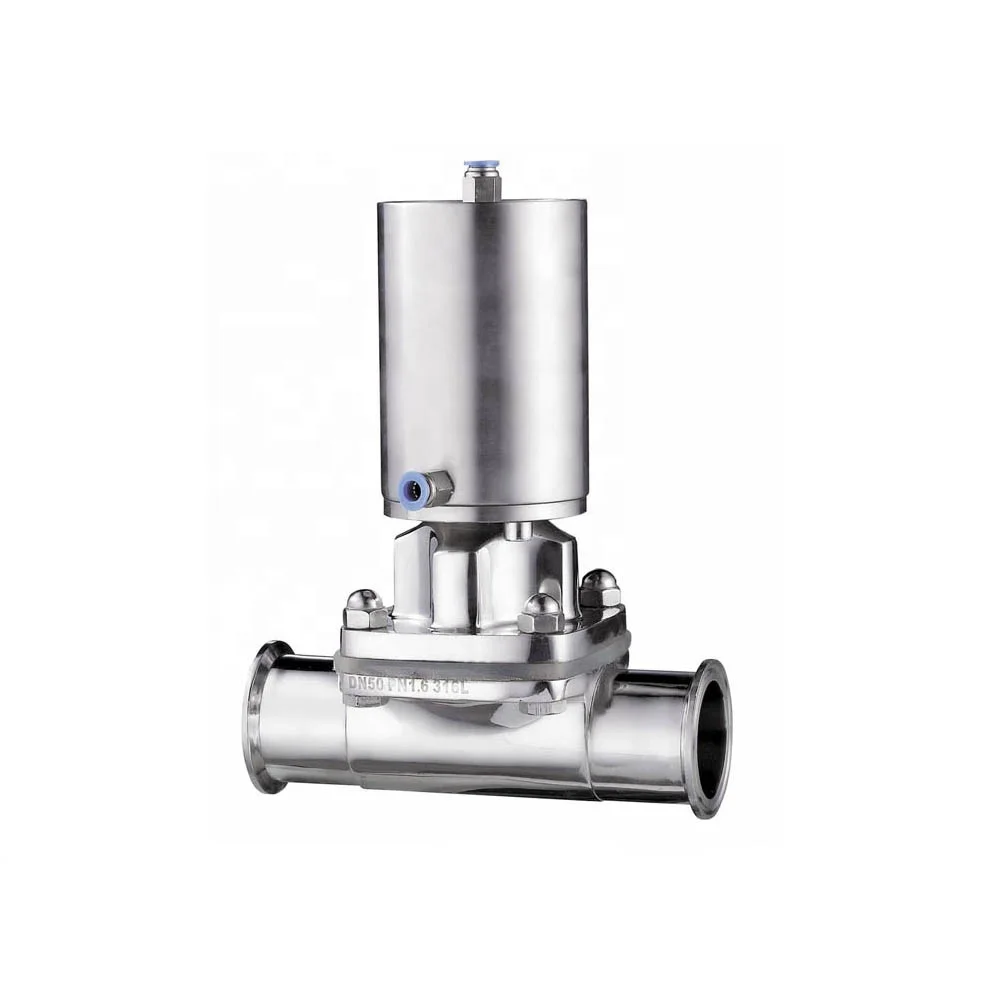

Valve Photos:
