12 pins Multicolor Red-Green-Blue-White-Amber-UV RGBWY/RGBWA+UV 6-in-1 High Power LED Chip RGBWYV 12Watt











Specifications



Product name	Power(W)	Emitted color	WLD(nm)/ CCT(K)	Luminous Flux (lumen)	Voltage (V)	Current (mA)
6in1 RGBWYV High Power LED Chip	6Watt	Red	620-630nm	40-50lm	1.8-2.4Volt	350mA
		Green	515-530nm	60-80lm	2.8-3.4V	350mA
		Blue	450-470nm	15-25lm	2.8-3.4V	350mA
		White	6000-8000K	90-100lm	2.8-3.4V	350mA
		Yellow	585-595nm	40-50lm	1.8-2.4V	350mA
		UV	395-435nm	10-20lm	2.8-3.4V	350mA
6-in-1 RGBWYV High Power LED Chip	12Watt	Red	620-630nm	60-80lm	2.0-2.6V	500mA
		Green	515-530nm	100-130lm	3.0-3.6V	500mA
		Blue	450-470nm	30-50lm	3.0-3.6V	500mA
		White	6000-8000K	130-160lm	3.0-3.6V	500mA
		Yellow	585-595nm	60-80lm	2.0-2.6Volt	500mA
		UV	395-435nm	20-40 lm	3.0-3.6 Volt	500mA

















































Product Features

• Well-known chip material, Epileds, Sanan, etc

• 99.99% gold wire bonding

• Full color spot, well color consistency

• R, G, B,W,Y,V six color in one Package

• High flux per LED

• Low-temp & lead free reflow soldering

• More energy efficient than incandescent and most halogen lamps

• Low Voltage DC operated

• Instant light(less than 100ns)

• No UV





Typical Applications

• Portable (flashlight, bicycle)

• Uplighters/Downlighters

• Decorative/Entertainment (stage light)

• Bollards/Security/Garden

• Indoor/Outdoor Commercial and Residential Architectural

• Automotive Ext (Stop-Tail-Turn, CHMSL, Width Lamp)



Product Show

High Power LED Chip with 20mm Star PCB Heatsink

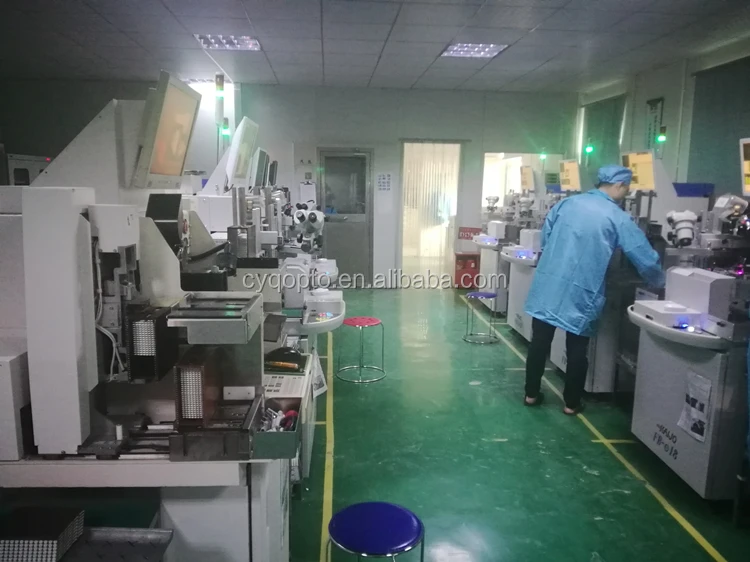

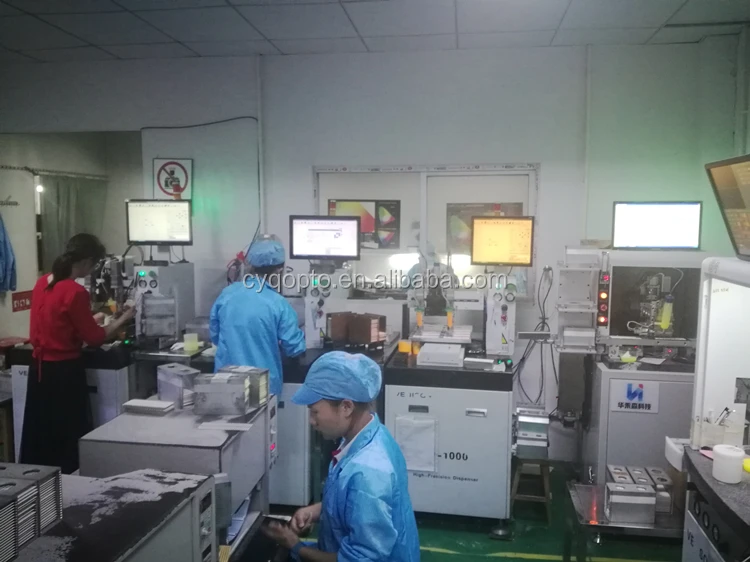

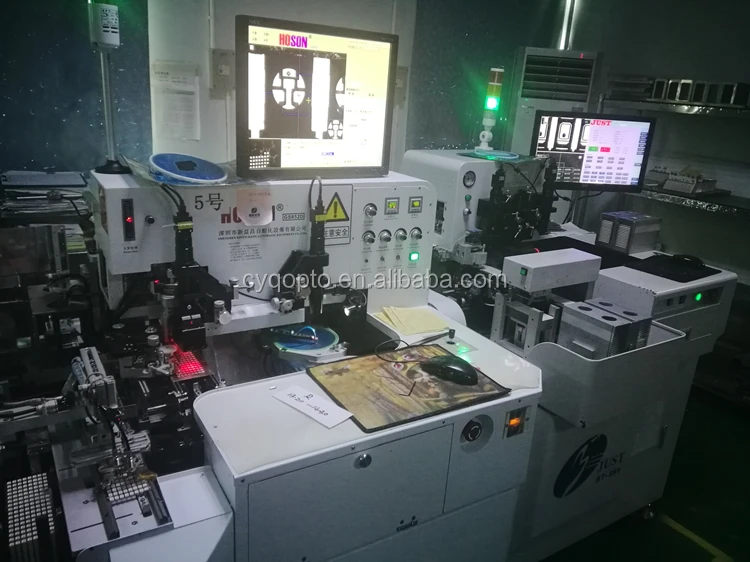

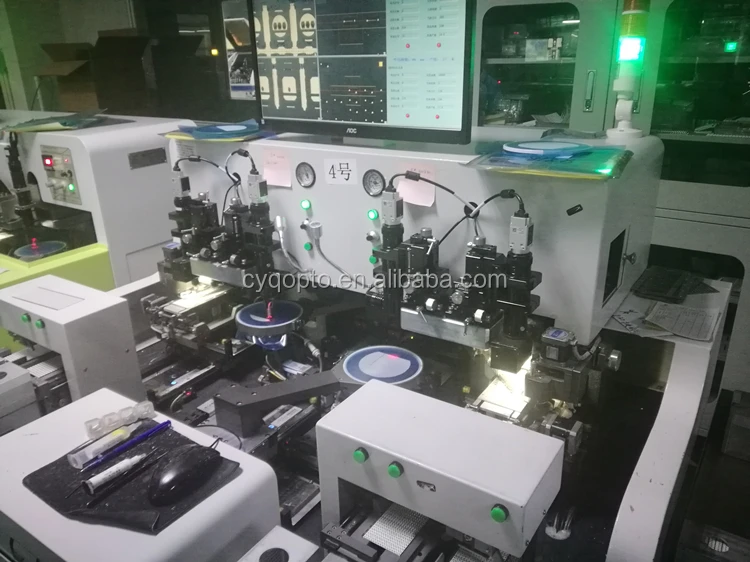

Our factory production strength

































Shipping ways:



DHL, FedEx, UPS, TNT, EMS, SF express, Aramex, Post Mail, CDEK, etc.

















Payment methods:



Credit card, e-checking, bank transfer / wire transfer, Alipay, Wechat payment, Western Union, etc.













Competitive Advantages of our LEDs:

• Good quality guarantee, 50000 hours


• Lifespan, 2-5 years warranty.


• Professional engineers and experienced workers.


• Short delivery time, normally only 1-7 working days.


• Customized specifications available in CCT, CRI, Lumen, VF, Color , etc.


• Various module type, such as SMD LED 2835 , 5050, 3014 , 5730 , 7020 , 7030,  4014 , 3838, 3030 ,  3535 , 2525, 5054, 1-3W high power LED , 1-2000W integrated LED / COB LED, Diode etc.



Our Services:

• Reply your inquiry in 24 working hours


• Well-trained and experienced staffs to answer all your inquiries in fluent English.


• Strict quality control procedures before shipment.


• Customized design is available.OME and ODM are welcomed


• Delivery the goods to our customer all over the world with speed and precision.





Please contact us by sending inquiry below.
