12V плавкий саморегулирующийся греющий кабель для следов танкер

Цена:*

Количество:

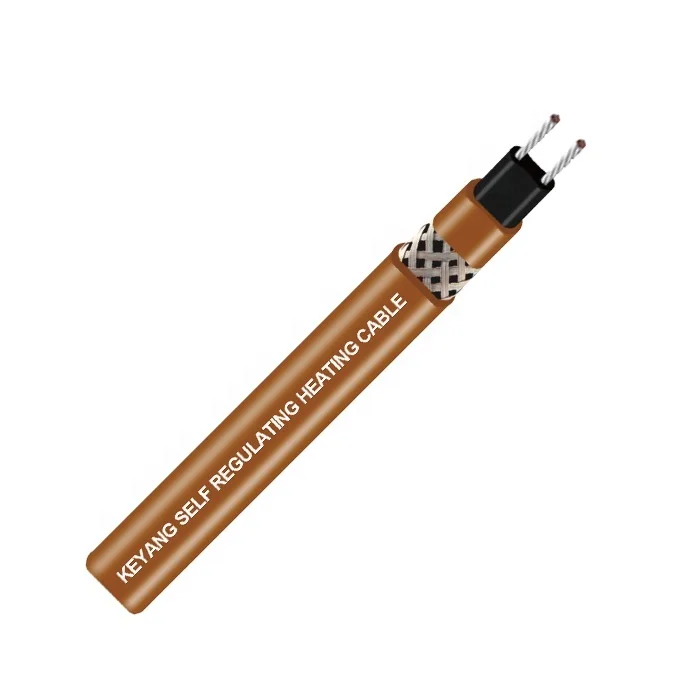

Heating cable construction

Heating cable introduction

Self regulating heating cable provide the most versatility in heat trace design and applications.

Constructed of a Semi-conductive heater matrix extruded between parallel buswires, a self regulating

cable adjusts its output to independently respond to ambient temperatures all along its length. As

temperatures increase,the heater's resistance increase which lower the output wattage. Conversely,

as the temperature decrease, the resistance decreases and the cable produces more heat. So it

is no need thermostat in some applications. It will never overheat or burnout even when wrapped

by itself(overlapped). It can be cut to any length. So it is a convenient ,easy use and energy saving

product.

Heating cable construction data

Heating cable specifications

Output wattage at 10℃	45/60 W/M
Braiding covering area	Over 85%
Max. maintain temp @ 10℃	110 ℃
Max. exposure temp.	120℃
Min.installation temp.	-40 ℃
Heat stability	Maintain Over 95% heat after 300 cycles from 10 ℃ to 149 ℃
Bending radius	10 times*cable thickness
Resistance between buswire and braiding	20 MΩ/M with a VDC 2500 megohmmete
Voltage	110-120/208-277 V
Regular color	Dark brown

Graph of ZBR

Please note that the data in this Graph are based on the test result in our lab, it is for reference.

Max length(m)vs circuit breaker size

AC220V		Max circuit length vs CB size(m)
Model	start-up tempe.℃	25A	32A	40A
45ZBR-2	10	71	92	114
	0	60	78	97
	-20	54	69	87
	-40	48	62	78
60ZBR-2	10	53	69	86
	0	46	61	74
	-20	41	53	66
	-40	36	48	60
