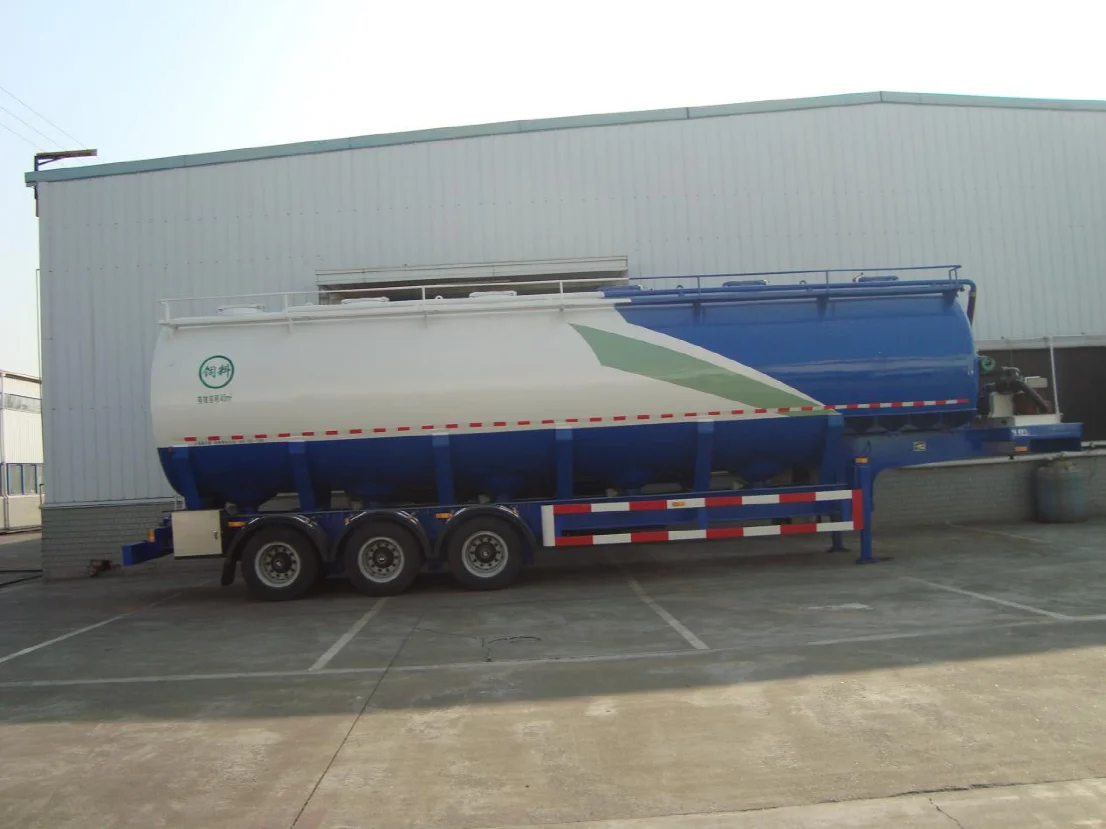

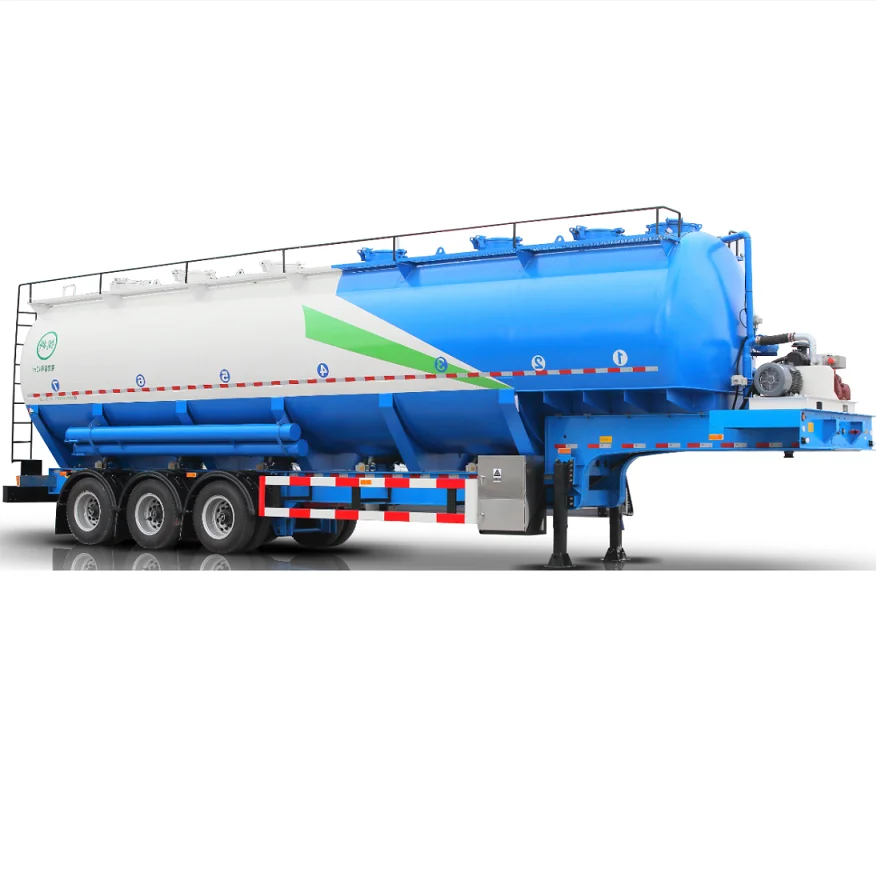

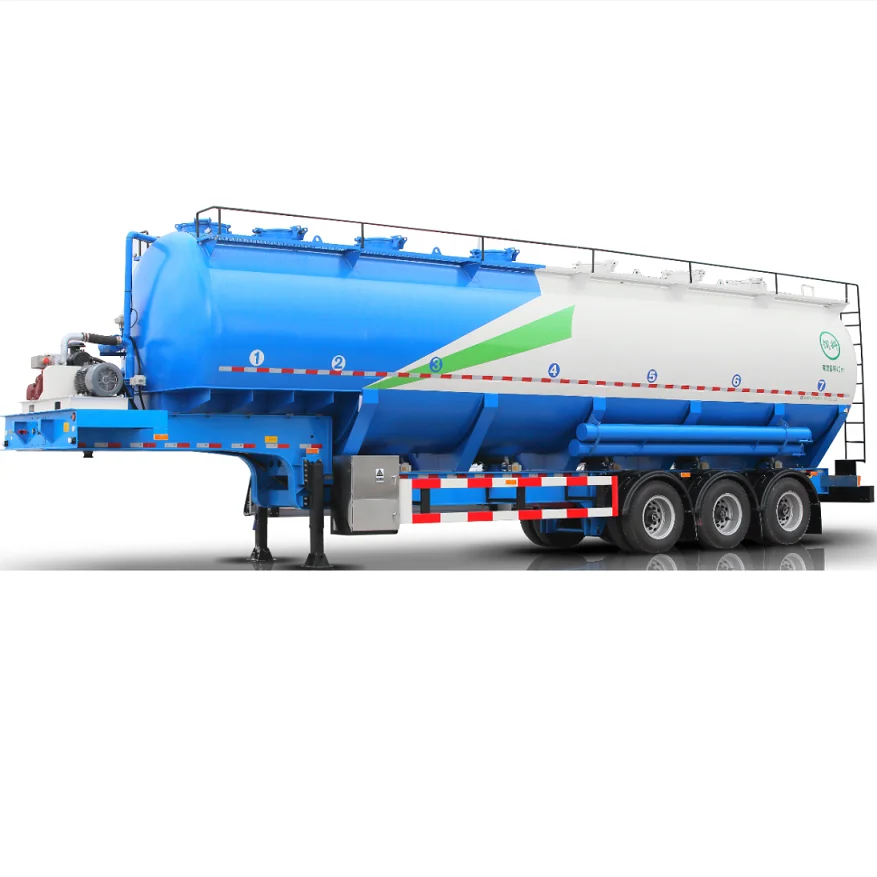

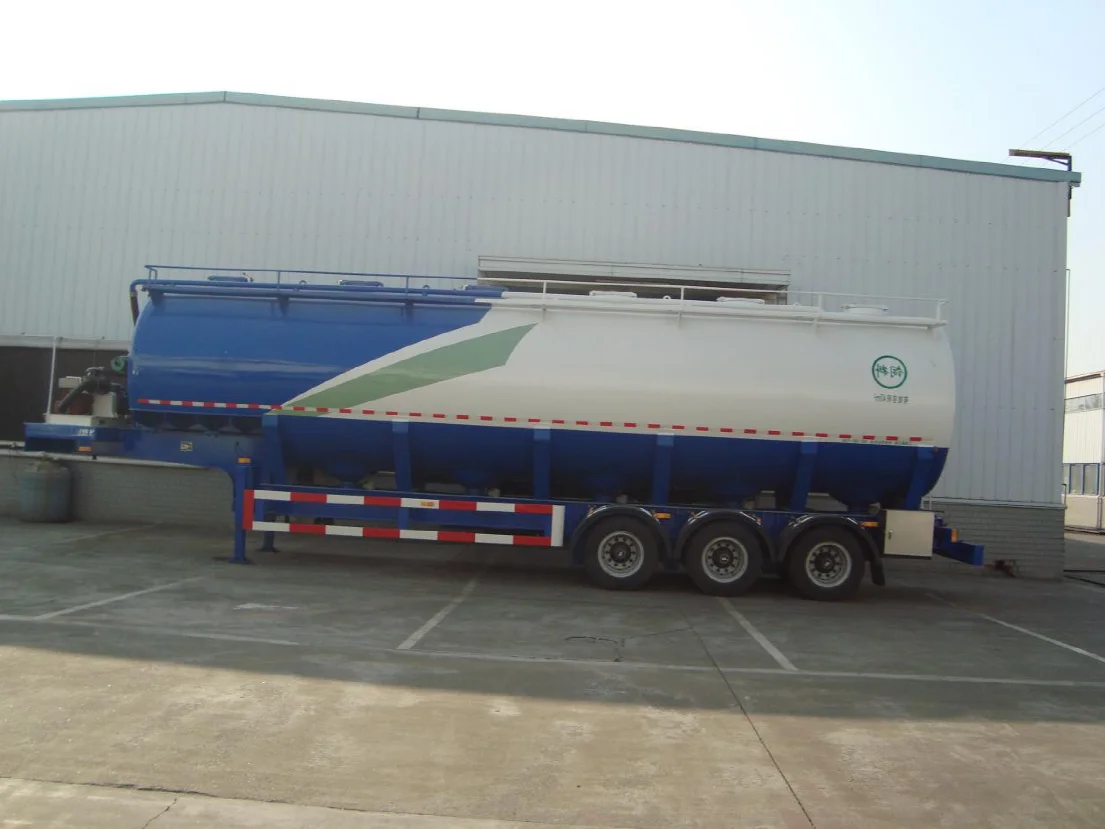

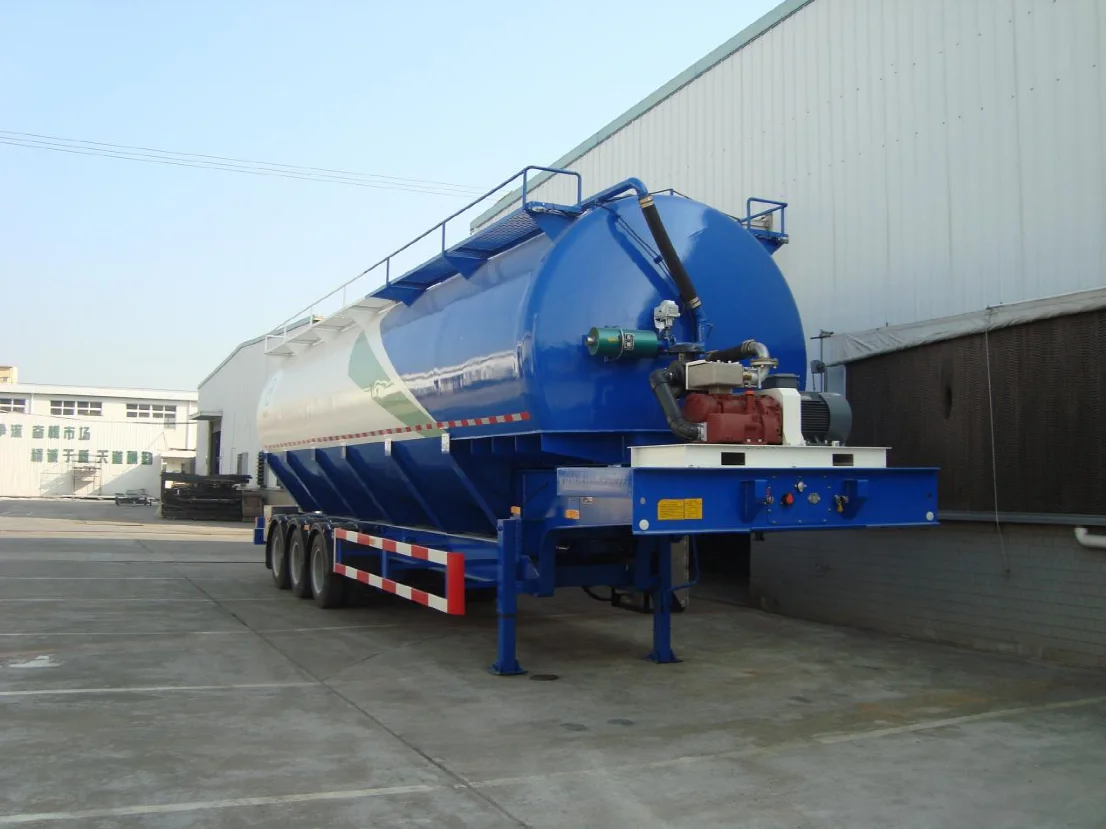

Экономичный пользовательский дизайн популярный продукт трейлер для подачи сыпучих веществ полуприцеп

Vehicle Parameters

Overall Dimensions

(L*W*H) (mm)

12170×2480×3960

Tank Dimension

(Max DIA*L)(mm)

φ2480×10390

Total Mass(kg)

33960

Curb Weight(kg)

13960

Bulletin loading(kg)

20000

Theoretical loading(kg)

26000

Appearance color

White/ optional

Certification

ISO9001, 3C

Chassis Parameters

Parking brake type

Manual valve control spring brake cylinder

Driving brake system

Independent double circuit, air pressure, drum brake belt ABS

Tire specifications

8.25R20 16PR

Trailer traction pin height from the ground(mm)

1340

Trailer radius of gyration(mm)

1338

Trailer gap radius(mm)

2150

Wheelbase(mm)

7370+1310+1310

Tank Parameters

Tank gross volume (m³)

50

Space quantity

7

Conveying height(m)

10

Max. conveying distance(m)

8

Discharge speed(Kg/min)

450-550

Residual rate(%)

≤0.22

Discharge by

Pneumatic

Tank drive form

Adopt Imported oil-free screw air compressor, pneumatic convey the feeds to long-distance, improve the level of epidemic prevention,  low feed breakage rate and residue rate.

Electrical configuration

Schneider Electric Control System;Under-phase, under-voltage and other electronically controlled interlock protection

Painting

Professional anti-corrosion paint,Process: sandblasting,polishing, painting

Tank

Made of high quality carbon steel sheet;Round design, high strength, beautiful appearance; imported sealing device; strict welding process to ensure quality.
