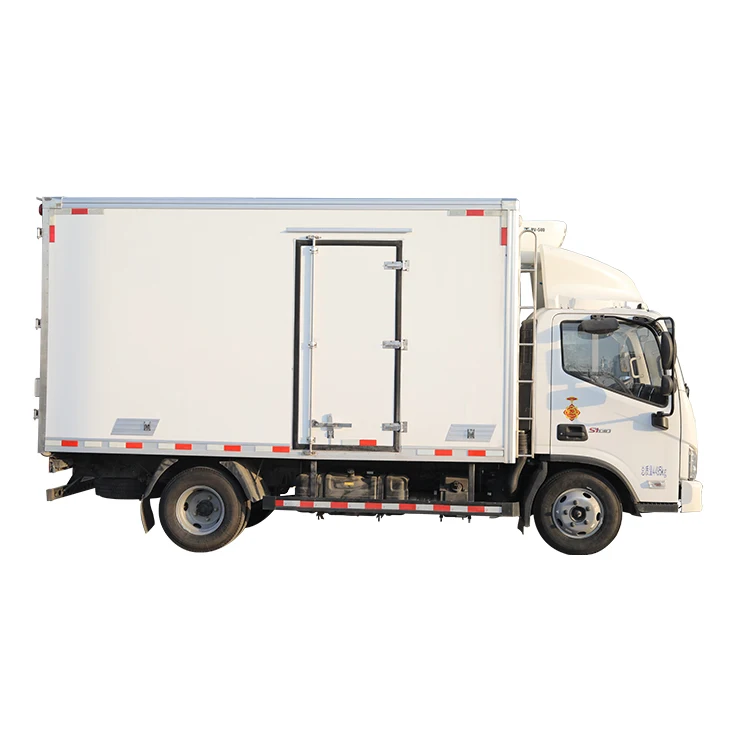

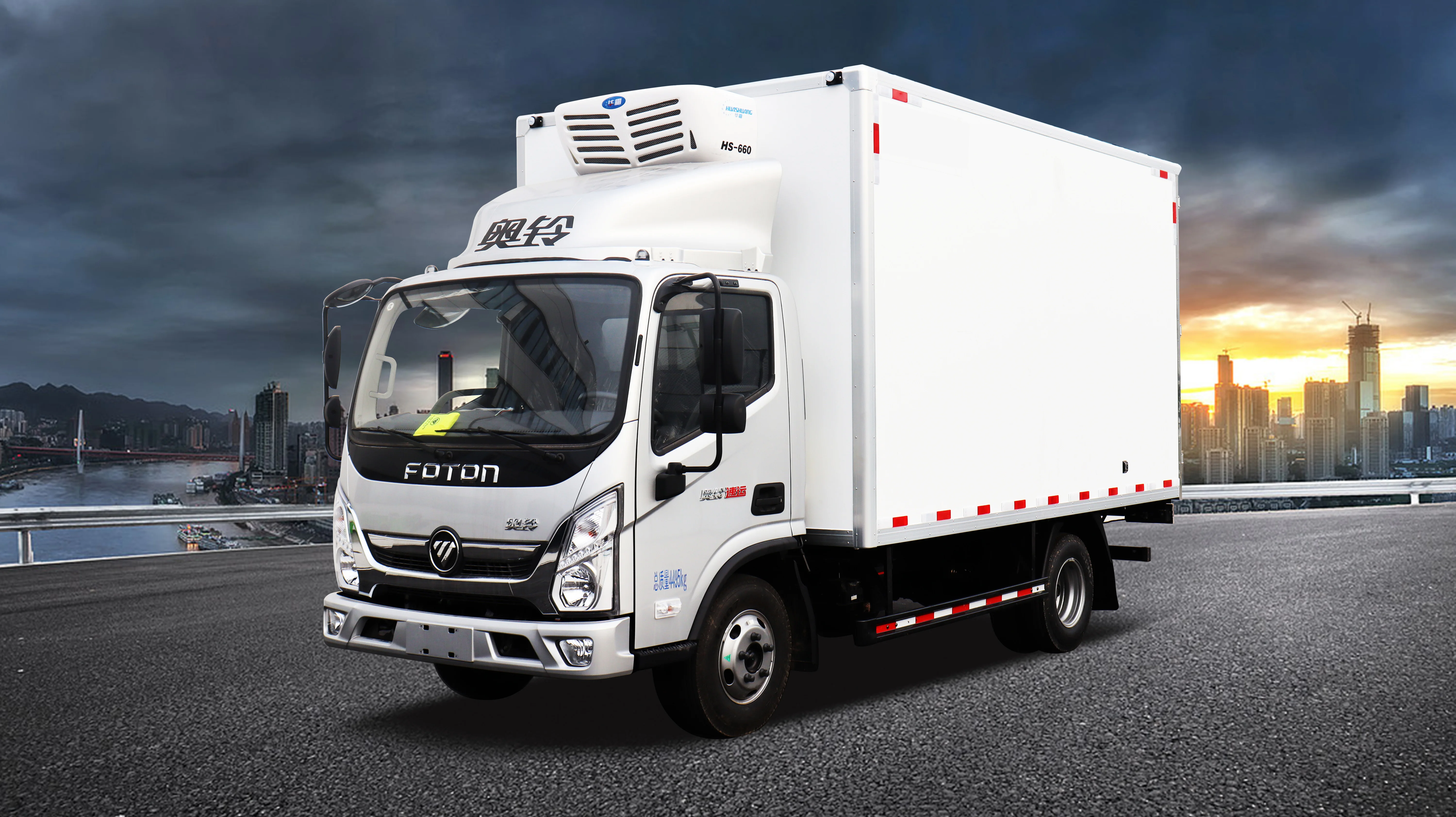

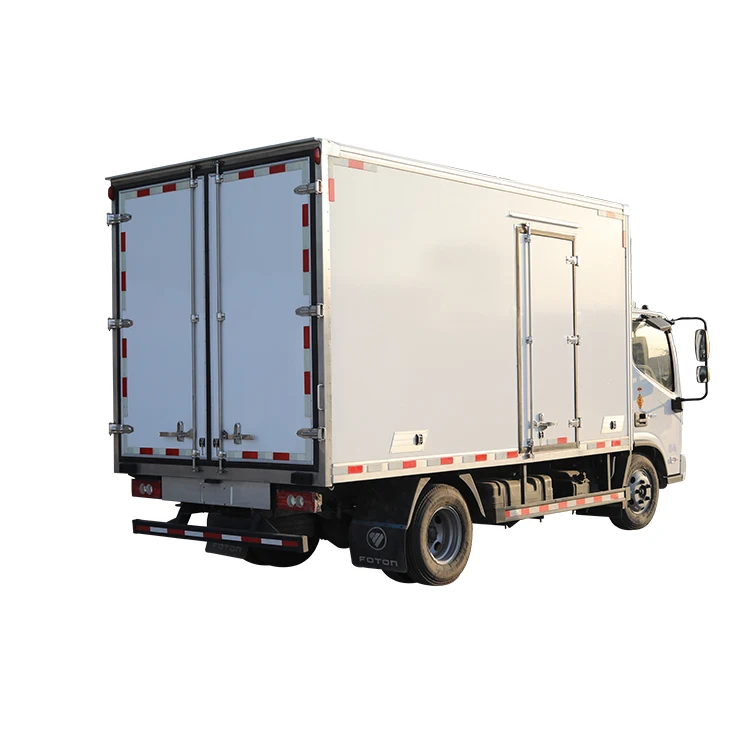

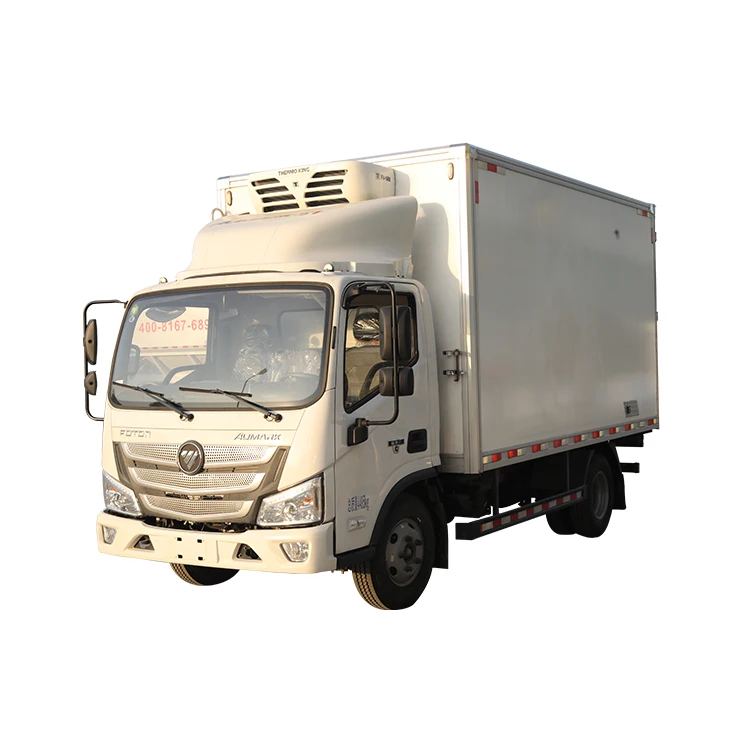

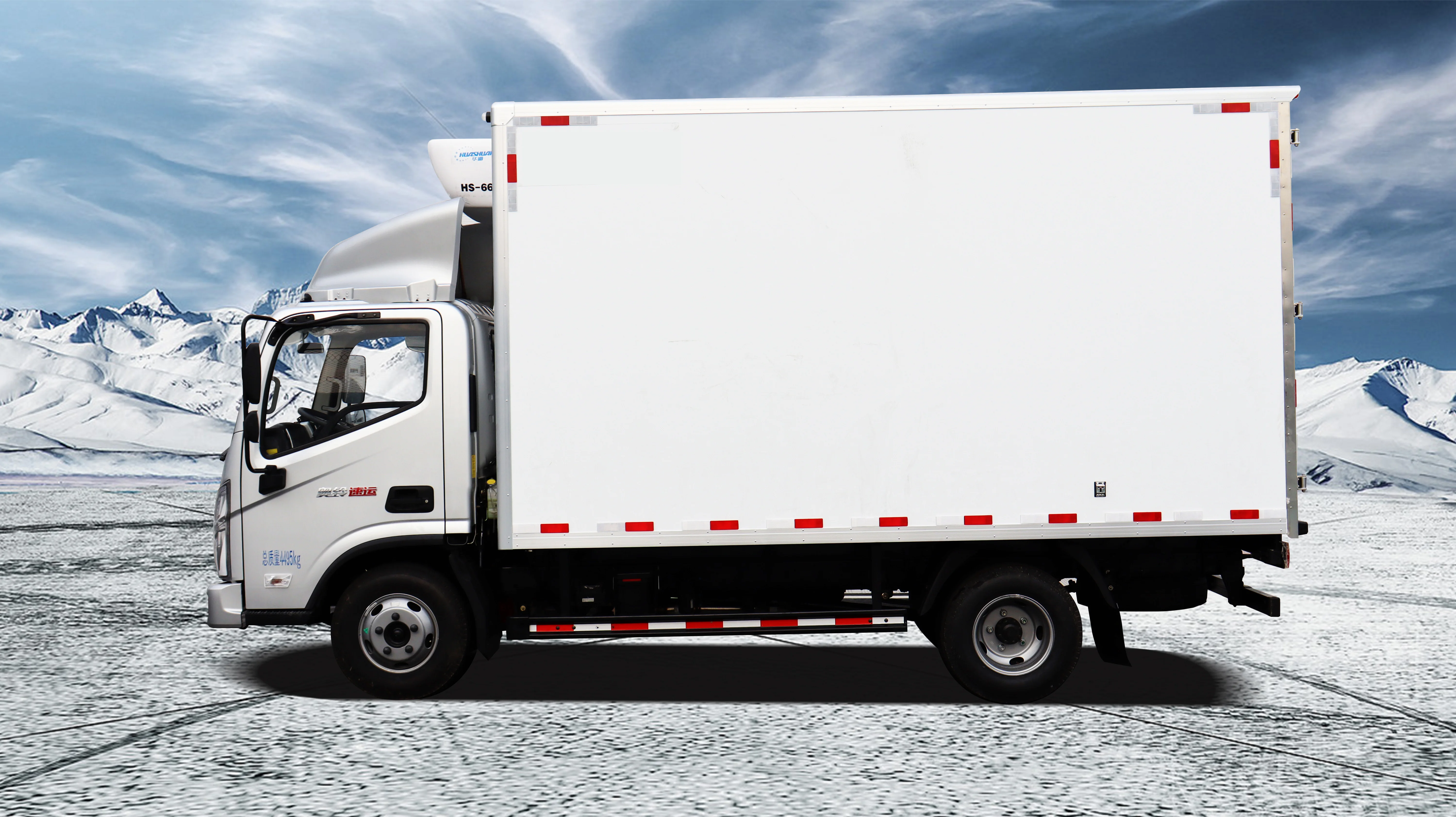

Гарантированное качество уникальный охлаждающий контейнер с цепью для холодного охлаждения фургон морозильная камера


Поделиться:


Цена:14 516,00 $ - 14 800,00 $*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-16-2025 17274.78 $* 18138.86 $*
Aug-16-2025 17129.21 $* 17985.99 $*
Jul-16-2025 14371.0 $* 15090.78 $*
Jun-16-2025 16839.3 $* 17681.45 $*
May-16-2025 14661.13 $* 15394.37 $*
Apr-16-2025 16548.44 $* 17375.33 $*
Mar-16-2025 16403.80 $* 17223.20 $*
Feb-16-2025 16258.30 $* 17071.83 $*
Jan-16-2025 16113.32 $* 16919.64 $*

Характеристики


















































































































Vehicle Parameters



Overall Dimensions(L*W*H)(mm)



5995×2210×3250



Total Mass(kg)



4495



Curb Weight(kg)



3200



Bulletin loading(kg)



1100



Fuel consumption (l/100km)



12.3



 Max speed(km/h)



105



Approach angle/Departure angle)



20/16



Chassis Parameters



Chassis Model/ Manufacturer



BJ1048V8JEA-FA/Foton Motor Group



Engine model / manufacturer



ISF2.8s5129T /BeiJing Foton Cummins Engine Co.,Ltd.



Transmission model / manufacturer



ZheJiang Wanliyang Co.,Ltd.



Drive Mode:



4×2 rear wheel drive



Wheelbase(mm):



1590/1590



Cab Type:



Single Cab 1880mm



Axle base(mm):



3360



Engine capacity(L)



2.78



Maximum torque and rated speed (n.m)/(r/min)



300N.m



Rated power (kw)



96



Tire specifications



7.00R16



Frame outside width (mm)



750



Longitudinal member section:



180x65x4.5



Passengers:



2,3



Emission standard:



Euro 4



Drive axle speed ratio: 4.875, front and rear drum brakes, manual adjustment, diversion cover, integrated heating and cooling, manual air conditioning, central lock + power window + remote control, MP3 + four-spoke, MP3 multi-function steering wheel, no cargo compartment, air brake.



Special device parameters



Fitted carriage (m):



4.2m



Applicable unit:



Carier C500



Kingtec MK580



Unit type:



Non-independent unit



Refrigerating capacity:



0/30



-20/30



The inner and outer skins are food-grade FRP, and the insulation material is made of German Bayer rigid polyurethane foam. The hardware is made of stainless steel. The thickness of the compartment board: the top and bottom plates are 85mm, the side and door panels are 75mm, and the thermal insulation performance exceeds the national standard GB29753-2013 Class I standard with a total heat transfer coefficient less than 0.4. The external profile is a rivet hidden design, the back door is sealed with a buckle aluminum profile bead and airbag type sealing, ultra-thin LED lighting, and a new flat power switch device.



4.2 BJ5048XLC-FH-24.2BJ5048XLC-FH-24.2J5048XLC-FH-1




-xinbaiqin1_03.jpgxinbaiqin--xinbaiqin1_05.jpg-xinbaiqin1_06.jpg-xinbaiqin1_07.jpg-xinbaiqin1_08.jpg-xinbaiqin1_09.jpg
