Products Description

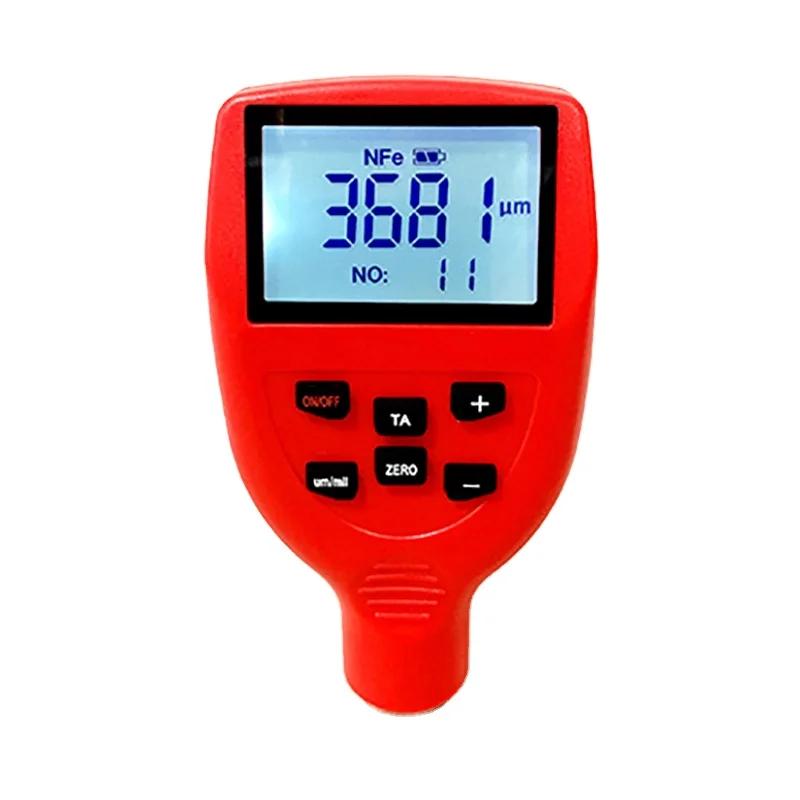

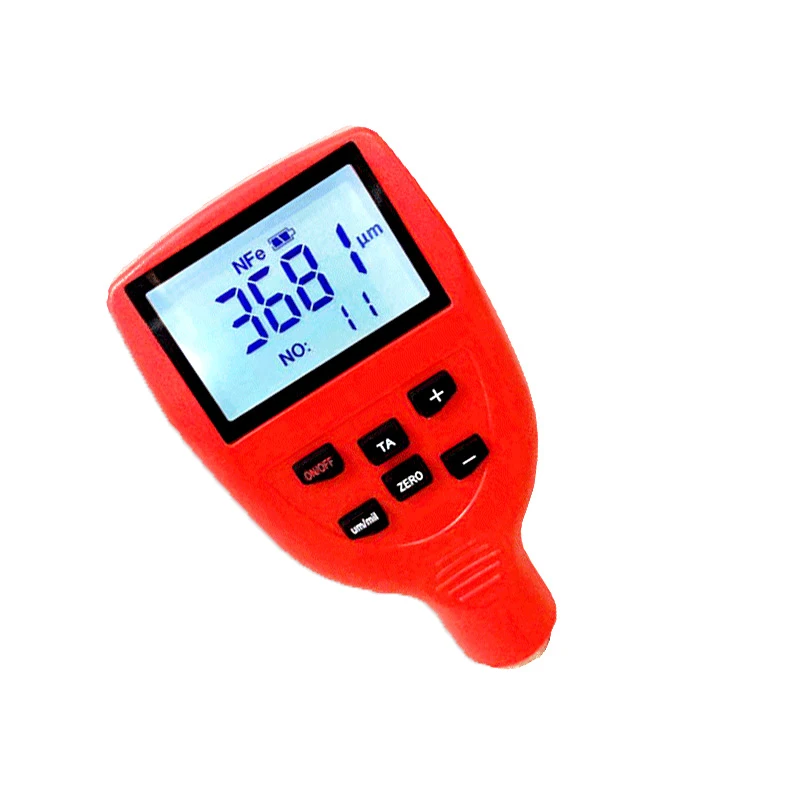

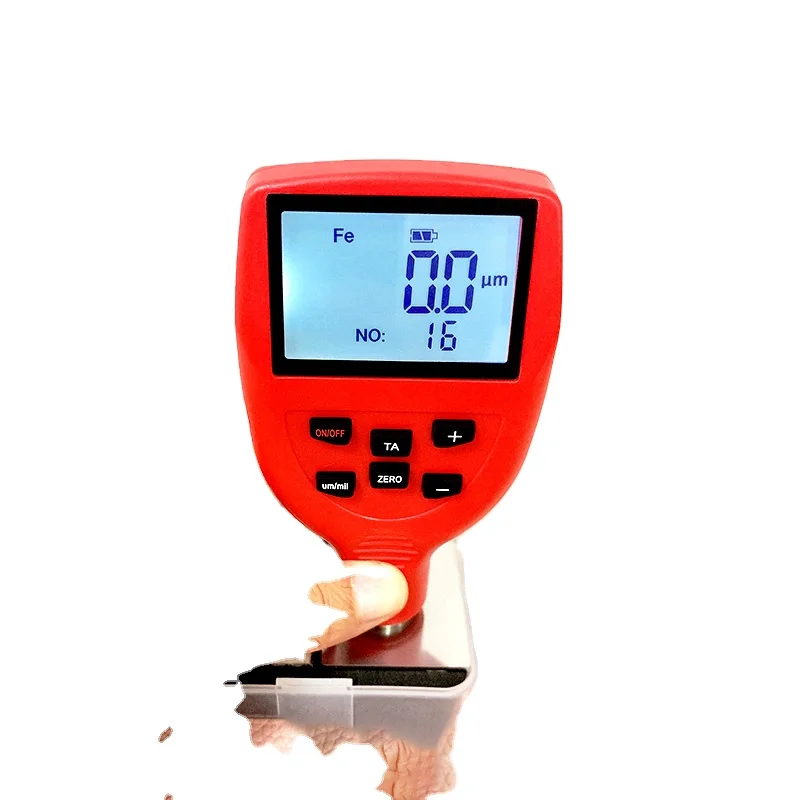

Coating thickness gauge DW363

DW363 large range coating thickness measuring instrument is an integrated dual-purpose thickness measuring instrument, in accordance with the national industry: JJG818-2005 standard professional measurement gold is better.It uses the following different measurement methods according to the metal matrix.

Product Paramenters

Product features

1.Adopt alloy integrated probe, world technology

2.Simple operation, fast test speed, sensitivity

3.Exquisite artificial integration design, easy to carry

4.Imported 32 - bit precision processing chip and speed data processing technology, temperature compensation technology

5.There are two test methods: Cont Inue and Single measurement

6.Statistical function: large value (MAX), small value (MIN), average value (MEA)

7.Can store 2000 measurement data, 10 groups of data storage, you can view the saved data

8.Can be connected to the computer for communication, read out the stored data, save or print (optional)

9.Two calibration methods: zero calibration and two - point calibration

10.The operation process has beeping prompt (single measurement mode)

11.Automatic identification of iron and non-iron substrates

12.Low voltage indication

13.Manual/automatic shutdown function

14.Large LCD backlight display, with screen rotation inversion function

15.M/inch conversion function um/mil

Technical parameters
Measuring range	0-3000μm (over 3000μm, can choose range: 5000μm, 6000μm, 8000μm, 9500μm models)
Using the environment	Temperature: 0℃-50℃, humidity: 20%-90%RH, no strong magnetic field environment for use
The thin substrate	0.4mm
Accuracy of measurement	±(3%H+2μm)
The resolution of the	0.1μm /1μm
Small curvature convex 5mm	Concave 25 mm
Small measurement area	18*15mm
The power supply	Three (size 7) alkaline batteries
Overall dimensions	126mm64mm28mm
The weight of the	106g (battery not included)

Details Images

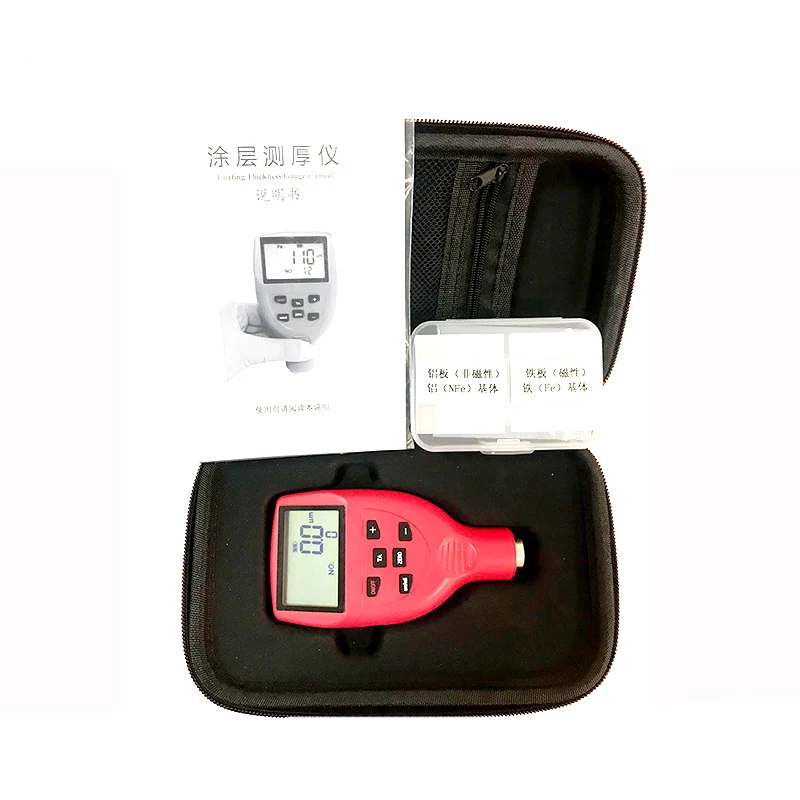

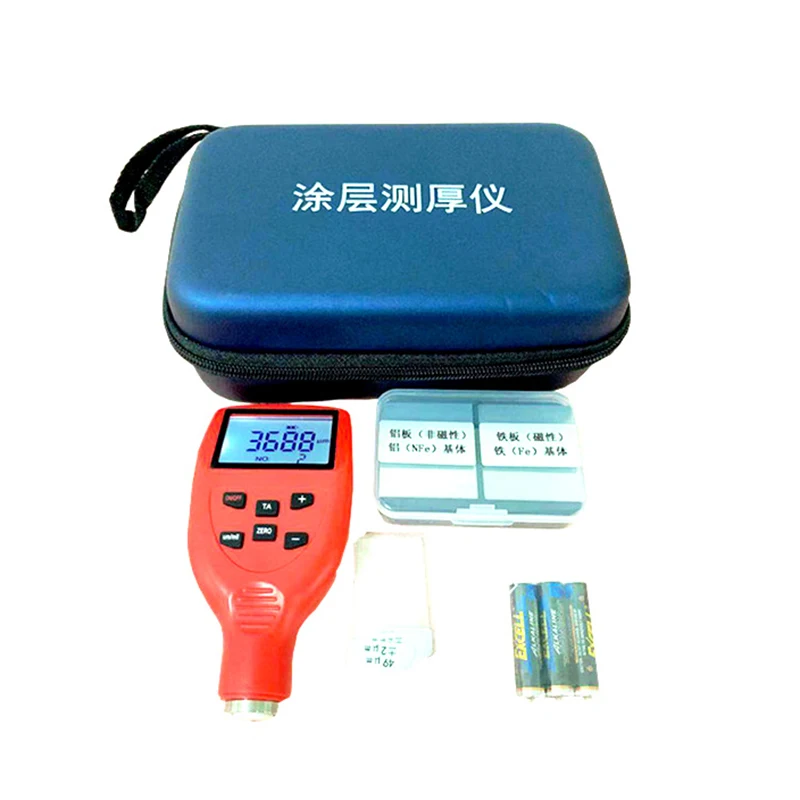

NO.	Name of goods	Standard configuration
1	A Host	1
2	standard specimens	5 tablets
3	matrix	A piece of Iron-based，A piece of Aluminum-based
4	Battery	3
5	User Guide	1
6	Qualification Certificate	1
7	Cleaning cloth	1
8	Portable Instrument Package	1
