Четырёхканальные ПИД-температурные приборы YUDIAN AI-7048
US $65.00-$110.00
AT4508-AT4564 регистратор данных о температуре
- Категория: Temperature Instruments >>>
- Поставщик: Changzhou,Chuangkai,Electronic,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.61 $* | 0.53 $* |
| Aug-16-2025 | 0.42 $* | 0.93 $* |
| Jul-16-2025 | 0.90 $* | 0.61 $* |
| Jun-16-2025 | 0.28 $* | 0.42 $* |
| May-16-2025 | 0.54 $* | 0.8 $* |
| Apr-16-2025 | 0.5 $* | 0.33 $* |
| Mar-16-2025 | 0.66 $* | 0.1 $* |
| Feb-16-2025 | 0.82 $* | 0.69 $* |
| Jan-16-2025 | 0.24 $* | 0.18 $* |
Характеристики
Product Description

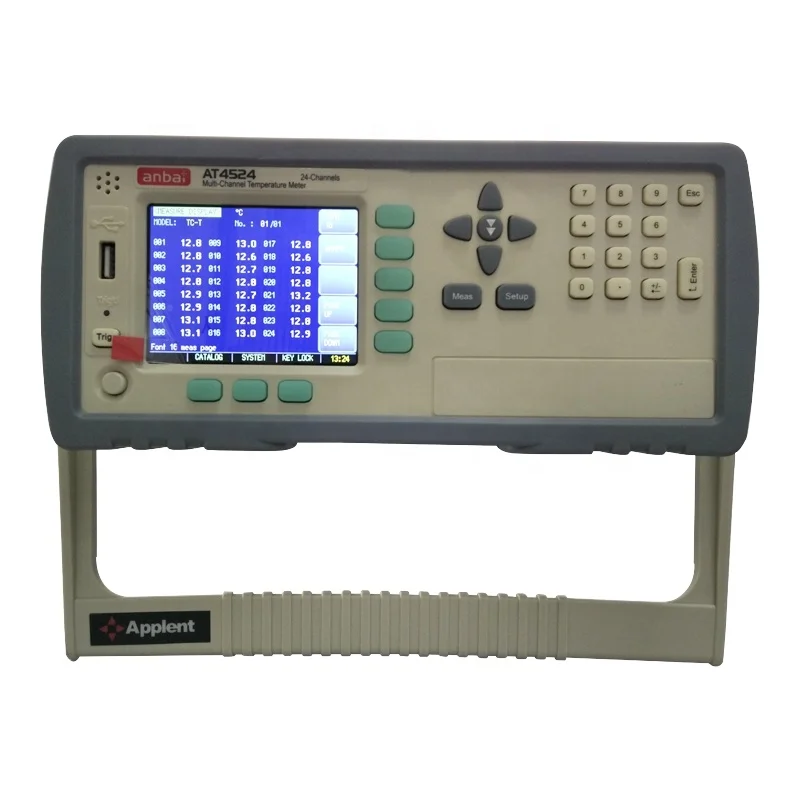

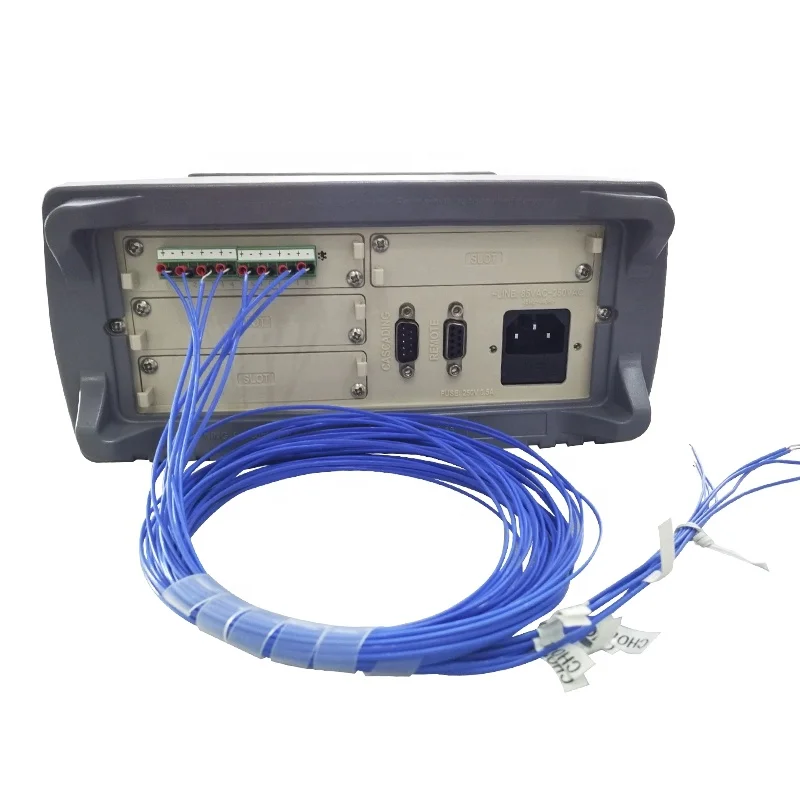

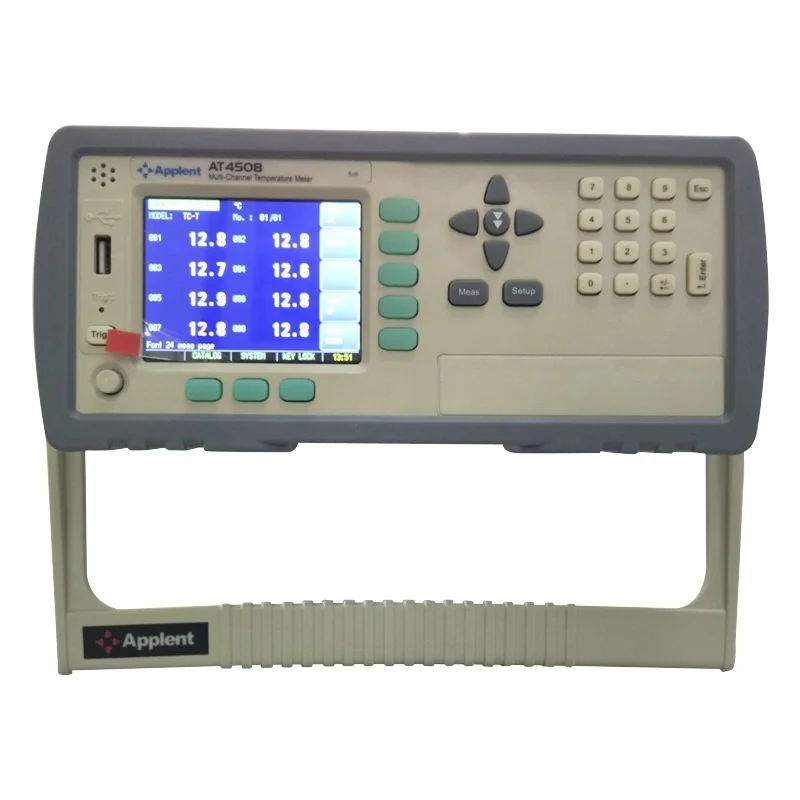

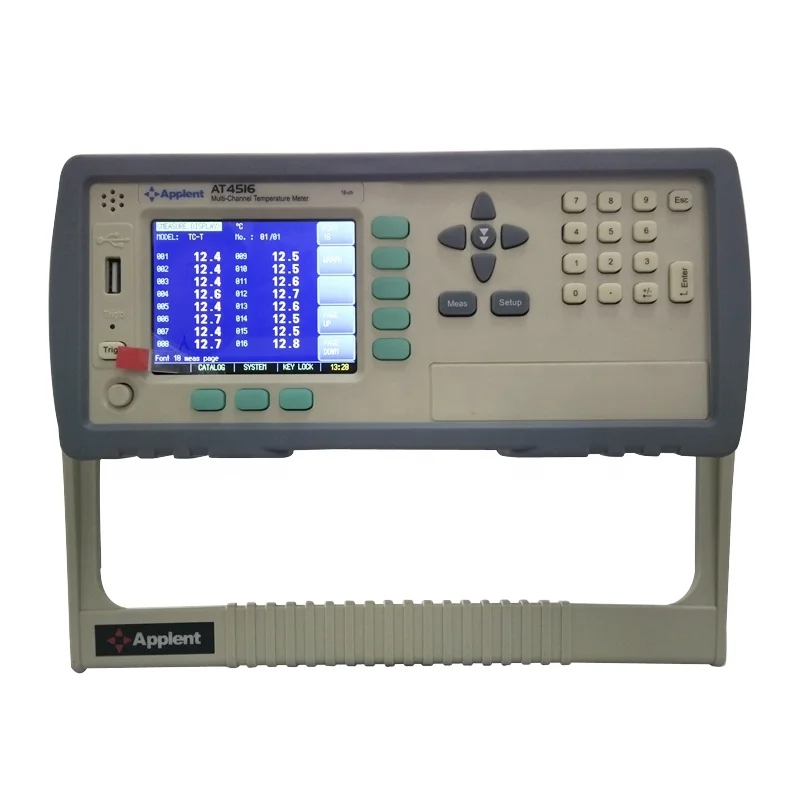

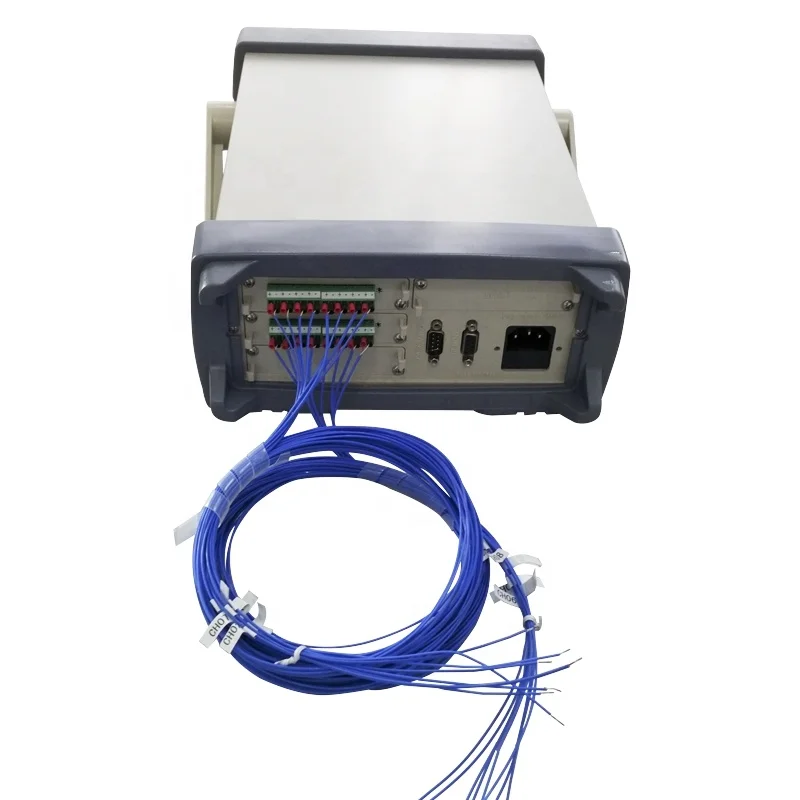

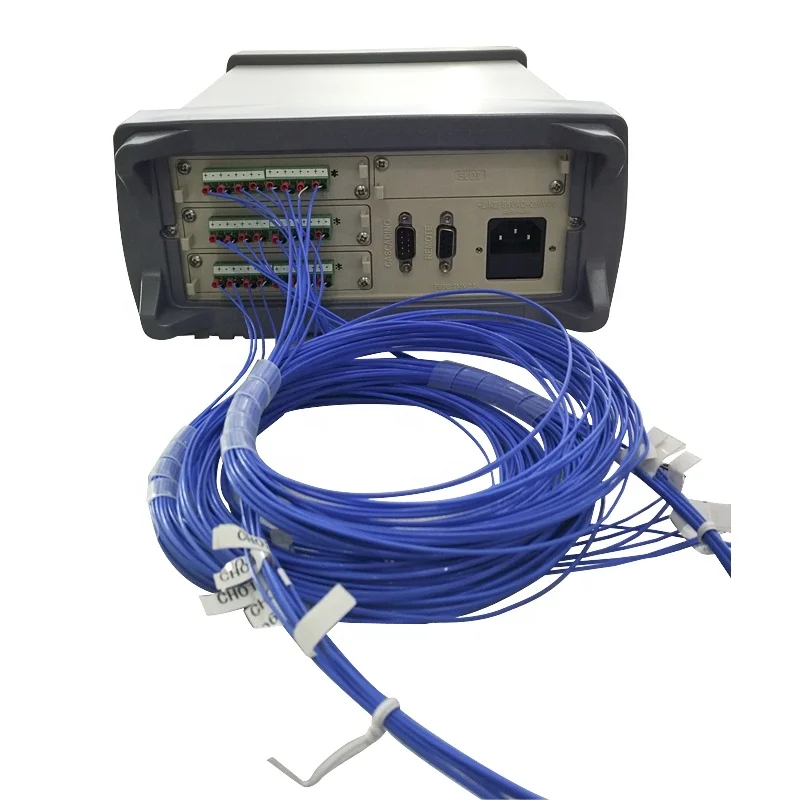

AT4508-AT4564 Temperature Data Logger Multi-channel Temperature Tester Temperature Data Recorder
Brief introduction
AT45xx series multi-channel temperature meter adopt high-performance ARM micro processor, can collect multi-channel temperature data simultaneously and response quickly. AT45xx series have the function of checking broken thermocouple, high/low beep function and communication transmission. 128 channels’ temperature data can be extended, compatible with various temperature sensors. Support RS-232 communication, realize data acquisition, analysis and print through the standard computer software. Has USB disk storage and store real-time sampling data. The users can adjust data for each channel independently.
SPECIFICATIONS | ||||
| AT4508 | AT4516/AT4524 | AT4532 | |
Graduation | Thermocouple:J/K/T/E/S/N/B/R | |||
Basic Accuracy | 0.2℃ ± 2 digits(not include thermocouple accuracy) | |||
Measurement Range | -200°C~1300°C(Varying depend on graduation) | |||
Resolution | 0.1℃ | |||
Channels | 8 channels; Can be expanded to 128 channels | 16/24 channels; Can be expanded to 128 channels | 32 channels; Can be expanded to 128 channels | |
Speed | Fast:100ms/channel Medium:500ms/channel Slow:1s/channel | |||
Correction | Error correction for each channel | |||
Comparator | High/low beep. Individual setting high/low value for each channel | |||
Interface | RS232C interface, U-disc interface | |||
Software | ATS45xx data acquisition software | |||
Cold Junction Compensation | Accuracy:0.5℃ | |||
Others | 3.5 inches TFT-LCD True-color LCD display,broken thermocouple check function | |||
GENERAL FEATURES | ||||
Power Supply | Voltage:85VAC~260VAC Frequency:50Hz/60Hz Power:10VA | |||
Size | 216mm (Width)x88mm(Height)x300mm(Depth), 3kg | |||
ORDERING INFORMATION | ||||
Accessories | AT4508: K Type thermocouple 8 teams (2m/team) AT4516/AT4524: K Type thermocouple 16/24 teams (2m/team) AT4532: K Type thermocouple 32 teams (2m/team) RS232 communication cable, USB data cable, USB convert box, PC software, AC power cord | |||
Company Information
Changzhou Chuangkai Electronic Co., Ltd is leading company specialized in producing, developing & selling various types of measuring instruments and testing equipment, such as temperature data logger, LCR meter, DC resistance tester (micro ohm meter), insulation resistance tester, digital power meter, power supply, transformer tester, battery tester, programmable DC electronic load, charger, hipot tester, impulse winding tester, transformer test system, cable tester, DC bias source, digital multimeter, thermal imager, infrared thermometer, oscilloscope, digital pressure gauge, pressure pump, temperature controller, tachometer, high voltage signal-amplifier, power amplifier, etc.
Over the years Chuangkai has always adhered to "quality of products in order to survive, credibility and development services" business purposes. Committed to providing customers with high-quality products and quality services. Have a professional, dedicated design management team, from product design, mold making, molding to product assembly, for each aspect and processes are rigorously tested and control.
Over the past few years of production and management and exploration, Chuangkai always implements the concept of customer value creation for customers tailored products to meet the needs of different customers, and continuously provide customers with solutions and technical problems.
Chuangkai has cooperated with many clients both from domestic and overseas, and has obtained consistently high praise from our customers since it was set up. We hold managerial idea that 'Quality Proves Strength, Details Reach to Success', and try our best to do well at any aspect from each stitch, each point of procedure of manufacturing to final inspection, packing and shipment. We insist on the principle of development of 'High quality, Efficiency, Sincerity and Down-to-earth working approach' to provide clients with excellent service of processing! We sincerely welcome you to visit our company or contact us for cooperation!
Warmly welcome you and opening up the boundaries of communication. We synchronize with your ideal partner!
Packaging & Shipping
FAQ
FAQ
Q: How long is the delivery date?
A: Inventory products will be delivered within 5-7 days after receipt of deposit; products
requiring new production of common materials, usually within 15-20 days; products requiring new production of special and rare materials, usually within 30-40 days.
Q: Can you customize it?
A: There are many models in our company, which can support customization.
Q: Are there any after-sales guarantees?
A: Were one-to-one after-sales It's absolutely satisfying to you.
Q: How many years have you guaranteed it?
A: Instrument quality guarantee for 1-2 years(different products), lifelong maintenance.
Q: Do you provide invoices?
A: Invoices are issued free of charge.
