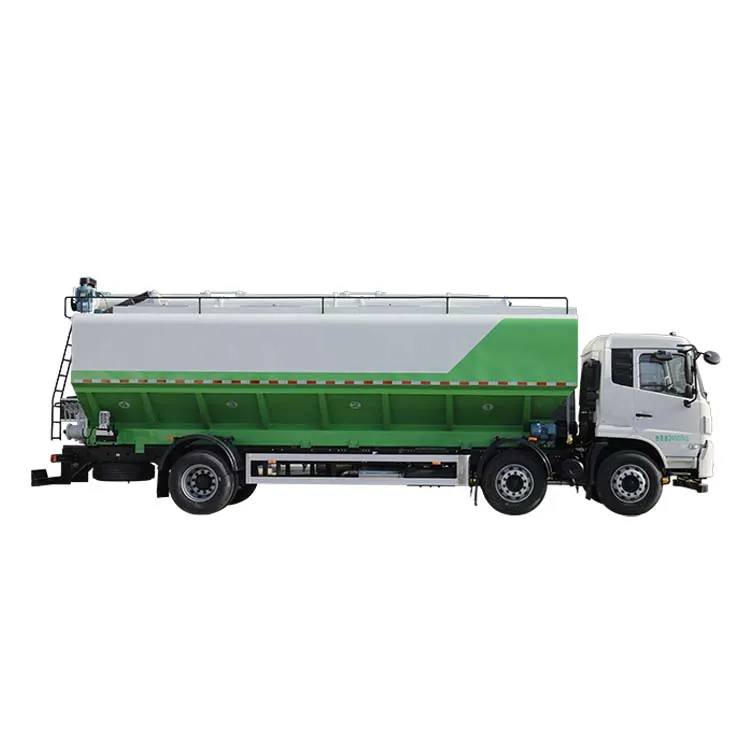

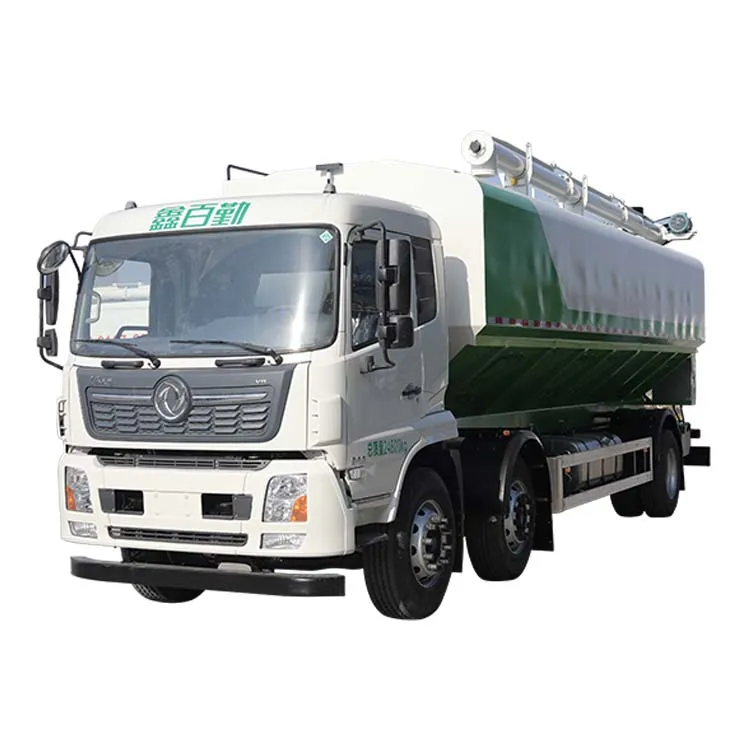

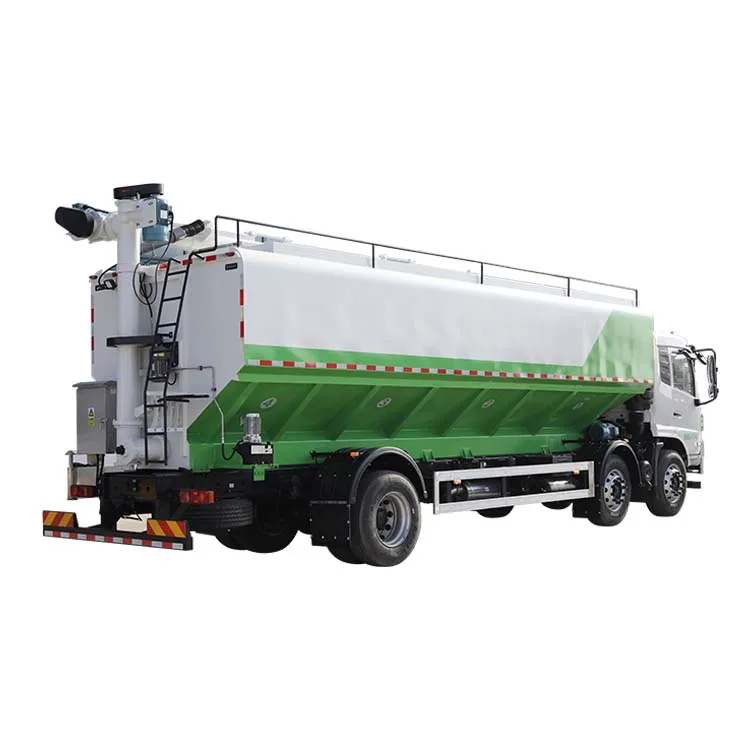

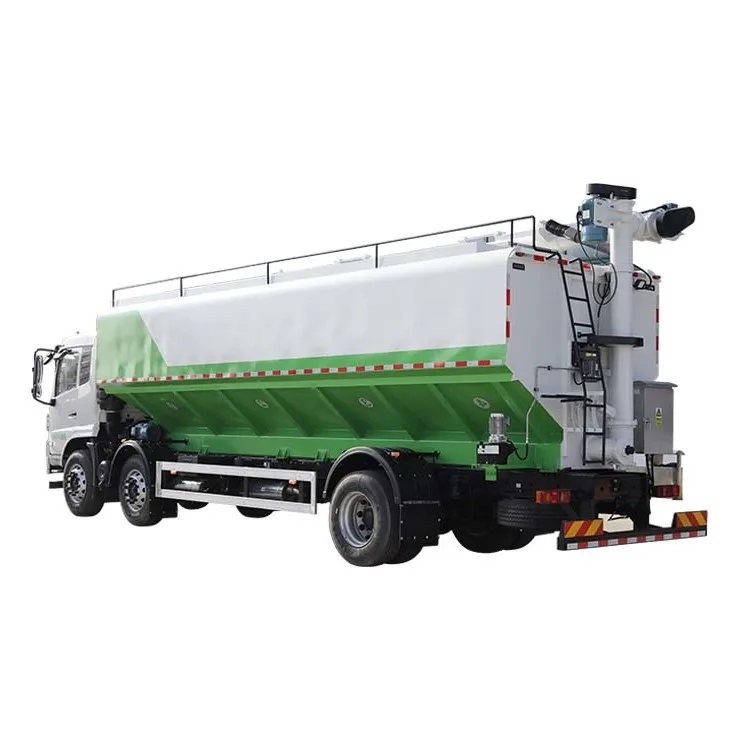

Продажа с завода 210 грузовик бытовой мощности dongfeng для транспортировки кормов из

Vehicle Parameters

Overall Dimensions
(L*W*H)(mm)

11000×2480×3970

Tank Dimension
(L*W*H)(mm)

8100×2480×2074

Total Mass(kg)

24800

Curb Weight(kg)

12105

Bulletin loading(kg)

12500

Theoretical loading(kg)

17000

Max speed(km/h)

88

Minimum turning radius(m)

12

Appearance color

White/ optional

Comprehensive fuel consumption

29.7

Certification

ISO9001, 3C

Chassis Parameters

Chassis Model/ Manufacturer

DFH1250BXV /Dongfeng Trucks Company

Engine model / manufacturer

ISD210 50 /Dongfeng Cummins Engine Co., Ltd

Transmission model / manufacturer

8JS85E /Shaanxi Fast Gear Co., Ltd

Max. output(kw)

155

Tire specifications

295/80R22.5 18PR

Cab Type

6×2 rear wheel drive, flat proof, capacity 3 people

Engine capacity(ml)

6700

Wheelbase(mm)

1800+5000

Travel recorder model

BSJ_A6BD/ShenZhen Boshijie

ABS Model/manufacture

 3631010/Dongfeng Electronic Technology Co.,Ltd.

Tank Parameters

Tank gross volume (m³)

31

Space quantity

4

Conveying height(m)

9.7

Max conveying distance(m)

7.3

Discharge speed(Kg/min)

550-650

Residual rate(%)

≤0.22

Elevation angle of  discharge(°)

0~60

Rotation angle of discharge(°)

±180

Tank drive form

External power and generator (Permanent magnet generator 20kw/380V. It is recommended to use an external power supply for unloading, which is low cost, environmentally friendly and low vehicle attrition)

Electrical configuration

Complete set of Schneider Electric control system; conveyor motor ABB, with 20m external power cable, external power supply 380V

Hydraulic auge

Use the patent of intermediate support structure, Graphite bearing; Lifting auger steering with wireless remote control.

Painting

Professional anti-corrosion paint. Process: sandblasting, polishing, painting.

Tank

Made of high-quality carbon steel sheet; The proof is sloping, which increase the fullness and safety factor; and Strict welding process guarantees quality.
