Машина-гранулятор серии YK для имбирного чая

Машина-гранулятор серии YK для имбирного чая

Категория: Granulators >>>
Поставщик: Changzhou,Hengmai,Drying,Equipment,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-15-2025	0.36 $*	0.78 $*
Aug-15-2025	0.99 $*	0.94 $*
Jul-15-2025	0.63 $*	0.50 $*
Jun-15-2025	0.14 $*	0.32 $*
May-15-2025	0.22 $*	0.61 $*
Apr-15-2025	0.15 $*	0.19 $*
Mar-15-2025	0.47 $*	0.25 $*
Feb-15-2025	0.70 $*	0.5 $*
Jan-15-2025	0.86 $*	0.13 $*

Характеристики

Product Overview

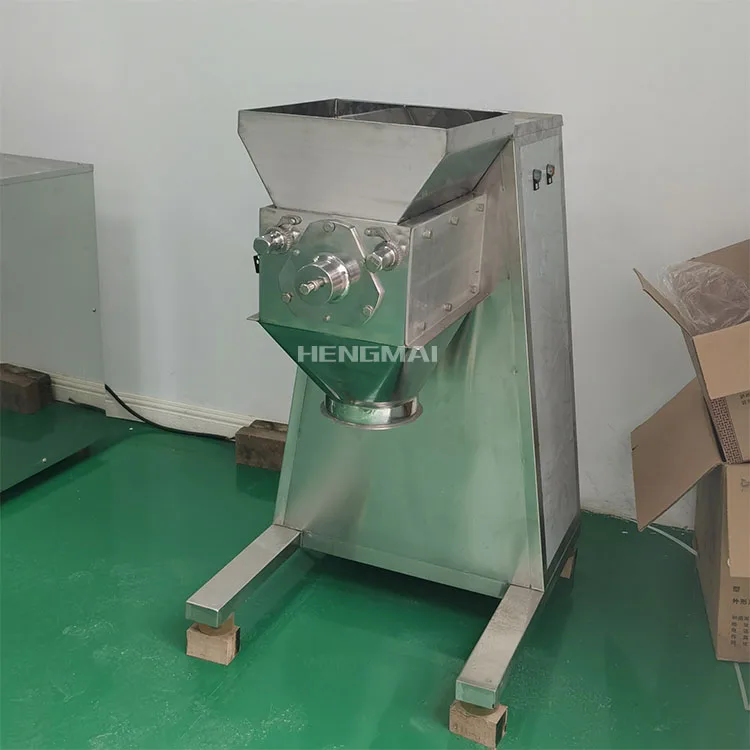

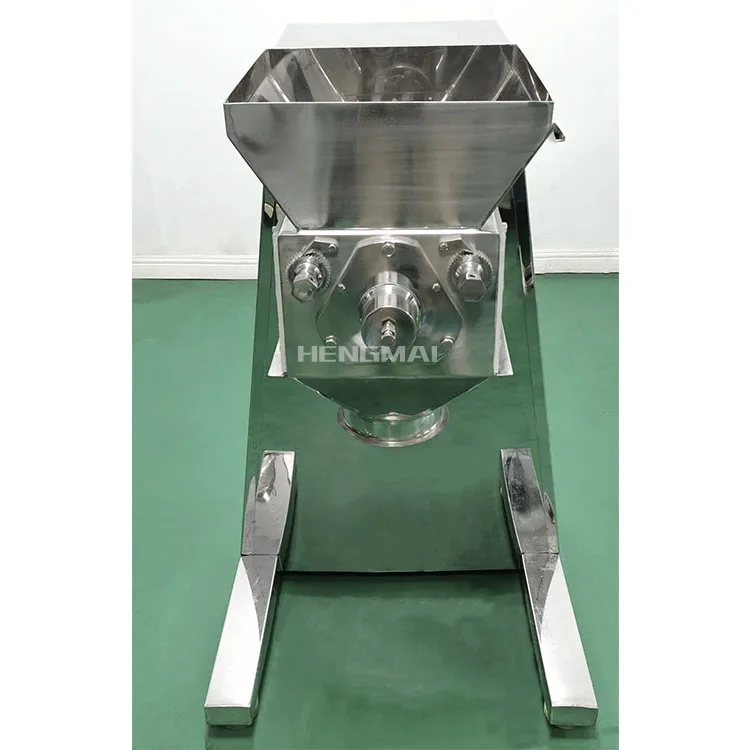

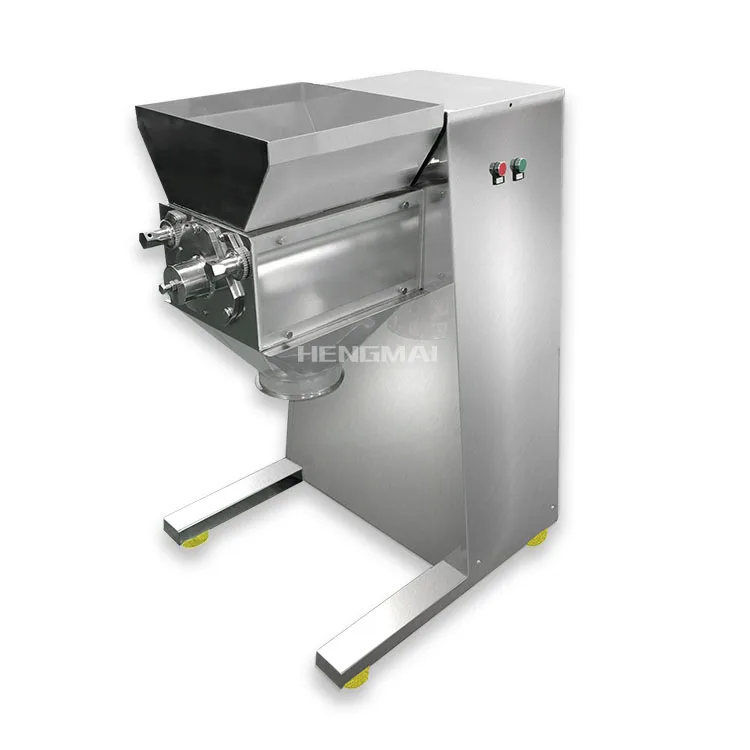

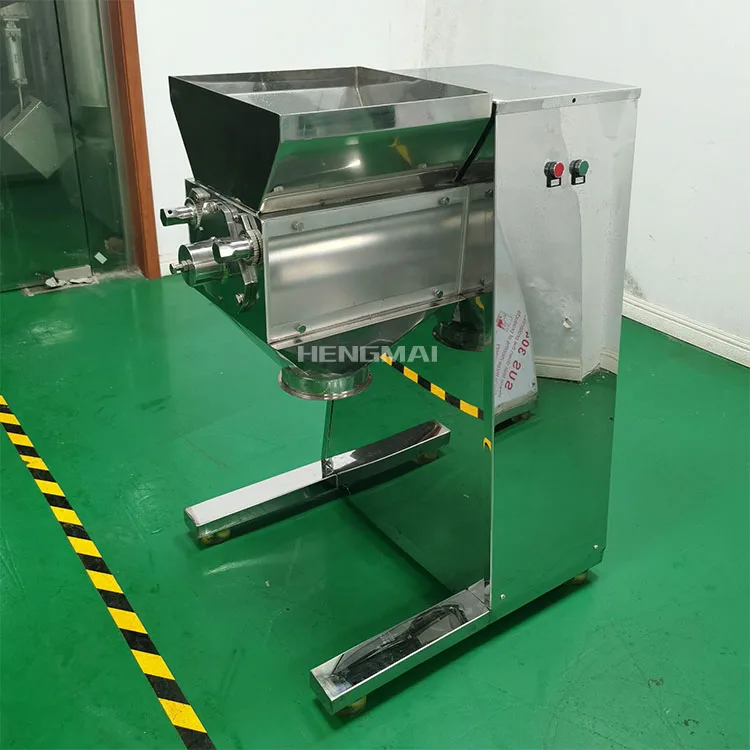

YK series swing granulator is a kind of special equipment to make the wet powder mixture into particles through the sieve under the action of positive and negative rotation of the rotating drum. Hengmai drying currently produces two kinds of ordinary type and heavy type, which are suitable for materials with high viscosity and difficult granulating. Make the stirred material into particles of the desired size, or break the lumped material into small particles.

Product Features

Uniform particle size, simple control. This machine is a kind of wet powder mixture, under the positive and negative rotation of the rotary drum, forced through the screen to make particles. The particle size and density can be controlled to a certain extent by adjusting the mesh tightness and drum speed.
The shaft rotation seal is good and will not pollute the materials: the main shaft of the machine is above the gearbox, and the tight seal structure of the shaft head is designed to ensure that the shaft does not leak oil and wear material, and the material is not contaminated by lubricating oil, meeting the GMP requirements.
Electromagnetic speed regulation, with both deceleration and acceleration functions; electromagnetic speed control device is used to change the spindle speed, the faster the speed is, the looser the particles; the slower the speed is, the closer the particles are. Through the speed transformation, the requirements of particle size can be achieved. At the same time, the spindle speed can be increased or decelerated according to the gear transformation.

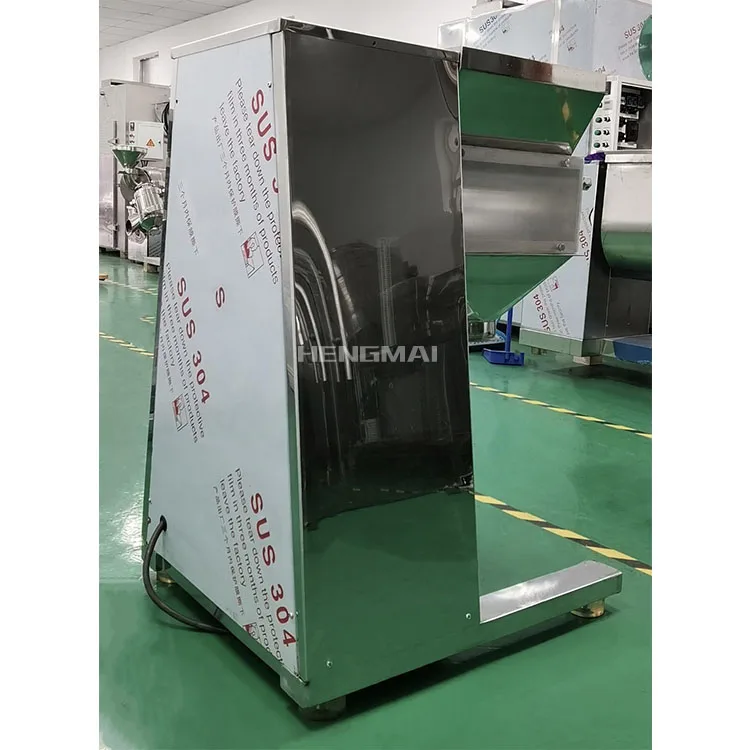

The shell is packaged with stainless steel drawing board, which is clean, non-toxic and has good corrosion resistance. The only parts to be cleaned are the granulating chamber, mainly screen and hexagonal drum. The roller does not need to be disassembled, and the screen is easy to disassemble and easy to clean.

Application

Applicable to pharmaceutical, food, granule, chemical, solid beverage and other industries, the stirred materials into required particles, especially for high viscosity materials.

PRODUCT SPECIFICATIONS

Model	YK-60	YK-100	YK-160	YK-250	YK-320
Capacity(kg/h)	20-30	30-200	50-200	150-400	50-400
Power(kw)	0.55	1.1	2.2	4	7.5
Drum speed(rpm)	46	65	65	65	65
Swing angle	360°	360°	360°	360°	360°
Roller diameter(mm)	60	100	160	250	320
Weight(kg)	70	280	450	540	750
Size(cm）	355565	7040110	10080130	120100140	150120150

Product packaging and delivery

Company Profile

Changzhou Hengmai Drying Equipment Co., Ltd.

Our company located in Changzhou, an industrial star city and a beautiful water town in the south of the Yangtze River, covering total area of 5000sqm. With strong technical force, perfect test system, precision processing equipment and strict management system. We have 10 years of customization experience and excellent R&D team. W specializing in the production of oven, belt dryer, vacuum drying machine, vacuum rotary dryer, drying machine, centrifugal spray dryer, drum scraper dryer, hollow leaf dryer, drum scraper dryer, three dimensional mixing machine, high efficiency wet granulation machine, two dimensional mixer, trough mixer, twin screw mixer, rotary granulator, V mixer, swing system Granulator, high efficiency granulator, hot blast stove, pulverizer, etc. We support non-standard customization and have a great advantage in the quality of price, devoted to creating a set of product design and development, processing and manufacturing, engineering installation and after-sales service in one integrated enterprise.
