Характеристики
Products Description

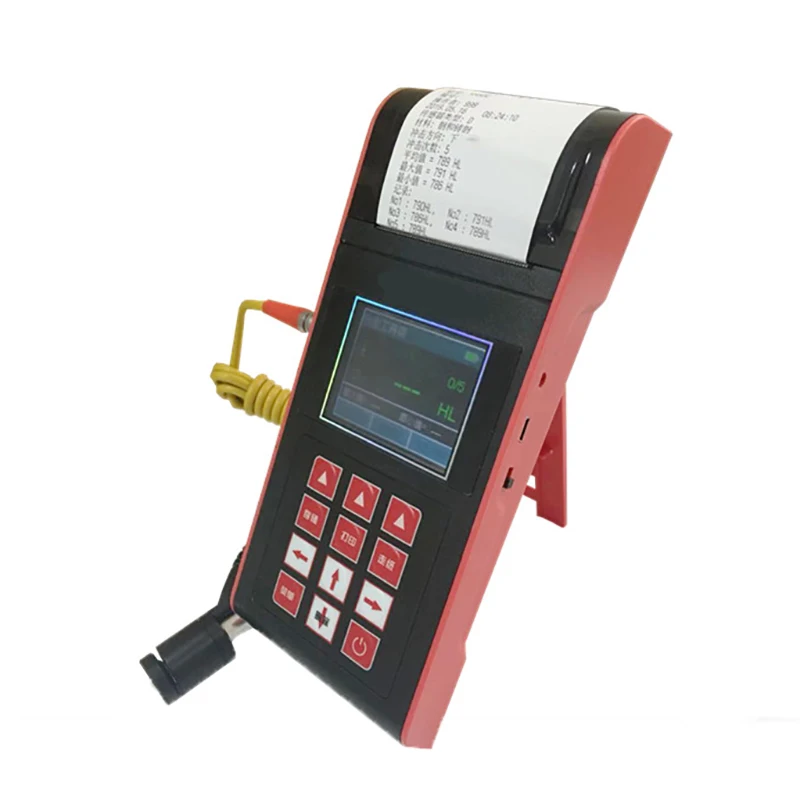

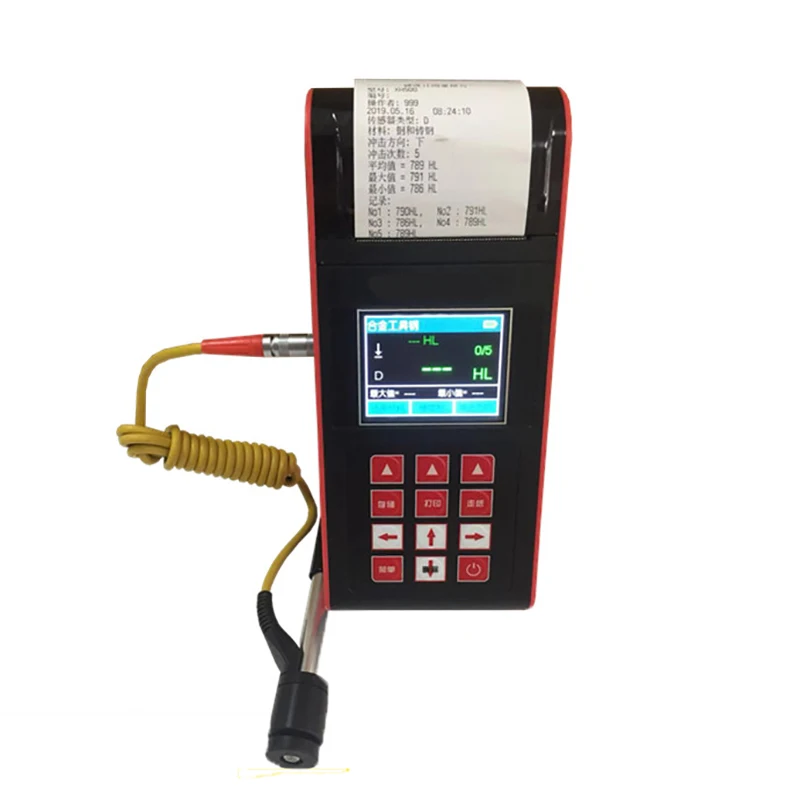

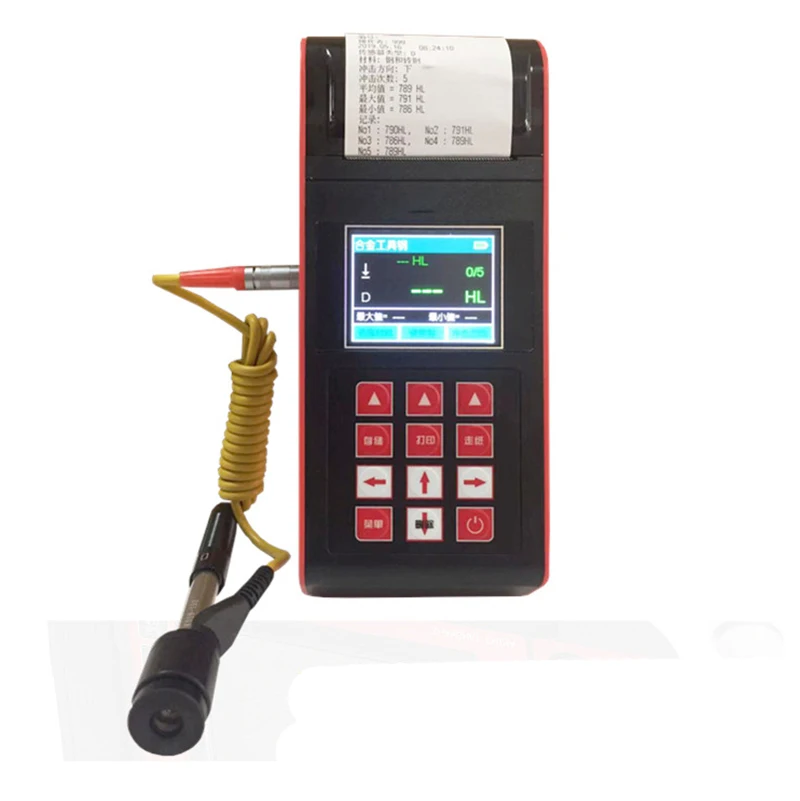

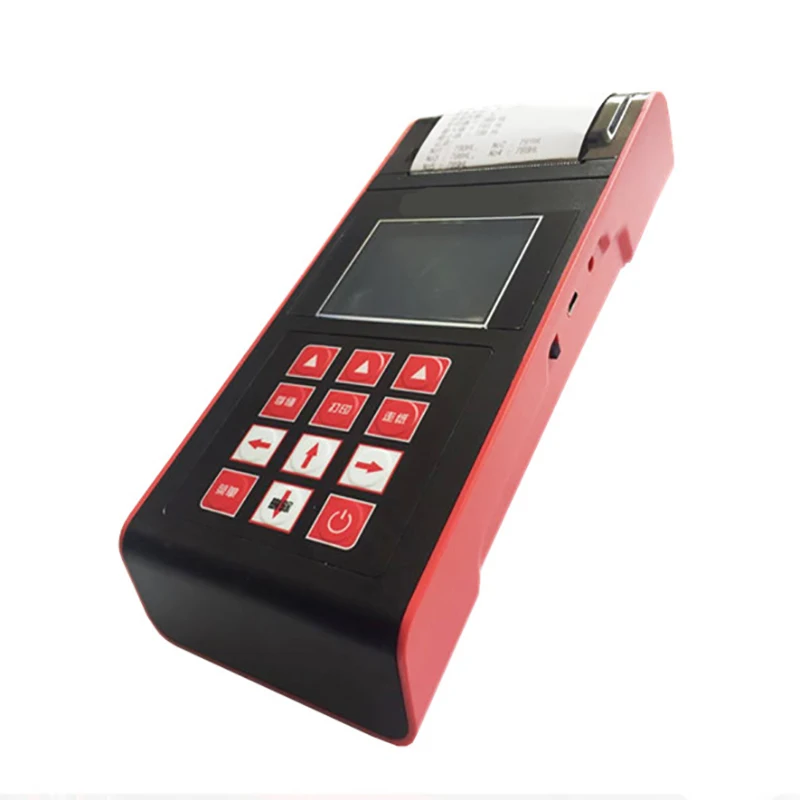

Color screen Richter hardness tester DW325
Designed according to the principle of Leewell hardness, the D type precision impact device can test the accuracy of a variety of metal materials;With dual display, true color TFT LCD screen, vivid and rich content, clear and intuitive information;Measurable materials: steel and cast steel, alloy tool steel, stainless steel, gray cast iron, ductile iron, cast aluminum alloy, copper and zinc alloy (brass), copper and tin alloy (bronze), pure copper, forged steel and customized material hardness measurement.
Product Paramenters
The main purpose |
1.Machining industry, especially suitable for large parts and non-detachable parts of the site hardness test |
2.Hardness of installed mechanical or permanently assembled parts |
3.Mold cavity hardness |
4.Hardness of heavy work piece |
5.Failure analysis of pressure vessel, turbine generator set and its equipment |
6.Hardness of workpiece with very narrow experiment space |
7.Hardness of bearing and other parts |
8.Material division of metal material warehouse |
9.Rapid detection of large workpieces in a wide range of multiple measuring parts |
Functional features |
1.LCD dual display: can display at the same time the Richter and other standard hardness corresponding values |
2.Operator code can be set |
3.Add five custom materials for custom measurement of materials that are not built into the machine.The hardness measurement of special materials can be calibrated and tested with user materials |
4.Probe Plug and Play: can be manually set and automatically identify the impact device function, easy to use in special circumstances (such as 2-wire probe) |
5.Built-in large capacity lithium ion rechargeable battery and charging control circuit;Can work continuously for no less than 150 hours;With automatic sleep, automatic shutdown and other power-saving functions |
6.Convenient to switch to all hardness standards (HL, HB, HRB, HRC, HRA, HV, HS), parallel conversion of each hardness measurement value |
7.Large screen (320×240), true color TFT LCD, vivid and rich content, clear and intuitive information |
8.Woindows interface style, full Chinese display, user-friendly menu-type operation, simple and convenient;LCD brightness can be adjusted arbitrarily, easy to use in light gray environment |
9.Add "forged Steel" material, when the "forged Steel" sample is tested with D/DC impact device, the Hb value can be read directly, without manual table lookup |
10.Large capacity data storage: it can store up to 600 groups of hardness measurement data (shock times 32 ~ 1), including single measurement value, average value, measurement date, impact direction, times, materials, hardness system and other information |
11.Can set the upper limit value in advance, over the limit alarm, convenient user batch test |
12.Streamlined housing: compact, portable, reliable, suitable for harsh operating conditions, vibration, shock and electromagnetic interference resistance |
13.Reasonable support structure design, convenient field operation and printing |
14.Integrated design of main machine and thermal printer, quiet work, fast printing speed, can print test report on site |
15.Remaining power indicator icon, charging process indicator, you can know the charging degree at any time |
16.Powerful computer software can be equipped with rich functions such as transmission of measurement results, storage and management of measurement values, statistical analysis of measurement values, and printing of measurement reports to meet the requirements of quality assurance activities and management |
Technical parameters | ||
Measuring range | (170-960)HLD，(19-651)HB，(13.5-101.7)HRB，(17.9-69.5)HRC，(59.1-88)HRA，(80-1042)HV，(30.6~102.6)HS | |
Measure the direction | 360° | |
Applied materials | Steel and cast steel, alloy tool steel, stainless steel, gray cast iron, ductile cast iron, cast aluminum alloy, copper-zinc alloy (brass), copper-tin alloy (bronze), pure copper, forged steel | |
D type impact device with indication error and indication repeatability | ±6HLD(shown value error) ±6HLD(shown value repeatability) | |
Hardness of the system's | Shaw's (HS), Richter's (HL), Brinell's (HB), Rockwell's (HRC/HRB/HRA), Vickers (HV) and other 7 kinds | |
Set the range of upper and lower limits | (170-960)HLD | |
Calibration value for | It has the function of indicating value software calibration | |
Data is stored | 600 sets of measurements | |
Data interface | USB 2.0 | |
Working voltage | 7.4V lithium battery pack | |
Working temperature | －10℃～＋55℃ | |
Storage stability | －20℃～＋75℃ | |
Installation dimensions | 210 x 85 x 45 mm (host) | |
The weight of the | 0.6KG | |
The standard configuration | Number |
Hardness tester host machine | 1 |
D type impact device | 1 |
Standard Richter hardness block | 1 |
Nylon brush A, screwdriver | 1 |
Little support ring | 1 |
Printing paper | 1 |
Communication cable, charger | 1 |
Data processing software CD-ROM | 1 |
Operating instruction | 1 |
Certificate of qualification, warranty card | 1 |
ABS instrument special box | 1 |
Details Images
Company Profile
Shenyang Dawan Technology Co., Ltd.
Founded in 2011, Shenyang Dawan Technology Co., Ltd. develops and produces all kinds of measuring instruments and meters in China and sells them all over the world. The company can provide OEM and ODM services. The company's infrared thermal imager and non-contact infrared thermometer and other products have been widely used in various industries and around the world. At the same time, the company is also acting as an agent of famous instruments and meters in China and the world, doing import and export trade and services for China and other countries. The company has a trading company in Hong Kong, offices and R & D centers in Beijing and Shenzhen. It can do R & D, design, production, sales and service of non-standard and special instruments. The company adheres to the business philosophy of "professionalism, integrity, service and cooperation" and wholeheartedly provides users with the best quality products and services. We are willing to cooperate with colleagues from all walks of life around the world for common development!
FAQ
1. Are your company a trading one or a factory?
Factory + trade (integration)
OEM is also acceptable for us.
2. How to choose the most suitable products?
Our professional team will give you the best suggestion as long as you tell us what kind of test you
need to do and the required specification.
3. What’s the delivery term?
Most of the time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20
working days after deposit receipt. If you are in urgent need, we can consider making a special
arrangement for you.
4. Do you accept customization service?
Yes, of course, we can not only offer standard machines but also customized machines according to
your request. Don’t hesitate to tell us your requirement, we will try our best to meet your needs.
5. Can we visit your factory before the order?
Yes, we warmly welcome and sincerely invite you or your team to visit our factory, we will help to
arrange a hotel and pick up you from the airport.
6.How about the packing for the machine, is it safely protected during transportation?
Our machine is packed by standard export wooden box, it won’t be damaged. We’ve delivered many
testing machines abroad by sea or by air without damage.
7. What is the order process?
Inquiry - quotation - communication - order confirming - deposit payment - production - testing and
debugging - balance payment - packing - delivery - customer receiving - after service.
8.How to install and use the product
The product is shipped with operating instructions and video of the English version.
