BFT-1600E 1600 мм 63 дюйма Электрический/ручной холодный ламинатор
US $338.00-$378.00
SG-490 двухсторонний горячий и холодный рулон для рулонного
- Категория: Ламинатор >>>
- Поставщик: Hangzhou,Fuyang,Sigo,Office,Supplies,Co.,Ltd
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 1285.69 $* | 1349.21 $* |
| Aug-16-2025 | 1274.99 $* | 1338.32 $* |
| Jul-16-2025 | 1069.1 $* | 1122.59 $* |
| Jun-16-2025 | 1253.2 $* | 1316.54 $* |
| May-16-2025 | 1091.16 $* | 1146.58 $* |
| Apr-16-2025 | 1231.27 $* | 1293.97 $* |
| Mar-16-2025 | 1220.62 $* | 1281.67 $* |
| Feb-16-2025 | 1210.75 $* | 1271.38 $* |
| Jan-16-2025 | 1199.1 $* | 1259.70 $* |
Характеристики
Products Description
SG-490 Double sides hot and cold roll to roll laminating machine
This machine covers a small area, is operated conveniently, run fast. It's equipped with automatic temperature-control and speed-regulation, automatic feeding. Several rolls or redundant rolls can be slit at one time, so this machine is regarded as a slitter.The machine adopts pre-coated film as the material. It is widely used for lamination on the surface of window packing paper boxes,various books, maps, pictures, certificates, holographic cellphone etc. After the above products are laminated, they have the features of water-resistance, clear graphic arts and strong three-dimensional sense.
Main Features
1) Simple structure in linear type ,easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) High pressure double crank to control the die opening and closing.
4) Running in a high automatization and intellectualization,no pollution
5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) High pressure double crank to control the die opening and closing.
4) Running in a high automatization and intellectualization,no pollution
5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .
Semi-automatic FM490/720 laminating machine | ||||
Model | SG-490 | SG-720 | ||
Max. laminate width | 490mm | 720mm | ||
Laminating thickness | 60-800 gsm | |||
Laminating speed | 9m/min | |||
Temperature | 150 degree | |||
Operating Panel | LCD Screen | |||
Auto Feed Paper with Belt | Yes | |||
Single Laminate | Yes | |||
Double Laminate | Yes | |||
Cold&Hot Laminate | Yes | |||
Cut film knife | Yes | |||
Perforating knife | Yes | |||
Auto rewinding paper | Yes | |||
Reverse | Yes | |||
Dia. of core | 1",1.5",3" | |||
The quantity of roller | 4pcs | |||
Speed control | 9 gear | |||
Power | 2.2KW | 2.5KW | ||
Voltage | AC110V(60HZ) AC210V~230V(50HZ) | |||
Package | 1pcs/Wooden Case | |||
Carton Size | 102*89*111cm | 112*102*111cm | ||
G.W. | 130kgs | 180kgs | ||
N.W. | 110kgs | 158kgs | ||

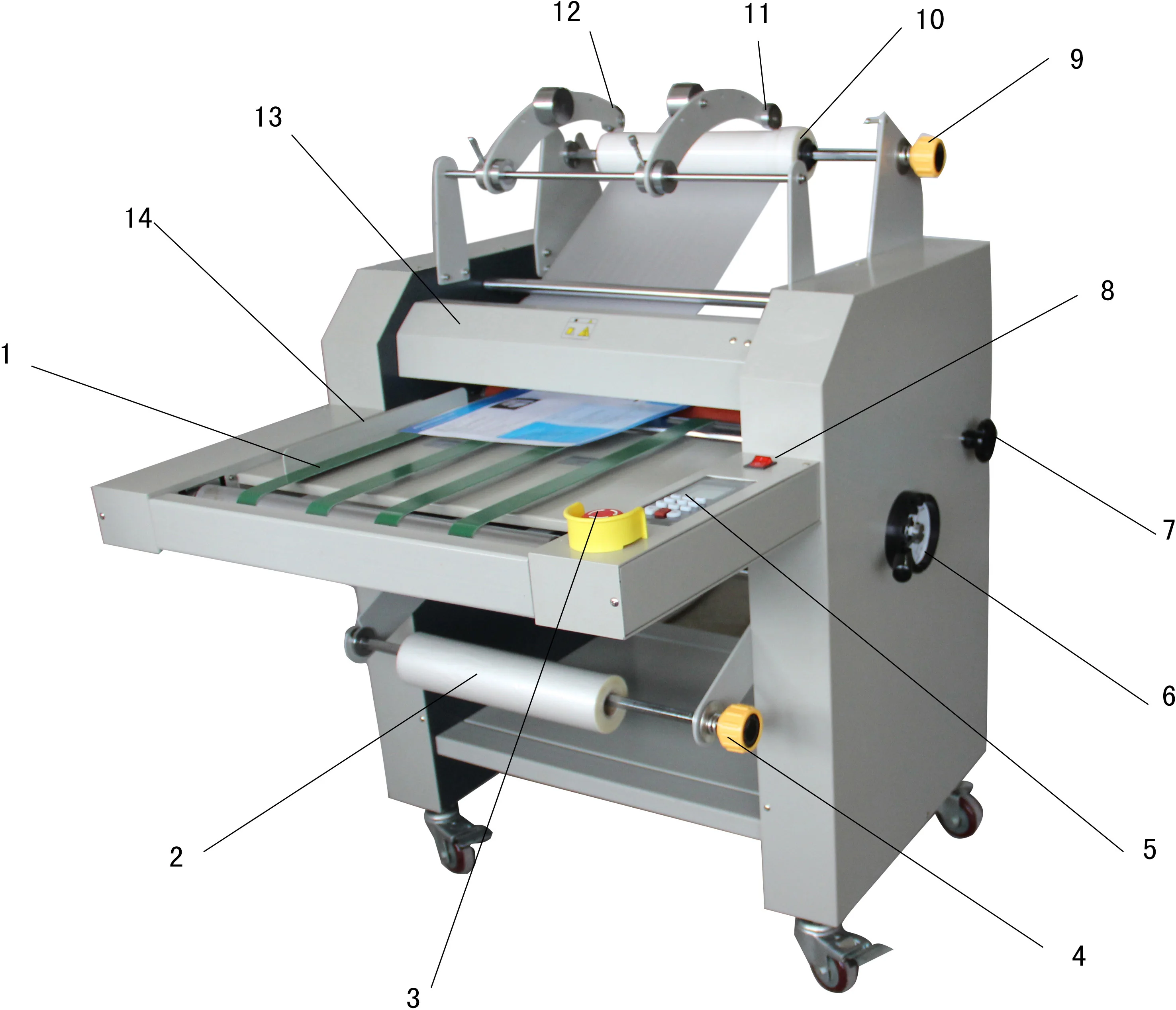

1. Conveyor belt | 7. Rull fim handle |
2. Bottom film | 8.Power switch |
3.Emergency stop | 9. Adjust upper film adapter |
4.Adjust bottom film adapter | 10.Upper film |
5. Operating panel | 11. Cut knife |
6. Handle | 12. Perforating knife |
13. Safty cover | 17. Anti curling bar limiting |
14. Limting block | 18. Anti curling bar |
15.Heating upper steel roller | 19. Pull film roller |
16. Temperature sensor | |
Certifications
FAQ
1.Q:Are you a factory or trading company ?
A:We are factory at Fuyang, Hangzhou ,any time welcome visit us.
2.Q:Where is your factory located? How can I visit there?
A:Our factory is located in Hangzhou City, Zhejiang Province, China, around 1 hours train from Shanghai .Around
1hour from "Hanghou Internatil Airport "to our factory. All our clients, from home or abroad, are warmly welcome to visit us!
A:We are factory at Fuyang, Hangzhou ,any time welcome visit us.
2.Q:Where is your factory located? How can I visit there?
A:Our factory is located in Hangzhou City, Zhejiang Province, China, around 1 hours train from Shanghai .Around
1hour from "Hanghou Internatil Airport "to our factory. All our clients, from home or abroad, are warmly welcome to visit us!
3.Q:What's the material of your products ?
A:The roller is Germany, Steel and Silicon (Import) to make it.
4.Q:How can i get some samples ?
A:We are honored to offer you sample to test it, around 4-5days arrived your hand after receive payment.
5.Q:What's the terms of payment ?
A:We can do T/T WU Paypal 100% before shipping.
6.Q:How does your factory do regarding quality control?
A:Quality is priority. Our factory always attach great importance to quality controlling from the verybeginning to the very end. Our factory has gained CQC, ISO, SGS,FSC authentication
A:The roller is Germany, Steel and Silicon (Import) to make it.
4.Q:How can i get some samples ?
A:We are honored to offer you sample to test it, around 4-5days arrived your hand after receive payment.
5.Q:What's the terms of payment ?
A:We can do T/T WU Paypal 100% before shipping.
6.Q:How does your factory do regarding quality control?
A:Quality is priority. Our factory always attach great importance to quality controlling from the verybeginning to the very end. Our factory has gained CQC, ISO, SGS,FSC authentication
