Характеристики

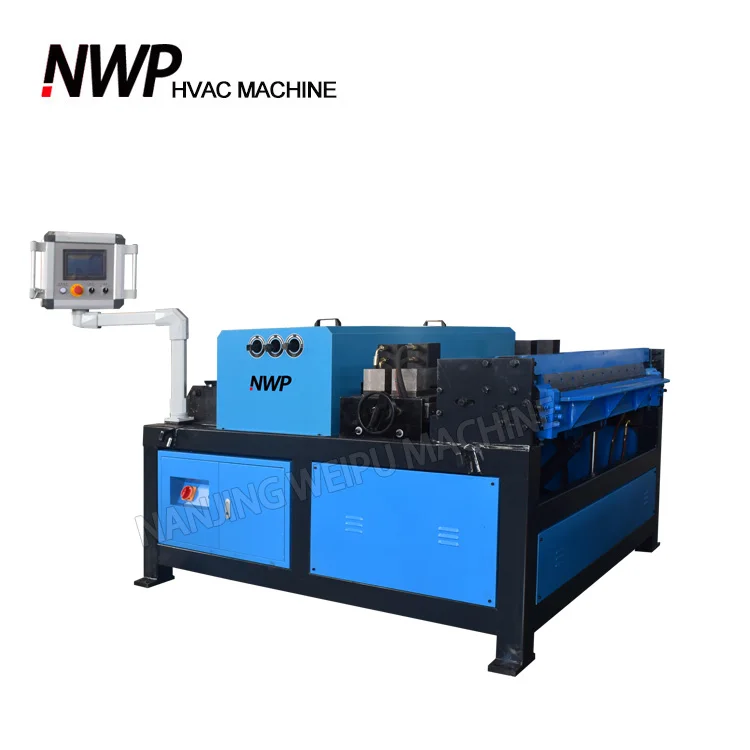

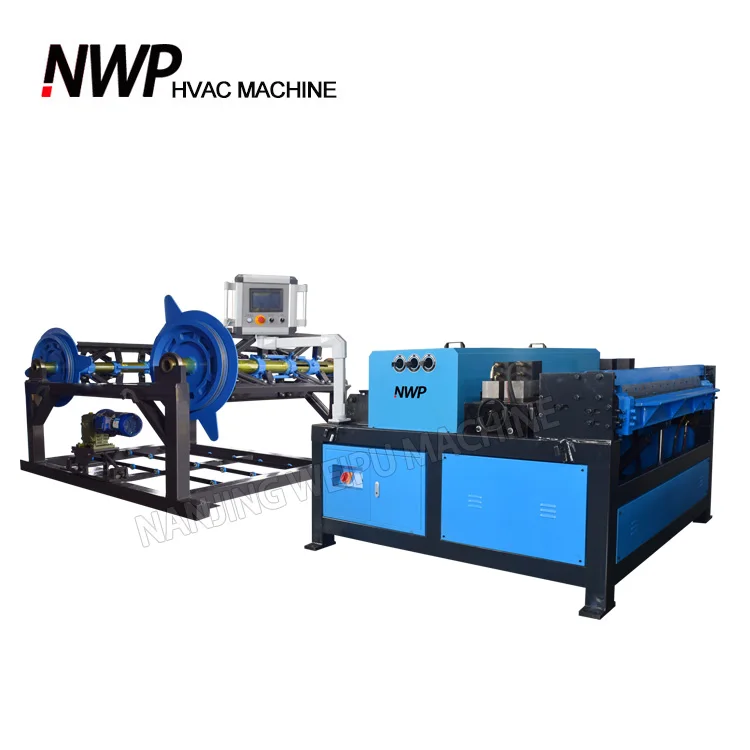

NWP Ventilation rectangular equipment metal air duct production line 3 Rectangular duct production line
Recommend Products
Product Description

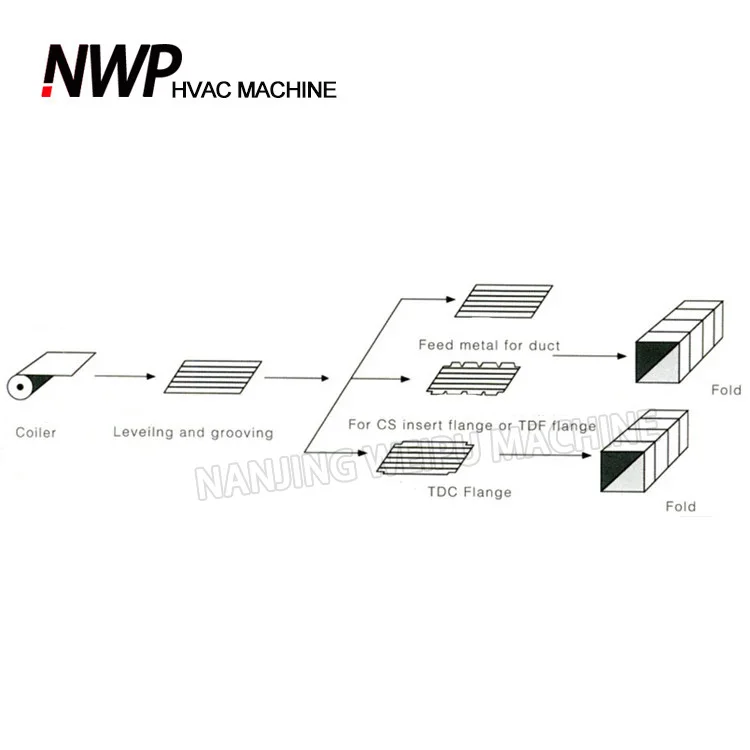

The auto duct line 3 which is mainly used to fold the "L" shape. Its has leveling, beading, notching (capable of sharp notching, TDF notching), plate shearing and plate folding functions. Compared with auto duct line 5, it only completes the preparation work. For the lock forming, flange or angle iron flange forming and the square shape folding, need to add additional equipment to complete these tasks. Auto duct line 3 doesn't require a lot of workers to operate. After inputting the production procedure, the system will automatically feed and manufacture, and the worker will be responsible for carrying the sheared duct. The auto duct line 3 with two electric decoilers entire production speed can arrive 18m/min. Error of ± 0.5 mm in length, diagonal error of ± 0.8 mm.The normal working time can produce 2000-2500 m² of square ducts. It is valuable auto duct line for rectangular duct making.
Basic Configuration
· One electric decoilers, 2 material trays (5-7t each roll);
· One rack;
· One host (auto duct line 3);
· One set of computer controlling system.
· One rack;
· One host (auto duct line 3);
· One set of computer controlling system.
Main Configuration
· MITSUBISHI HMI Display And PLC (optional);
· MITSUBISHI Frequency Converter(optional);
· Japan NEMICON Inverter(optional);
· Taiwan Hydromax Pump;
· Taiwan High Temperature Resistant Tubing;
· Fangli brand Inverter Motor.
· MITSUBISHI Frequency Converter(optional);
· Japan NEMICON Inverter(optional);
· Taiwan Hydromax Pump;
· Taiwan High Temperature Resistant Tubing;
· Fangli brand Inverter Motor.
Model | Thickness (mm) | Speed (m/min) | Coil capacity (T) | Power (kw) | Weight (T) | Dimension (mm) L*W*H |
AML-3-1300 | 0.5-1.2 | 1-16 | 7 | 9.5 | 3 | 4200*1950*1500 |
AML-3-1500 | 0.5-1.2 | 1-16 | 7 | 10 | 3.5 | 4200*2150*1500 |

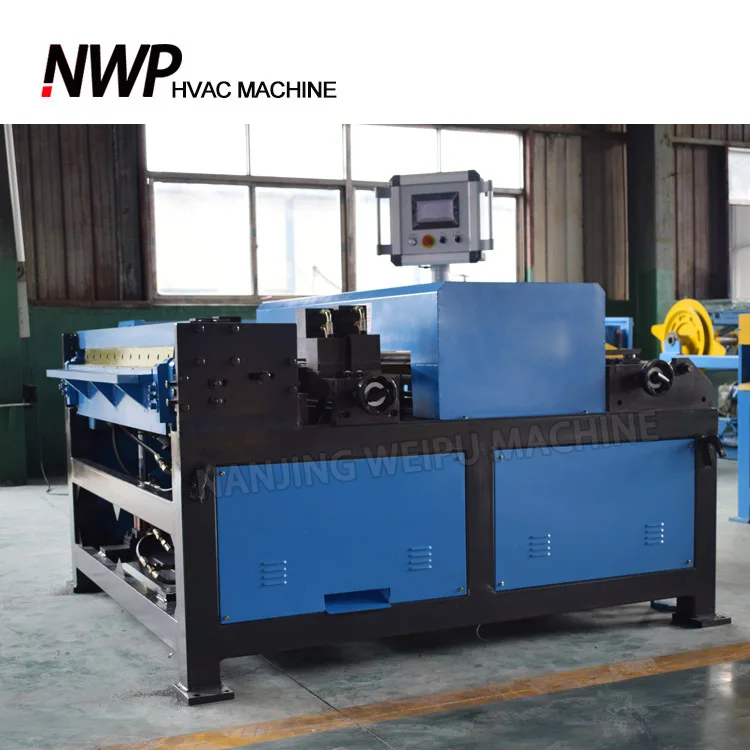

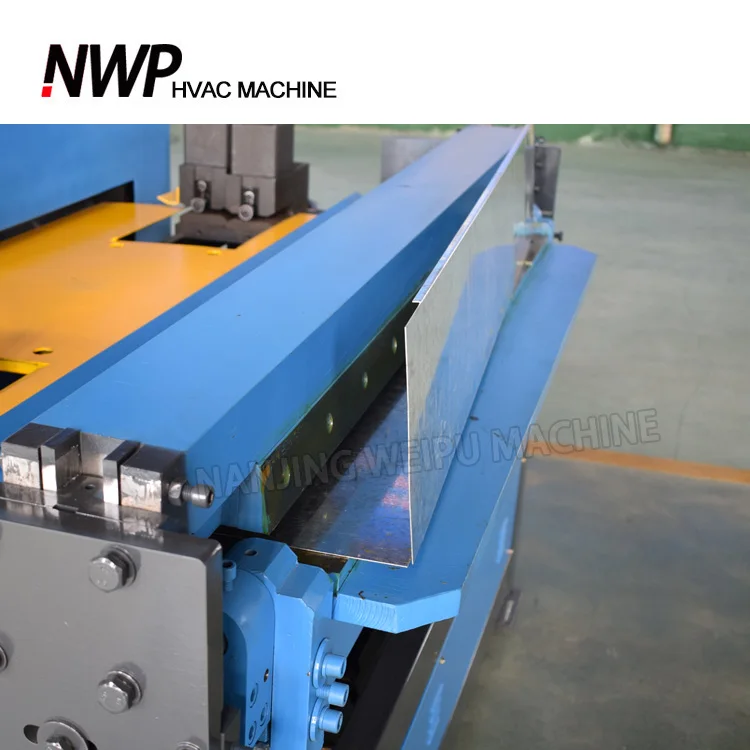

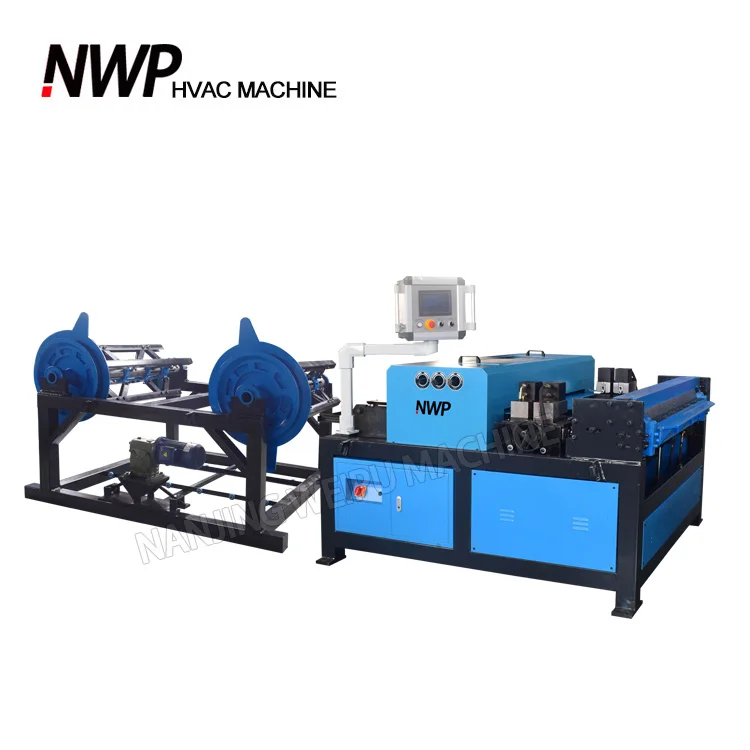

Product Display
Company Profile
Nanjing Weipu Machinery Equipment Co., Ltd. is a professional R&D and sales machines company. The company is located in Lishui District, Nanjing City, Jiangsu Province, China, about 10 kilometers away from Lukou Airport. The transportation is convenient, and it is convenient for domestic and foreign customers to visit our company.
Our company have auto duct line, spiral duct forming machine, CNC plasma cutting machine, lock forming machine and other duct machines for HVAC duct production. There are also hydraulic press brake, hydraulic shearing machine, laser cutting machines and other machines for sheet metal processing. There are also a variety of commonly used machine accessories such as blade molds. The variety of products in our company and they are very popular in many countries due to the high quality .
As a powerful company, we have a group of experienced technical teams, develop a variety of machines suitable for customers' products, and also have a group of sales and after-sales teams with strong service capabilities to answer various questions for customers and ensure that customers can be better to use our machine and enjoy our service.
We will treat every customer with sincerity, not only let the customer enjoy the affordable price and high quality products, but also allow the customer to enjoy the best service. We also look forward to more and more customers choosing Nanjing Weipu Machinery Equipment Co., Ltd. and looking forward to your joining.
Our company have auto duct line, spiral duct forming machine, CNC plasma cutting machine, lock forming machine and other duct machines for HVAC duct production. There are also hydraulic press brake, hydraulic shearing machine, laser cutting machines and other machines for sheet metal processing. There are also a variety of commonly used machine accessories such as blade molds. The variety of products in our company and they are very popular in many countries due to the high quality .
As a powerful company, we have a group of experienced technical teams, develop a variety of machines suitable for customers' products, and also have a group of sales and after-sales teams with strong service capabilities to answer various questions for customers and ensure that customers can be better to use our machine and enjoy our service.
We will treat every customer with sincerity, not only let the customer enjoy the affordable price and high quality products, but also allow the customer to enjoy the best service. We also look forward to more and more customers choosing Nanjing Weipu Machinery Equipment Co., Ltd. and looking forward to your joining.
Workshop
FAQ
Q: Are you a trading company or a manufacturer?
A: We are a professional manufacturer specializing in product development.
Q: How can we get your quotation?
A: Please send us your purchase list, we will attach our best price in it.
Q: How can we order your machines & payment terms & MOQ......?
We support TT / Credit Card / Alibaba and many type to receive the payment.
Payment terms: 30% deposit and 70% balance before shipping.
Minimum order quantity: 1 set of any machine.
Delivery time : In about 10days after order confirmation. We normally stock standard machines so that we can delivery them
quickly.
Payment terms: 30% deposit and 70% balance before shipping.
Minimum order quantity: 1 set of any machine.
Delivery time : In about 10days after order confirmation. We normally stock standard machines so that we can delivery them
quickly.
Q: What is your service & warranty?
We have a professional sales team for answering your question, we also have a exprence after-sales team to do the service, include
oversea service, video guide operation, record a complete video in advance and etc.
Warranty: We provide 2 years for our machines warranty and spare parts supply for life.
oversea service, video guide operation, record a complete video in advance and etc.
Warranty: We provide 2 years for our machines warranty and spare parts supply for life.
