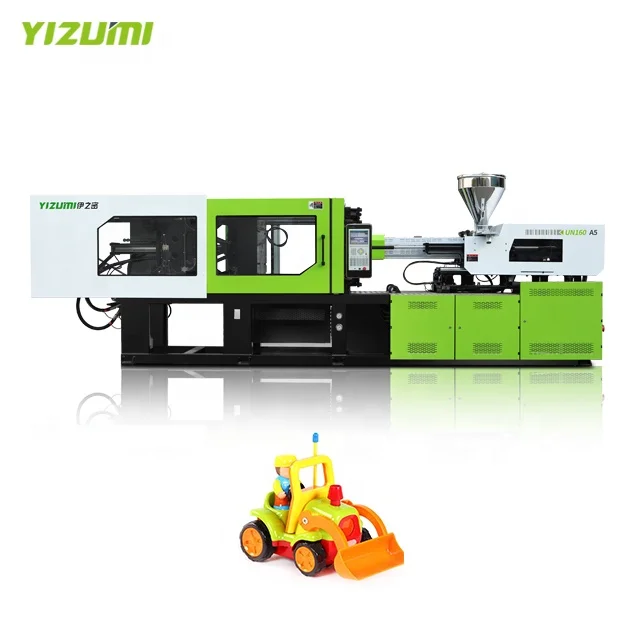

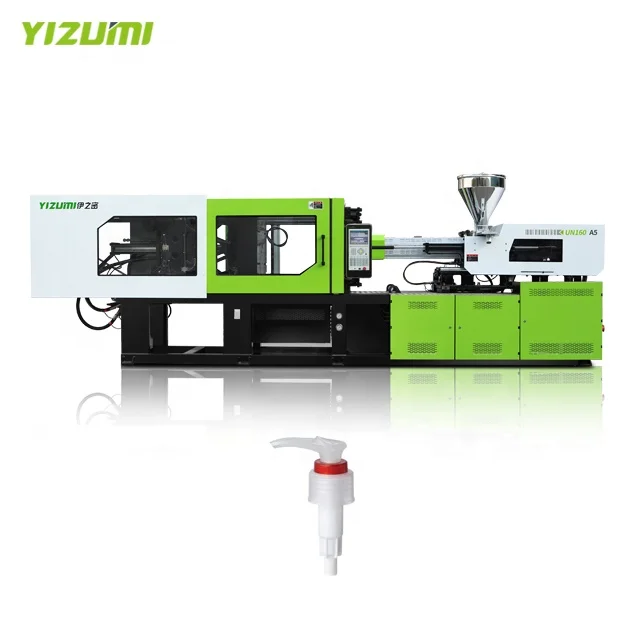

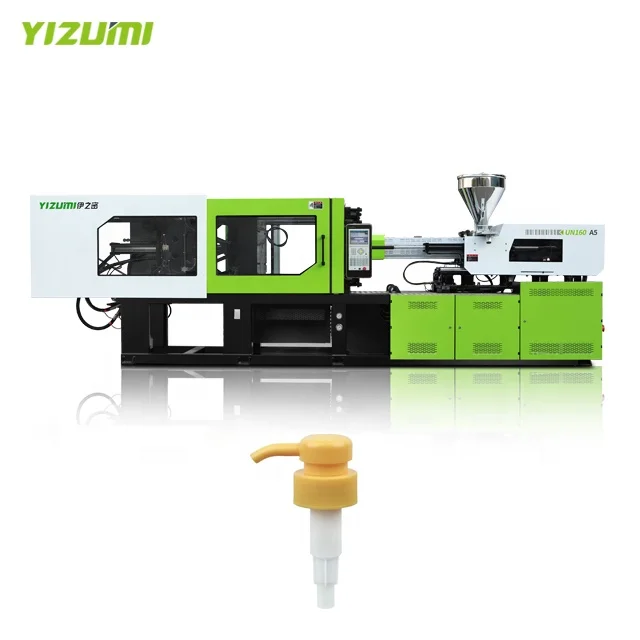

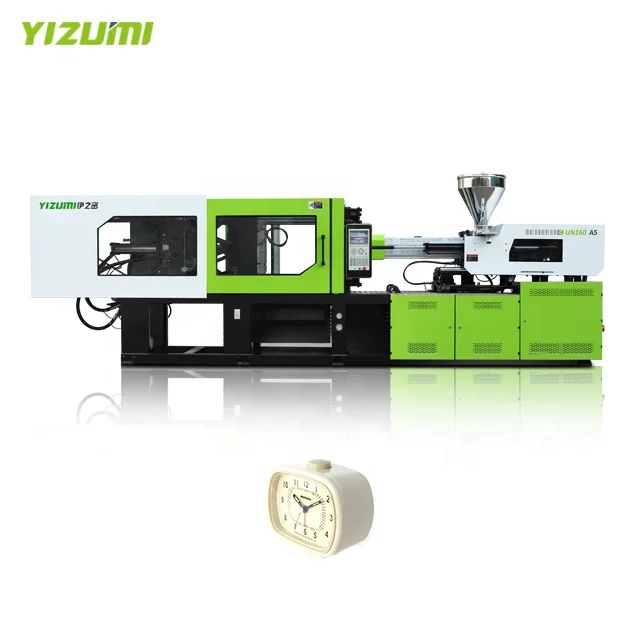

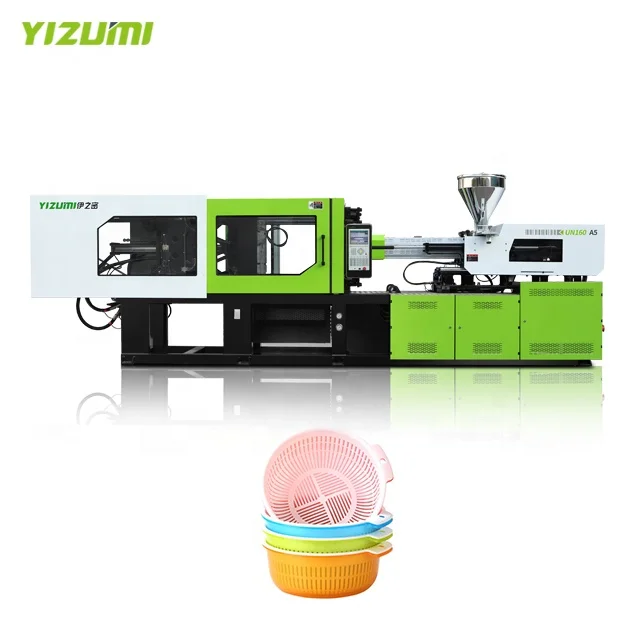

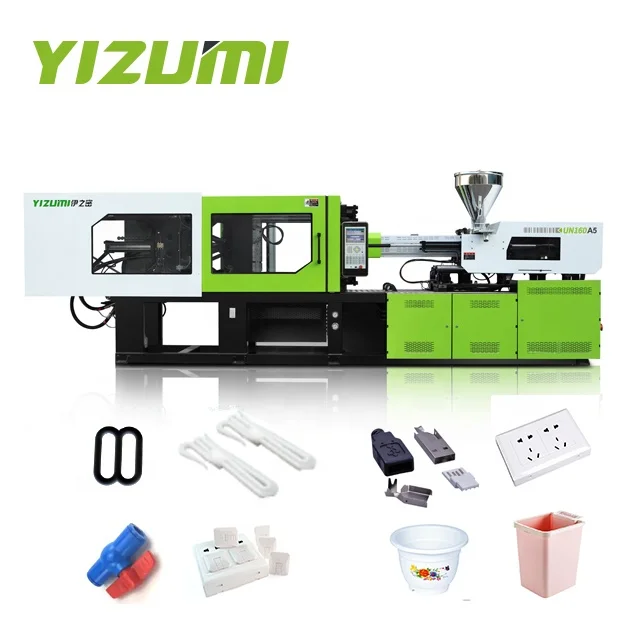

[Большая распродажа] YIZUMI UN160A5 160 тонн машина для литья под давлением горизонтальные пластиковые машины
- Категория: Plastic & Rubber Processing Machinery >>>
- Поставщик: Yizumi,Precision,Molding,Technology,Co.,Ltd
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.55 $* | 0.67 $* |
| Aug-16-2025 | 0.25 $* | 0.56 $* |
| Jul-16-2025 | 0.86 $* | 0.68 $* |
| Jun-16-2025 | 0.38 $* | 0.88 $* |
| May-16-2025 | 0.38 $* | 0.20 $* |
| Apr-16-2025 | 0.72 $* | 0.1 $* |
| Mar-16-2025 | 0.35 $* | 0.21 $* |
| Feb-16-2025 | 0.67 $* | 0.18 $* |
| Jan-16-2025 | 0.6 $* | 0.53 $* |
Характеристики
Product Description
Clamping Unit
T-slot platen and Compulsory ejector return
T-slot platen can increases the overall rigidity of clamping unit by 30%, brings convenience for installation and removal of mold, reduces the wear of thread due to long-term use of screw hole and extends the life of platen.The compulsory ejector return meets the requirement of special mold reset and the molds are more applicable.
T-slot platen can increases the overall rigidity of clamping unit by 30%, brings convenience for installation and removal of mold, reduces the wear of thread due to long-term use of screw hole and extends the life of platen.The compulsory ejector return meets the requirement of special mold reset and the molds are more applicable.
Anti-tilt platen support design
Special anti-tilt platen support design increases the smoothness of motion, lowers friction, improves the efficiency of motion, reduces energy consumption and prevents the platen from tilting so as to protect the mold.
Special anti-tilt platen support design increases the smoothness of motion, lowers friction, improves the efficiency of motion, reduces energy consumption and prevents the platen from tilting so as to protect the mold.
Closed-loop control of mold open position
The enhanced accuracy and repeatability of mold open position result in accurate part removal by robot and benefit automated continuous production. The mold open position accuracy is smaller than 2mm and repeatability is below 0.3mm.Low pressure mold protection
Low-pressure mold protection control unit ensures the mold gets effectively protected.
Injection Unit
Integrated linear guide rail structure
The injection unit is equipped with the one-piece supporting base which is integrated with linear guide rails, which minimizes the friction to motion, increases injection accuracy and enhances plasticizing efficiency.
New universal screw and barrel unit
The upgraded screw and barrel unit further optimizes color mixing and plasticizing efficiency. It has the advantages of easy color change and cleaning, low shear without temperature rise and wider applicability, etc.Movable hopper rails (60T-320T)
Horizontal double-carriage design
Proportional back pressure control
Hydraulic System
The third-generation servo
low energy consumption, strong power and fast response
Overall hydraulic circuit optimization reduces flow loss.
The resistance to moving parts, including the clamping unit and injection unit is further reduced, raising the response speed and reducing frictional loss.
Control System
Mirle MK500 control system delivers better performance in machine control and adds to the stability of product and machine.
1.CAN open bus technology makes transmission more stable and control more accurate.
2.10.4-inch 800X 600 TFT LCD with separate control by 32-bit CPU.
3.The control unit adopts Cortex-A8 processor with scan time of 0.5ms, speedy response and accurate control.
4.240 sets of mold data memory, USB port for extension of storage.
5.7+1 sections of PID temperature control supports switchover between type J and type K thermocouples. Automatic PID tuning improves the temperature control accuracy.
6.Expansion of hot runner interface is available, supporting 60 sets of hot runner and switch over between type J and type K thermocouples (optional).
7.Production quality control, with display of process parameter graphs and statistics tables.
8.The I/O module has 64 outputs and 64 inputs at maximum (optional).
9.Integration of common software meets different injection molding process requirements.
10.Common communication interface, including RS-232\\485, CANOPEN, OPC UA (expand as needed).
2.10.4-inch 800X 600 TFT LCD with separate control by 32-bit CPU.
3.The control unit adopts Cortex-A8 processor with scan time of 0.5ms, speedy response and accurate control.
4.240 sets of mold data memory, USB port for extension of storage.
5.7+1 sections of PID temperature control supports switchover between type J and type K thermocouples. Automatic PID tuning improves the temperature control accuracy.
6.Expansion of hot runner interface is available, supporting 60 sets of hot runner and switch over between type J and type K thermocouples (optional).
7.Production quality control, with display of process parameter graphs and statistics tables.
8.The I/O module has 64 outputs and 64 inputs at maximum (optional).
9.Integration of common software meets different injection molding process requirements.
10.Common communication interface, including RS-232\\485, CANOPEN, OPC UA (expand as needed).
User-friendly Design
EU-based robot mounting holes
Centralized lubrication module
Manual lubrication pump
Electric lubricant pump
Electrical cabinet that is neat ,Safe and maintenance-friendly
Universal standardized interfaces and connectors
Specification
DESCRIPTION | UNIT | DATA | |
Injection unit | Shot volume | cm3 | 371 |
Shot weight (PS) | g | 341.3 | |
oz | 12 | ||
Screw diameter | mm | 48 | |
Injection pressure | Mpa | 162.9 | |
Injection rate | g/s | 164.8 | |
Screw L:D ratio | 20:1 | ||
Max. injection speed | mm/s | 99 | |
Screw stroke | mm | 205 | |
Screw speed(stepless) | r/min | 0-235 | |
Clamping unit | Clamping force | kN | 1600 |
Opening stroke | mm | 420 | |
Space between bars | mm*mm | 460x460 | |
Max. Daylight | mm | 940 | |
Mold thickness(Min.Max) | mm | 160-520 | |
Ejector stroke | mm | 140 | |
Number of ejector pin hole | 5 | ||
Ejector force | kN | 42 | |
Power unit | Max. system pressure | Mpa | 17.5 |
Standard servo Pump | kw | 25 | |
Heating power | kw | 10.9 | |
Number of temp control zones | 4 | ||
General | Dry cycle time | s | 2.4 |
Oil tank capacity | L | 220 | |
Machine dimensions(LxWxH) | m*m*m | 5.35x1.37x2.13 | |
Machine weight | kg | 5000 |
NOTE: The listed machine price is for standard machine only, any extra requirement (e.g. CE/UL/KCS safety standard and so on) will be subject to extra charge.
Packing & Delivery
Company Profile
Exhibition
Certifications
FAQ
Q1: Where is your factory located?
A1: Guangdong Yizumi Precision Injection Molding and Die Casting Technology Co., Ltd which is located at No.12, Shunchang Road,Daliang, Shunde, Foshan, Guangdong Province, China 528306
Q2: Are you an integrated supplier for injection molding machine, mold, robot and auxiliary?
A2: Yes, we can provide the complete solution line to customer according to customer’s requirement.
Q3: How about the quality control in your factory?
A3: Yizumi has the SOP (Standard Operation Procedure) and all the production step must follow up this SOP. Every machine needs at least automatic running over 72 hours and must be inspected carefully before shipment.
.
Q4: Will you offer the pre-sales service?
A4: Yes, we have an experienced pre-sales team to support customers not only including machine, mold and auxiliary selection but also water .electrical, machine layout in factory, etc.
Q5: What about the after-service? Will you send your engineer to my country to help commission and install the machine?
A5: Surely, we have many experience technical engineers for oversea service, they would help you install machine and support training to workers also. Currently we provide visit online by video call for the COVID-19.
Q6: What is the delivery time of the machine?
A6: Actually, the delivery time of the machines is depended on the machine options. Normally, the delivery time of standard machine could be within 1-2 month.
Q7 : What is the warranty of the machine ?
A7: The whole machine’s warranty period is 12 months and key parts will be depended.
Q8 : Mold trial will be available in Yizumi factory ?
A8： Yes, Customer can send the mold to Yizumi factory and test.
Q9 . Do you provide any spare parts with machine?
A9: Yes, Yizumi will provide one set standard spare parts to customer including heater ,filter, screw head ,screw washer, checking ring ,sealings, etc.
A1: Guangdong Yizumi Precision Injection Molding and Die Casting Technology Co., Ltd which is located at No.12, Shunchang Road,Daliang, Shunde, Foshan, Guangdong Province, China 528306
Q2: Are you an integrated supplier for injection molding machine, mold, robot and auxiliary?
A2: Yes, we can provide the complete solution line to customer according to customer’s requirement.
Q3: How about the quality control in your factory?
A3: Yizumi has the SOP (Standard Operation Procedure) and all the production step must follow up this SOP. Every machine needs at least automatic running over 72 hours and must be inspected carefully before shipment.
.
Q4: Will you offer the pre-sales service?
A4: Yes, we have an experienced pre-sales team to support customers not only including machine, mold and auxiliary selection but also water .electrical, machine layout in factory, etc.
Q5: What about the after-service? Will you send your engineer to my country to help commission and install the machine?
A5: Surely, we have many experience technical engineers for oversea service, they would help you install machine and support training to workers also. Currently we provide visit online by video call for the COVID-19.
Q6: What is the delivery time of the machine?
A6: Actually, the delivery time of the machines is depended on the machine options. Normally, the delivery time of standard machine could be within 1-2 month.
Q7 : What is the warranty of the machine ?
A7: The whole machine’s warranty period is 12 months and key parts will be depended.
Q8 : Mold trial will be available in Yizumi factory ?
A8： Yes, Customer can send the mold to Yizumi factory and test.
Q9 . Do you provide any spare parts with machine?
A9: Yes, Yizumi will provide one set standard spare parts to customer including heater ,filter, screw head ,screw washer, checking ring ,sealings, etc.
