JIYI K++ Flight Controller with PMU GPS Module for Agriculture Drones X4 I6 Y6 X8 I8 Multi - rotor
Product Description
Features
Intelligent vibration analysis function K++ comes with intelligent vibration analysis function, which can determine the vibration of the aircraft in real time during flight, and display the safety warning in the APP to help adjust the adaptability of all aspects of the fuselage device, making the flight operation more energy efficient, safer and safer. Multiple Backups K++ is equipped with three redundant IMU and dual redundant barometer sensors. During the flight, the sensor data of IMU is monitored in real time through advanced diagnostic algorithms. When the sensor in the navigation system is abnormal, the system immediately switches to another sensor. To ensure the safe flight of the aircraft. One calibration, not afraid of environmental interference K++ benefits from powerful industrial-grade sensor configuration and algorithm optimization. After the same aircraft flight control system is installed, it only needs to be calibrated once. Even if the operating environment is replaced, it does not need to be recalibrated and is easy to use.
Product Details
Supported multi-rotor types: Quadcopter (+, X) Hexacopter (+, X, IY and YI coaxial twins) Octocopter (+ type, X type, V type) Supported ESC type: 490HZ or less PWM ESC Maximum output channel: 8 channels Recommended remote control type Supported receiver types: PPM, S-BUS receiver Support expansion equipment: K-BOX, IOT, RTK, obstacle avoidance radar, terrain radar, integrated remote control, FPV camera, flow meter, level gauge Working voltage: 2-12S Power consumption: less than 5W Working environment temperature: -10~60°C Storage environment temperature: -25~60°C Earthquake resistance rating: <1G Flight characteristics Hovering accuracy: horizontal direction ±1.5 m; vertical direction ±0.5 m Maximum tilt angle: 30° Maximum yaw speed: 150°/ sec SBUS receiver Maximum vertical speed: 6 m / s Wind resistance: continuous wind: 4 Gust: Level 5 Flight mode and function: Attitude mode, GPS mode, AB operation, route operation, one-button return loss control, out of control continue operation, low voltage protection, fence function, log storage function, landing lock function, no-fly zone function, vibration protection function, star protection Function, active noise reduction function, motor sequence detection function, direction detection function, dual pump mode, drug break protection function, precision spray, water pump switch control, water pump linkage control Hardware specification Weight: Total net weight: 321g FC: 87g PMU: 41g PMU2 (UPS): 44g Size FC: 72.6mm × 48.0mm × 22.8mm PMU: 53.4mm × 34.4mmx14.5mm PMU2 (UPS): 53.4mm × 34.4mmx14.5mm GPS: 62*14.3mm LED: 24*24*8mm

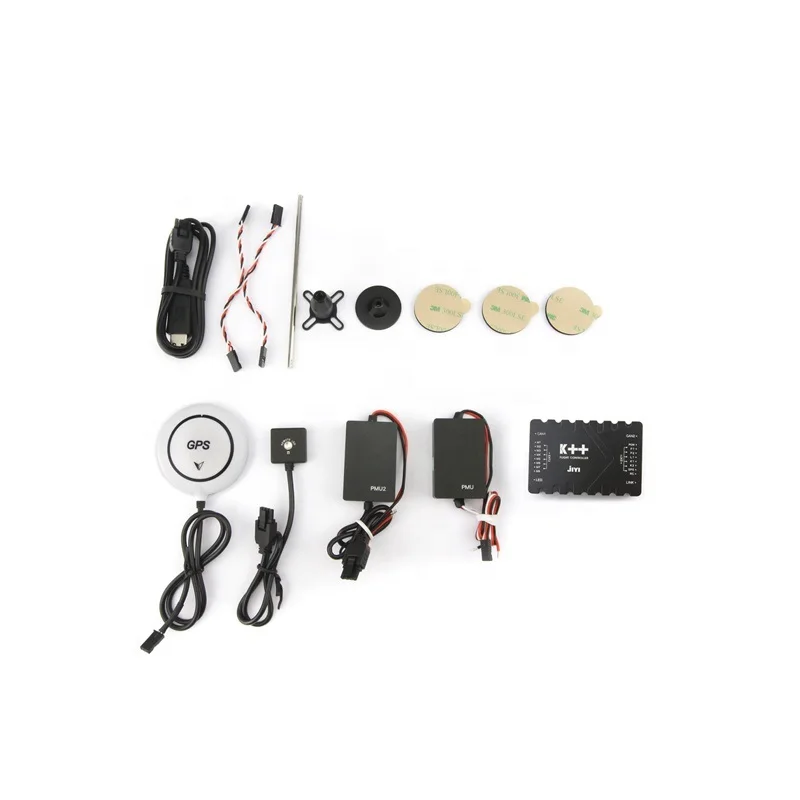

Item Packing
JIYI K++ FC x 1
PMU Module x 1

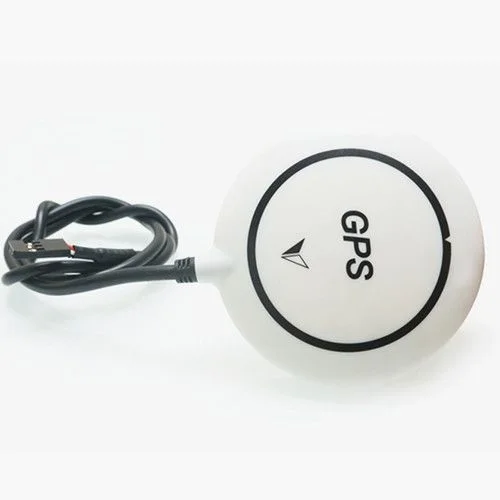

GPS Module x 1
LED Module x 1
Double-sided tape x 3
Three Guarantees x 1
GPS Bracket x 1
USB cable x 1
DuPont line x 2
