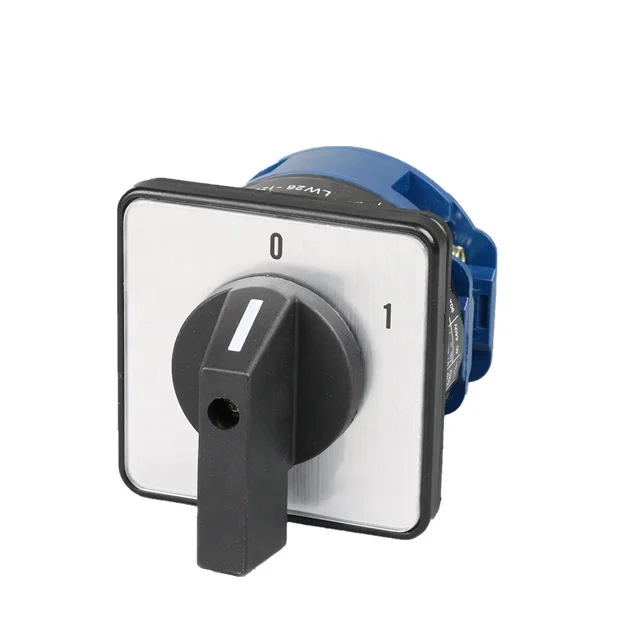

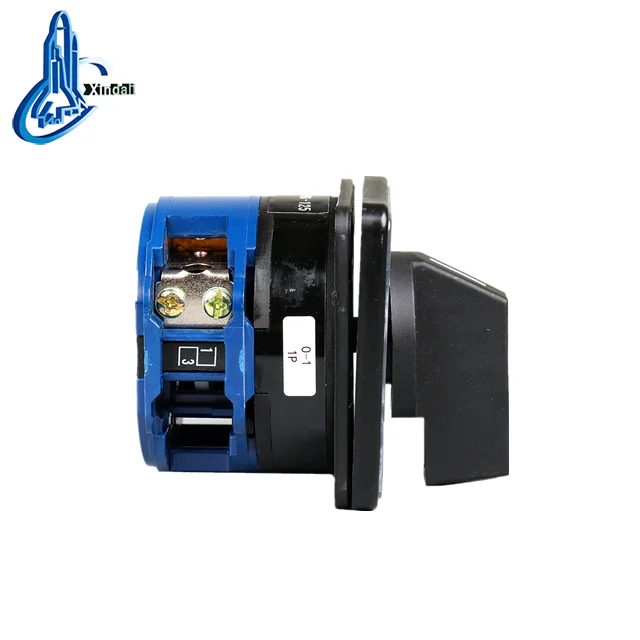

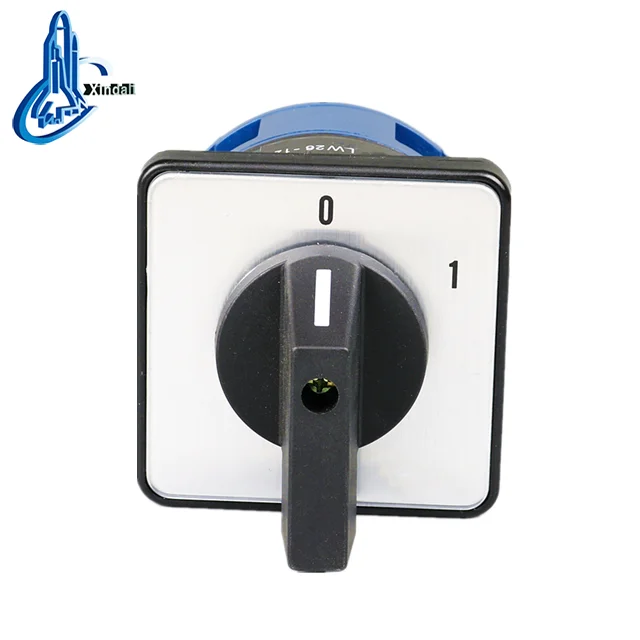

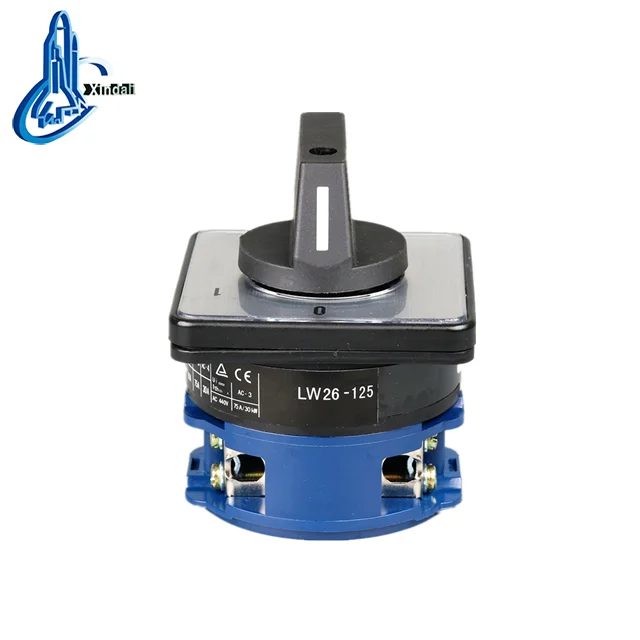

LW126-125S с пружинным возвратом поворотный переключатель

LW126-125S с пружинным возвратом поворотный переключатель

Категория: Rotary Switches >>>
Поставщик: XINDALI,INDUSTRIES,CO.,LTD.

Цена:15,00 $ - 20,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Aug-16-2025	19.61 $*	19.11 $*
Jul-16-2025	15.56 $*	15.14 $*
Jun-16-2025	19.56 $*	19.59 $*
May-16-2025	19.66 $*	19.65 $*
Apr-16-2025	15.47 $*	15.88 $*
Mar-16-2025	18.21 $*	18.66 $*
Feb-16-2025	18.4 $*	18.26 $*
Jan-16-2025	18.86 $*	18.41 $*

Характеристики

Product Description

Product Application

Main switch are ON--OFF switches to isolated the power to a particular area of operation.According to ICE/EN6024 or VDE0113,all electrical equipments of industrial machines must be equipped with a main switch.This must permit disconnection of all the elecrical equipment during cleaning,maintenance and repair work,and other extended periods when is stationary.Main switch can be used for switching and controlling main circuits,motor ON-OFF and other special application circuits,such as illimination equipments,heating equipments and motors,Their high on-off ability ensure the work reliability of frequently making and breaking.

Specification	LW126-20
		LW126-20X
		LW126-20C
Rated insulation voltage	660/690
Rated working current	20
Rated working voltage	24	110	240	440
Rated working current
AC-21A	/	/	20	20
AC-23A	/	/	15	15
AC-2	/	/	15	15
AC-3	/	/	11	11
AC-4	/	/	3.5	3.5
AC-15	/	/	5	4
DC-13	12	0.4	0.4	/
Power
AC-23A	/	/	3.7/2.5	7.5/3.7
AC-2	/	/	4	7.5
AC-3	/	/	3/2.2	5.5/3
AC-4	/	/	0.55/0.75	1.5/1.5
