Description:

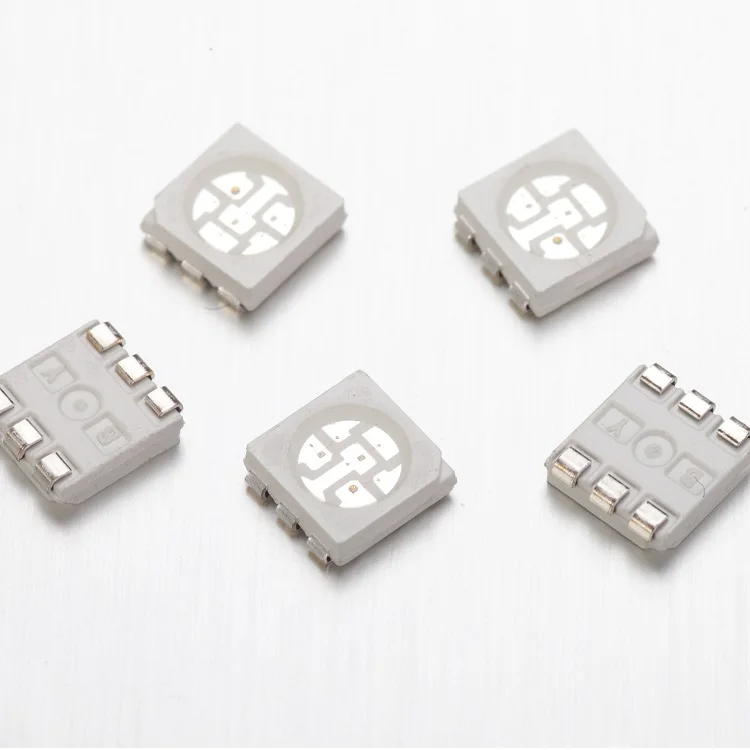

This surface-mount LED comes in standard package dimension.

 It has a substrate made up of a molded plastic reflector sitting on top of a bent lead frame.

The die is attached within the reflector cavity and the cavity is encapsulated by silicone.

The package design coupled with careful selection of component materials allow these products to perform with high reliability.



Features:

1. Emitted Color:  Natural White

     CCT: about 4000K

     Luminous Flux: 6.5-7lm

     Luminous intensity: 2200~2400mcd @120 degrees

2. Lead frame: White

3. Suitable for all SMT assembly methods.

4. Compatible with infrared and vapor phase reflow solder process.

5. Compatible with automatic placement equipment.

6. This product doesn’t contain restriction Substance, comply ROHS standard.



Specifications

1, 5050 smd led 18-20LM, 20-22LM, 22-24LM
2, 5630 smd/5053 smd led 40-45lm; 45-55lm

Part No.	Color	Packaging type	Brightness	Color temperature/wavelength	Current	Voltage	Angle
5050 series	white/warmwhite	PLCC6	12-14lm	2500-25000K	60	3.0-3.4	120°
			14-16lm			3.0-3.4
			16-18lm			3.0-3.4
			18-20lm			3.0-3.4
			20-22lm			3.0-3.4
			22-24lm			3.0-3.4
	Red		600-800mcd	620-630	60	1.8-2.2	120°
			1000-1500mcd
			1500-2000mcd
	Yellow		1000-1500mcd	588-595	60	1.8-2.2	120°
			1500-2000mcd
	Blue		600-800mcd	455-465	60	3.0-3.4	120°
	Green		4000-6000mcd	515-535	60	3.0-3.4	120°



New goods, 3528 0.5W.45-55lm

3528,30MA. 11-12lm.





• 5050 white SMD led/ 5050 rgb


• Color avaible:white , blue , greed, red,rgb etc


• Vf: 3.0 to 3.6/1.8 to 2.2


• IF: 60mA


• View angle: 120degree


• no decay in 1000hours













•  Loading Port: ShangHai or NingBo, China





• pay by T/T, and L/C.


• Customers can choose which payment ways that you accept, paypal is most useful and safe, please don’t refuse paypal fee when you choose it.
