Автоматическое линейное вибрационное сито для стального
- Категория: Vibrating Screen >>>
- Поставщик: Xinxiang,Xianfeng,Vibration,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 1178.24 $* | 1237.57 $* |
| Aug-15-2025 | 1168.36 $* | 1226.51 $* |
| Jul-15-2025 | 980.5 $* | 1029.58 $* |
| Jun-15-2025 | 1148.81 $* | 1205.65 $* |
| May-15-2025 | 1000.0 $* | 1050.28 $* |
| Apr-15-2025 | 1129.41 $* | 1185.27 $* |
| Mar-15-2025 | 1119.93 $* | 1175.35 $* |
| Feb-15-2025 | 1109.24 $* | 1164.97 $* |
| Jan-15-2025 | 1099.38 $* | 1154.38 $* |
Характеристики
Detail intruduction

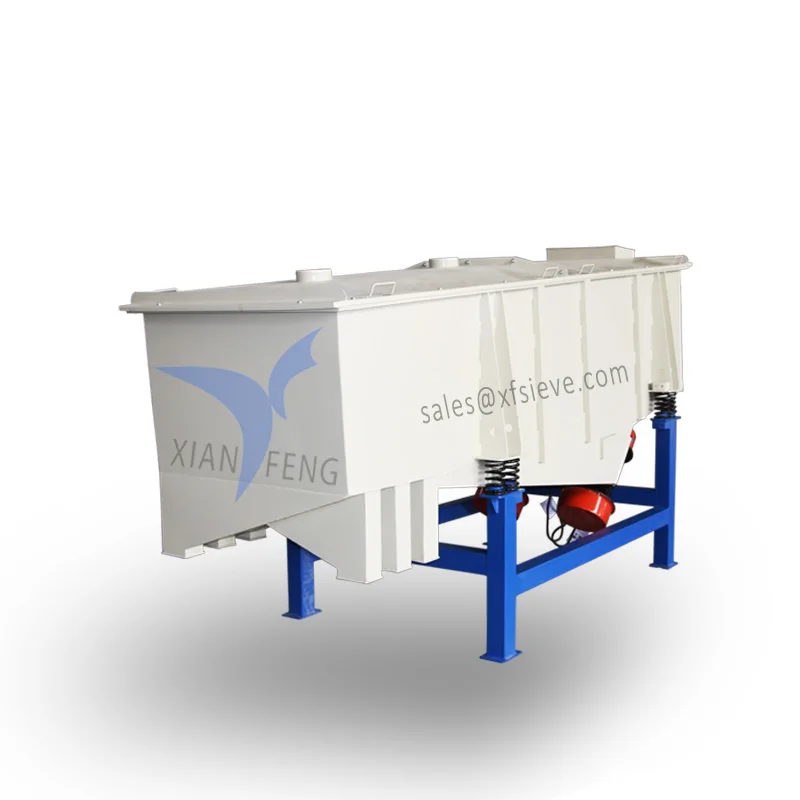

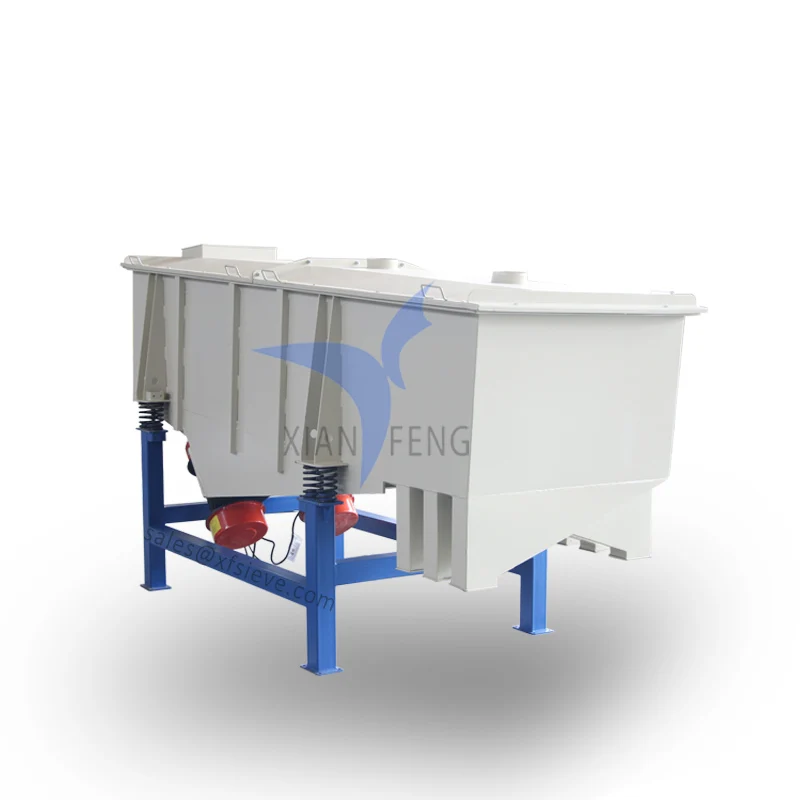

Linear vibrating screen machine
Classic vibrating screen, simple structure, durable performance.
It adopts dual vibration motor design, which has the characteristics of energy saving, simple structure and easy maintenance, and rich screen size suitable for various scenarios.
Maintenance is simple, just add lubricating oil to the motor regularly.
It has a wide range of applications. The screen size ranges from 500*2000mm to 2*3m. It is suitable for small-volume food and pharmaceutical users, as well as large-volume ore screening, kaolin screening, foundry sand screening and other users.
It adopts dual vibration motor design, which has the characteristics of energy saving, simple structure and easy maintenance, and rich screen size suitable for various scenarios.
Maintenance is simple, just add lubricating oil to the motor regularly.
It has a wide range of applications. The screen size ranges from 500*2000mm to 2*3m. It is suitable for small-volume food and pharmaceutical users, as well as large-volume ore screening, kaolin screening, foundry sand screening and other users.
Technical data
Model NO. | Screen Area [㎡] | Screen Decks | Vibration Frequency [r/min] | Power [Kw] | Overall Dimension [mm] |
XFZ515-1 | 0.57㎡ | 1 ~3 | 960 | 2*0.25kw | 1708*780*1050 |
XFZ520-1 | 0.76㎡ | 1 ~3 | 960 | 2*0.25kw | 2208*780*1050 |
XFZ525-1 | 0.95㎡ | 1 ~3 | 960 | 2*0.37kw | 2708*780*1050 |
XFZ530-1 | 1.14㎡ | 1 ~3 | 960 | 2*0.37kw | 3208*780*1050 |
XFZ820-1 | 1.36㎡ | 1 ~3 | 960 | 2*0.37kw | 2215*1080*970 |
XFZ825-1 | 1.7㎡ | 1 ~3 | 960 | 2*0.55kw | 2715*1080*970 |
XFZ830-1 | 2.04㎡ | 1 ~3 | 960 | 2*0.75kw | 3215*1080*1149 |
XFZ1020-1 | 1.76㎡ | 1 ~3 | 960 | 2*0.55kw | 2214*1290*1226 |
XFZ1025-1 | 2.2㎡ | 1 ~3 | 960 | 2*0.75kw | 2714*1290*1226 |
XFZ1030-1 | 2.64㎡ | 1 ~3 | 960 | 2*1.1kw | 3214*1290*1226 |
XFZ1035-1 | 3.08㎡ | 1 ~3 | 960 | 2*1.5kw | 3714*1290*1226 |
XFZ1040-1 | 3.52㎡ | 1 ~3 | 960 | 2*1.5kw | 4214*1290*1226 |
Feature
Linear Vibrating System

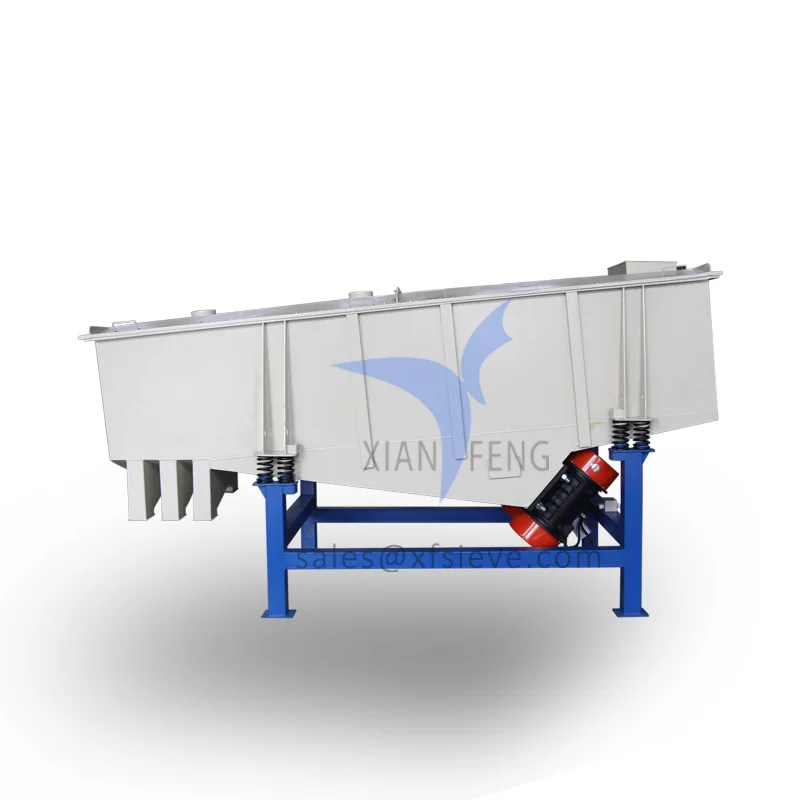

Two horizontal vibration motors are installed at the bottom of the screen. The motor and the eccentric block are integrated. The vibration motor drives the screen body to vibrate in the vertical and horizontal directions through a hard connection. The material is thrown up on the screen surface and moves in the direction of the discharge port along a straight line.
Capacity up to 20 TPH
The inclination angle of the screen can be adjusted to 15 degrees. With a screen area of 8 square meters and a silica gel jumping ball cleaning device, the output of the linear screen can reach up to 20 tons per hour.
For example, 5mm mesh, XFZ2040-1P model, processing wood chips, the output is 20 tons per hour.
For example, 5mm mesh, XFZ2040-1P model, processing wood chips, the output is 20 tons per hour.
Bouncing ball cleaning system
The grid structure is divided into 4 types:
Iron frame net frame (equipped with jumping ball clearing device), hook plate net frame, punching plate net frame, rod net frame.
Among them, the iron frame net frame is equipped with silica gel jumping balls, which automatically impact and clean the mesh during the operation of the sieve machine, keeping the mesh always open, thereby increasing the screening output.
Iron frame net frame (equipped with jumping ball clearing device), hook plate net frame, punching plate net frame, rod net frame.
Among them, the iron frame net frame is equipped with silica gel jumping balls, which automatically impact and clean the mesh during the operation of the sieve machine, keeping the mesh always open, thereby increasing the screening output.
Quickly replace the screen, save your labor cost and time.
The linear vibrating screen adopts the side hook-and-pull screen design, the back door can be opened and closed, and the screen tension can be adjusted.
Only an external hex wrench and an internal hex wrench are needed, and 2 operators can complete the replacement of the screen within 10 minutes. Save your time.
Only an external hex wrench and an internal hex wrench are needed, and 2 operators can complete the replacement of the screen within 10 minutes. Save your time.
Packing
International shipping standard packaging
You will receive the xfz linear vibrating screen machine safely, efficiently and accurately. XFZ can fit standard 40ft container and 20ft container, using standard iron pallet, easily upload by client. compatible with wire rope reinforcement, tight film packaging, and clear warning labels and marks.
