Products Description

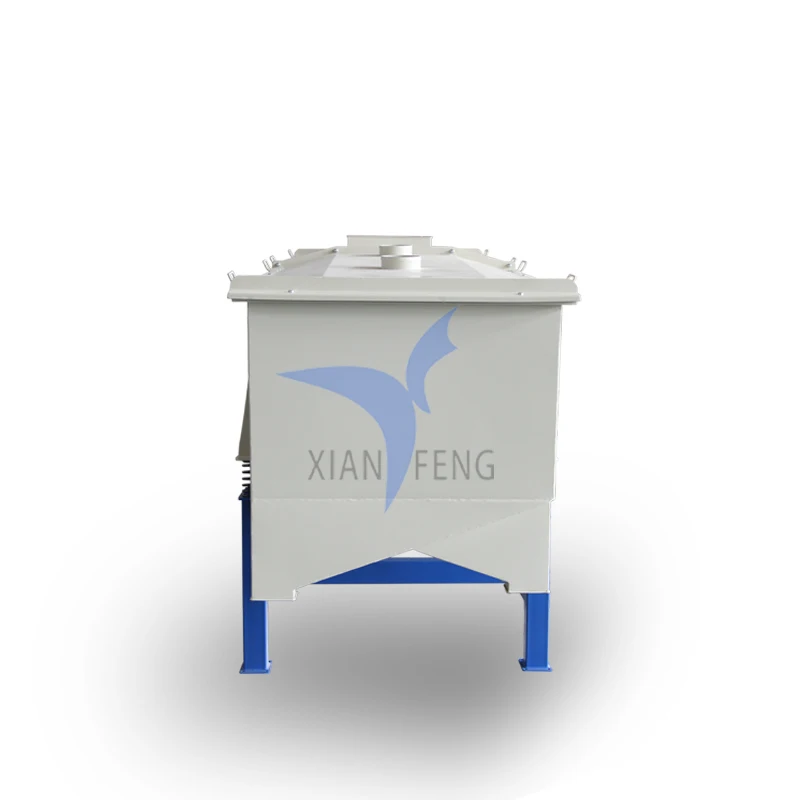

Linear vibrating screen machine
Classic vibrating screen, simple structure, durable performance.
It adopts dual vibration motor design, which has the characteristics of energy saving, simple structure and easy maintenance, and rich screen size suitable for various scenarios.
It adopts dual vibration motor design, which has the characteristics of energy saving, simple structure and easy maintenance, and rich screen size suitable for various scenarios.
Maintenance is simple, just add lubricating oil to the motor regularly.
It has a wide range of applications. The screen size ranges from 500*2000 mm to 2*3 m. It is suitable for small-volume food and pharmaceutical users, as well as large-volume ore screening, kaolin screening, foundry sand screening and other users.
It has a wide range of applications. The screen size ranges from 500*2000 mm to 2*3 m. It is suitable for small-volume food and pharmaceutical users, as well as large-volume ore screening, kaolin screening, foundry sand screening and other users.
Model NO. | Screen Area [㎡] | Screen Decks | Vibration Frequency [r/min] | Power [kw] | Overall Dimension [mm] |
XFZ515-1 | 0.57㎡ | 1 ~3 | 960 | 2*0.25kw | 1708*780*1050 |
XFZ520-1 | 0.76㎡ | 1 ~3 | 960 | 2*0.25kw | 2208*780*1050 |
XFZ525-1 | 0.95㎡ | 1 ~3 | 960 | 2*0.37kw | 2708*780*1050 |
XFZ530-1 | 1.14㎡ | 1 ~3 | 960 | 2*0.37kw | 3208*780*1050 |
XFZ820-1 | 1.36㎡ | 1 ~3 | 960 | 2*0.37kw | 2215*1080*970 |
XFZ825-1 | 1.7㎡ | 1 ~3 | 960 | 2*0.55kw | 2715*1080*970 |
XFZ830-1 | 2.04㎡ | 1 ~3 | 960 | 2*0.75kw | 3215*1080*1149 |
XFZ1020-1 | 1.76㎡ | 1 ~3 | 960 | 2*0.55kw | 2214*1290*1226 |
XFZ1025-1 | 2.2㎡ | 1 ~3 | 960 | 2*0.75kw | 2714*1290*1226 |
XFZ1030-1 | 2.64㎡ | 1 ~3 | 960 | 2*1.1kw | 3214*1290*1226 |
XFZ1035-1 | 3.08㎡ | 1 ~3 | 960 | 2*1.5kw | 3714*1290*1226 |
XFZ1040-1 | 3.52㎡ | 1 ~3 | 960 | 2*1.5kw | 4214*1290*1226 |
XFZ0520-1 XFZ0625-1 XFZ0820-3 XFZ1230-2
L * W * H L * W * H L * W * H L * W * H
2150 * 766 * 1145 2650 * 1066 * 1200 2650 * 1066 * 1360 2650 * 1288 * 1200
L * W * H L * W * H L * W * H L * W * H
2150 * 766 * 1145 2650 * 1066 * 1200 2650 * 1066 * 1360 2650 * 1288 * 1200
Different screen type according to your requirement
PU screen
Polyurethane
Wire mesh
304/316 stainless steel
Rod screen
304/316 stainless steel
Punching plate
304/316 stainless steel
The inclination angle of the screen can be adjusted to 15 degrees. With a screen area of 8 square meters and a silica gel jumping ball cleaning device, the output of the linear screen can reach up to 20 tons per hour. For example, 5mm mesh, XFZ2040-1P model, processing wood chips, the output is 20 tons per hour.
Bouncing ball cleaning system
The grid structure is divided into 4 types:
Iron frame net frame (equipped with jumping ball clearing device), hook plate net frame, punching plate net frame, rod net frame.
Among them, the iron frame net frame is equipped with silica gel jumping balls, which automatically impact and clean the mesh during the operation of the sieve machine, keeping the mesh always open, thereby increasing the screening output.
Iron frame net frame (equipped with jumping ball clearing device), hook plate net frame, punching plate net frame, rod net frame.
Among them, the iron frame net frame is equipped with silica gel jumping balls, which automatically impact and clean the mesh during the operation of the sieve machine, keeping the mesh always open, thereby increasing the screening output.
Only an external hex wrench and an internal hex wrench are needed, and 2 operators can complete the replacement of the screen within 10 minutes. Save your time.
Application
Food industry: sugar, spices, starch, soybeans, salt, instant potatoes, animal feed, powdered milk, cereals and grains, tobacco, teff, instant coffee granules, chocolate powder, soybean flour, broth concentrate, potato granules, sugar beets, ice cream, fruit
juices, vegetable and pickle canneries, soybean oil.
Construction industry: sand, glass beads, plaster, abrasives Grit/shot, borax.
Chemical industry: fertilizer, rubber, polystyrene beads, paint, detergents, latex, catalyst, casein.
Recycle: animal blood, paper effluent, brewer yeast, sewage, manure, brewery waste, laundry waste, potato peelings and waste, tallow.
juices, vegetable and pickle canneries, soybean oil.
Construction industry: sand, glass beads, plaster, abrasives Grit/shot, borax.
Chemical industry: fertilizer, rubber, polystyrene beads, paint, detergents, latex, catalyst, casein.
Recycle: animal blood, paper effluent, brewer yeast, sewage, manure, brewery waste, laundry waste, potato peelings and waste, tallow.
About Us
XIANFENG is a leading manufacture of customized industrial separation equipment. We manufacture round, rectangular and pharmaceutical vibrating sieves and product lines of separation products, including conveyor, elevating, feeding, packing and a wide variety of aftermarket screens and parts.
XIANFENG manufacturing facility occupied 15000 m2, with more than 100 members. Headquartered in Xinxiang, Henan, China. We deliver more than 5 million dollars of vibrating screen solutions per year, and market covers China, Saudi Arabia, USA, Africa, Southeast Asia, South America and Europe. With this type of facility and team, you can be assured that XIANFENG will provide you with the best product and service in the industry.
Packing
International shipping standard packaging
You will receive the xfz linear vibrating screen machine safely, efficiently and accurately. XFZ can fit standard 40 ft container and 20 ft container, using standard iron pallet, easily upload by client. compatible with wire rope reinforcement, tight film packaging, and clear warning labels and marks.
FAQ
Q : What details do I need to provide if I want to confirm the precise model?
A : 1. Material 's name to be screened or conveyed.
2. The particle size of material.
3. Whether the material contains water, and what's the water content.
4. Production of required equipment.
5. The voltage and frequency.
Q : What are your payment terms?
A : We accept T/T, L/C, west union and other payment terms.
Q: How can we guarantee quality?
A: Always a pre-production sample before mass production;
Always final Inspection before shipment;
Q: What can you buy from us?
A: Vibrating Screen Machine,Conveyor Equipment,Feeding Equipment,Screening Separation Equipment
2. The particle size of material.
3. Whether the material contains water, and what's the water content.
4. Production of required equipment.
5. The voltage and frequency.
Q : What are your payment terms?
A : We accept T/T, L/C, west union and other payment terms.
Q: How can we guarantee quality?
A: Always a pre-production sample before mass production;
Always final Inspection before shipment;
Q: What can you buy from us?
A: Vibrating Screen Machine,Conveyor Equipment,Feeding Equipment,Screening Separation Equipment
