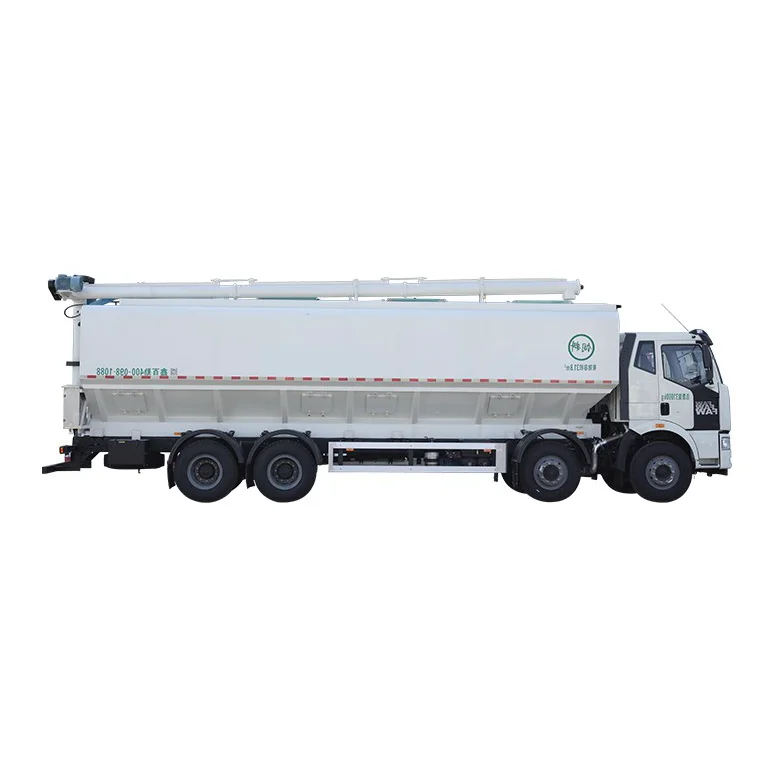

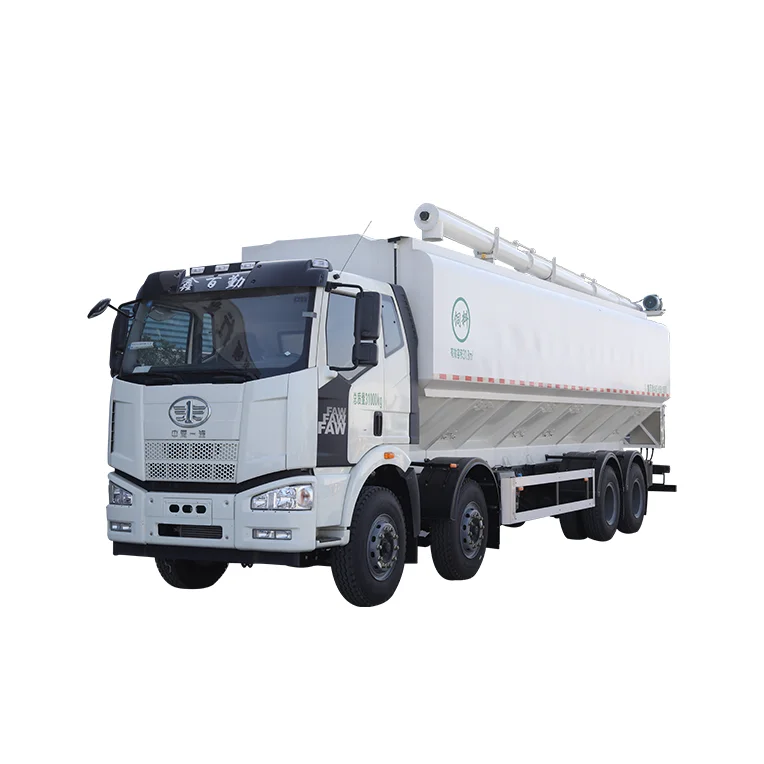

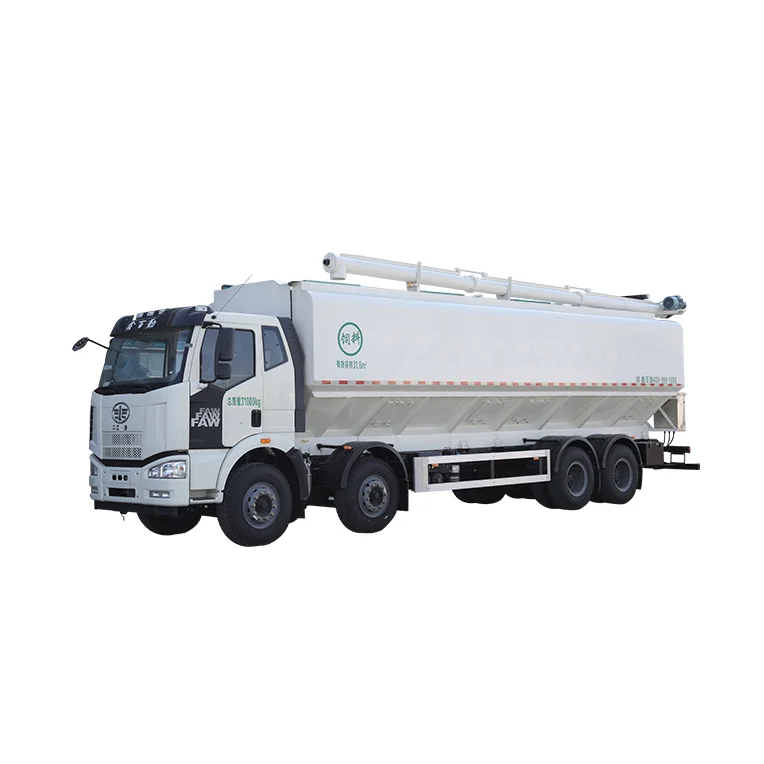

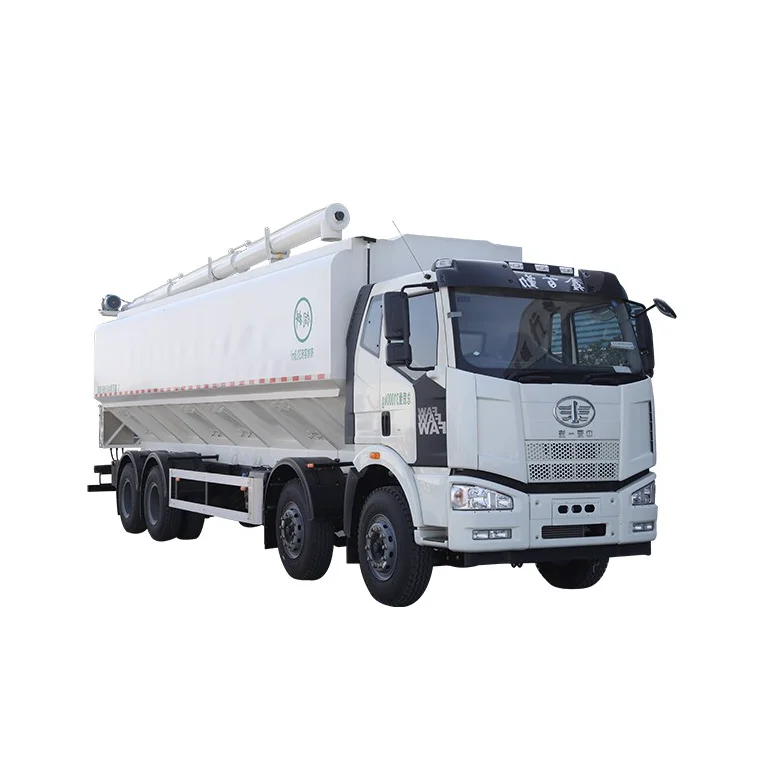

Высококачественный Грузовик Faw 315 с мощностью лошадей 9 2 м 8x4 из углеродистой стали для перевозки корма крупными партиями грузовик

Vehicle Parameters

Overall Dimensions
(L*W*H)(mm)

11990×2500×3990

Tank Dimension
(L*W*H)(mm)

9200×2480×2250

Total Mass(kg)

31000

Curb Weight(kg)

15400

Bulletin loading(kg)

15470

Theoretical loading(kg)

21000

Max speed(km/h)

89

Minimum turning radius(m)

12

Appearance color

White/ optional

Emission Standards

Euro 4

Certification

ISO9001, 3C

Fuel Consumption(L/100km)

 33

Chassis Parameters

Chassis Model/ Manufacturer

CA1310P63K1L6T4E5 /China FAW Group

Engine model / manufacturer

CA6DK1-32E5 /China FAW Group

Transmission model / manufacturer

CA10TA130M/FAW Jiefang Automobile Gear Box Co., Ltd.

Max. output(kw)

239

Tire specifications

11.00R20 18PR

Cab Type

8×4 rear wheel drive, capacity 2 people

Engine capacity(ml)

7146

Wheelbase(mm)

1950+4550+1350

Travel recorder model

DRT3110(BD)

ABS Model/manufacture

4460043200/WABCO

Tank Parameters

Tank gross volume (m³)

39

Space quantity

4

Conveying height(m)

10.5

Max conveying distance(m)

8.8

Discharge speed(Kg/min)

550-650

Residual rate(%)

≤0.22

Elevation angle of  discharge(°)

0~60

Rotation angle of discharge(°)

±180

Tank drive form

External power and generator (Permanent magnet generator 20kw/380V. It is recommended to use an external power supply for unloading, which is low cost, environmentally friendly and low vehicle attrition)

Electrical configuration

Complete set of Schneider Electric control system; conveyor motor ABB, with 20m external power cable, external power supply 380V

Hydraulic auge

Use the patent of intermediate support structure, Graphite bearing; Lifting auger steering with wireless remote control.

Painting

Professional anti-corrosion paint. Process: sandblasting, polishing, painting.

Tank

Made of high-quality carbon steel sheet; The proof is sloping, which increase the fullness and safety factor; and Strict welding process guarantees quality.
