CE сертификат по оптовой цене многопараметрический монитор пациента для контроля за KN-601A скорой помощи портативный палаты интенсивного лечения жизненно важных функций etCO2
- Категория: Emergency Medical Supplies & Training >>>
- Поставщик: Kernel,Medical,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 381.67 $* | 400.23 $* |
| Aug-16-2025 | 378.67 $* | 397.55 $* |
| Jul-16-2025 | 317.11 $* | 333.96 $* |
| Jun-16-2025 | 371.92 $* | 390.9 $* |
| May-16-2025 | 323.52 $* | 339.38 $* |
| Apr-16-2025 | 365.80 $* | 383.20 $* |
| Mar-16-2025 | 362.92 $* | 380.2 $* |
| Feb-16-2025 | 358.6 $* | 376.38 $* |
| Jan-16-2025 | 355.5 $* | 373.90 $* |
Характеристики
Hospital ICU multi-parameter Patient Monitor ECG PATIENT MONITOR / RESP / TEMP / NIBP
Product Description

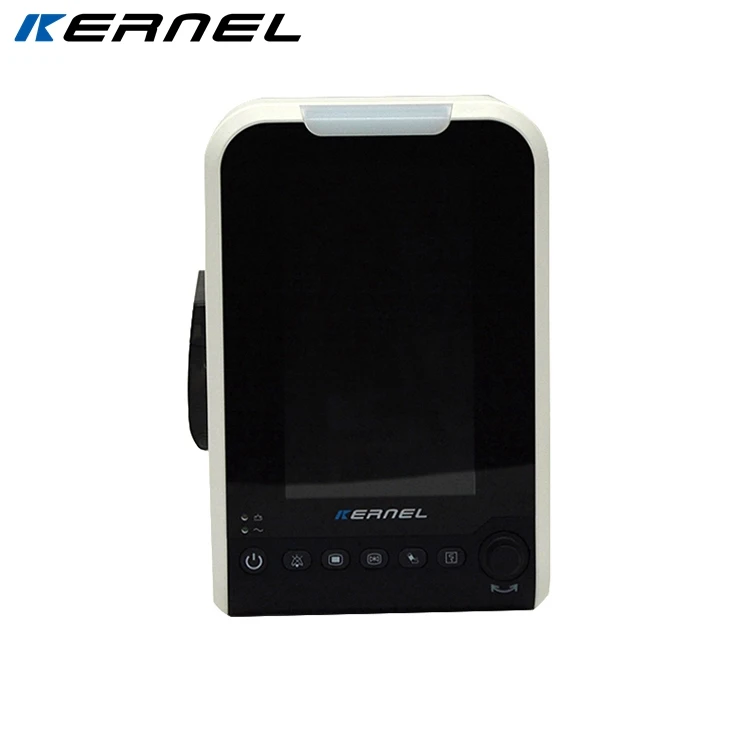

Kernel KN-601A,Most cost-effective compact patient monitor.7'' TFT LCD screen display three wave forms of ECG,SPO2,RESP.Detect other six vital signs of :HR/PR,TEMP,SPO2,NIBP,RESP,Optional ETCO2.Portable design also for veterinary use,with built-in rechargeable lithium battery,fit for ambulance, ICU ,CCU,Operation use.
**7"（16：9）screen TFT true color HD LCD, small size,light weight.
**Real time display the waveform of ECG,SPO2,RESP,digital data of HR/PR,TEMP,RESP,SPO2,NIBP,etc.ETCO2 is optional.
**Three monitoring modes:Monitor,Operation,Diagnosis.
**Three modes of blood pressure measurement:Manual,Cycle,Fast.
**1.5 hours of battery life.(AC-DC)
**96 hours of trend saving
**With freezing and storage function.
**Display the latest 400 groups of NIBP data.
**Display the latest 400 groups of NIBP data.
**Anti-defibrillation and anti-electrosurgical unit,can be used simultaneously with the pacemaker.
**Three levels alarm,free set as you want.
Packing & Delivery
Specification
Power
Supply power\t AC 110~230V 50/60Hz±2%
power\t 90VA
Fuse specifications
Supply power\t AC 110~230V 50/60Hz±2%
power\t 90VA
Fuse specifications
and models rating\tT2.0AL/250V Φ5×20
Display mode\t LCD display
Alarm mode\t Audible and visual
Network connection\t Can be expanded
Battery
Battery type\t Recharge li-ion battery：11.1V/2.2Ah
Recharge time\t ≥4hour
Use time\t 3hour
Display mode\t LCD display
Alarm mode\t Audible and visual
Network connection\t Can be expanded
Battery
Battery type\t Recharge li-ion battery：11.1V/2.2Ah
Recharge time\t ≥4hour
Use time\t 3hour
Work Environment
Environment temperature Working 5℃～+40℃
Transportation and storage -40℃～+55℃
Relative humidity\t Working ≤85%
Transportation and storage ≤95%
atmospheric pressure\t Working 700hpa～1060hpa
Transportation and storage 500hpa～1060hpa
Transportation and storage -40℃～+55℃
Relative humidity\t Working ≤85%
Transportation and storage ≤95%
atmospheric pressure\t Working 700hpa～1060hpa
Transportation and storage 500hpa～1060hpa
ECG
Standard five leads connection R ：Red L：Yellow F：Green N：Black C：White
Overload protection\t Minimum 1V
Measurement mode\t Diagnosis mode, monitor mode, surgical model
Lead off condition detected and active noise suppression Respiration\t
Standard five leads connection R ：Red L：Yellow F：Green N：Black C：White
Overload protection\t Minimum 1V
Measurement mode\t Diagnosis mode, monitor mode, surgical model
Lead off condition detected and active noise suppression Respiration\t
Active lead of DC current\t ≤0.1μA
The current jointed by electrode for any other patients \t≤1μA
Lead off detected waveform\tU=2V I=0.04uA
active noise suppression\tthe electric current which don’t apply to the body of patients
Tall T-wave suppression\t1.4mV
QRS wave detected\t Range（p-v RTI）\t not les than 0.5～5mV
\t Width（Adult） not less than70～120ms
\t Width（Newborn/ Children）\t not less than 40～120ms
Heart rate display refresh rate 1s
Responsive time of heart rate changes\t
The current jointed by electrode for any other patients \t≤1μA
Lead off detected waveform\tU=2V I=0.04uA
active noise suppression\tthe electric current which don’t apply to the body of patients
Tall T-wave suppression\t1.4mV
QRS wave detected\t Range（p-v RTI）\t not les than 0.5～5mV
\t Width（Adult） not less than70～120ms
\t Width（Newborn/ Children）\t not less than 40～120ms
Heart rate display refresh rate 1s
Responsive time of heart rate changes\t
80-120 BPM： Range 4-7 seconds
Average 6 seconds
80-40 BPM: Range 4-7 seconds
Average 6 seconds
Average 6 seconds
80-40 BPM: Range 4-7 seconds
Average 6 seconds
NIBP
measurement range\t not less than 0～260mmHg
precision\t 1mmHg
unit\t mmHg，Kpa
pressure sensor accuracy\t ±3mmHg
alarm range\t not less than up limit and down limit：0～260mmHg
alarm indicator\t sound alarm and light alarm, BP parameter flicker
Sp02
SpO2 measurement range precision\t0～100%
±2%（70～100%）；±3%（50～69%）
alarm range\t not less than：35～100%
alarm indicator\t Sound and light alarm, SPO2 parameter flicker
PR measurement range precision\t25～255 bpm ±2%
data refresh cycle\t 1s
RESP
measurement range\t 0～100bpm
precision\t ±1bpm
alarm range\t not less than 0～100bpm
alarm indicator \t sound and light alarm RESP Parameter flicker
TEMP
measurement range\t not less than20.0～50.0℃
precision\t ≤±0.2℃
alarm range\t not less than20.0～50.0℃
alarm indicate\t audio and visual alarm, TEMP Parameter flicker
minimum measurement time\t ≤100s
Alarm
alarm level\t high, medium , low
alarm type\t technical alarm, physiology alarm
alarm method\t audio, indicator, prompt message, parameter flicker
alarm delay\t ≤0.5s less than 0.5s
sound pressure range\t 45～85dB
measurement range\t not less than 0～260mmHg
precision\t 1mmHg
unit\t mmHg，Kpa
pressure sensor accuracy\t ±3mmHg
alarm range\t not less than up limit and down limit：0～260mmHg
alarm indicator\t sound alarm and light alarm, BP parameter flicker
Sp02
SpO2 measurement range precision\t0～100%
±2%（70～100%）；±3%（50～69%）
alarm range\t not less than：35～100%
alarm indicator\t Sound and light alarm, SPO2 parameter flicker
PR measurement range precision\t25～255 bpm ±2%
data refresh cycle\t 1s
RESP
measurement range\t 0～100bpm
precision\t ±1bpm
alarm range\t not less than 0～100bpm
alarm indicator \t sound and light alarm RESP Parameter flicker
TEMP
measurement range\t not less than20.0～50.0℃
precision\t ≤±0.2℃
alarm range\t not less than20.0～50.0℃
alarm indicate\t audio and visual alarm, TEMP Parameter flicker
minimum measurement time\t ≤100s
Alarm
alarm level\t high, medium , low
alarm type\t technical alarm, physiology alarm
alarm method\t audio, indicator, prompt message, parameter flicker
alarm delay\t ≤0.5s less than 0.5s
sound pressure range\t 45～85dB
FUSE specification | T2.0AL/250V |
Vital signals | ECG, HR , NIBP, SPO2, PR, in and out body temperature, RESP ,optional ETco2 |
Physiological parameters | Standard interface, trend coexistence interface, OXYCRG interface |
Display | 7” TFT LCD |
Diammension | 165×160×250 |
Power | 90VA(AC DC) |
Battery type | Lithium battery 11.1V/2.2Ah |
Optional parts
