ISO 1 year warranty wood chips linear vibrating screen manufacturer

Product Description

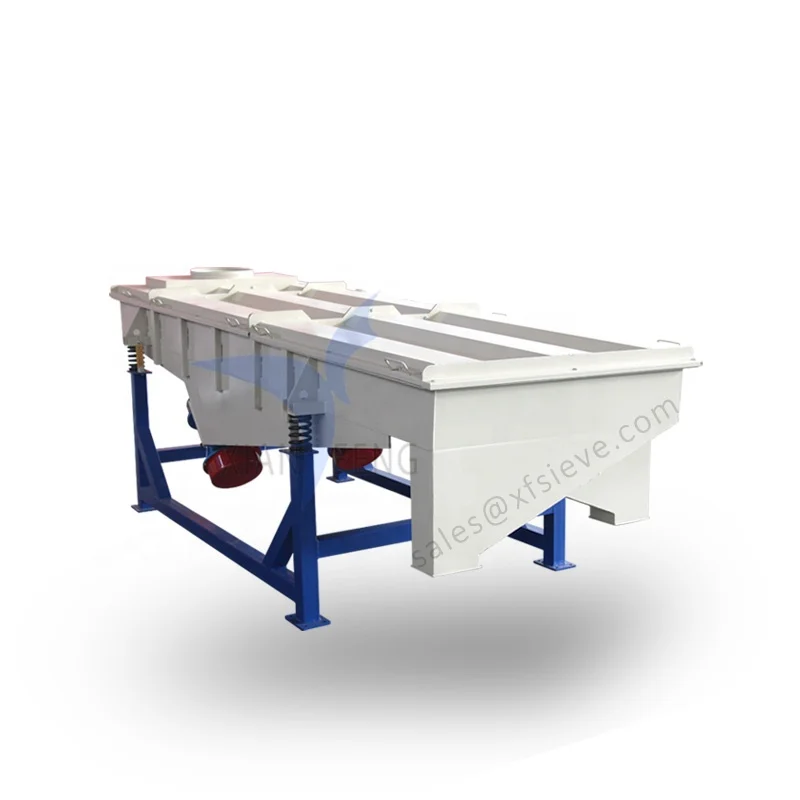

Linear vibrating screen is widely used in metallurgy, building material, chemical industry, cement, ceramic, grain and food industry, It is used to classify different levels of materials. It also can be applied in flowing line to achieve automatic operation. Linear vibrating screen adopts double vibrating motors as power source, with the specific working mode of these two motors make the materials be thrown up on the sieve and go forward in a straight line. It can be equipped with single or multi-decks to achieve different purposes like grading, removing impurity, removing dust, testing, washing selecting, dehydration, etc.





Technical Parameter





Technical  Parameter
model	Overall dimensions (mm)	Material particle size	Screen surface inclination (°)	amplitude (mm)	layer(s)	power(kw)
XFZ0520	500×2000	0.074-10	0°-10°	3-8	1-7	2×(0.37-0.75)
XFZ0525	500×2500					2×(0.37-0.75)
XFZ0530	500×3000					2×(0.55-1.1)
XFZ0535	500×3500					2×(0.55-1.1)
XFZ1020	1000×2000					2×(0.55-1.1)
XFZ1025	1000×2500					2×(1.1-1.5)
XFZ1030	1000×3000					2×(1.1-1.5)
XFZ1035	1000×3500					2×(1.5-2.2)
XFZ1040	1000×4000					2×(1.5-2.2)
XFZ1225	1200×2500					2×(1.5-2.2)
XFZ1230	1200×3000					2×(1.5-3)
XFZ1235	1200×3500					2×(1.5-3)
XFZ1530	1500×3000					2×(2.2-3)
XFZ1535	1500×3500					2×(2.2-3)
XFZ1540	1500×4000					2×(2.2-4)



The Technical data above is just parts of our standard products, if you need other model or even customized machine, please feel free contact us.
