500 кг полностью автоматическая линия по производству картофельных

500 кг полностью автоматическая линия по производству картофельных

Категория: Чипсы машина >>>
Поставщик: JOHTANK,(SHANDONG),FOOD,MACHINERY,CO.,LTD.

Цена:35 000,00 $ - 40 000,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-16-2025	41650.59 $*	43733.27 $*
Aug-16-2025	41300.44 $*	43365.63 $*
Jul-16-2025	34650.65 $*	36383.18 $*
Jun-16-2025	40600.65 $*	42630.72 $*
May-16-2025	35350.57 $*	37118.31 $*
Apr-16-2025	39900.6 $*	41895.29 $*
Mar-16-2025	39550.21 $*	41528.90 $*
Feb-16-2025	39200.80 $*	41160.34 $*
Jan-16-2025	38850.62 $*	40793.13 $*

Характеристики

Products Description

Working Principle

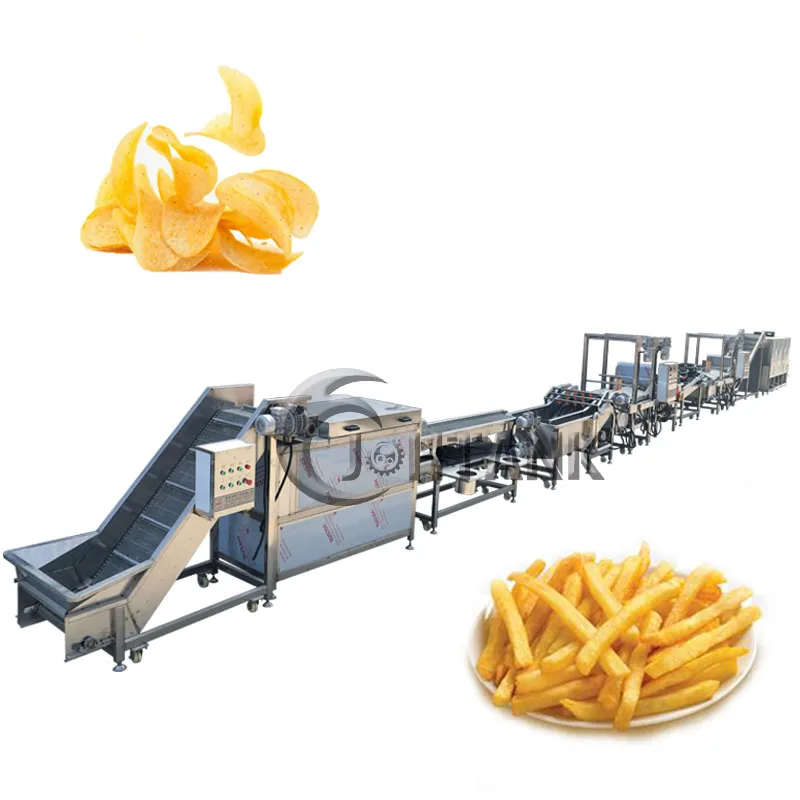

French fries potato chips production line

This set of production line developed by our company, developed a new French fries potato chips production line with international standards, this set of production line of high quality 304 stainless steel, high PLC electrical control, technology, security,efficiency, bearings are made of imported stainless steel bearings, electrical and other imported brand-name products, leading technical level.

Device Name	Quantity	(mm)Dimensions	(kw/Hz)power
Conveyor hoist machine	1set	20008002000mm	0.75/380/50
Cleaning and peeling machine	1set	18009001500mm	4.75/380/50
Picking machine	1set	3000900900mm	0.75/380/50
Cutting machine	1set	650*550mm	0.75Kw
Water bucket elevator	1set	20008002000mm	1.5/380/50
Washing machine	1set	30001600900mm	5.5/380/50
Blanching machine	1set	30001600950mm	125/380/50
Vibrating machine to de-water	1set	400012001400mm	1.5/380/50
Electric dryer	1set	400012001600mm	15/380/50
Continuous frying machine	1set	350012002600mm	203/380/50
Vibrating de-oil machine	1set	400012001400mm	15/380/50
Electric dryer	1set	400012001600mm	15/380/50
Fluidized belt freezer	1set	980190173mm	14-24KW
Packing Machine	1set	30008001000mm	0.75/380/50

Product Details

Detailed Description

Converyor hoist machine

*This elevator is always used in french fries production line.

*After cutting, the potato strips will go into this elevator and it has 3 functions:
*: to wash off the starch
*: water as buffer to prevent the potato strips breakage
*: to elevate the potato strips into next machine

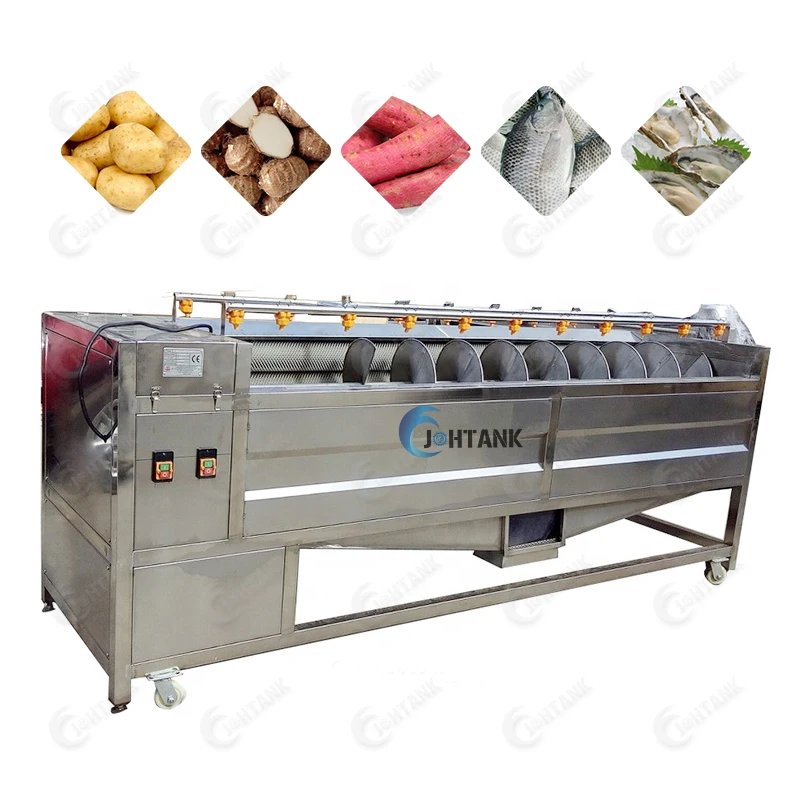

Cleaning and peeling machine

*suitable for kinds of fruit, root vegetable, Shellfish, Seafood, Fish scaling and Animal organs washing, etc.

*High quality ,304 stainless steel and 9 psc roller brush.

*It can dry clean and wet clean, with flexible spray nozzle. * 98% peeling rate

*Customization services, can add washing speed adjustable device, extra water tray, etc.

*Full computer control, variable frequency speed control, highрhоtоѕеnѕіtіvе ѳуѳ trасkіng, еасh ѕеаlіng tеmреrаturе

*independent control, suitable for a variety of packaging
*materials; simple mechanical structure, easy maintenance;smooth operation, less wear, long life

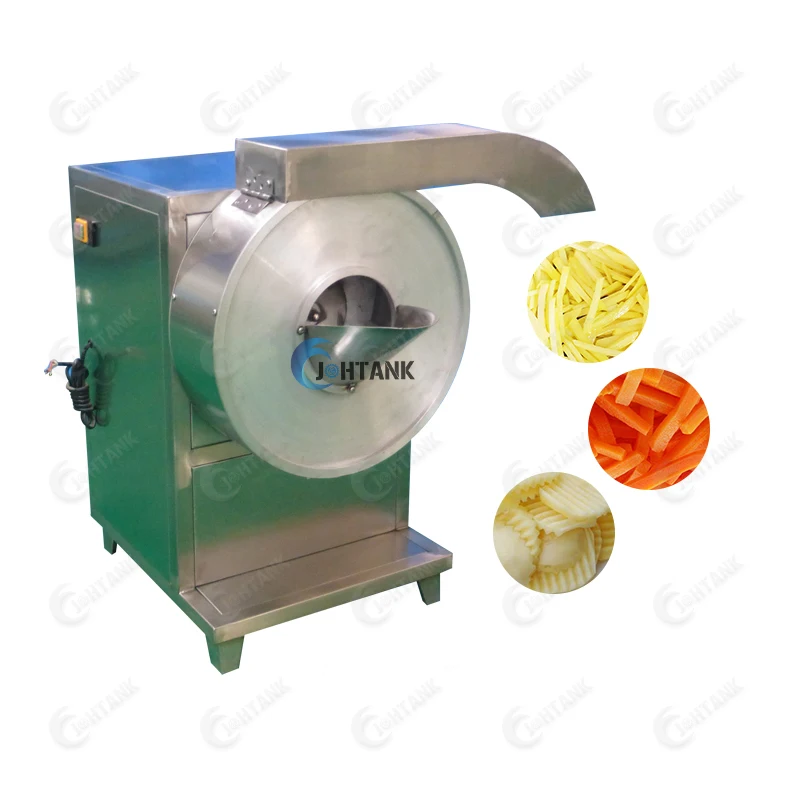

*It is currently the most advanced vegetable slicing, cutting equipment.
*Suitable for cucumber, eggplant, bitter ground, lotus root, potato, sweet potato, banana, etc.
*Thickness (1mm - 20mm) can be freely adjusted, the pieces are smooth, non-broken.

*Made of high-quality 304 stainless steel, PLC electrical control, high technical content, safe and efficient, the bearings are imported stainless steel bearings, and the electrical appliances are imported brand-name products

*Fruit and vegetables washing and drying machine processing line, mainly includes:
*Bubble washing machine + brush washing and polishing machine + air drying machine.

*This machine is widely used for blanching and sterilizing vegetables, fruits, seafood products before quick freezing and dehydrating, especially suitable for easily damageable products and products in strips or bar-shaped. It is necessary equipment during food processing industry.

*Motor is standardly equipped with listed sino-foreign joint venture products, imported motor is optional;
*Screen panelcan choose hard wearing flexible PU material, modular installation, can replace partially for the partial wearing,cost of spare parts is low;

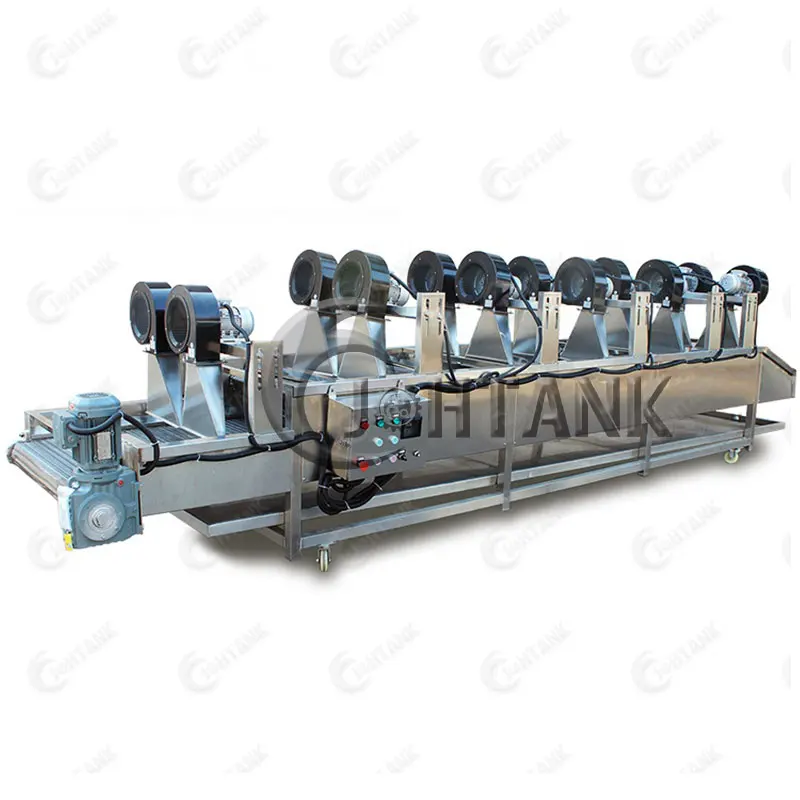

*With big air volume centrifugal turbofan, and small sharp air outlet, enable quick drying

*With SUS 304 mesh belt, mesh belt width could be 500-1000mm
*Mesh speed adjustable by gearbox
*With turnover type or flat type mesh belt, suitable for different products drying
*Each unit of blowing fan can be controlled separately
*Suitable for production line, continuously working

*Optional heating method: electricity, gas, steam, electromagnetism, etc.

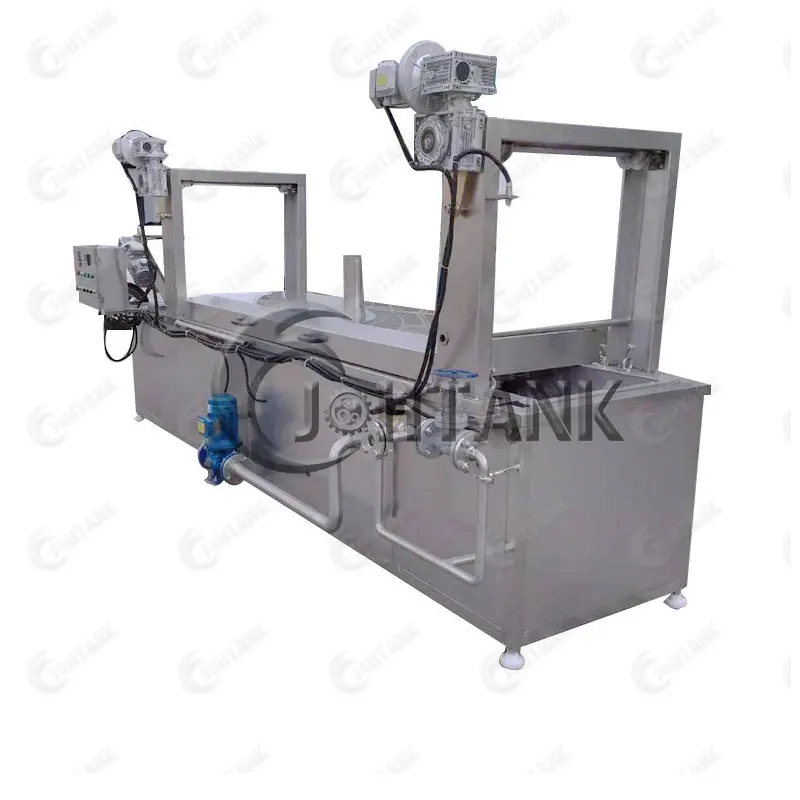

*Frying time can be set, automatic temperature
control 0-300°C.
*Double mesh belt and the conveyor speed is adjustable.
*Can be equipped with oil filter machine and oil tank.
*Equipped with mesh lifting system, easy to clean.
*With oil storage tank and oil pump.

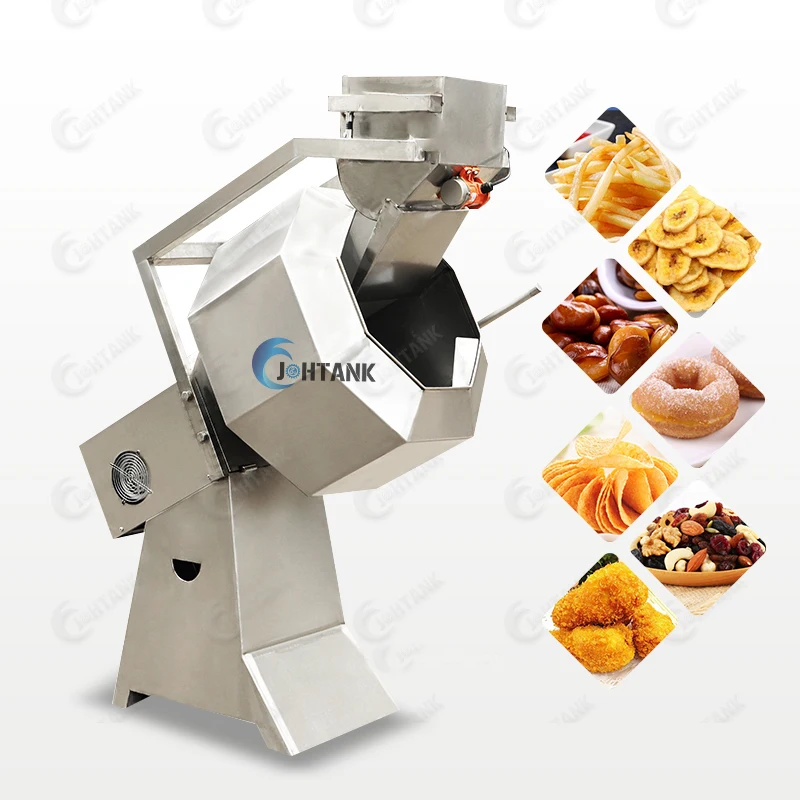

*Introduction of drum seasoning machine

*It is made of stainless steel, with simple and practical structure, welding, surface brightness, can make processed food with seasoning material fully mixed uniformity in a short time. It's widely used for snack food seasoning, feeding, mixing materials, hanging pulp and so on.

*Full-automatic Weigh-Form-Fill-Seal type, efficient and simple to use.
*Use famous brand electric and pneumatic components, stable and long life circle.
*Use superior mechanical components, reduce the wear out loss.

Application

About Company

Johtank (shandong) food machinery co.,ltd.

Johtank (shandong) food machinery co.,ltd. is located in zhucheng city, shandong province, which is also known as the land of dinosaurs.The company has 15000 square meters of factory buildings and 100 employees.our company' S main products include frying machine,photo chips and frozen french fries processing equipment, fruit & vegetable washing machine,large-scale hot air drying machine and packaging machine.with 10 years of export experience, our products are ex-ported to america, europe, africa, southeast asia and other countries and regions.with excellent technology, sophisticated processing and testing equipment, reliable manufacturing quality, strict quality assurance system and more perfect after-sales service, has won more and more customers.the company sincerely welcomes domestic and foreign customers to visit our company, visit and negotiate cooperation!

A group of people with love and righteousness, together to do a

valuable and meaningful thing !

Customer Visit

1. Who are we?
We are based in Shandong, China, start from 2020,sell to Southeast Asia(40.00%),Africa(20.00%),South America(10.00%),North
America(8.00%),Western Europe(8.00%),Eastern Asia(5.00%),Oceania(2.00%),Eastern Europe(2.00%),Domestic Market(1.00%),South
Asia(1.00%),Mid East(1.00%),Northern Europe(1.00%),Central America(1.00%). There are total about 101-200 people in our office.

2. How can we guarantee quality?
Always a pre-production sample before mass production;Always final Inspection before shipment;

3.What can you buy from us?
Food machine,Frying machine,packaging machine,Cleaning and processing production line,Pasteurization production line

4. Why should you buy from us not from other suppliers?
The company has 13000 square meters of factory buildings and 70 employees.With 10 years of export experience, our products are exported to America, Europe, Africa, Southeast Asia and other countries and regions.

5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,German,Arabic,French,Russian,Korean,Hindi,Italian
