ITC T-6703 горячая Распродажа публичная зона используется IP интерфейсный

ITC T-6703 горячая Распродажа публичная зона используется IP интерфейсный

Категория: Audio Door Phone >>>
Поставщик: Guangzhou,ITC,Electronic,Technology,Limited

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-16-2025	0.31 $*	0.32 $*
Aug-16-2025	0.37 $*	0.27 $*
Jul-16-2025	0.27 $*	0.6 $*
Jun-16-2025	0.74 $*	0.68 $*
May-16-2025	0.39 $*	0.27 $*
Apr-16-2025	0.86 $*	0.64 $*
Mar-16-2025	0.84 $*	0.94 $*
Feb-16-2025	0.31 $*	0.48 $*
Jan-16-2025	0.43 $*	0.54 $*

Характеристики

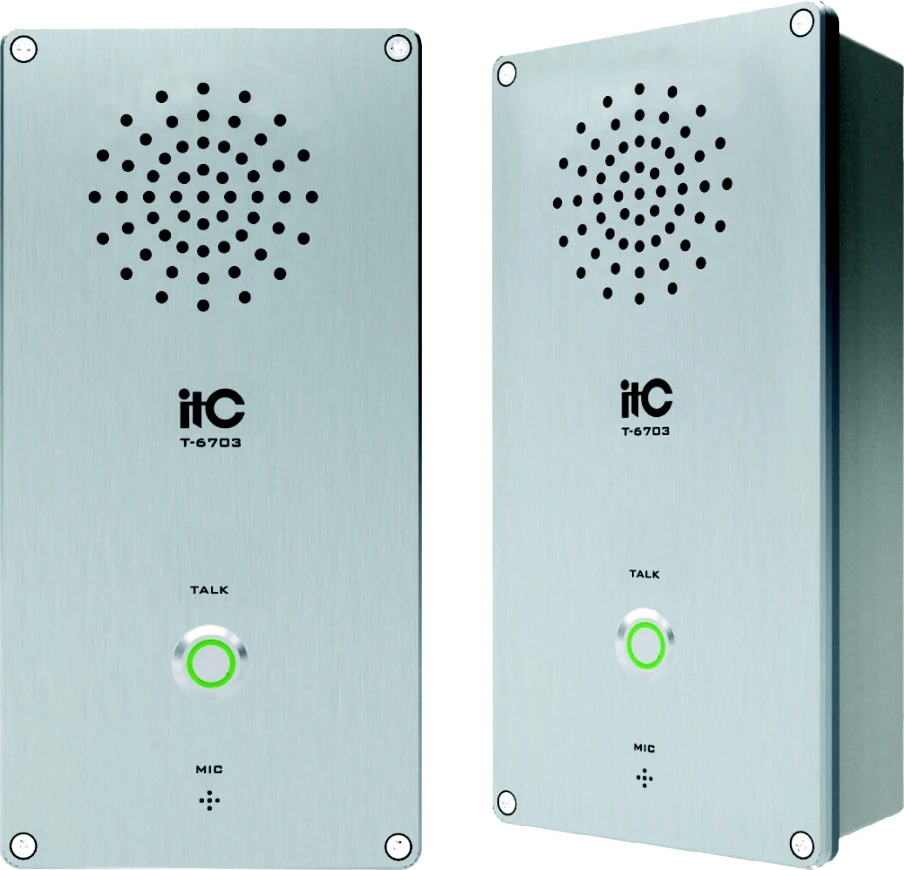

ITC T-6703 Hot Sale Public Area Used IP Intercom Terminal

T-6703

l Suitable to be installed both indoor and outdoor;

l Vandal-proof and Waterproof.

l With 1 button for talking with duty room.

l Simple appearance and in design of disassembly proof screw; It adopts panel of antioxidation alloy in 6mm with aluminum case.

l It’s built in DSP and the start time is less than 1 sec.

l With a codec module for network audio, which support protocol of TCP/IP, UDP and IGMP(Group Broadcast) to achieve 16 bit stereo network audio in CD level.

l With dialogue module, support full duplex communication, work with DSP to achieve function of canceling noise and echo, audio compression, etc.

l With 5W highly sensitive full range speaker, the sound is clear and loud; With 10W digital amplifier at constant impedance output, which could connect with speaker at 4 ohm.

l With highly sensitive microphone.

l With function of monitoring, support recording management in server level, with AUX IO to work with monitoring system.

l Support security function, including status feedback function for access control, support access control, support alarm light control, tracking camera, etc.

l Customized call target.

l Support multiple calling strategy, including call waiting, call forwarding, unanswered reminder.

l Support time custom for transfer time, unanswered time, call waiting, etc.

l Support to trigger program broadcasting remotely via IP network.

l Custom hang up mode of initiative or passive.

l Support both PSTN phone broadcast and SM broadcast.

l Support to wifi network on-demand unicast via mobile phone or remote controller.

l Proof rating is IP55.

l Support DHCP and it’s compatible with multiple network structure, such as router, network switcher, gateway bridge, modem, intelnet, 2G, 3G, 4G, group broadcast, unibroadcast, etc.

l Support as least 3 kinds of highly safe authorization IP configuration, and the security factor is higher than remote configuration of Web.

l With authorization operation management; The server centrally administrate all accounts and the matching password.

l Built in lightning protection circuit.

l To adopt common network design so that the installation and expandability is easy to be achieved.

Specification

Model	T-6703
Network Interface	Standard RJ45 input
Communication Protocol	TCP/IP, UDP, IGMP
Audio Format	MP3/MP2
Sampling Rate	8K~48KHz
Transmission Speed	100Mbps
Audio Mode	16 digit stereo audio in CD level
Frequency Response	80Hz~16KHz
T.H.D.	≤1%
S/N Ratio	>70dB
AUX Input Level	350mV
Internal Speaker Output Impedance & Power	4Ω/5W
External Speaker Output Impedance & Power	4Ω, 10W
Line Output Level	1000mV
Temperature	-25℃~65℃
Humidity	20%~80% Relative humidity, without condensation
Power Consumption	≤20W
Power Supply	DC 12V ~DC 24V
Protection Rating	IP55
Dimension	210 x 105 x 56mm
Weight	0.6Kg
