Китайский производитель пневматические цилиндры серии MXS воздушный цилиндр
- Категория: >>>
- Поставщик: Changzhou,Weierda,Automation,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.93 $* | 0.48 $* |
| Aug-16-2025 | 0.7 $* | 0.70 $* |
| Jul-16-2025 | 0.25 $* | 0.44 $* |
| Jun-16-2025 | 0.73 $* | 0.92 $* |
| May-16-2025 | 0.76 $* | 0.90 $* |
| Apr-16-2025 | 0.5 $* | 0.52 $* |
| Mar-16-2025 | 0.35 $* | 0.97 $* |
| Feb-16-2025 | 0.30 $* | 0.86 $* |
| Jan-16-2025 | 0.52 $* | 0.31 $* |
Характеристики

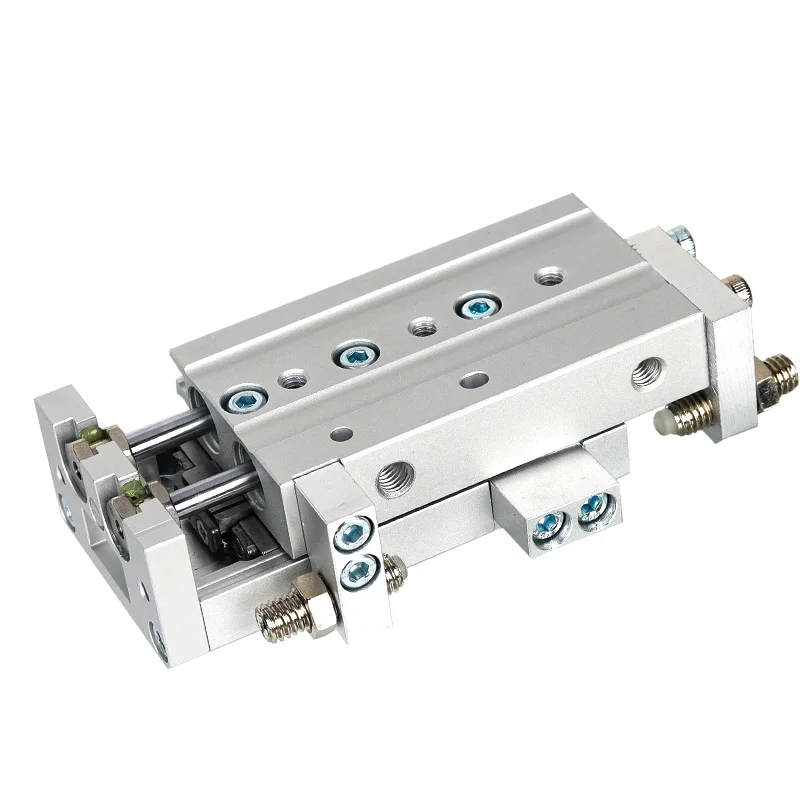

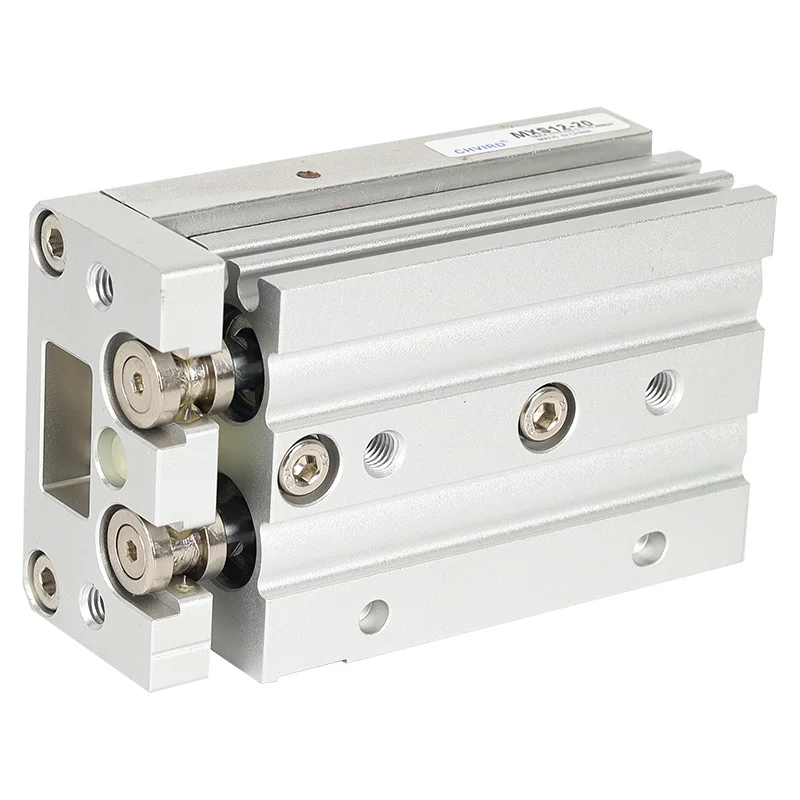

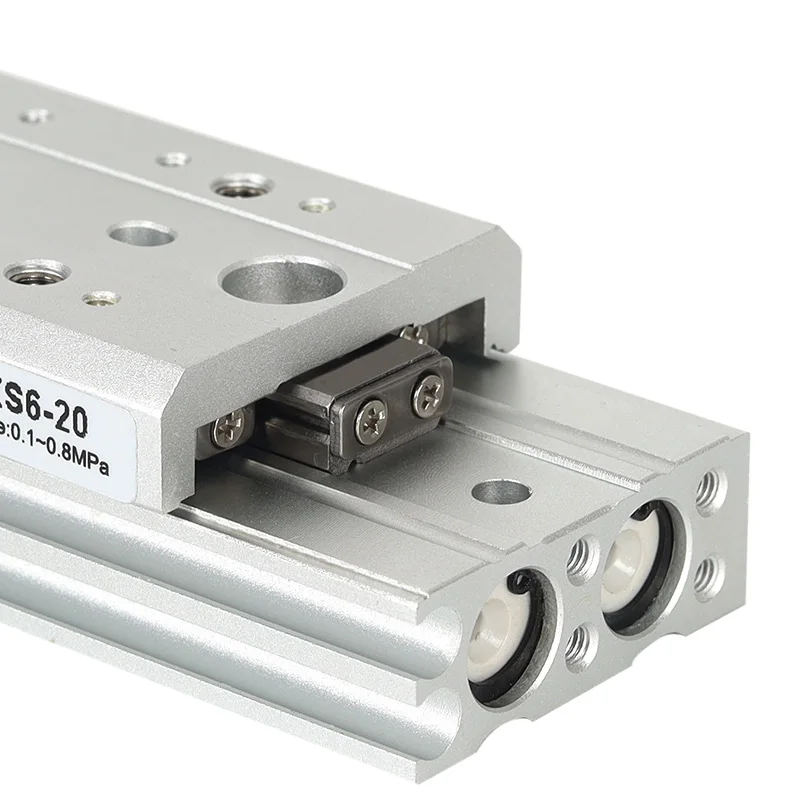

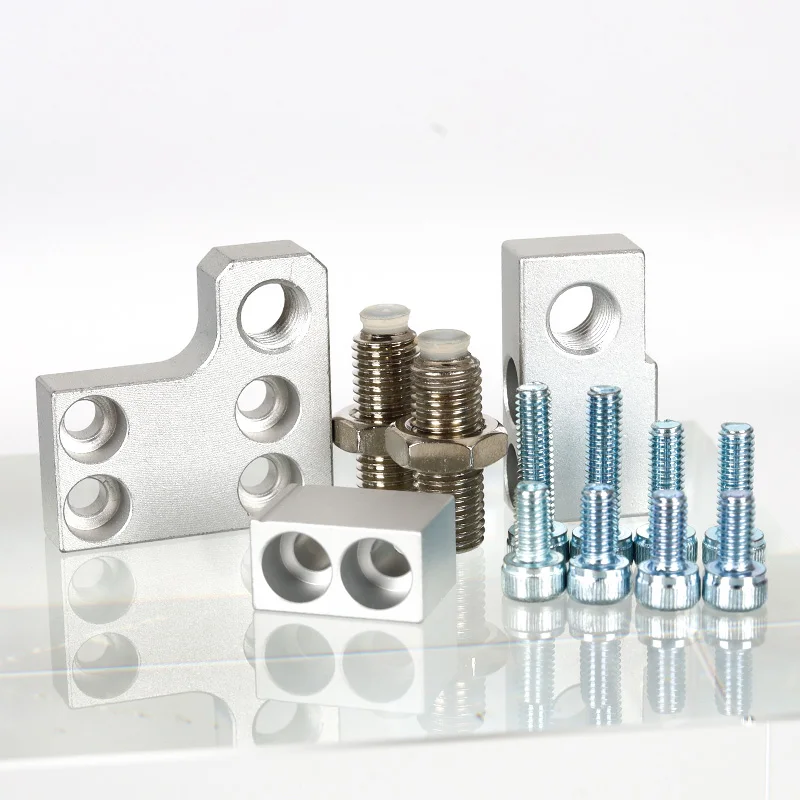

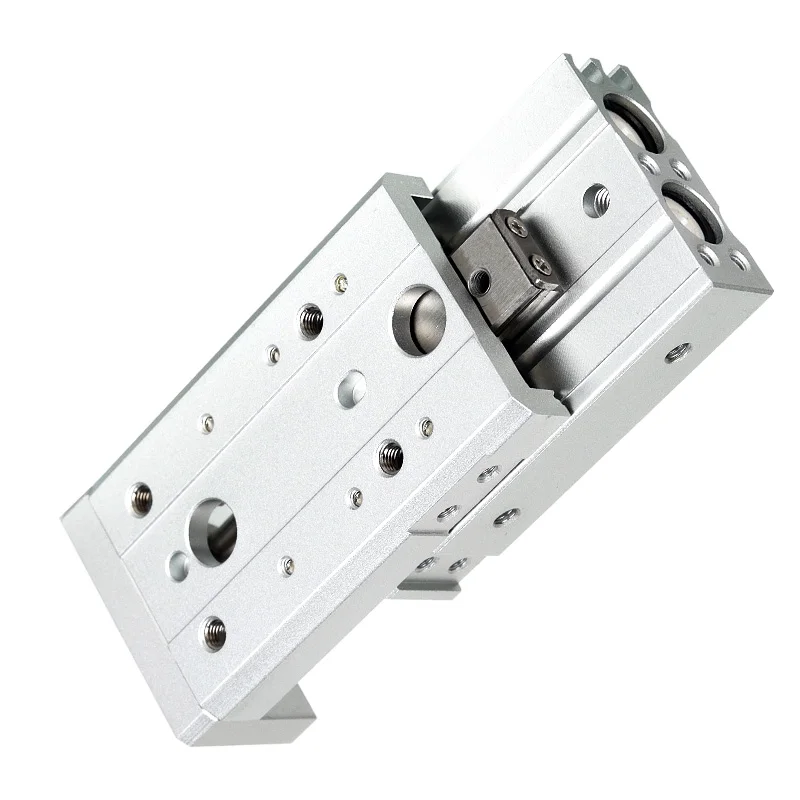

PRODUCTS SHOW
PRODUCT PARAMETER
Model | MXS6 | MXS8 | MXS12 | MXS16 | MXS20 | MXS25 | |||||
Bore Size(mm) | φ6*2 （Equivalent φ 8） | φ8*2 （Equivalent φ 11） | φ12*2 （Equivalent φ 17） | φ16*2 （Equivalent φ 22） | φ20*2 （Equivalent φ 28） | φ25*2 （Equivalent φ 35） | |||||
Working Fluid | Air | ||||||||||
Acting Mode | Double acting | ||||||||||
Max.Working Pressure | 0.7MPa | ||||||||||
Min.Working Pressure | 0.15MPa | ||||||||||
Fluid Temperature | -10~+60℃(No freezing) | ||||||||||
Piston Speed | 50~500mm/s | ||||||||||
Buffering | Rubber Cushion (standard) | ||||||||||
Magnetic Switch Selection | D-A93 | ||||||||||
Lubrication | No need | ||||||||||
Port Size | M3*0.5 | M 5*0.8 | Rc 1/8 | ||||||||
