Характеристики

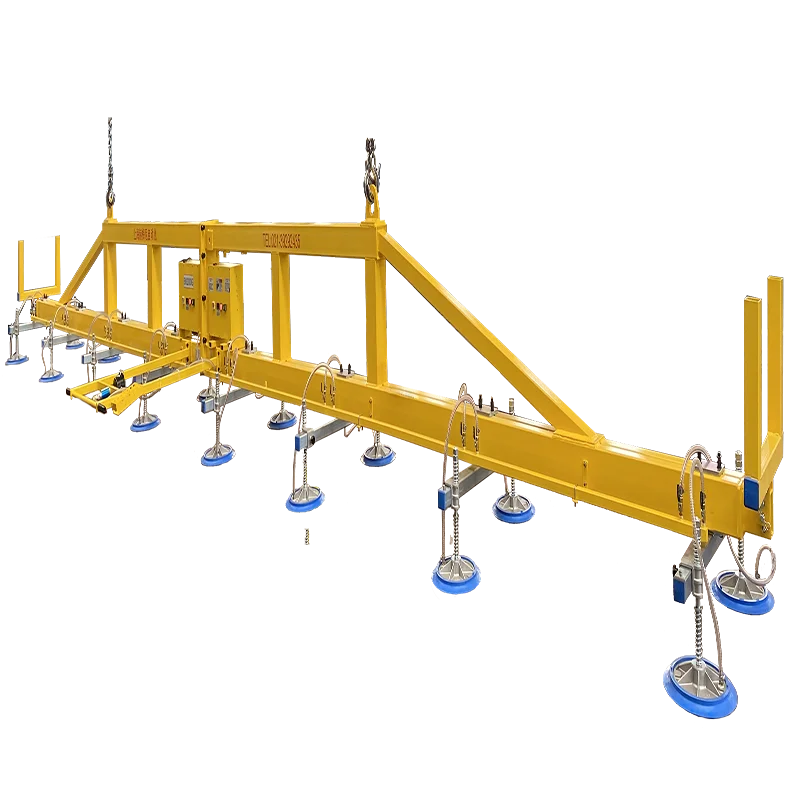

Board large-scale suction crane equipment HP-BL
HP-BL series of equipment are widely used for non-destructive handling of various large panels.
Adopting German Becker large-flow vacuum pump with extremely large flow and strong suction, which is safe and reliable.
The large-capacity accumulator prevents the workpiece from remaining in the sucker position for5-30 minutes after the accidental
power failure.
Vacuum leak alarm - ensure that the equipment works safely above the standard vacuum (80% or 90%)
Adopting high-strength wear-resistant acrylonitrile-butadiene rubber with long quality guarantee period for 18 months.
Sucker position can be adjusted to meet size changes of different plates.
Adopting German Becker large-flow vacuum pump with extremely large flow and strong suction, which is safe and reliable.
The large-capacity accumulator prevents the workpiece from remaining in the sucker position for5-30 minutes after the accidental
power failure.
Vacuum leak alarm - ensure that the equipment works safely above the standard vacuum (80% or 90%)
Adopting high-strength wear-resistant acrylonitrile-butadiene rubber with long quality guarantee period for 18 months.
Sucker position can be adjusted to meet size changes of different plates.
Product parameter
Product&Model | Safety Loading | Size (mm) | Sucker Diameter （mm) | Sucker Number | Power System | Control Mode | Dead Load |
HP-BLZ3000-16S | 3000kg | 6000x1200 | ∅300 | 16 piece | DC12V | Manual/remote control | 500kg |
HP-BLJ3000-10S | 3000kg | 6000x1200 | ∅360 | 10piece | 380V | Manual/remote control | 600kg |
HP-BLJ5000-10S | 5000kg | 6000x1200 | ∅450 | 10piece | 380V | Manual/remote control | 1000kg |
HP-BLJ6000-12S | 6000kg | 8000x1200 | ∅450 | 12piece | 380V | Manual/remote control | 1400kg |
HP-BLJ8000-16S | 8000kg | 10000x1500 | ∅450 | 16piece | 380V | Manual/remote control | 1800kg |
HP-BLJ8000-8S | 8000kg | 10000x1500 | 850x450 | 8piece | 380V | Manual/remote control | 2000kg |
HP-BLJ10000-10S | 10T | 12000x2000 | 850x450 | 10piece | 380V | Manual/remote control | 2800kg |
HP-BLJ15000-16S | 15T | 15000x2000 | 850x450 | 16piece | 380V | Manual/remote control | 4000kg |
HP-BLJ20000-20S | 20T | 18000x2000 | 850x450 | 20piece | 380V | Manual/remote control | 5500kg |

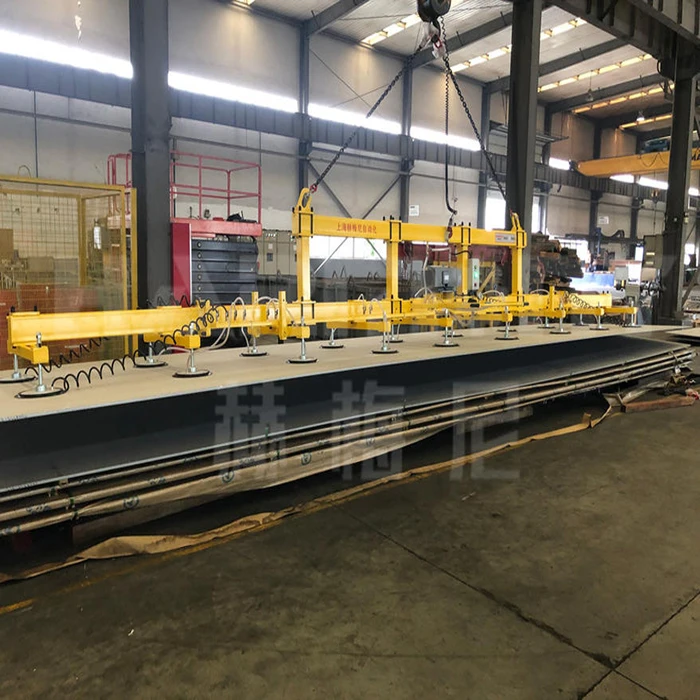

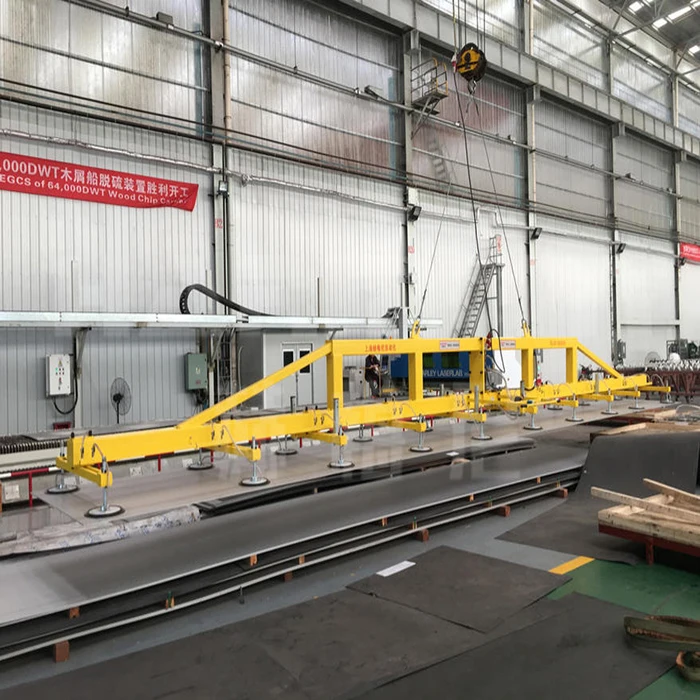

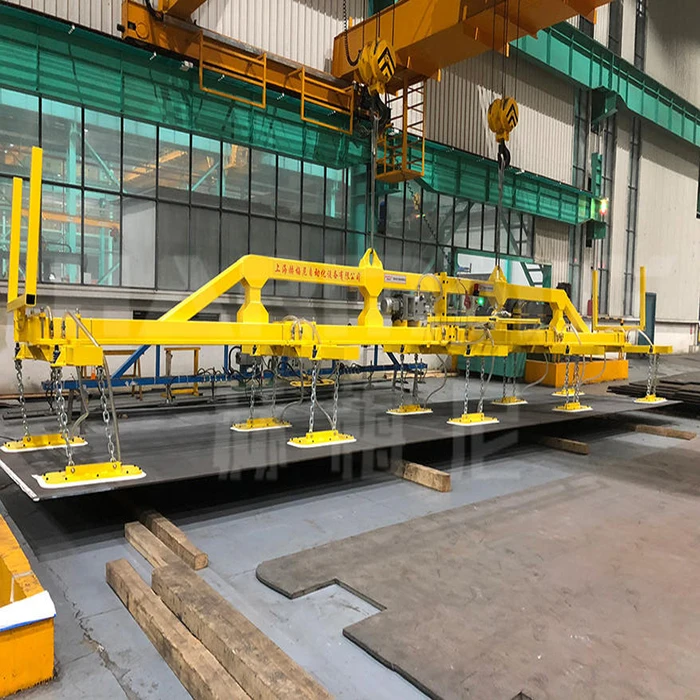

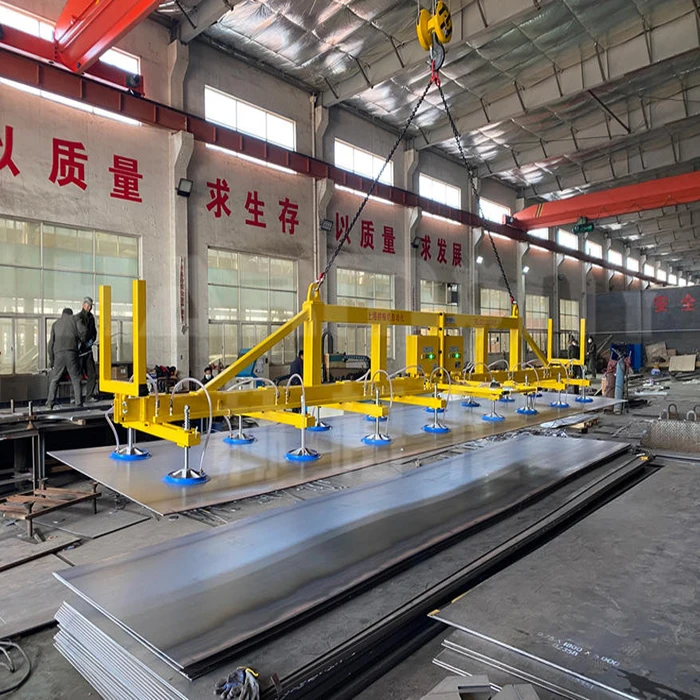

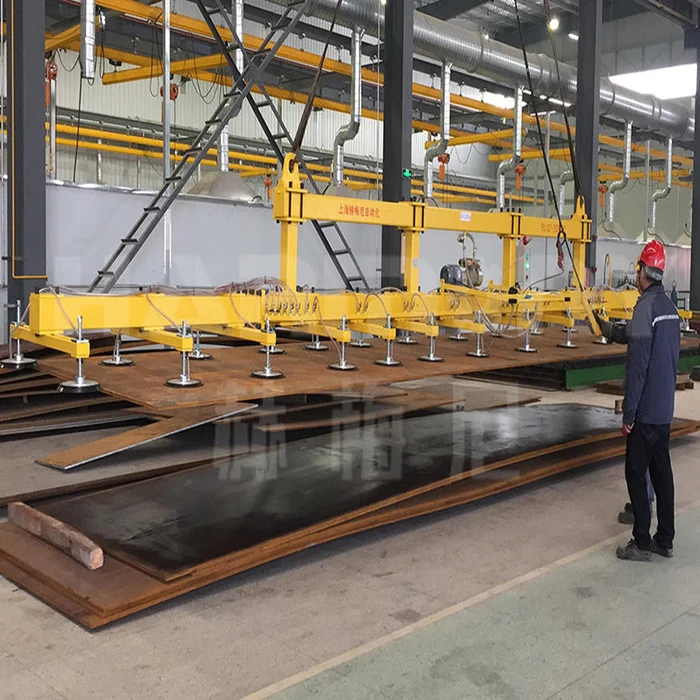

Use Cases
