Наиболее стабильная машина для изготовления болтов и
- Категория: Кузнечное оборудование для металла >>>
- Поставщик: Baoding,Xiaoguo,Intelligent,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 58310.83 $* | 61226.40 $* |
| Aug-16-2025 | 57820.12 $* | 60711.48 $* |
| Jul-16-2025 | 48510.75 $* | 50936.89 $* |
| Jun-16-2025 | 56840.2 $* | 59682.94 $* |
| May-16-2025 | 49490.6 $* | 51965.20 $* |
| Apr-16-2025 | 55860.63 $* | 58653.68 $* |
| Mar-16-2025 | 55370.39 $* | 58139.19 $* |
| Feb-16-2025 | 54880.52 $* | 57624.75 $* |
| Jan-16-2025 | 54390.24 $* | 57110.35 $* |
Характеристики
Product Description

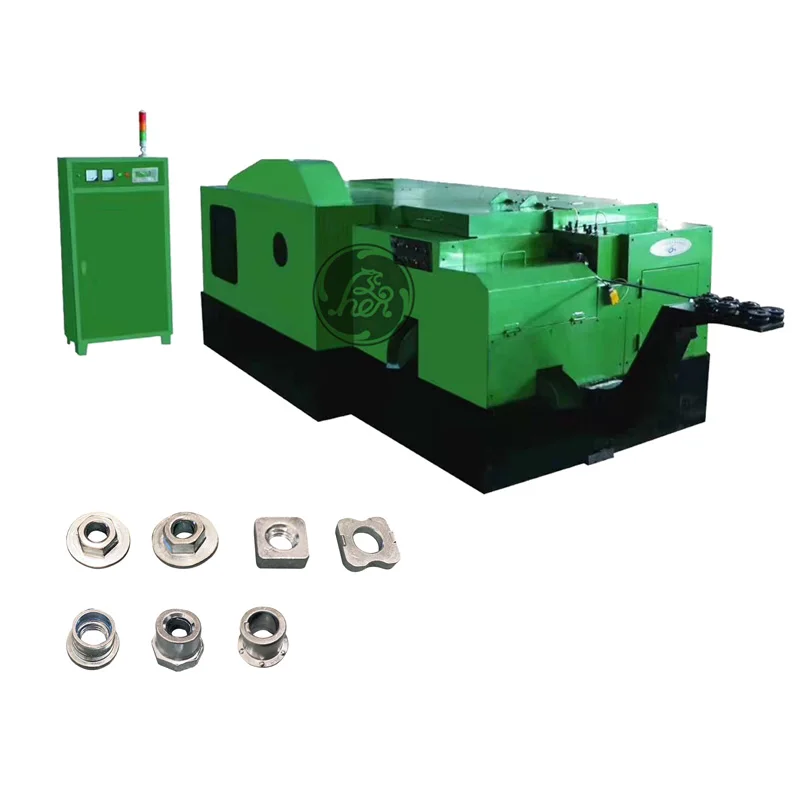

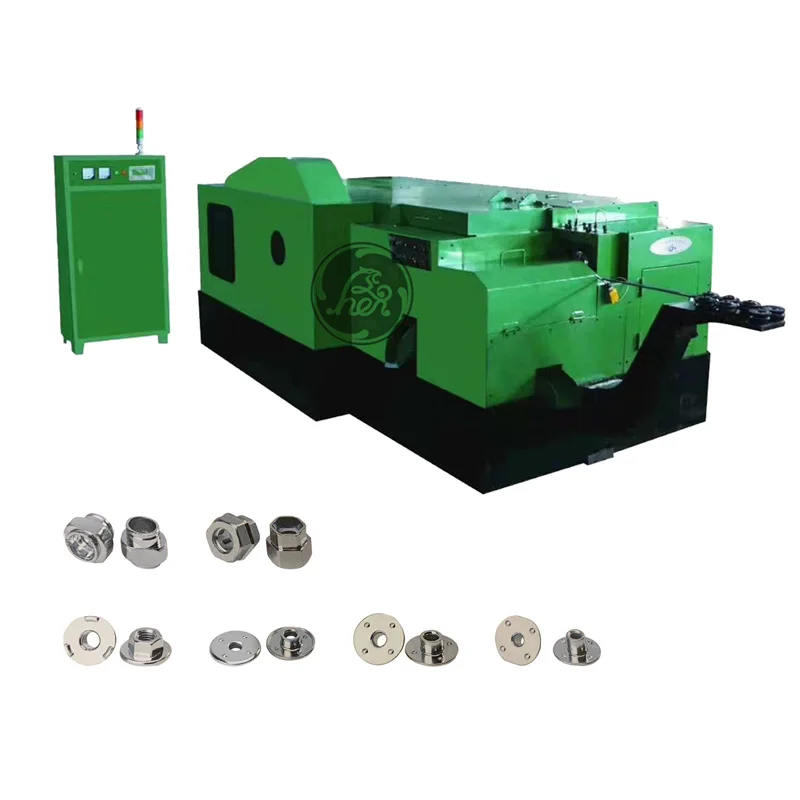

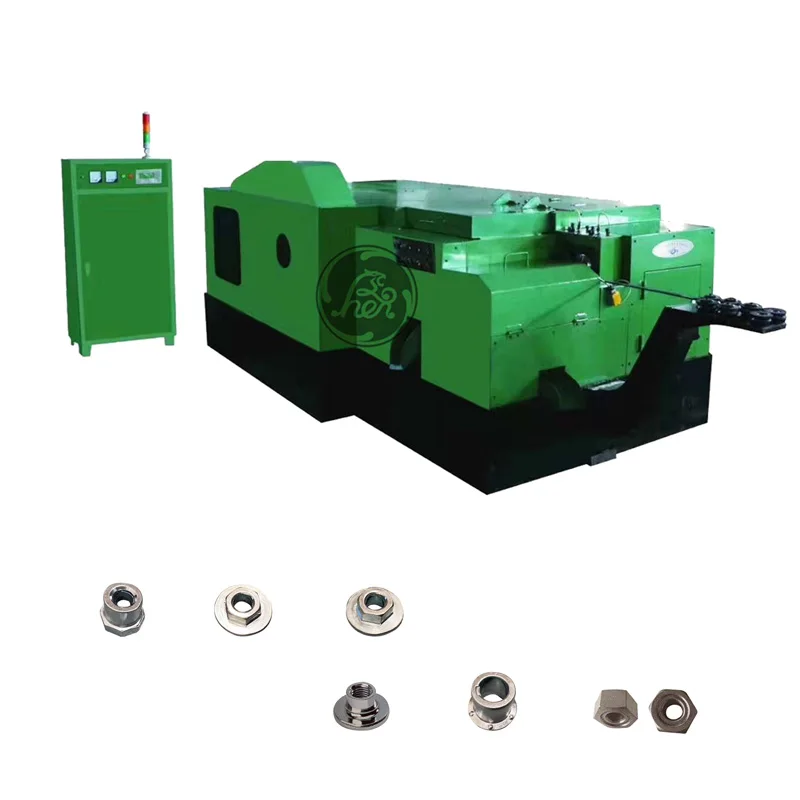

Cold forging machine/ Nut former machine producted by Ronen Wuhe is suitable for auto-parts, constrction hardware, construction fasteners, bearing producing, machinery, electronics, etc. industrial fields, we have big share in domestic market, and in recent years, we have exported to Europe, USA, Korea, Russia, India, Indonesia, Vietnam etc. countries. At present, the largest model can reach WH-41B6S , sizes from M3~M27, model from 11B~41B, 6 Sations~8 Stations
PRODUCT RANGE OF NUT MAKING MACHINE
Our products include standard parts and non-standards， such as
Flange Nuts, Weld Nuts, Square Nuts, Rivets, Hex nuts, Square Nuts, Sleeves, Acorn Nuts, Barrel Nuts, wing Nuts, Weld Nuts, Split Nuts, Nylon Nuts, lock Nuts.Nut Making Machine Parameter
Model | Unit | WH-NF 11B-6S | WH-NF 14B-6S | WH-NF 19B-6S | WH-NF 24B-6S | WH-NF 33B-6S | WH-NF 41B-6S |
Forging Station | NO. | 6 | 6 | 6 | 6 | 6 | 6 |
Across Flats of Nut | mm | 5.5-12.7 | 10-17 | 14-22 | 17-26 | 24-33 | 30-41 |
Suitable Hex Nut | DIN | M3-M6 | M6-M10 | M8-M14 | M10-M18 | M16-M22 | M20-M27 |
Cut-off Dia | mm | 11 | 16 | 19 | 24 | 31 | 40 |
Dies Pitch | mm | 50 | 60 | 80 | 100 | 140 | 165 |
Forging Power | Ton | 60 | 90 | 135 | 230 | 360 | 450 |
Main Motor | HP | 15 | 20 | 50 | 75 | 150 | 200 |
Lubrication Motor | HP | 1.5 | 1.5 | 1.5 3 | 1.5 3 | 3 | 3 |
Installed Quantity | SET | (1) | (2) | (1) (1) | (1) (1) | (2) | (2) |
Lubricant | L | 700 | 1000 | 1200 | 1700 | 1900 | 2200 |
Approx Weight | Ton | 4.5 | 8 | 14 | 25 | 45 | 72 |
Related Production
Nut Tapping Machine
Nut Sorting Machine
Big Size Nut Making Machine
Nut Chamfering Machine
Conveyor Bolt with Oil Removing
Mold
Rivet Gun
Oil Purifier
Factory Introduction
Ronen Wuhe is one special manufacture for producing Cold Forging Machines (Fastener Nut) in China. Have Taiwan Technology level
engineers team, and with strict technical monitoring and production process, the plant area is 15000㎡+.
In addition, in the future, Ronen Wuhe also plans to gradually move in the direction of mold design, Tapping Machine design and technical consulting. "Manufacturing is like a service industry. After all, who can provide diversified services will have orders and market leadership."
engineers team, and with strict technical monitoring and production process, the plant area is 15000㎡+.
In addition, in the future, Ronen Wuhe also plans to gradually move in the direction of mold design, Tapping Machine design and technical consulting. "Manufacturing is like a service industry. After all, who can provide diversified services will have orders and market leadership."
Nut Tapping Machine Packing and Shipping
Workshop Show
Exhibition Showing
Customers From All Over The World
