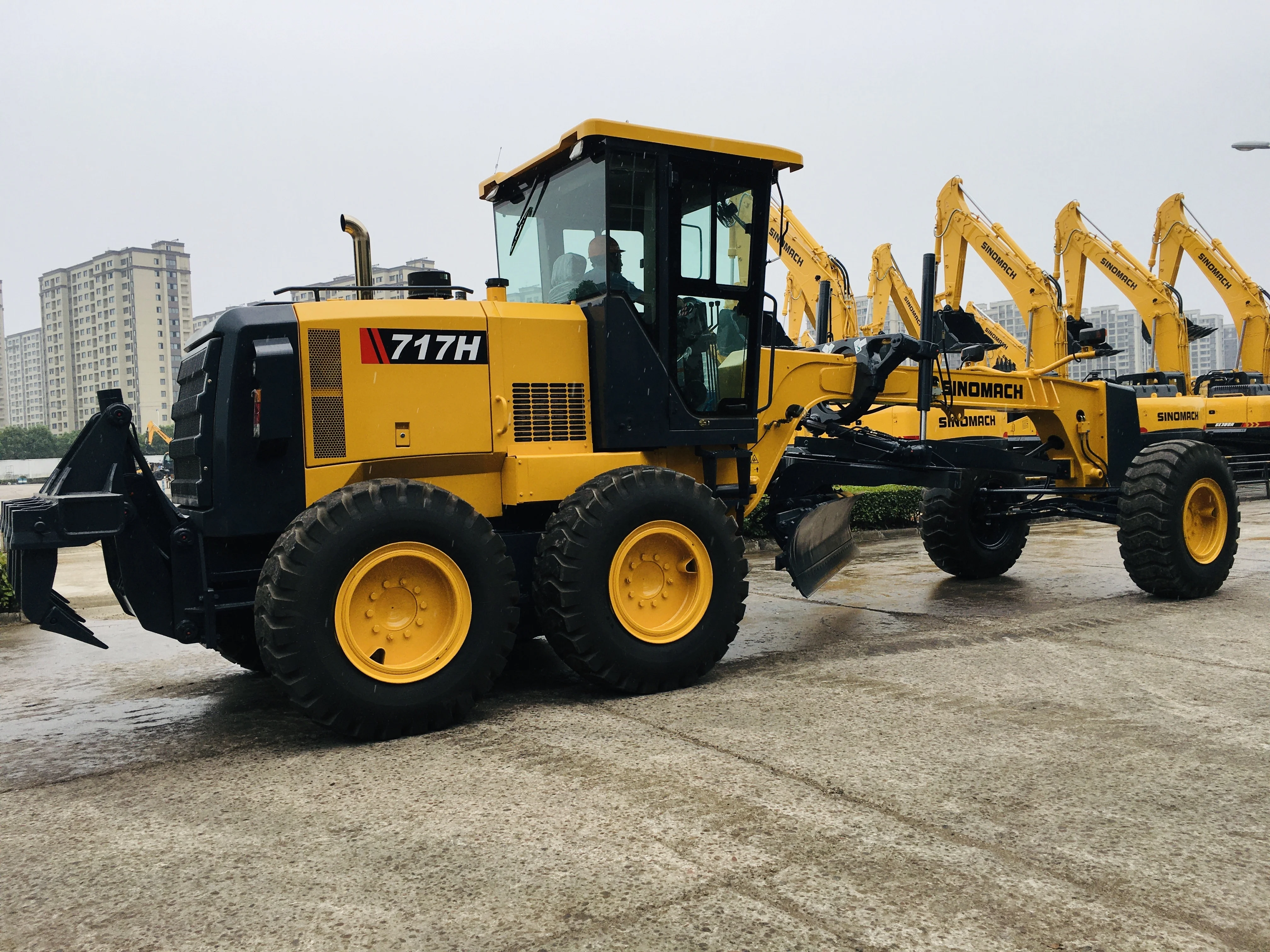

Автогрейдер 717H по цене кВт все серии SINOMACH CHANGLIN автогрейдер на
- Категория: Motor Graders >>>
- Поставщик: Tianjin,Lingong,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 72590.83 $* | 76220.17 $* |
| Aug-16-2025 | 71980.4 $* | 75579.13 $* |
| Jul-16-2025 | 60390.18 $* | 63410.10 $* |
| Jun-16-2025 | 70760.99 $* | 74298.47 $* |
| May-16-2025 | 61610.46 $* | 64691.2 $* |
| Apr-16-2025 | 69540.42 $* | 73017.34 $* |
| Mar-16-2025 | 68930.15 $* | 72377.79 $* |
| Feb-16-2025 | 68320.99 $* | 71736.18 $* |
| Jan-16-2025 | 67710.63 $* | 71096.42 $* |
Характеристики
COMPACT DIMENSIONS
SAFETY FRAME
SIMPLE CONTROL
SEASY MAINTENANCE
VERSATILITY
Right elevation
Left elevation

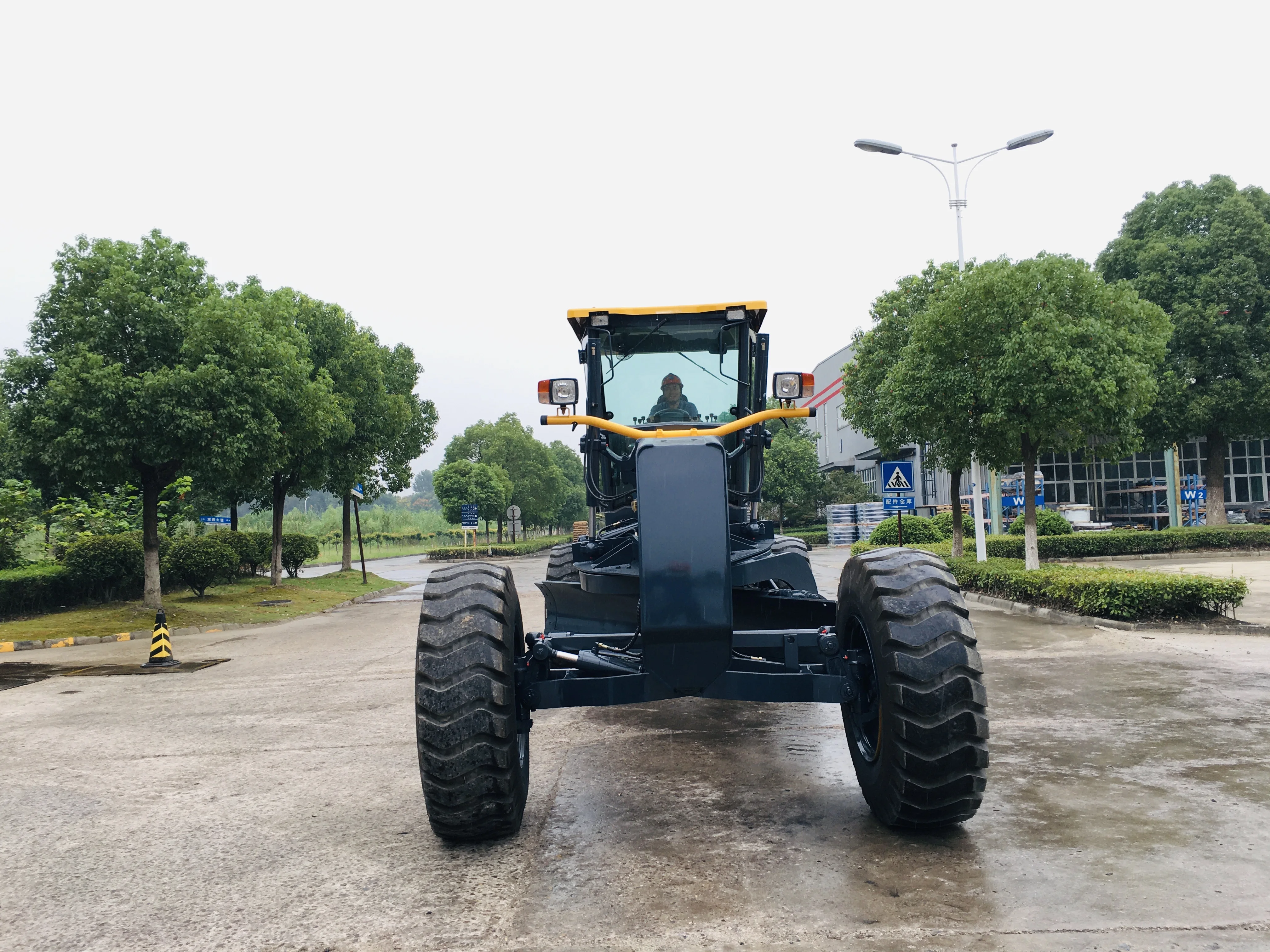

Front elevation
·Sing-handle electro-hydraulic controlled power-shift T/M, 6 forward&3 reverse shifts makes operation easy and convenient.
·Hydraulic lock, auto lock/unlock NO-SPIN differential ensures stability.
·Powerful traction deal axle load allocation provides excellent stability while cutting hard surface.
·Serviceable, efficient hydraulic system enables every part to be fully used.
·Box-typed frame and advanced T/M enable it to complete heavy-duty work.
·A wide working range is accomplished through flexible blade suspension system and articulated frame.
·Hydraulic lock, auto lock/unlock NO-SPIN differential ensures stability.
·Powerful traction deal axle load allocation provides excellent stability while cutting hard surface.
·Serviceable, efficient hydraulic system enables every part to be fully used.
·Box-typed frame and advanced T/M enable it to complete heavy-duty work.
·A wide working range is accomplished through flexible blade suspension system and articulated frame.
FEATURES AT A GLANCE
PRODUCT SPECIFICATIONS
Basic specification | ||
Engine model | Cummins 6BTA5.9-C180 | |
Rated power | 132KW@2200rpm | |
Dimension(L×W×H) | 8820×2600×3420（mm） | |
Operating weight(Standard) | 14500KG | |
Performance specification | ||
Travelling speed ,forward | 6.5/11.4/14.6/24.8/30/49.2 | |
Travelling speed ,reverse | 6.5/14.6/30 | |
Tractive force(f=0.75) | 74.6KN | |
Operating specification | ||
Max. steering angle of front wheels | 49° | |
Max. lean angle of front wheels | 17° | |
Max. oscillation angle of front axle | 16° | |
Max. oscillation angle of balance box | 13° | |
Frame articulation angle | 26° | |
Min. turning radius using articulation | 7.3m | |
Blade | ||
Maximum lift above ground | 450mm | |
Maximum grading depth | 535mm | |
Maximum blade position angle | 90° | |
Blade cutting angle | 29°~77° | |
Circle reversing rotation | 360° | |
Moldboard width × height | 3658×580mm | |
