Ac Dc 90 градусов прямоугольный редукторный двигатель
US $22.50-$23.00
LDO 0 9 градусов тонкое зарядное устройство (power шаговый двигатель
- Категория: Motors >>>
- Поставщик: Ldo,Motors,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 10.38 $* | 11.95 $* |
| Aug-18-2025 | 9.80 $* | 9.5 $* |
| Jul-18-2025 | 8.66 $* | 8.27 $* |
| Jun-18-2025 | 9.69 $* | 9.71 $* |
| May-18-2025 | 8.47 $* | 8.4 $* |
| Apr-18-2025 | 9.33 $* | 9.51 $* |
| Mar-18-2025 | 9.6 $* | 9.55 $* |
| Feb-18-2025 | 9.87 $* | 9.0 $* |
| Jan-18-2025 | 9.27 $* | 9.15 $* |
Характеристики

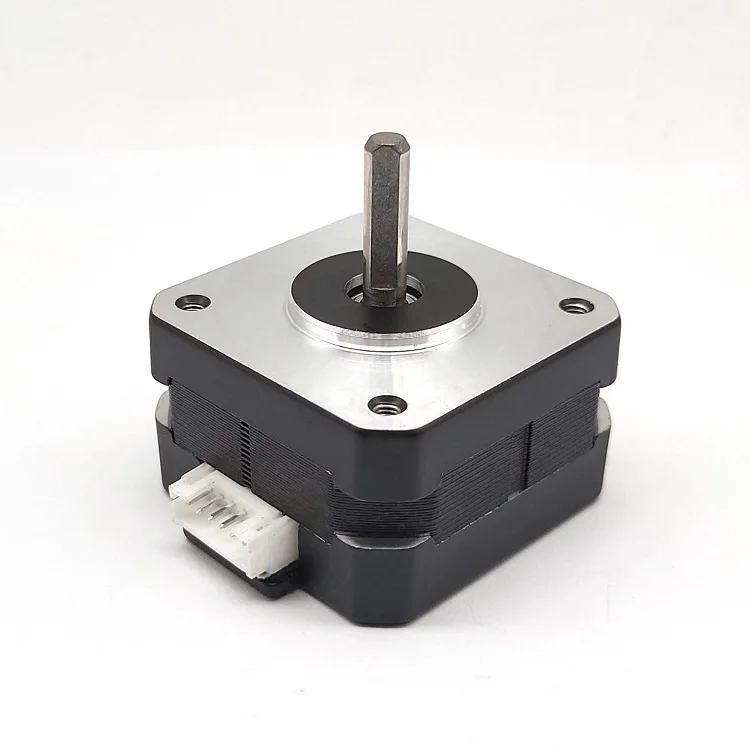

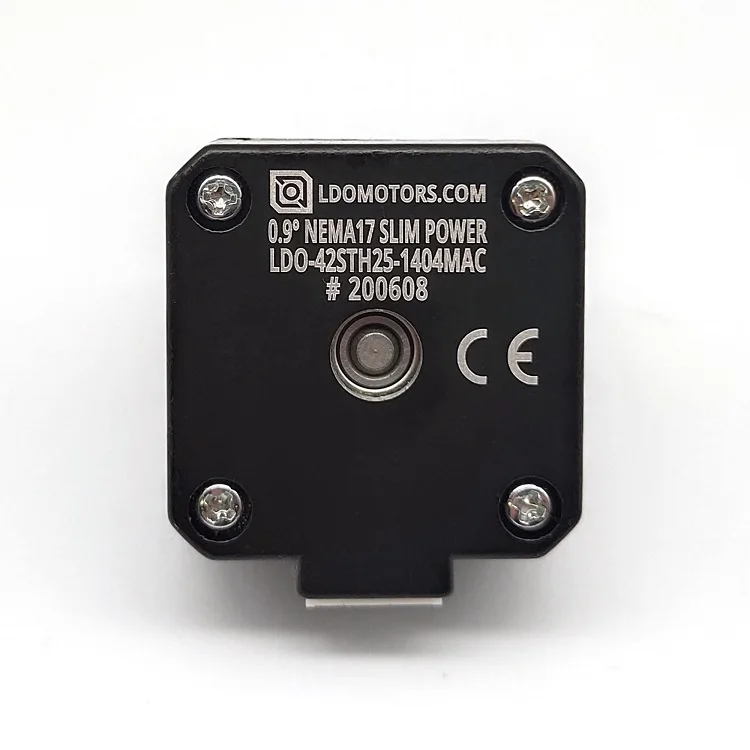

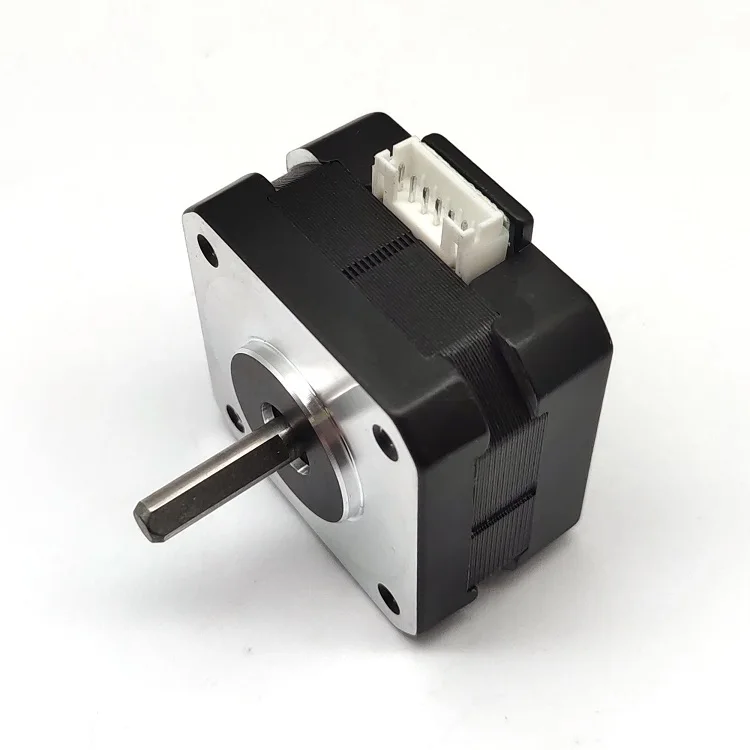

LDO 0.9 degree slim power stepper motor LDO-42STH25-1404MAC
Product Description
The 42mm Hybrid Stepper Motor Series is a versatile family of motors suitable for a wide range of applications. Use with a microstepping driver to reduce vibration and achieve higher step resolution. Choose a baseline version or request your own.
Features:
- Non-captive design – motor moves along the lead screw
- Compact permanent magnet stepper construction
- High performance at a low cost
- A wide range of screw sizes available
- CE and RoHs approved
- Customizations on request
The LDO Advantages:
- No MOQ limited
- Short Lead-Time
- Quickly response in time
- Good Pre/After Sales Service

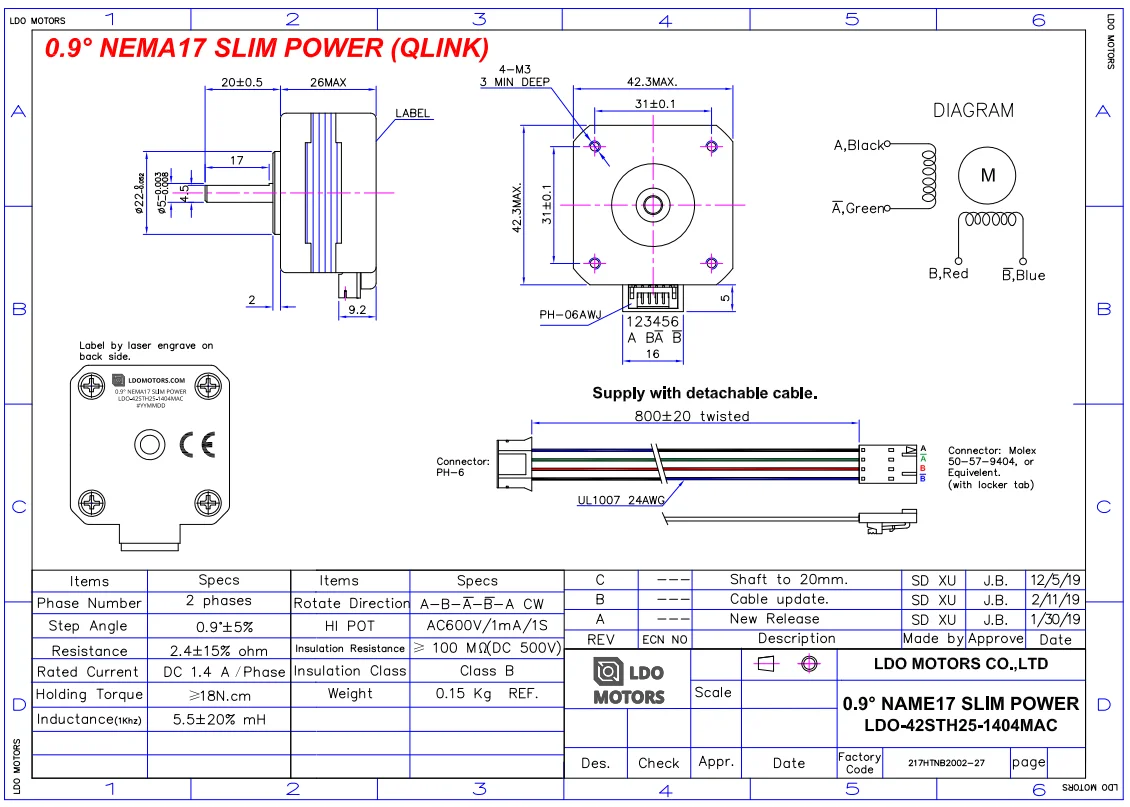

Step Angle: | 0.9 Degree |
Step Angle Accuracy: | ±5% (full step, no load) |
Resistance Accuracy: | ±10% |
Inductance Accuracy: | ±20% |
Temperature Rise: | 80DegreeC Max. (rated current,2 phase on) |
Ambient Temperature: | -20~+50DegreeC |
Insulation Resistance: | 100M(Ohms) Min. ,500VDC |
Dielectric Strength: | 500VDC for one minute |
Shaft Radial Play: | 0.02Max. (450 g-load) |
Shaft Axial Play: | 0.08Max. (450 g-load) |
Max. radial force: | 28N (20mm from the flange) |
Max. axial force: | 10N |
Holding Torque: | 1.8 Kg.cm |
Unipolar or Bipolar | |
Company Information
Our Services
Packaging & Shipping
FAQ
Q: How do I choose a suitable stepper motor for my application?
A: There are several important criteria to consider: holding torque, physical size (NEMA size, length of motor etc.), supply voltage, and supply current etc. Once you determine these key criteria, we can find a suitable model for you. Feel free to contact us, we are more than happy to help you with the selection process.
Q: I need a non-standard motor for my application, can you help?
A: Certainly, most of our customers request custom configurations in one form or another. If you plan on replacing a motor in an existing application, just send us a drawing or sample and we can help you find a suitable replacement. Alternatively, contac.
Q: How long should I expect the lead-time/delivery to be?
A: If you are ordering samples of standard models, we can usually have them shipped and delivered within 5 days by air. When requesting custom motors, please allow us a 4-5 week lead-time.
Q: How are your products delivered?
A: We are very flexible with shipping and have dealings with most major courier services around the world. When placing an order, simply provide us a shipping address and contact information, we will handle the rest. If there is a forwarder or courier you prefer to use, just let us know and we will accommodate.
Q: What can you tell me about the quality of your motors?
A: Delivering quality products is an absolute priority for us at LDO. We have test procedures throughout the manufacturing process starting from individual components. If you need a specialized motor from us, we also augment our existing test plans with custom testing solutions. In the rare case that an issue does arise, we will work with you to solve any problems in a timely and transparent manner.
Q: Do you provide OEM services? Can I request my own logo?
A: Yes, we can provide OEM services for volume production. Feel free to talk to us about your branding needs.
