3D Мобильная машина для выравнивания колес полный комплект с программным обеспечением J Bean измерение угла наклона переднего
- Категория: Wheel Alignment >>>
- Поставщик: Yancheng,Oddly,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.41 $* | 0.23 $* |
| Aug-16-2025 | 0.42 $* | 0.89 $* |
| Jul-16-2025 | 0.96 $* | 0.24 $* |
| Jun-16-2025 | 0.75 $* | 0.51 $* |
| May-16-2025 | 0.81 $* | 0.0 $* |
| Apr-16-2025 | 0.35 $* | 0.69 $* |
| Mar-16-2025 | 0.34 $* | 0.48 $* |
| Feb-16-2025 | 0.57 $* | 0.12 $* |
| Jan-16-2025 | 0.53 $* | 0.81 $* |
Характеристики
Product Overview

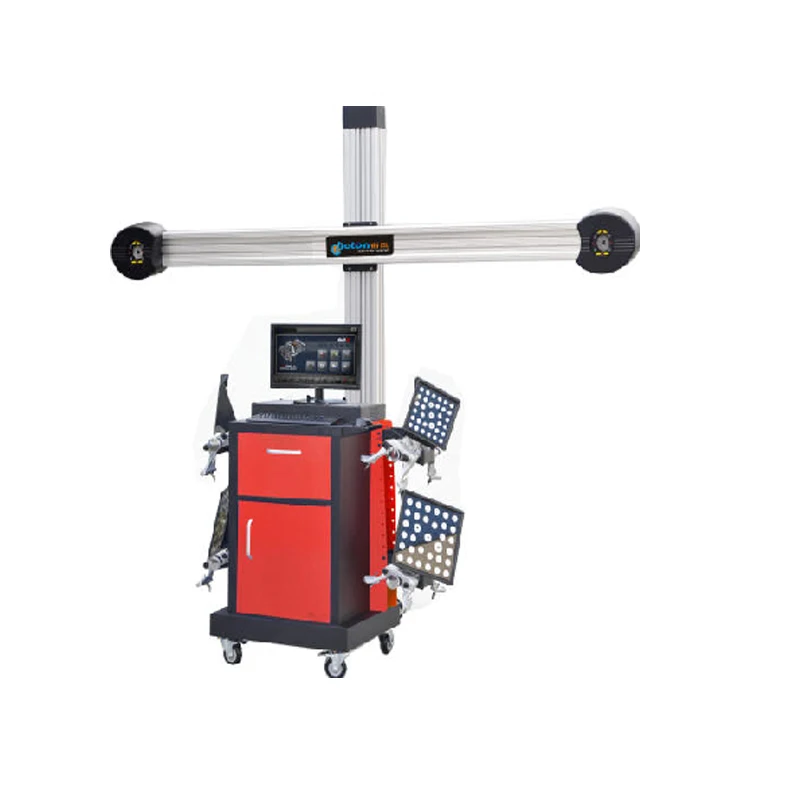

Automotive Equipment 3D wheel alignement with 5.0 mega pixel camera
1. Windows 7 or Windows XP system,includes Chinese, English, Spanish and Russian language and more than 32 kinds of language.
2. No electronic components and no battery can reduce failure greatly.
3. Error of repeatable measure is ±0.04°
4. One-off calibration in factory, the machine can be used directly after assembly.
5. Push the car or wheels can realize traditional measurement.
6. No affection by the levelness of the lifting platform.
7. Automatic compensation about positioning.
8. Loudspeaker with multiple languages to guide, very easy to learn how to operate.
2. No electronic components and no battery can reduce failure greatly.
3. Error of repeatable measure is ±0.04°
4. One-off calibration in factory, the machine can be used directly after assembly.
5. Push the car or wheels can realize traditional measurement.
6. No affection by the levelness of the lifting platform.
7. Automatic compensation about positioning.
8. Loudspeaker with multiple languages to guide, very easy to learn how to operate.
PRODUCT SPECIFICATIONS
No | Item | Accuracy | Range | Total range |
1 | Camber | ±0.02° | ±8° | ±8° |
2 | Caster angle | ±0.05° | ±19° | ±19° |
3 | Front inclination | ±0.02° | ±19° | ±19° |
4 | Front toe | ±0.02° | ±2° | ±8° |
5 | Front thrust-angle | ±0.02° | ±2° | ±4° |
6 | Steering angle | ±0.08° | ±2° | ±45° |
7 | Rear axle deflection | ±0.02° | ±2° | ±4° |
8 | Front set-back | ±0.02° | ±2° | ±4° |
9 | Rear set-back | ±0.02° | ±2° | ±4° |
10 | Wheel tread | ±0.64cm(±0.25cm) | <265cm(105in) | <265cm(105in) |
11 | Track width difference | ±0.03° | ±2° | ±8° |
12 | Wheelbase | ±0.64cm(±0.25cm) | <533cm(210in) | <533cm(210in) |
SOFTWARE PHOTOS
PACKAGE AND DELIVERY
Mobile Wheel Alignment Machine Full Set With J Bean Software Front Thrust Angle Measurement
Certifications
Successful Project
Project in Chile
Project in Russia
Project in Africa
