HUALONG; stonemachinery HLSQ-650 машины для резки камня гранита пила Автоматическая плиты
- Категория: Stone Machinery >>>
- Поставщик: Fujian,Province,Hualong,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-15-2025 | 3959493.74 $* | 4038683.14 $* |
| Jul-15-2025 | 3211242.94 $* | 3275467.39 $* |
| Jun-15-2025 | 3897139.22 $* | 3975082.40 $* |
| May-15-2025 | 3865962.84 $* | 3943281.37 $* |
| Apr-15-2025 | 3086534.15 $* | 3148265.45 $* |
| Mar-15-2025 | 3803607.73 $* | 3879679.30 $* |
| Feb-15-2025 | 3772430.19 $* | 3847879.38 $* |
| Jan-15-2025 | 3741253.86 $* | 3816078.99 $* |
Характеристики

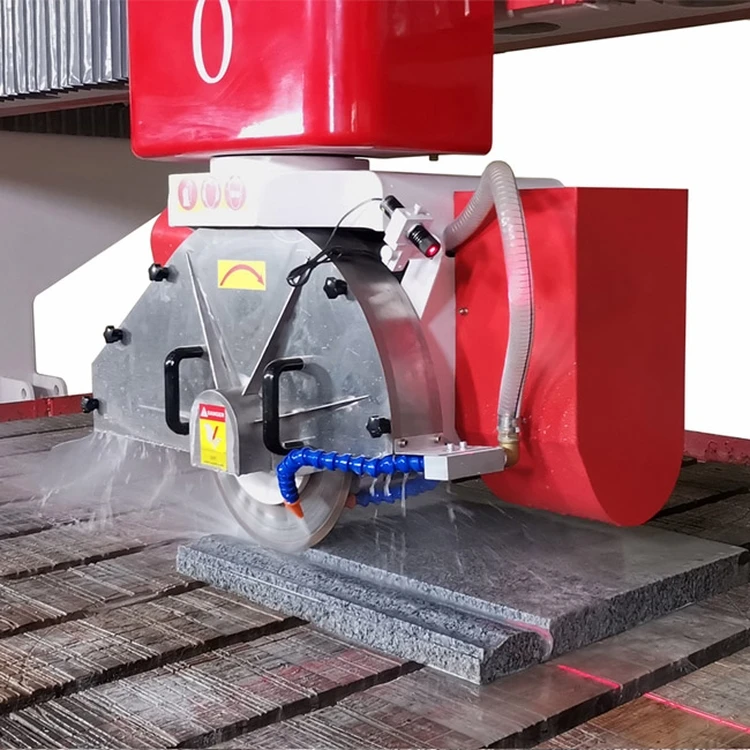

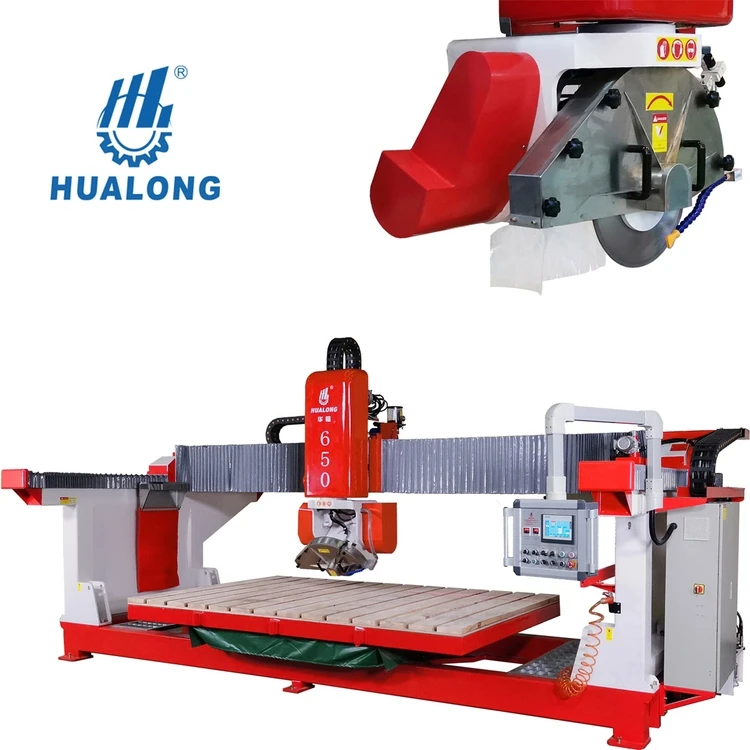

Hualong HLSQ-650 Stone bridge saw has a classic mono-block design which makes it quite compact as well as easy to install. This is a powerfull saw that allow you, through a Siemens controler with human-machine interface , simple to set up mutiple X and Y axis cuts, then process fine and easy. This is huge time saver and creates a highly efficient work atmosphere.
It is a classic and practical bridge stone cutting machine for cutting granite, marble, quartz and other stone slabs.
It is a classic and practical bridge stone cutting machine for cutting granite, marble, quartz and other stone slabs.
Technical Data for HLSQ-650 | ||||
Diameter of blade | mm | 400-650 | ||
Max. cutting thickness | mm | 200 | ||
Max. cutting length | mm | 3300 | ||
Max. lifting travel | mm | 300 | ||
Worktable dimensions | mm | 3300x2000 | ||
Power of main motor | kw | 15 | ||
Power of cutter frame motor | kw | 1.1 | ||
Power of crossbeam shifting motor | kw | 1.5 | ||
Power of lifting motor | kw | 1.5 | ||
Power of hydraulic station motor | kw | 2.2 | ||
Gross power | kw | 21.3 | ||
Water consumption | m3/h | 2 | ||
Dimension (L x W x H） | mm | 5750x3600x3400 | ||
Gross Weight | kg | 5800 | ||
Main Features:
1) Monoblock structure for easy move, installation and no foundation needed.
2) Siemens, Schneider electric and other high quality accesories such as Hiwin linear guide are adopted.
3) 0°, 90°, 180° and 270° automtaic head rotatation and blade positioning.

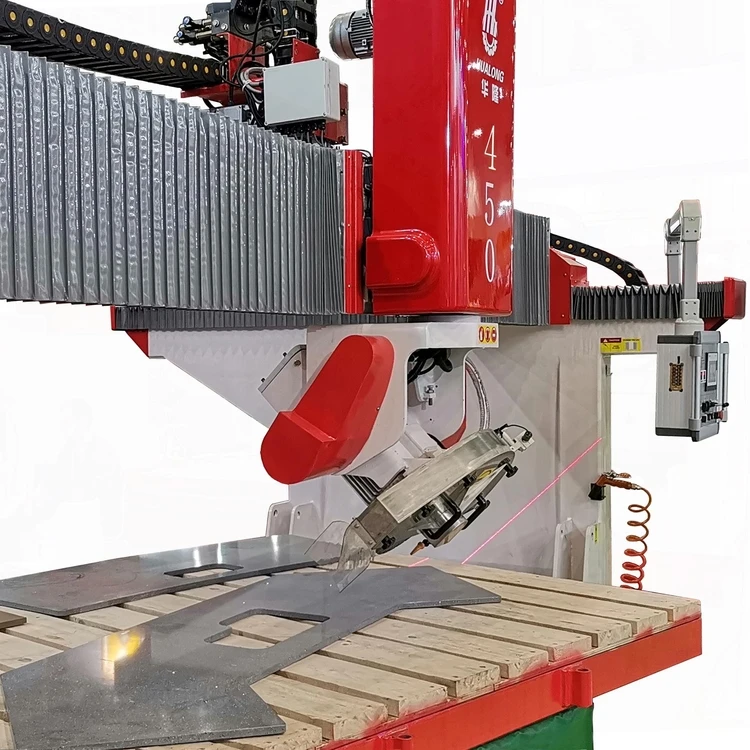

4) Blade can tilt automatically 45° for chamfering cutting, or tilt 90° for milling.
5) Automatic cross cutting repeatedly so easy by pushing one-button.
6) Speed can be adjusted according to the stone material cutted.
6) Automatic or manual working mode is optional.

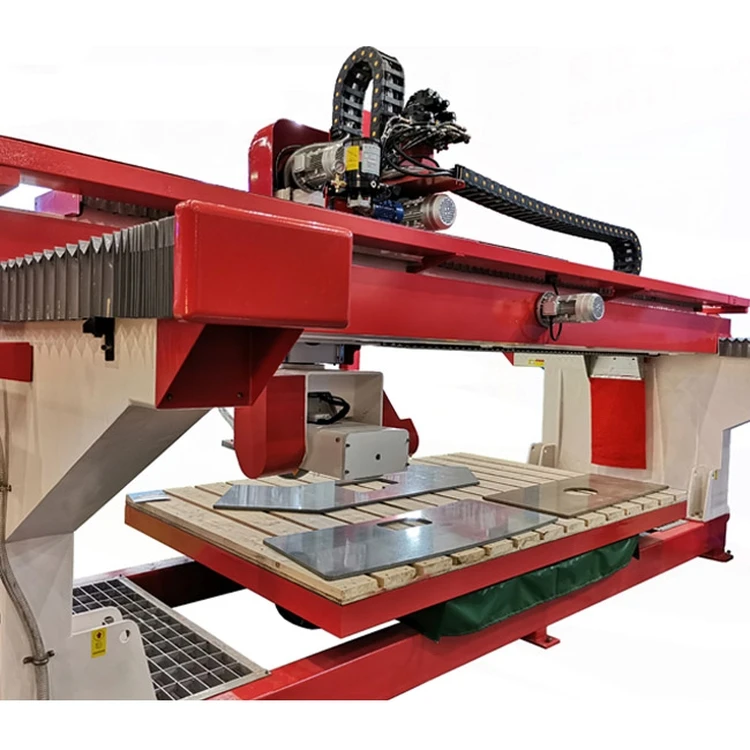

7) Worktable can rotate 0-360°, pause at every 45° automatically or lock at any degree by remote control.
8) Worktable can tilt 0-85°, easy for slab loading.
2) Siemens, Schneider electric and other high quality accesories such as Hiwin linear guide are adopted.
3) 0°, 90°, 180° and 270° automtaic head rotatation and blade positioning.
4) Blade can tilt automatically 45° for chamfering cutting, or tilt 90° for milling.
5) Automatic cross cutting repeatedly so easy by pushing one-button.
6) Speed can be adjusted according to the stone material cutted.
6) Automatic or manual working mode is optional.
7) Worktable can rotate 0-360°, pause at every 45° automatically or lock at any degree by remote control.
8) Worktable can tilt 0-85°, easy for slab loading.
Linear Guide
Brand: Hiwin
Original: Taiwan, China
Original: Taiwan, China
Famous products, top quality used on crossbeam (X axis), carling (Y axis) and Z axis to gurantee perfect cutting accuracy and long
lifespan.
lifespan.

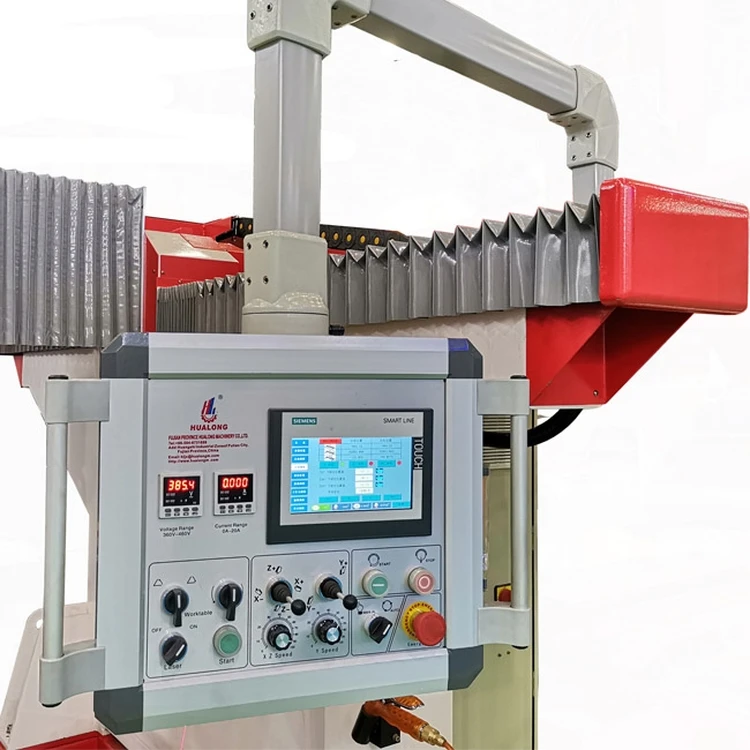

Control System
Brand: Siemens
Use advanced PLC control system with touch screen to achieve multi programming methods, including manual programming or PC
processing operation for powerful functions, which offer friendly and inteligent control.
Use advanced PLC control system with touch screen to achieve multi programming methods, including manual programming or PC
processing operation for powerful functions, which offer friendly and inteligent control.

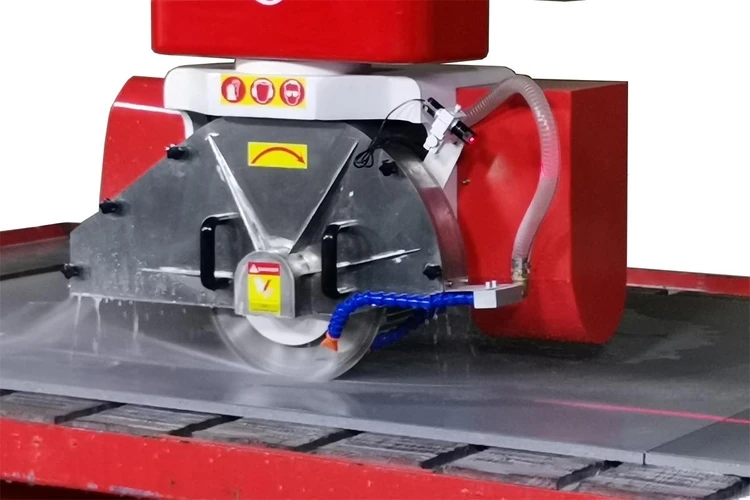

Laser Reticule Apparatus
Origin: China
Laser checking and calibration instrument to aid in lining up the cut at the beginning of processing.
Laser checking and calibration instrument to aid in lining up the cut at the beginning of processing.
Machine Part
Name: Incremental Encoder
Brand: ELCO from Germany
For the determination of head movement in X, Y, Z direction and worktable rotation to ensure position precision without the
slightest deviation
Brand: ELCO from Germany
For the determination of head movement in X, Y, Z direction and worktable rotation to ensure position precision without the
slightest deviation
Electric Cabinet
Brand: Siemens, Schneider, Sanch...
Quality electrics used to ensure stable performance.
Quality electrics used to ensure stable performance.
1) 25 years + experience professional on making stone machines.2) Good performance and Long life service --- Our HLSQ series
bridge saw was first exported to Brazil in 2012, which is still working well now.
3) The machining operation is simpler than the operation of other infrared cutting machine, automatically cut by setting
parameters.
4) For chamfering cutting, the blade tilt of HLSQ-650 is controled by PLC, which cutting is accurate. While the other two ways as showed below, the cutting is less accurate, not good for cutting thin slab.
bridge saw was first exported to Brazil in 2012, which is still working well now.
3) The machining operation is simpler than the operation of other infrared cutting machine, automatically cut by setting
parameters.
4) For chamfering cutting, the blade tilt of HLSQ-650 is controled by PLC, which cutting is accurate. While the other two ways as showed below, the cutting is less accurate, not good for cutting thin slab.
* Slab cutted to square size or other polygonal
* Round desktop processing
* Round desktop processing
* Profiling Cutting (optional)
According to customer requirements, this machine can be equipped with profiling module to achieve profiling cutting function, used
for processing special-shaped stone lines, decorating door frames, windows, columns and walls, etc.
for processing special-shaped stone lines, decorating door frames, windows, columns and walls, etc.
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
