Diy контроллер бесщеточного двигателя 36 в 250 вт kunteng с дисплеем

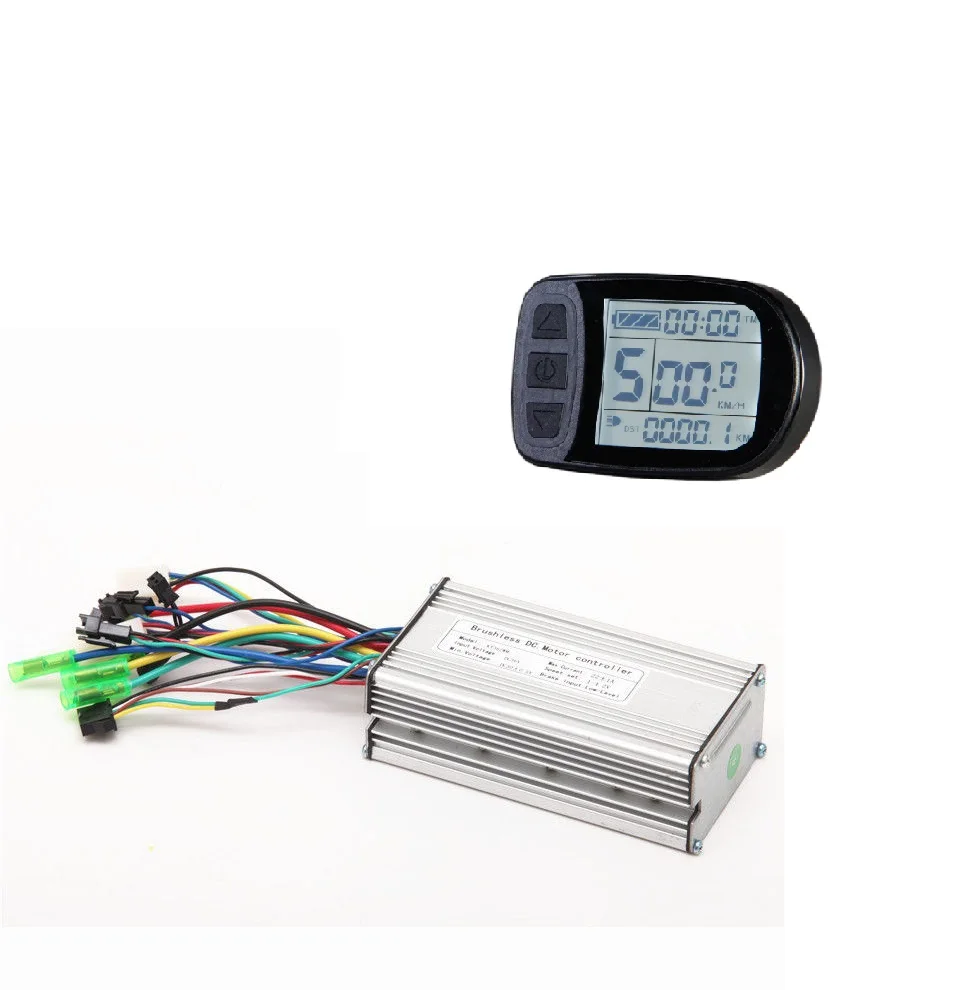

diy brushless motor controller 36V 250W kunteng controller with LCD5 display

Functions and features:

1. Use imitated torque control mode to achieve a smooth start-up of the power-assist vehicle, so that the power-assist driving will be smooth and natural;

2. The electric power-assist has fast response, and it is always consistent with the rider’s pedal action, which is to achieve the effect of torque boosting;

3. With a multi-protection functions such as the stall, over-current, over-temperature, under-voltage, speed driving, phase shortage, output short circuit etc., so as to protect the vehicle electronic control systems and traffic safety;

4. Hall or no hall motor drive, adapting to various kinds of high and low speed motor;

5. Controller power range is 250W

6. It can be customized for all types of controllers for users.

diy brushless motor controller 36V 250W kunteng controller with LCD5 display

Main technical parameters:

1. Rated voltage:DC36V;

2. Rated current:7A;

3. Maximum current:15A;

4. Rated power:250W;

5. Maximum power:500-1500W;

6. Static power consumption:<50mA;

7. Under-voltage protection:it can be set according to customer requirements;

8. Driving mode:square wave;

9. Waterproof:basic protection of water washout IP64;

10. Electromagnetic compatibility (EMC):outgoing lines can be added with the jacketed ring for interference protection;

11. Lights drive:Optional headlight control and instrument headlight indicator;

12. Housing holder:single-ended or both ends are with the ears;

13. Housing color:aluminum natural or black;

14. Product certification:CE certification;

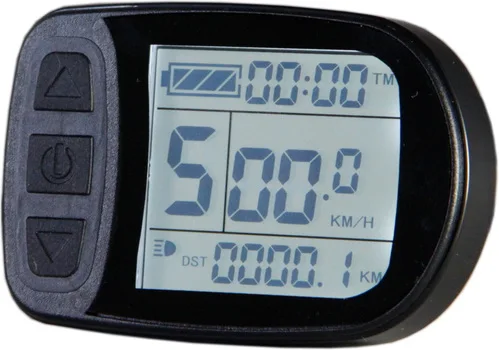

diy brushless motor controller 36V 250W kunteng controller with LCD5 display

1. Data display:it shows the riding speed, a single mileage and cumulative mileage, riding time, power-assist gear, motor power and temperature, battery voltage and charge status, brake status and the used ambient temperature and other cycling parameters;

2. Intelligent power:a true reflection of the battery charge, real-time recording of the power consumption to ensure riding mileage;

3. Stalls setting:multi-gear switch and automatic save of the power-assist gear, and it can restore power-off stall state when turned on;

4. Parameter setting:with a number of user parameter setting functions, motor parameters, velocity measurement parameters, speed-limit parameters, power parameters, power-assist control parameters, the minimum controller voltage and maximum current parameters and other operating models for settings adjustment ;

5. Data view:Users can view historical driving data and clear accordingly, view single or cumulative riding time, riding mileage, maximum speed and average speed of single riding;

6. Vehicle boosting:With 6Km/h power-assisting functions, the boost logo flashes during boosting, and riders can use it when driving the vehicle and the vehicle driving is labor-saving and easy;

7. Cruise and constant speed:With the setting and display of the cruise, achieving to automatically maintain the vehicle speed, so that the vehicle drives at a constant speed;

8. Night driving:With the functions of LCD backlit display and headlight switch control, instrument backlighting and headlights can be turned on during driving at night;

9. Password setting:With three-bit of power-on password setting;

10. Automatically prompt:For the appeared failure of the vehicle, it can prompt different fault codes for easy inspection and maintenance of vehicle. With a temperature display for motor operation and it is to achieve the ultra-temperature alarm and motor protection;

11. Use five-line of digital communication, the instrument has good compatibility and interchangeability, different instruments can be conducted the data exchanges and parameters copy directly;

12. Host part and operation buttons of the meter use sub-structure design, making the operation to be more reasonable and convenient;

13. Supply voltage of 24V, 36V, 48V can be automatically identified and compatible;

14. Black housing;

15. Dimensions:
