2021 Новый USB + WIFI Портативный беспроводной выпуклый/линейный ультразвуковой зонд цветной Доплер для
- Категория: Медицинские ультразвуковые инструменты >>>
- Поставщик: Shanghai,Puxie,Medical,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-15-2025 | 1718.34 $* | 1752.57 $* |
| Jul-15-2025 | 1394.7 $* | 1422.81 $* |
| Jun-15-2025 | 1691.46 $* | 1725.18 $* |
| May-15-2025 | 1678.11 $* | 1712.70 $* |
| Apr-15-2025 | 1339.82 $* | 1366.57 $* |
| Mar-15-2025 | 1651.44 $* | 1684.76 $* |
| Feb-15-2025 | 1637.45 $* | 1670.73 $* |
| Jan-15-2025 | 1624.45 $* | 1656.36 $* |
Характеристики
Products Description

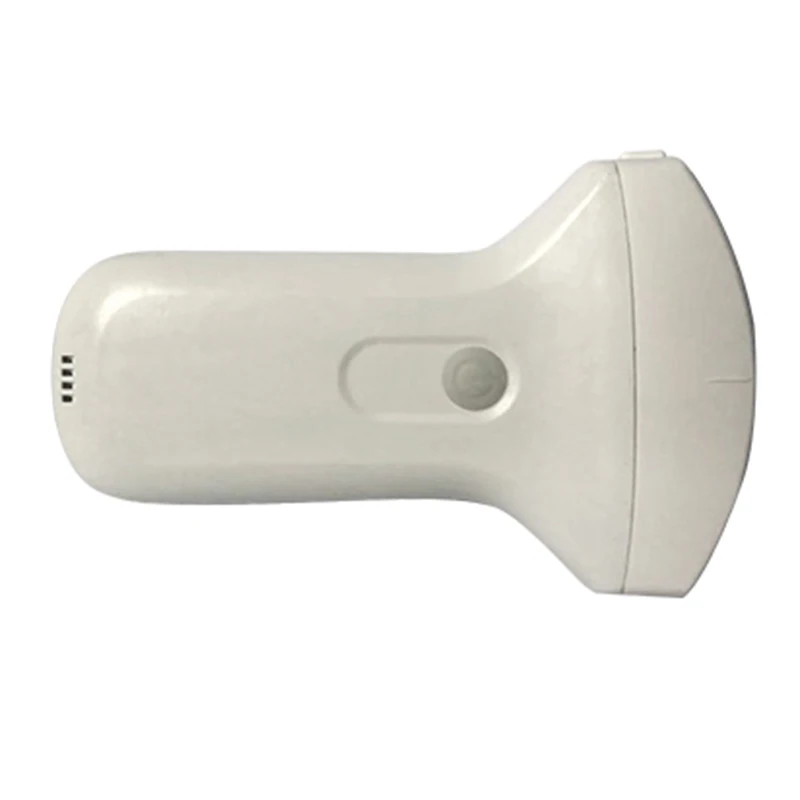

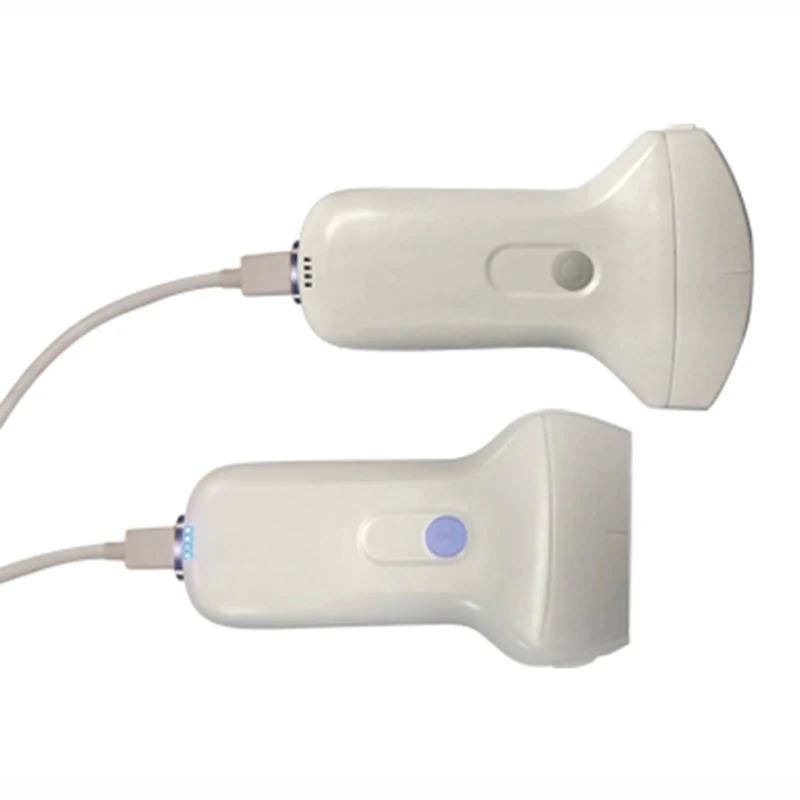

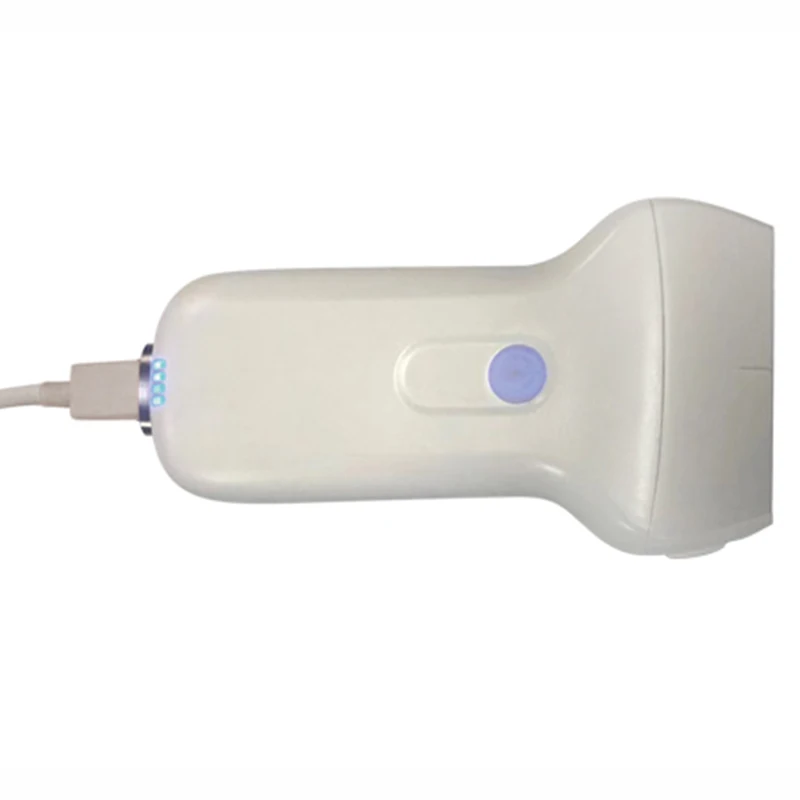

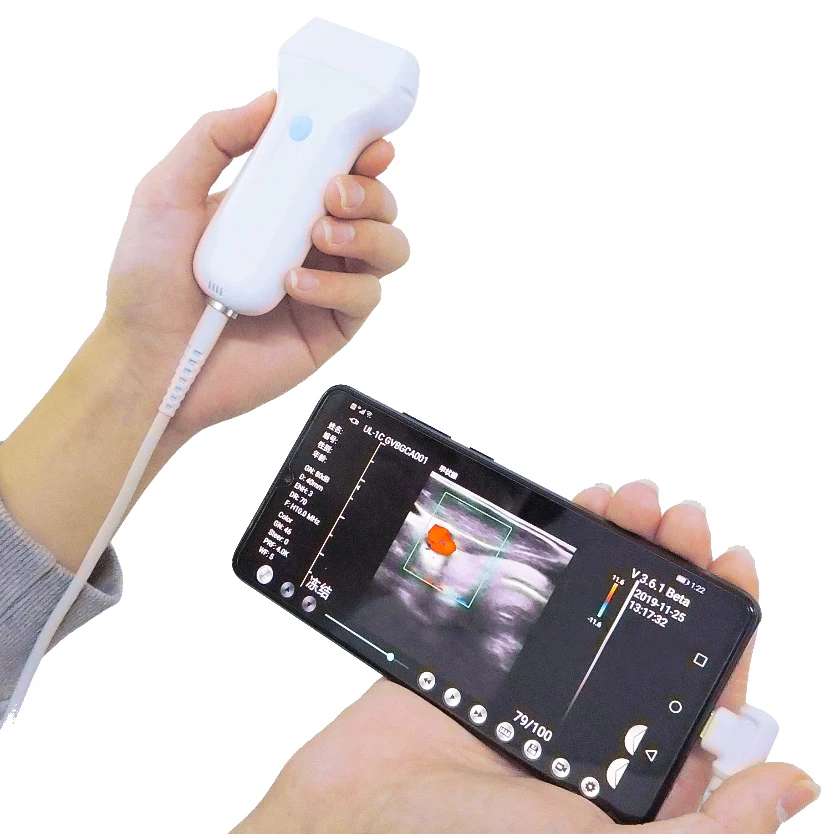

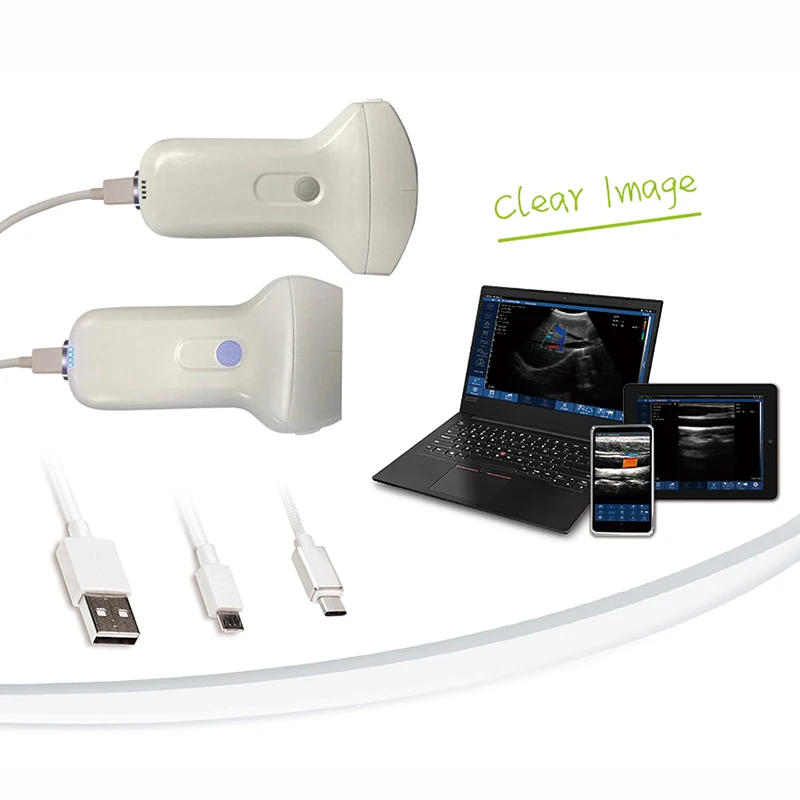

AOPUQI New USB+WIFI Portable Mini Wireless Convex/Linear Ultrasound Probe Color Doppler For iPad/iPhone/Android
Introduction:
Innovative design in 2020. Both USB and WIFI connected to Platform.
The Smallest Color Ultrasound Probe,Most Suitable for POCT;As a
visualization tool for clinicians,makes the clinical procedures more Confident,more Easy, more Efficient, more Precise,more
Safe,more Standardized and lower Cost, lower Anxiety,less Pain. Make ultrasound easier and more efficient to use. Provide visual
images during any clinical procedures.
visualization tool for clinicians,makes the clinical procedures more Confident,more Easy, more Efficient, more Precise,more
Safe,more Standardized and lower Cost, lower Anxiety,less Pain. Make ultrasound easier and more efficient to use. Provide visual
images during any clinical procedures.
Features:
Wifi connection + USB connection for more stable transmission.
Built-in battery, when connected to wifi, it can be charged while working.
The Smallest and lightest, easy to carry and operate.

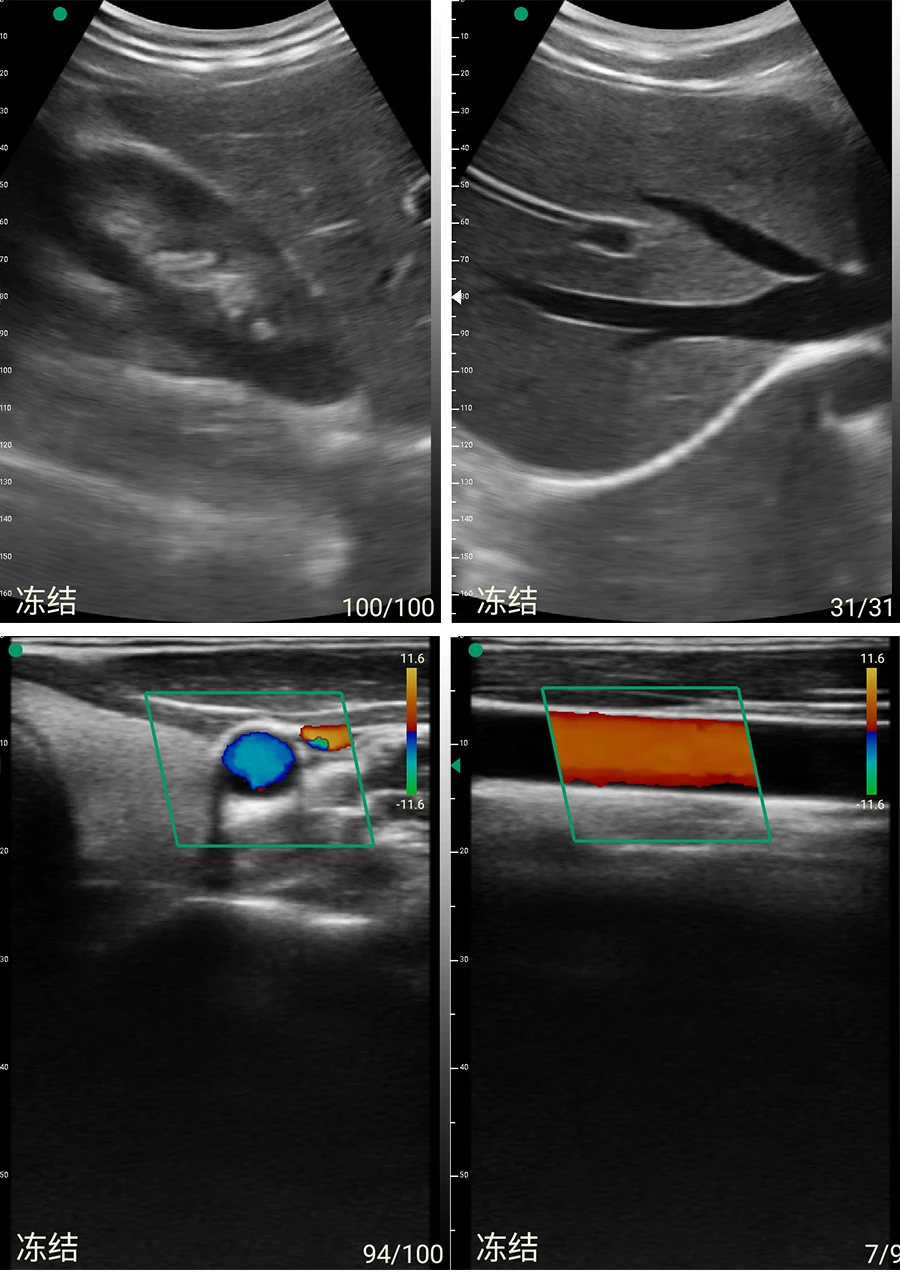

Advanced digital imaging technology,exceptional image quality.
Durable design,Ergonomic design. Intelligent terminal platform, powerful expansion functions on application, storage,
communication.
Software is free for life.
High cost-effective.
Can be integrated into other medical devices.
Can support OEM/ODM.
specification
Type | Convex /Linear |
Scanning mode | Electronic array |
Display mode | B, B/M, B+Color, B+PDI, B+PW |
Frequency | Convex:3.5/5.0MHz; Linear:7.5/10MHz |
Display Depth | Convex:90~305mm; Linear:20~100mm |
Elements | 128 |
Probe Radius | Convex: 60mm |
Probe Length | Linear: 40mm |
Wifi type | 2.4G/5G |
USB type | Type C |
Image Adjust | B:GN(B gain) 30-105 D(depth) 20-305mm ENH(enhancement) 0-4 DR(dynamic range) 40-110 F(frequency) 3.5-10MHz TGC：8 segments Color/PW：PRF,WF,Steer,Box size |
Measure | B:Length,Area,Circumference,GA (CRL,BPD,GS,FL,HC,AC) B+M: Heart Rate, Time, Distance B+PW:Velocity, Heart Rate(2), S/D |
Cinplay | Auto and manual, frames can set as 100/200/500/1000 |
Puncture assist function | in-plane puncture guide line, out-of-plane puncture guide line |
Image/video Storage | Store on mobile phones,Tablet PC |
Power | built-in lithium battery |
Replaceable | Yes |
Standby | 1.5~4h |
Charging mode | Usb |
Bootup | Platform dependent, generally <5 seconds |
Software | Android / iOS / Windows Download for free |
Standard Configuration | Host：1pcs， USB cable：1pcs |
Dimensions | Convex: 115(h)x70(w)x20(d)mm Linear: 115(h)x60(w)x20(d) mm |
Package size | 185(w) *55(h) *105(d)mm |
Net weight | Convex: 125g Linear:102g |
Gross weight | 600g |
Application
* POCT,Outpatient,Emergency,Ambulance,Clinic,Anesthesia,ICU,Intervention,Tumor,Catheter:
Visual image for Abdominal,Lung,Kidney,Urology,Obstetrics/Gynecology,Superficial,Small Parts, ) MSK,Breast,Thyroid,Vascular;
* Visual guidance of
cvc, picc, port, long and midline catheters, radial artery, femoral artery and vein, nerve block and other puncture visual
guidance.
guidance.
* Renal and Hemodialysis center:
Establishment and maintenance of vascular access, visual guidance of Dialysis puncture.
* Pain, rehabilitation, Physiotherapy:
Visual guidance of diagnosis and treatment, such as soft tissue lysis, effusion extraction, etc.
* Plastic surgery:
Visual guidance of cosmetic surgery.
Packing & Delivery
