Плоская платформа сварная дорожка стальные решетчатые каналы для дверного
- Категория: Metal Building Materials >>>
- Поставщик: Beijing,Tianrunxuan,Rubber,Products,Co.,Ltd.,Shijiazhuang,Comprehensive,Free,Trade,Zone,Branch
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-16-2025 | 4.21 $* | 4.60 $* |
| Jul-16-2025 | 3.79 $* | 3.44 $* |
| Jun-16-2025 | 4.30 $* | 4.26 $* |
| May-16-2025 | 4.52 $* | 4.26 $* |
| Apr-16-2025 | 3.93 $* | 3.2 $* |
| Mar-16-2025 | 4.53 $* | 4.3 $* |
| Feb-16-2025 | 4.76 $* | 4.57 $* |
| Jan-16-2025 | 4.75 $* | 4.18 $* |
Характеристики
Product Overview

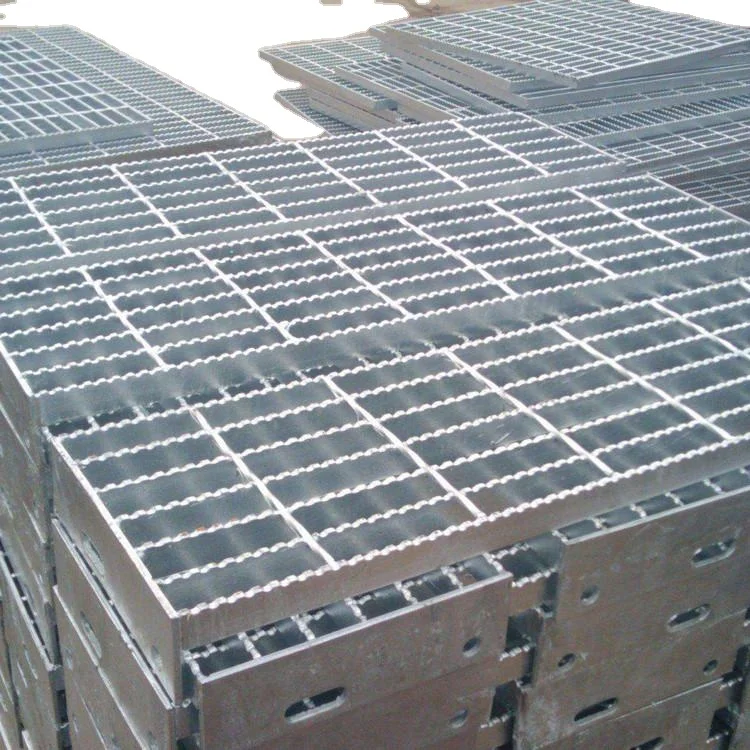

Plain Plat Form Platform Welded Walkway Steel Grating Channels for Door Mat

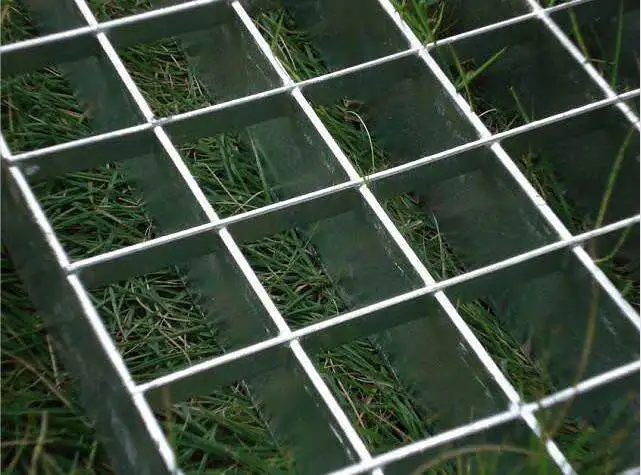

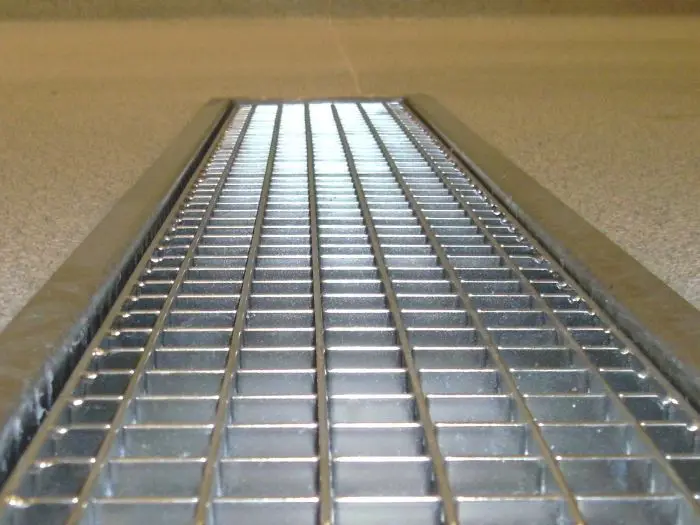

Steel bar grating is a good choice for strength, safety, long-term cost and durability. Bar Grating consists of a series of
bearing bars, welded (or otherwise joined) at various intervals to perpendicular cross bars to form a load-bearing panel. It is available in a wide selection of panel sizes; bar sizes, and material types.

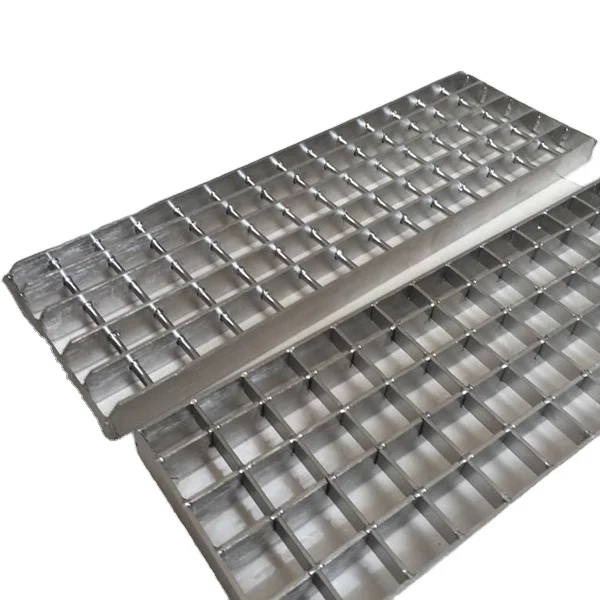

Stair treads are the horizontal sections of stairs that serve as the step surface of each step.
bearing bars, welded (or otherwise joined) at various intervals to perpendicular cross bars to form a load-bearing panel. It is available in a wide selection of panel sizes; bar sizes, and material types.
Stair treads are the horizontal sections of stairs that serve as the step surface of each step.
FEATURES AT A GLANCE
Details Images
PRODUCT SPECIFICATIONS
Common Specification of Steel Grating | ||
Remarks: Special Material, High Zinc Coating and New Style can be Customized. | ||
Material Standard | ASTM A36, A1011, A569, Q235, S275JR, Stainless steel 304/316, Mild steel & Low carbon steel, etc | |
Bearing Bar (Width x Thickness) | 25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10…..100 x10mm etc; I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc US standard: 1''x3/16'', 1 1/4''x3/16'', 1 1/2''x3/16'', 1''x1/4'',1 1/4''x1/4'', 1 1/2''x1/4'', 1''x1/8'', 1 1/4''x1/8'', 1 1/2''x1/8'' etc | |
Bearing Bar Pitch | 12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3,32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc. US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc. | |
Twisted Cross Bar Pitch | 38.1, 50, 60, 76, 80, 100, 101.6, 120mm, 2'' & 4'' etc | |
Surface Treatment | Untreated(black), Hot-dipped galvanized, Powder coated, Electroplate, Painting or as per customers' requirement. | |
Grating Style | Plain / Smooth, Serrated / Teeth, I bar, Serrated I bar | |
Packing | (1) Bandage and Paperboard: Generally applies to neat steel plate; (2) Screw Locking Method: Use 4 screw rods through the aperture of the steel grid, for high strength; (3) Steel Pallet: Traditional export packing. | |
Payment Term | T/T, L/C, Western Union, Credit Card, Alibaba Trade Assurance | |
Successful Project
Project in Thailand
Project in India
Project in Russia
Hot dipped galvanized steel grating prices steel grating
Metal Bar Grating is the workhouse of the industrial flooring market and has served industry for decades.Strong and durable with
an exceptional strength-to-weight ratio, metal bar grating can be easily fabricated to nearly any configuration.The high
percentage of open area makes bar grating practically maintenance-free and all products are fully recyclable.
an exceptional strength-to-weight ratio, metal bar grating can be easily fabricated to nearly any configuration.The high
percentage of open area makes bar grating practically maintenance-free and all products are fully recyclable.
Reminder :
How to order Steel Grating?
It’s better that you can provide drawings with detailed information like raw material, grating type, surface treatment,
quantities, etc.
It’s better that you can provide drawings with detailed information like raw material, grating type, surface treatment,
quantities, etc.
SIMILAR PRODUCTS
Expanded Metal Mesh
Expanded metal is a type of sheet metal which has been cut and stretched to form a regular pattern (often diamond-shaped) of metal
mesh-like material. It is commonly used for fences and grates, and as metallic lath to support plaster or stucco.
mesh-like material. It is commonly used for fences and grates, and as metallic lath to support plaster or stucco.
Welded Netting
he welded wire mesh is a metal wire screen that is made up of low carbon steel wire or stainless steel wire. It is available in
various sizes and shapes.
various sizes and shapes.
Chain Link Wire Mesh Fence
Chain-link fence (also referred to as wire netting, wire-mesh fence, chain-wire fence, cyclone fence, hurricane fence, or
diamond-mesh fence) is a type of woven fence usually made from galvanized or LLDPE-coated steel wire.
diamond-mesh fence) is a type of woven fence usually made from galvanized or LLDPE-coated steel wire.
FAQ
Q1:Are you a trading company or a factory?
We are one of industry and trade.
Q2: How can I get a quote?
Contact us with specification, size, quantity and your port, then fast quote with be sent.
Q3:Can the products be customized?
Yes.The company has a professional design team, strict management system, can quickly design according to customers' drawings for free, and provide professional production plans to ensure the rights and interests of every customer.
Q4:What is your payment method?
30% advance payment
We are one of industry and trade.
Q2: How can I get a quote?
Contact us with specification, size, quantity and your port, then fast quote with be sent.
Q3:Can the products be customized?
Yes.The company has a professional design team, strict management system, can quickly design according to customers' drawings for free, and provide professional production plans to ensure the rights and interests of every customer.
Q4:What is your payment method?
30% advance payment
